Basic Specifications
Anilox Roller
Ceramic Anilox Roller
Max. Printing Width
1350mm
Printing Repeat
300-1200mm
Printing Material
60-350GSM Paper Roll
Product Features

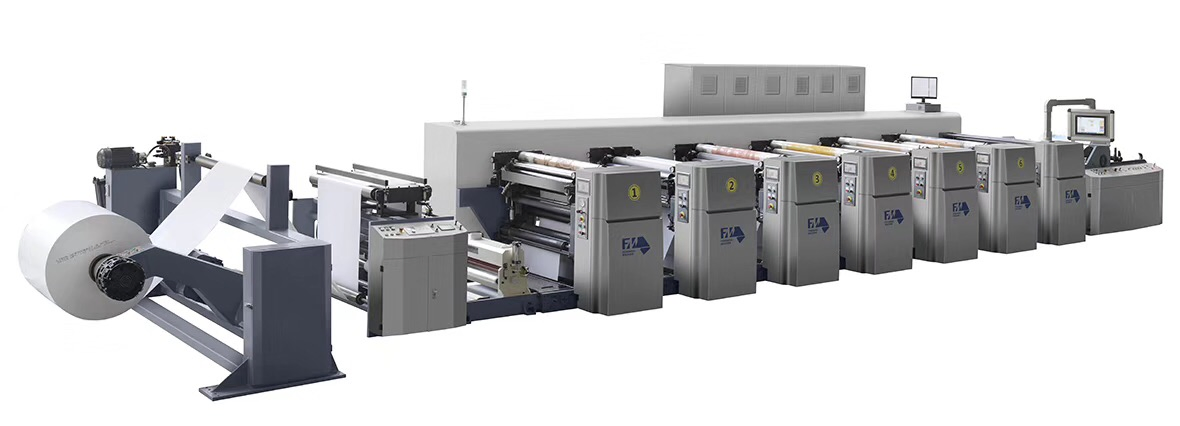

FM-CS1020-1350 Flexographic Printing Machine (Petal Type)
- Petal type plate mounting, anilox and cylinder with quick change structure.
- Printing unit easy operation, cylinder and anilox pressing once successfully.
- Plate full servo shaftless transmission, automatically pre-print, time saving & material saving.
- Registering remains the same during lifting process.
- Register position automatic memory function.
Applications & Materials
Suitable for eco-friendly packaging: Paper bags for food and healthcare, paper boxes, paper cups, pre-printing cartons, courier bags, milk cartons, and medicine use.
Materials compatible: Kraft paper, paperboard, coated paper, liner paper, laminated paper, multilayer composite paper, carton board materials, etc.
Technical Parameters
| Specification |
1020 |
1300 |
1350 |
| Max. Web Width | 1020mm | 1300mm | 1370mm |
| Max. Printing Width | 1000mm | 1270mm | 1350mm |
| Printing Repeat | 300-1200mm | 300-1200mm | 300-1200mm |
| Max. Unwinder/Rewinder | 1524mm | 1524mm | 1524mm |
| Max Printing Speed | 160-200m/min | 160-200m/min | 160-200m/min |
| Diameter of web roller | 100mm | 100mm | 100mm |
| Drying mode | Hot Air Drying / IR Drying / UV Drying |
| Printing Material | 60-300gsm paper roll |
Frequently Asked Questions
What types of materials can this flexo printing machine handle?
The machine is designed to print on various paper materials ranging from 60-350GSM, including kraft paper, paperboard, coated paper, and laminated or composite paper.
What is the maximum printing speed of the FM-CS series?
The machine offers high-speed production capabilities, reaching a maximum printing speed of 160-200 meters per minute.
What drying technologies are integrated into the equipment?
It features a versatile drying system that includes Hot Air Drying, IR (Infrared) Drying, and UV Drying modes to accommodate different ink types and production needs.
What are the advantages of the petal-type plate mounting?
The petal-type structure allows for quick changes of the anilox and cylinder. It ensures that the cylinder and anilox pressing is successful in one attempt, significantly improving operational efficiency.
Does the machine feature automatic registration memory?
Yes, the machine includes a register position automatic memory function and a full servo shaftless transmission for automatic pre-printing, which saves both time and material.
What is the maximum web width capacity for the 1350 model?
The 1350 model can accommodate a maximum web width of 1370mm with a maximum printing width of 1350mm.
