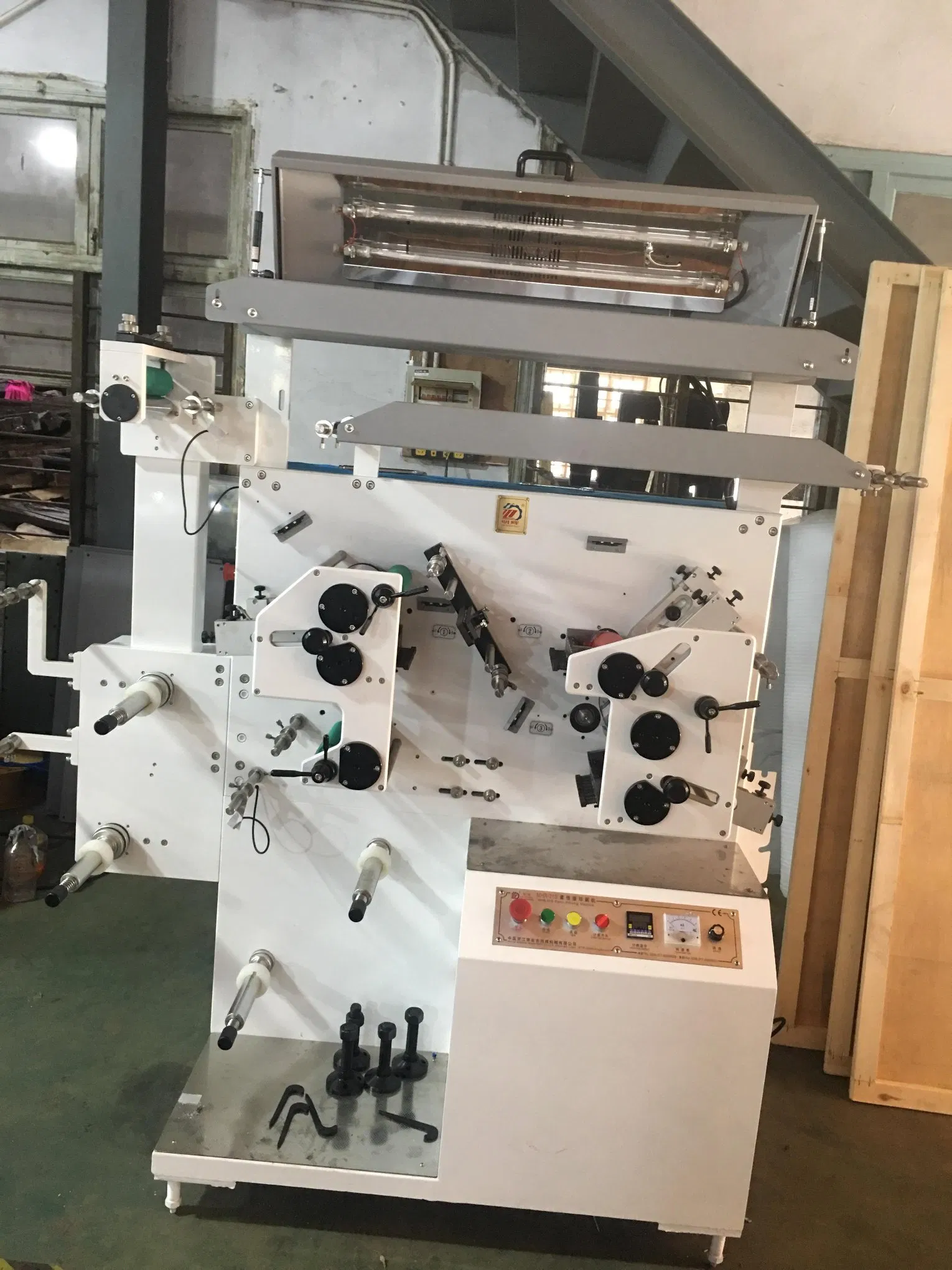

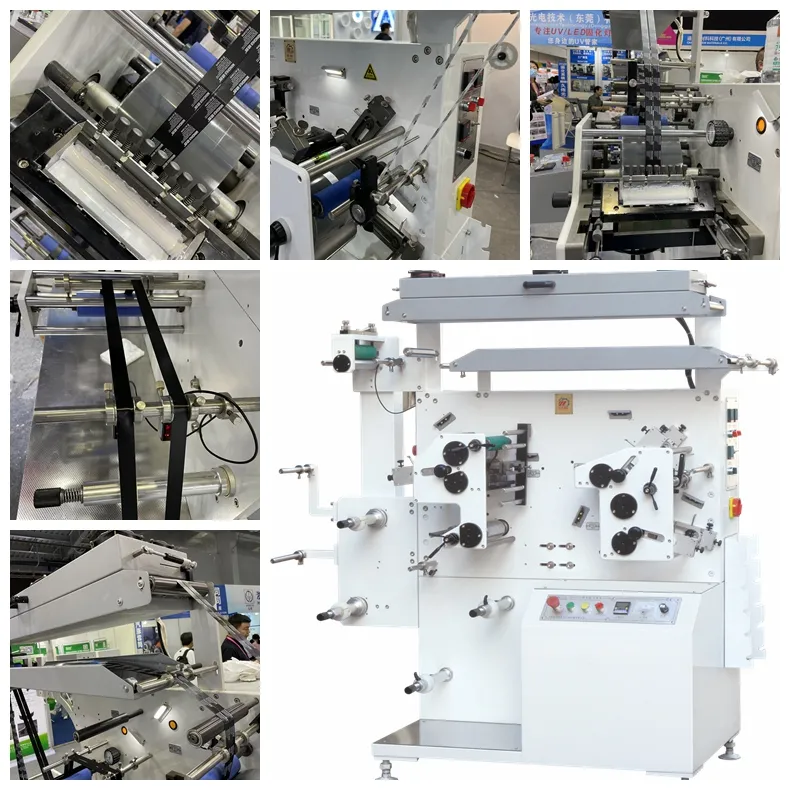

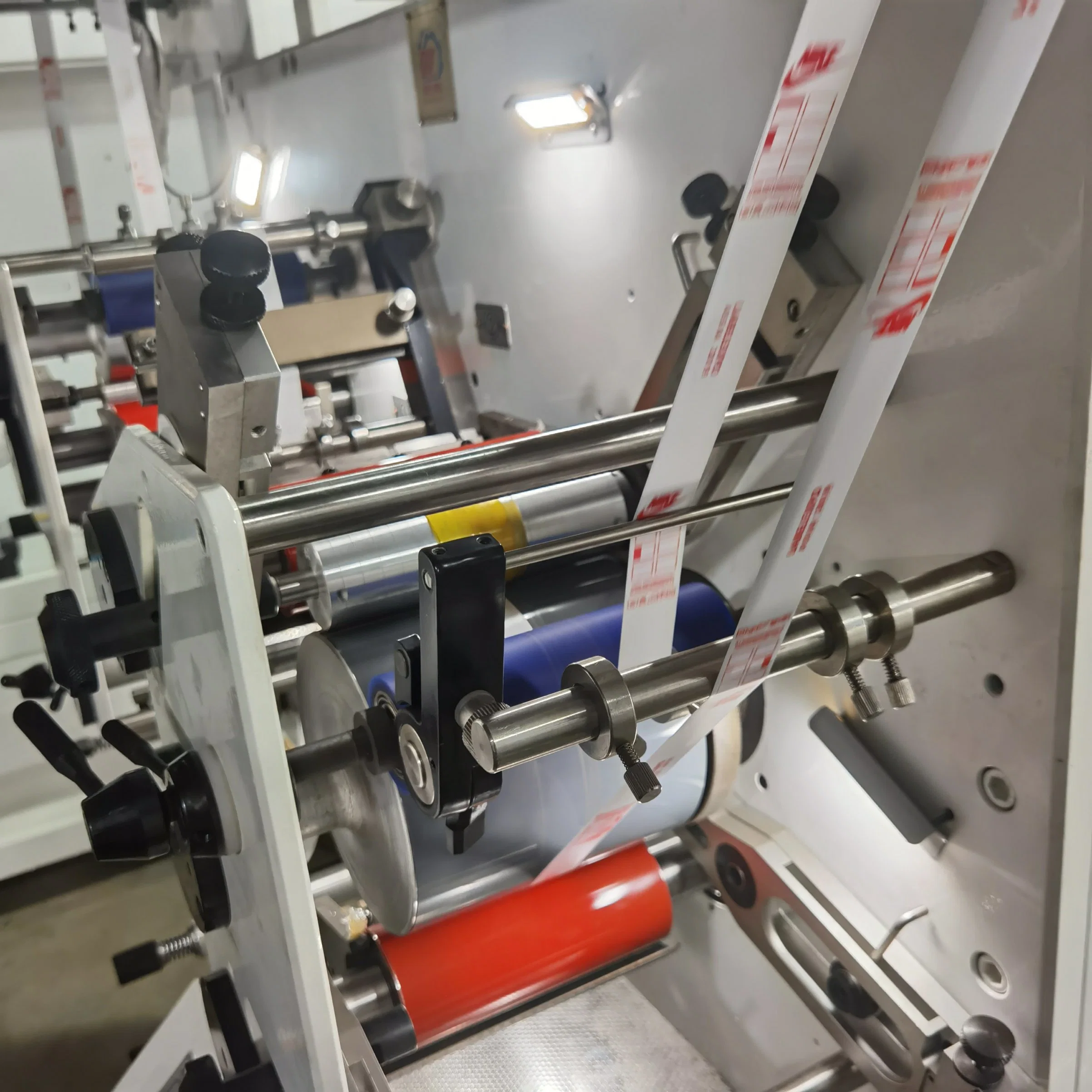

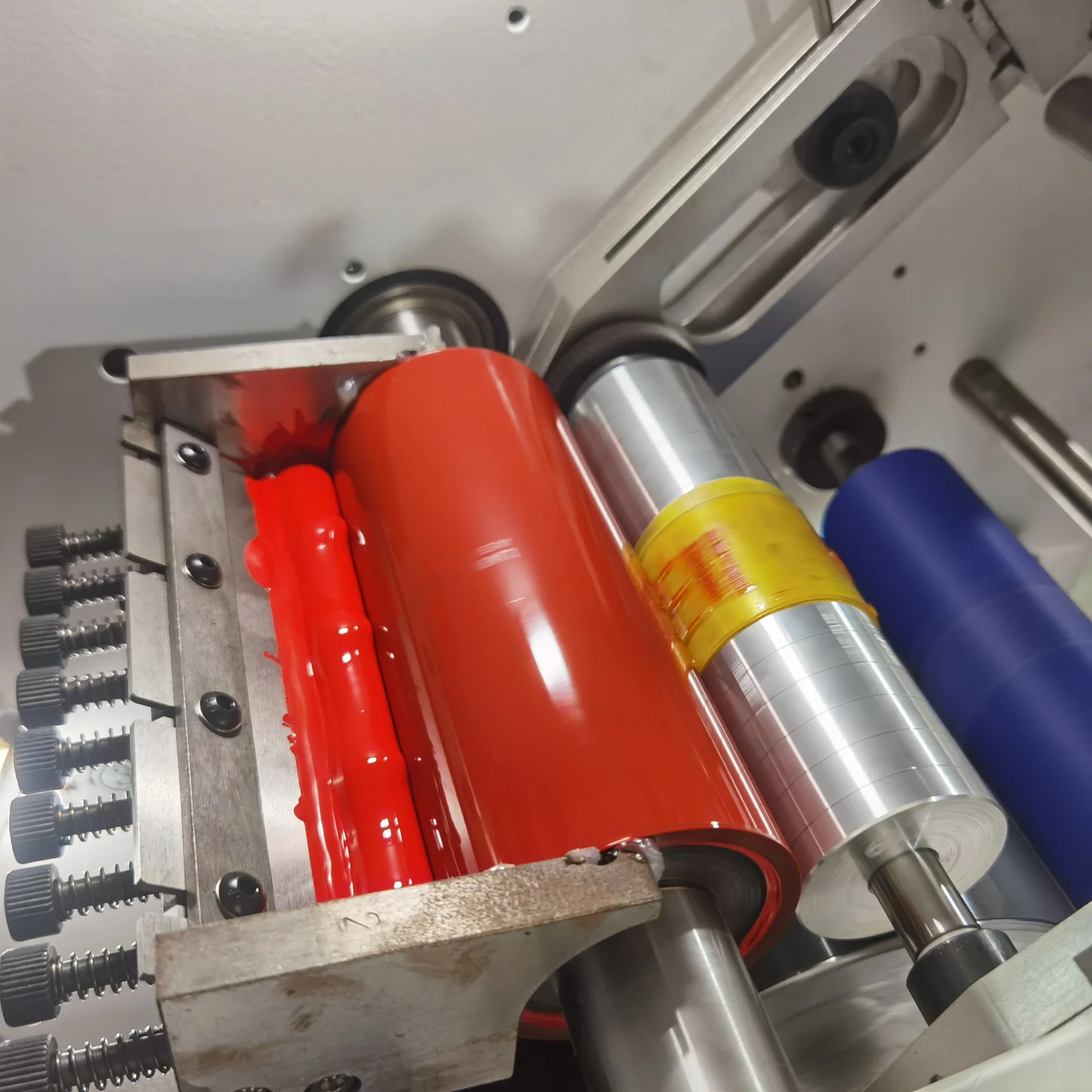

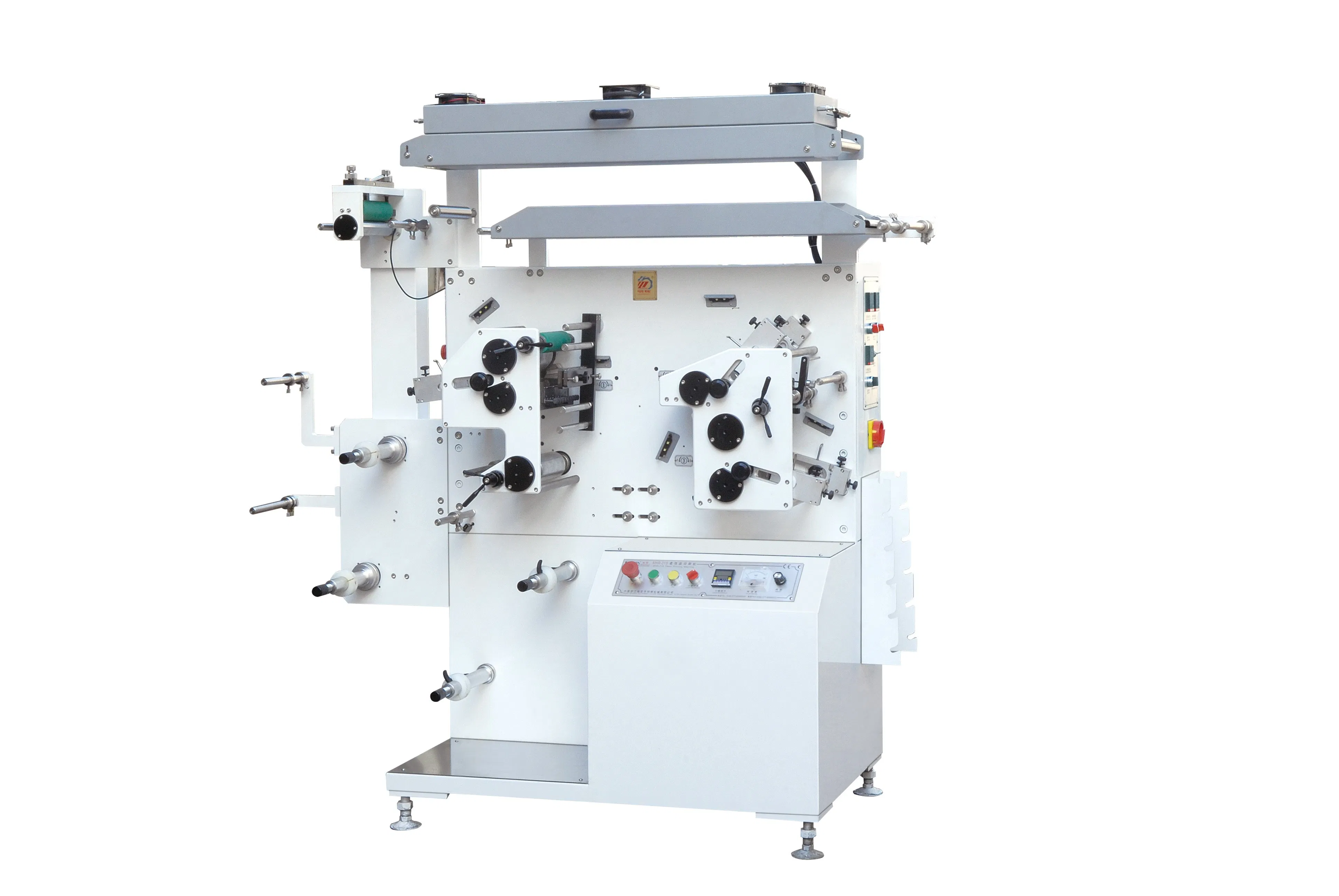

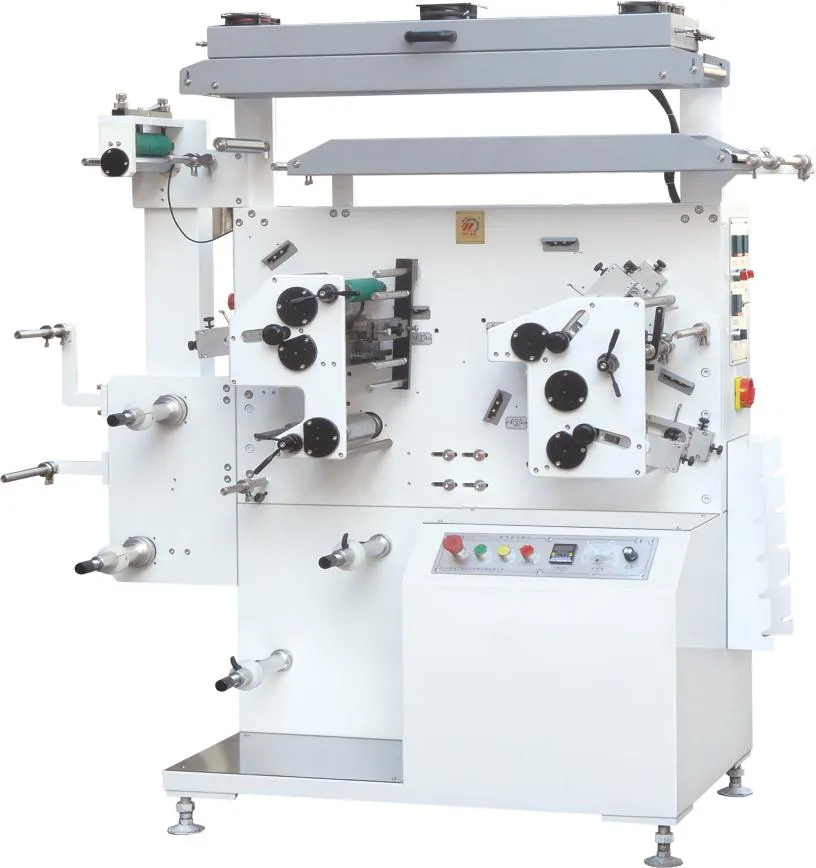

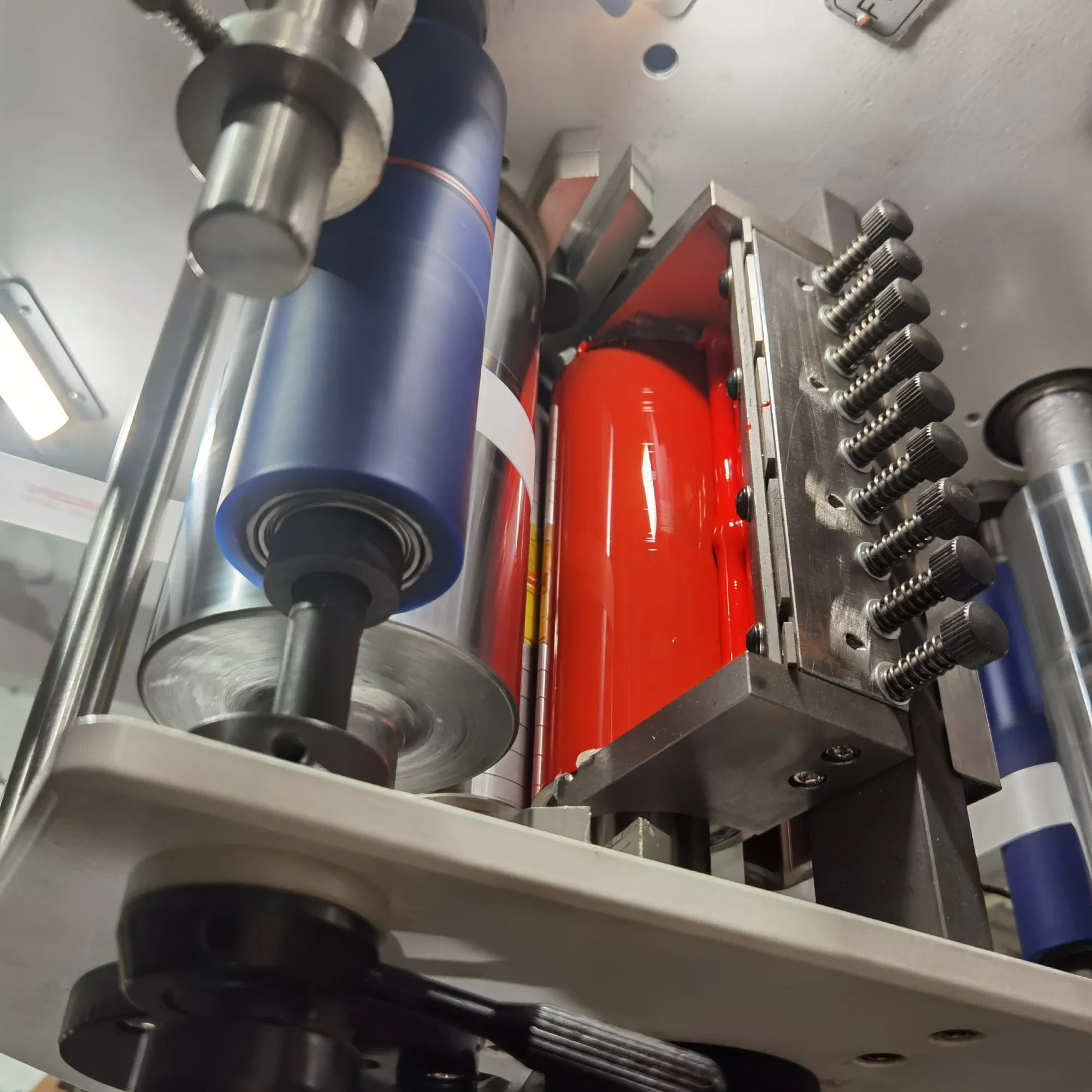

This machine finishes the printing through the high precision mesh cylinder to convey the ink evenly to the printing cylinders which then directly print the ink by pressing on the tape surface. After that they are dried through the drying system. Then the whole printing is finished. It has 6 kinds of printing cylinders for the user to exchange. In this way, it changes the printing length, featuring accurate printing. It can print 60 meters per hour.
Advantages:
| Model | MHR1S | MHR21S | MHR31S | MHR42S | MHR62S |
|---|---|---|---|---|---|
| Front side printing | 1 colors | 2 colors | 3 colors | 4 colors | 6 colors |
| Back side printing | - | 1 colors | 1 colors | 2 colors | 2 colors |
| Max. Printing length | 401mm | 401mm | 401mm | 401mm | 401mm |
| Min. Printing length | 108mm | 108mm | 108mm | 108mm | 108mm |
| Max. Printing width | 150mm | 150mm | 150mm | 150mm | 150mm |
| Max. Printing speed | 60m/min | 60m/min | 60m/min | 60m/min | 60m/min |
| Feeder Capacity | 400mm | 400mm | 400mm | 400mm | 400mm |
| Power | 2.4kw | 2.4kw | 2.4kw | 3.2kw | 3.2kw |
| Weight | 342 kg | 560 kg | 700 kg | 800 kg | 950 kg |

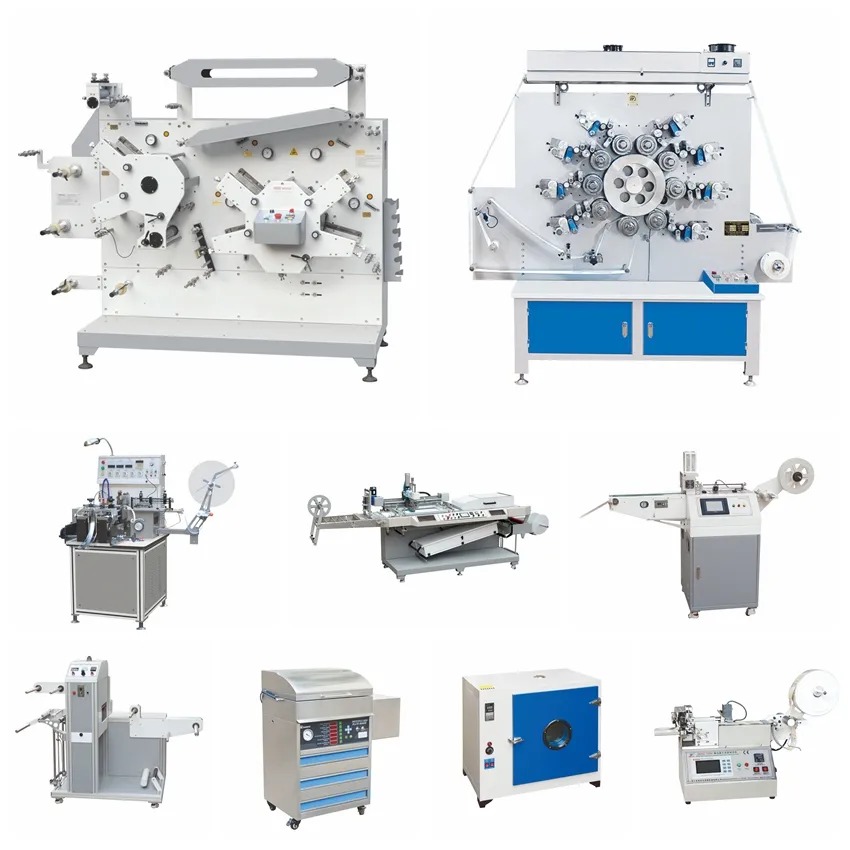

Specialized in design and manufacturing textile fabric label printing machines, including silk screen printing, label cutting, and folding machines. These are widely used in garment, shoe, toy, and bedding labels.
With more than 30 years of experience in this field and over 20 patents, our machinery is distributed globally across the Middle East, Europe, South America, Africa, Asia, and Australia.
