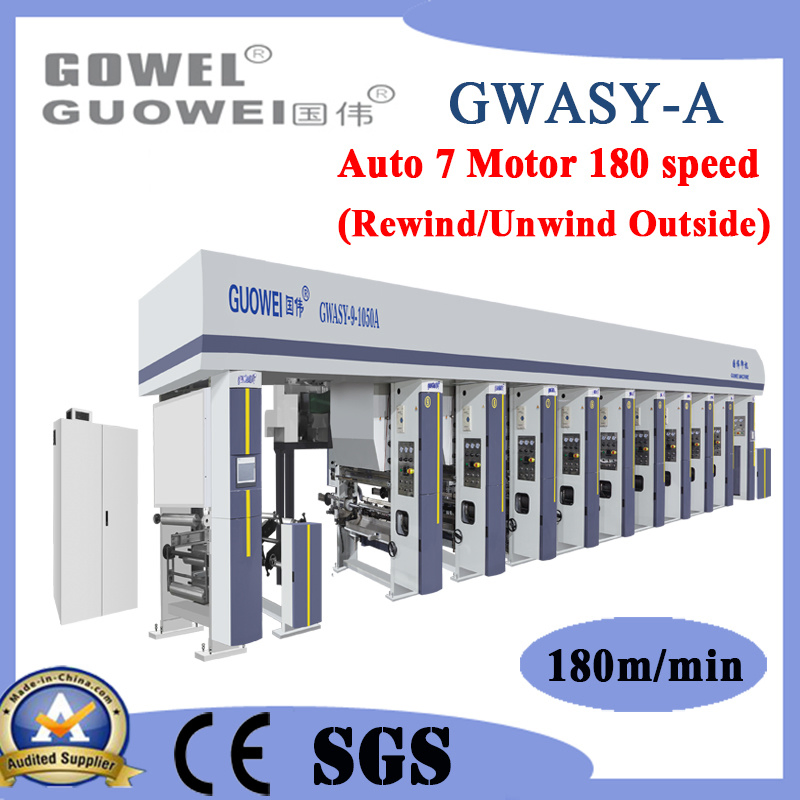

Film Rotogravure Printing Equipment with Electric/Steam/Oil Heating
Film Rotogravure Printing Equipment with Electric/Steam/Oil Heating
Film Rotogravure Printing Equipment with Electric/Steam/Oil Heating
Film Rotogravure Printing Equipment with Electric/Steam/Oil Heating
Film Rotogravure Printing Equipment with Electric/Steam/Oil Heating
1 / 5
Film Rotogravure Printing Equipment with Electric/Steam/Oil Heating
Film Rotogravure Printing Equipment with Electric/Steam/Oil Heating
Film Rotogravure Printing Equipment with Electric/Steam/Oil Heating
Film Rotogravure Printing Equipment with Electric/Steam/Oil Heating
Film Rotogravure Printing Equipment with Electric/Steam/Oil Heating

Film Rotogravure Printing Equipment with Electric/Steam/Oil Heating

Customization: Available
Certification: CE
Condition: NEW
Send Inquiry

Product Description

Basic Specifications

Model NO.
GWASY-A
Automatic Grade
Automatic
Applicable Material
Textile, Film, Paper, Plastic
Printing Speed
180 M/Min
Printing Color
8 (Adjustable)
Drying Method
Electric/Steam/Oil Heating
Register Precision
+-0.1mm
Guarantee
1 Year

Film Rotogravure Printing Equipment

Application: This machine is optimized for printing on BOPP, PET, PVC, PE, aluminum foil, and roll paper. It is widely applied in high-grade continuous color printing for flexible packaging.
  • Unwind and Rewind outside type with fast air shaft loading/unloading.
  • Vertical register system for high precision and minimal material waste.
  • Double-axis doctor blade driven by independent motor.
  • Patent technology dry oven with high-temperature axial fans.
  • Siemens PLC control and YASKAWA frequency converter system.

Technical Parameters

Printing MaterialBOPP, PET, PVC, PE, aluminum foil and roll paper
Colors8 (Customizable from 1-13)
Max. Printing Width600mm, 800mm, 1000mm, 1100mm, 1200mm
Max. Printing Speed180 m/min
Cylinder Diameter100-320 mm
Heating TypeElectric, Steam, or Oil heating
Register Precision+-0.1mm

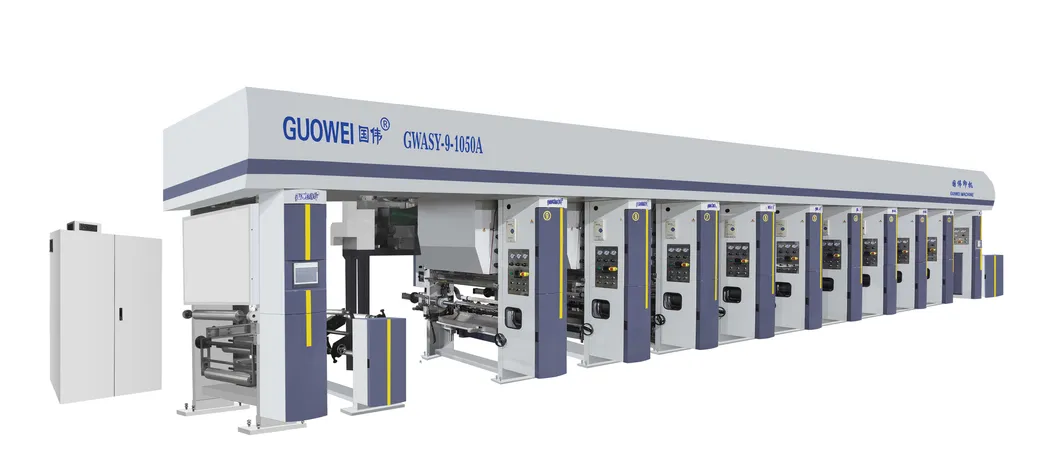

Printing Equipment Main

Core Unit Details

Unwinding & In-feed Unit

  • Double working position rotary rack with 360-degree rotation.
  • Closed-loop tension control with oscillating roll stabilization.
  • Independent vector frequency conversion control.
  • Traction roller clutch regulated by pneumatic components.

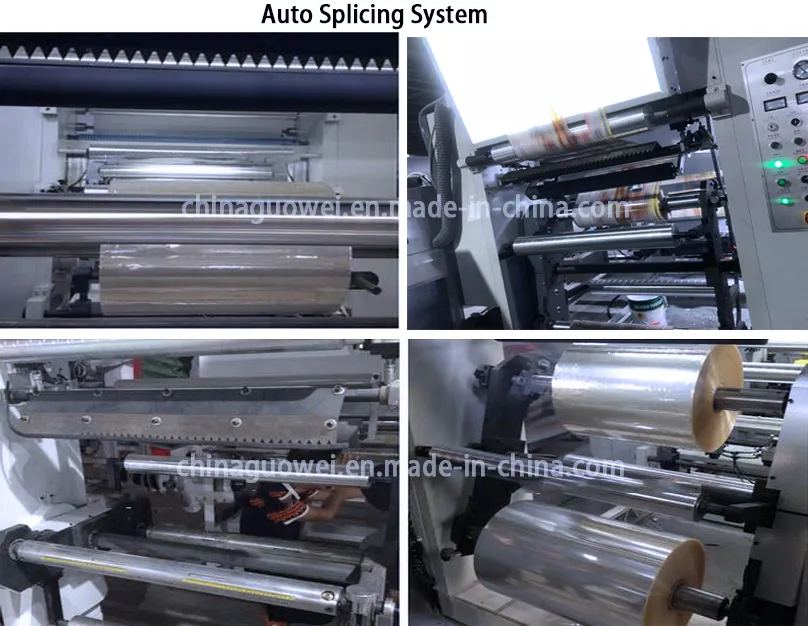

Unit Detail 1

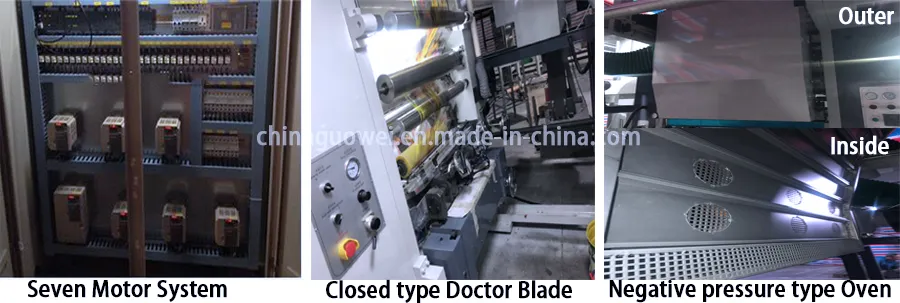

Unit Detail 2

Drying & Rewinding Unit

  • Independent drying system for monochromatic groups; energy-saving heat return utilization.
  • Continuous constant temperature intelligent control (Max 75ºC).
  • High-speed non-stop refueling with automatic cutting and volume drive.
  • Integral high-strength low alloy cast iron wall stress frame.

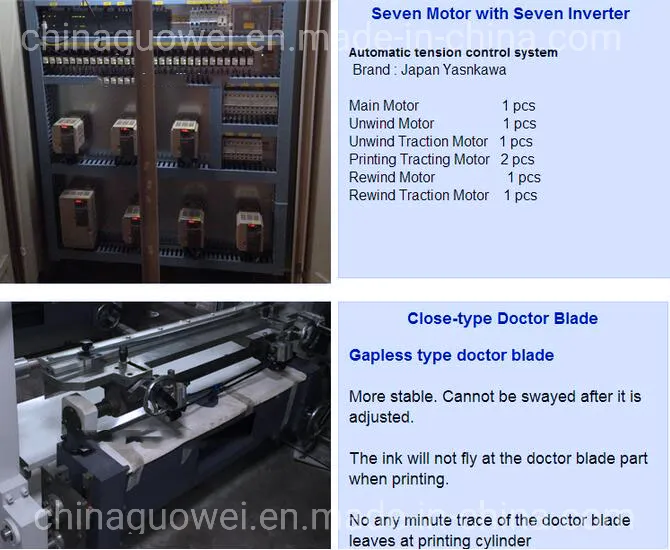

Unit Detail 3
Unit Detail 4
Unit Detail 5

Delivery & Workshop

Delivery

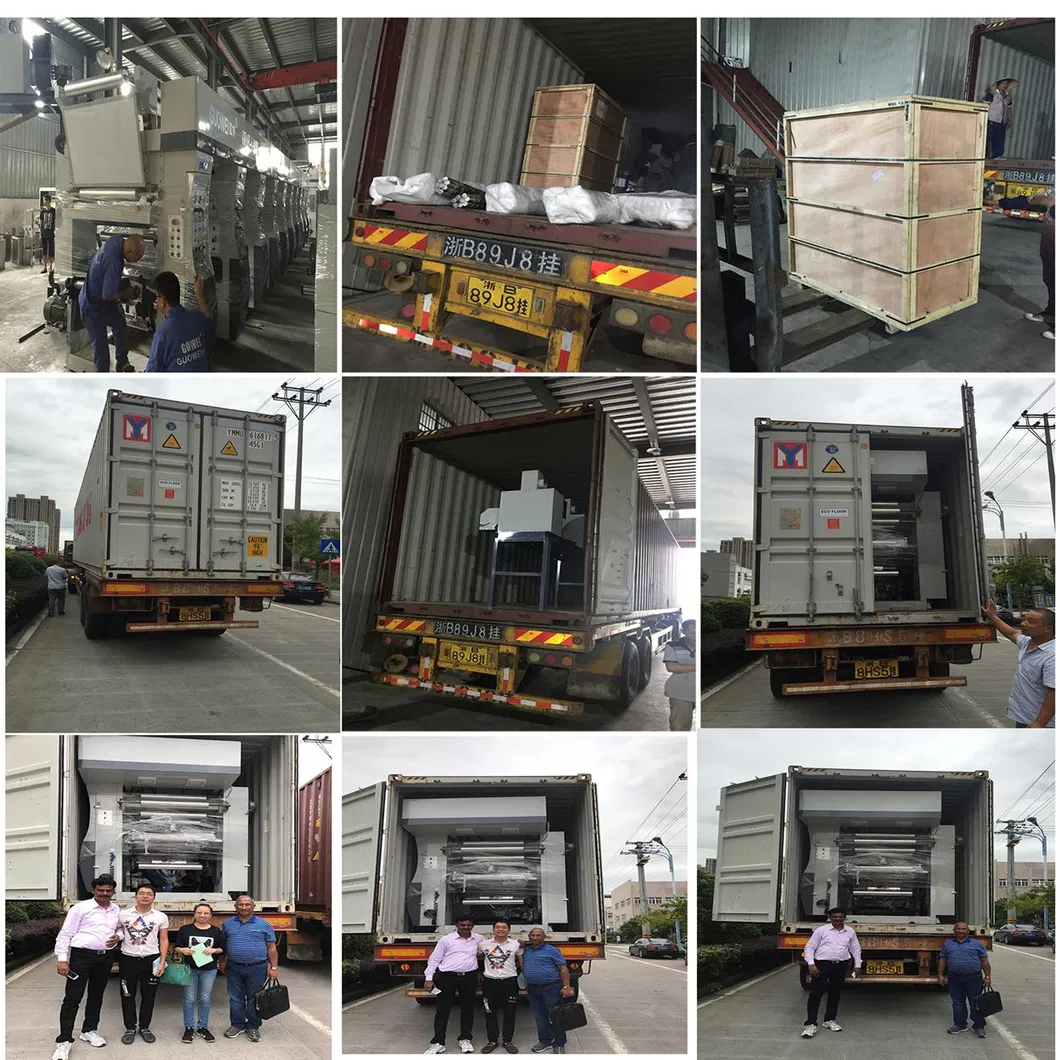

Packaging

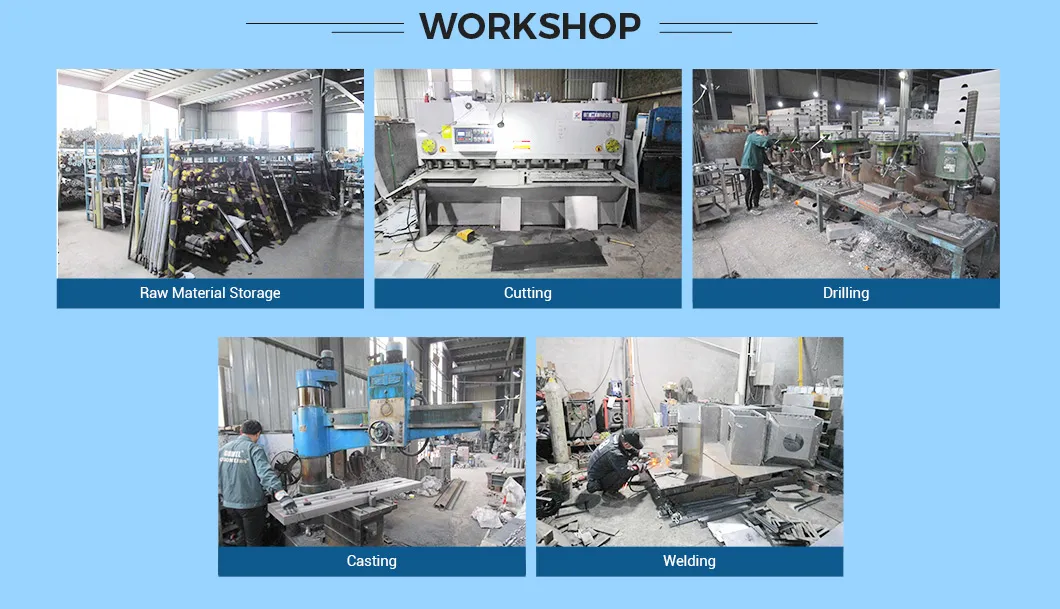

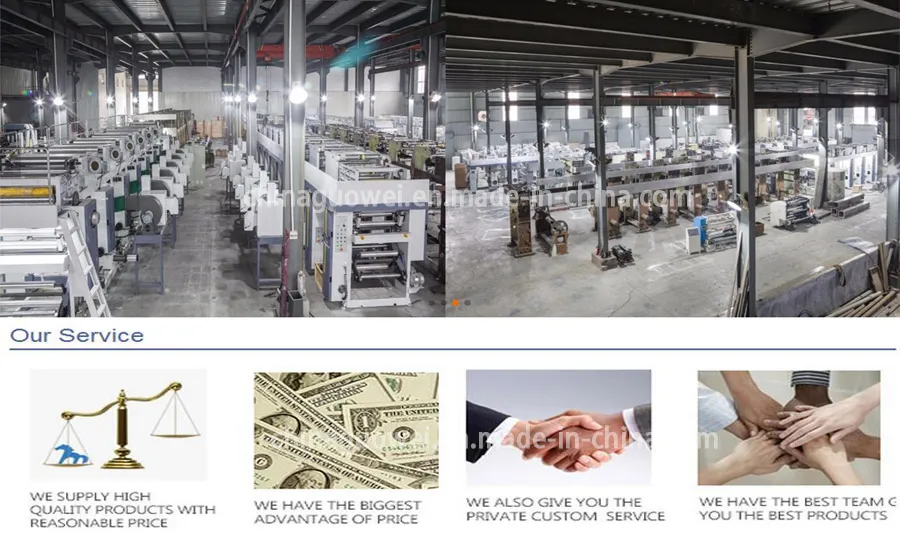

Workshop
Packaging Details: Wooden pallet or plastic film.
Delivery Time: 30-60 days.
Port: Ningbo Port.

Frequently Asked Questions

What materials are compatible with this rotogravure printing machine?
The machine is designed for BOPP, PET, PVC, PE, aluminum foil, and various types of roll paper.
What is the maximum printing speed and precision?
The machine reaches a maximum speed of 180 meters per minute with a register precision of ±0.1mm.
What kind of heating system does the drying oven use?
It supports electric heating, steam heating, or oil heating methods to suit different production environments.
Does the machine support non-stop roll changes?
Yes, the rewinding part features high-speed non-stop refueling with automatic cutting and synchronized volume drive.
What is the warranty and after-sales policy?
The machine comes with a 1-year guarantee. Engineers are available for overseas machinery service, including installation and training.
How is the machine's tension controlled?
It utilizes a seven-motor tension control system combined with a Siemens PLC and YASKAWA frequency converters for high stability.
