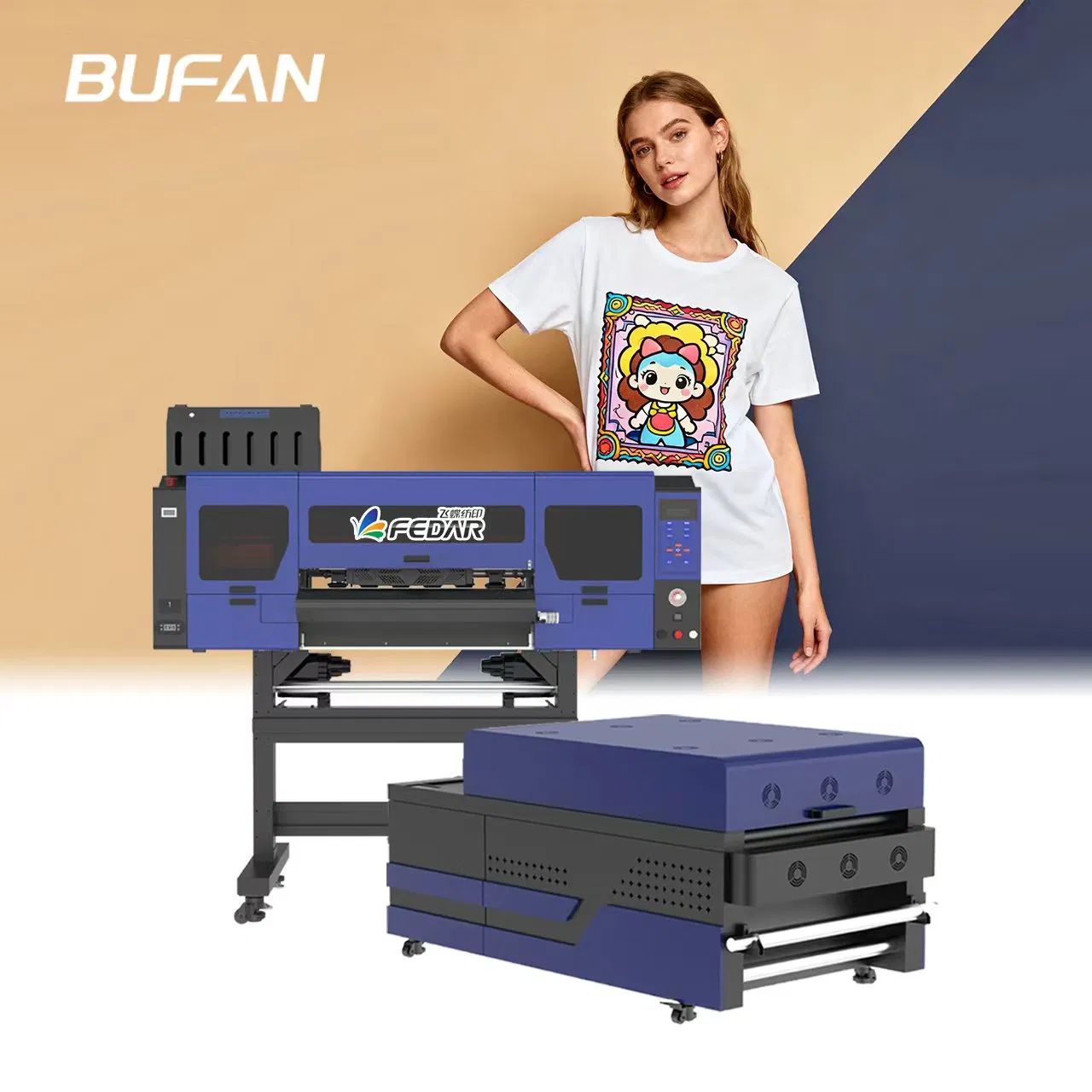

Fedar Equipped with 4 Epson I3200 Print Heads, Printing Dtf White Ink Heat Transfer Machine with a Width of 600mm

Customization: Available
After-sales Service: Video Technial Support or Online Support
Warranty: 1 Year

Product Description

📋

Basic Information

Model NO.
FD70-4
Plate
Inkjet Printer
Printing Speed
4 Pass 22sqm/h
File Format
Tiff, JPG, EPS, Pdf, etc.
Environment
Temp:15°C-30°C Humidity:35%-65%
Trademark
FEDAR
HS Code
8443322100
Transport Package
Wooden Box
📦

Packaging & Delivery

Package Size
415.00cm * 137.00cm * 214.00cm
Gross Weight
1500.000kg
💎

Product Description

Advanced DTF Printer for Professional Quality T-Shirt Production

The remarkable FD70-4 DTF Printer is a cutting-edge machine engineered for precision, reliability, and superior quality output. Revolutionize your printing experience with our advanced technology that transfers intricate designs directly onto film, eliminating the necessity for extra transfer papers. This innovative process ensures vibrant, full-color prints perfect for elevating your creative projects.

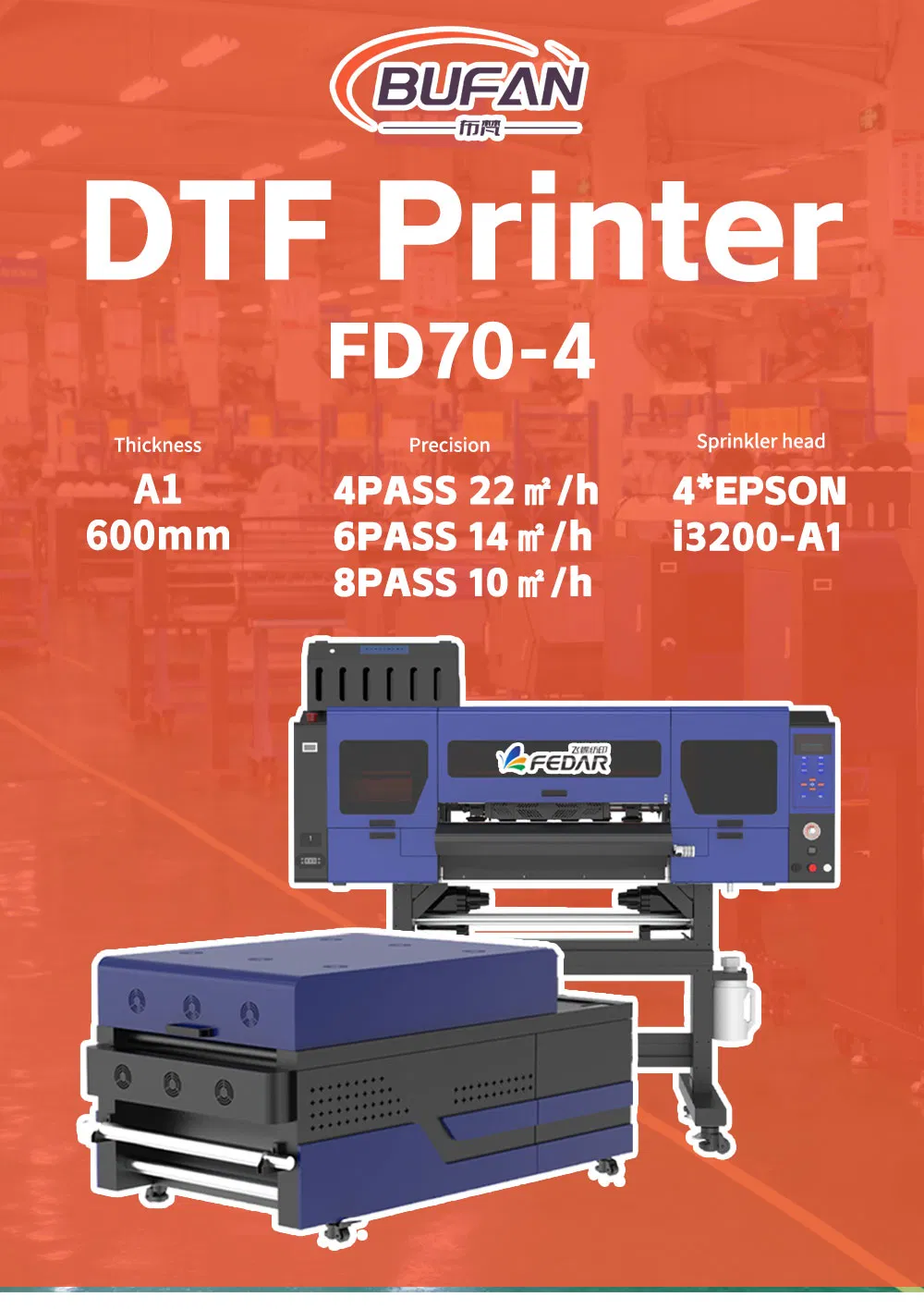

ModelDTF printer FD70-4
Print Head4*i3200A print head
Max Printing Width600mm
Printer Speed4 Pass 22m²/h , 6 Pass 14 m²/h
Rated PowerPrinter: 1 KW | Dryer: Max 3.5 KW
Ink TypeTextile pigment ink (FY/FM/FB/FR/FG/C/M/Y/K/W)
Net Weight205KG
Gross Weight250KG

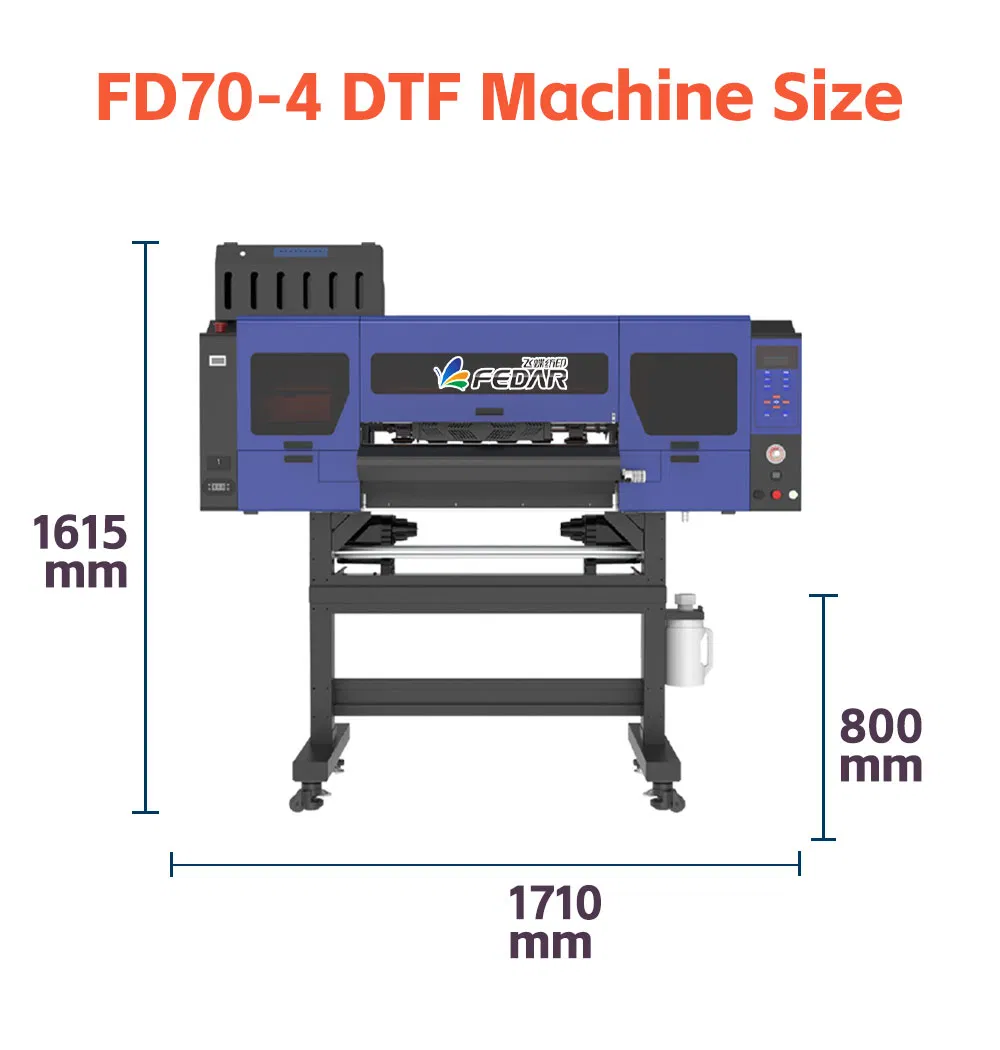

Printer Size1865(L)*676(W)*1840(H)mm
🖼️

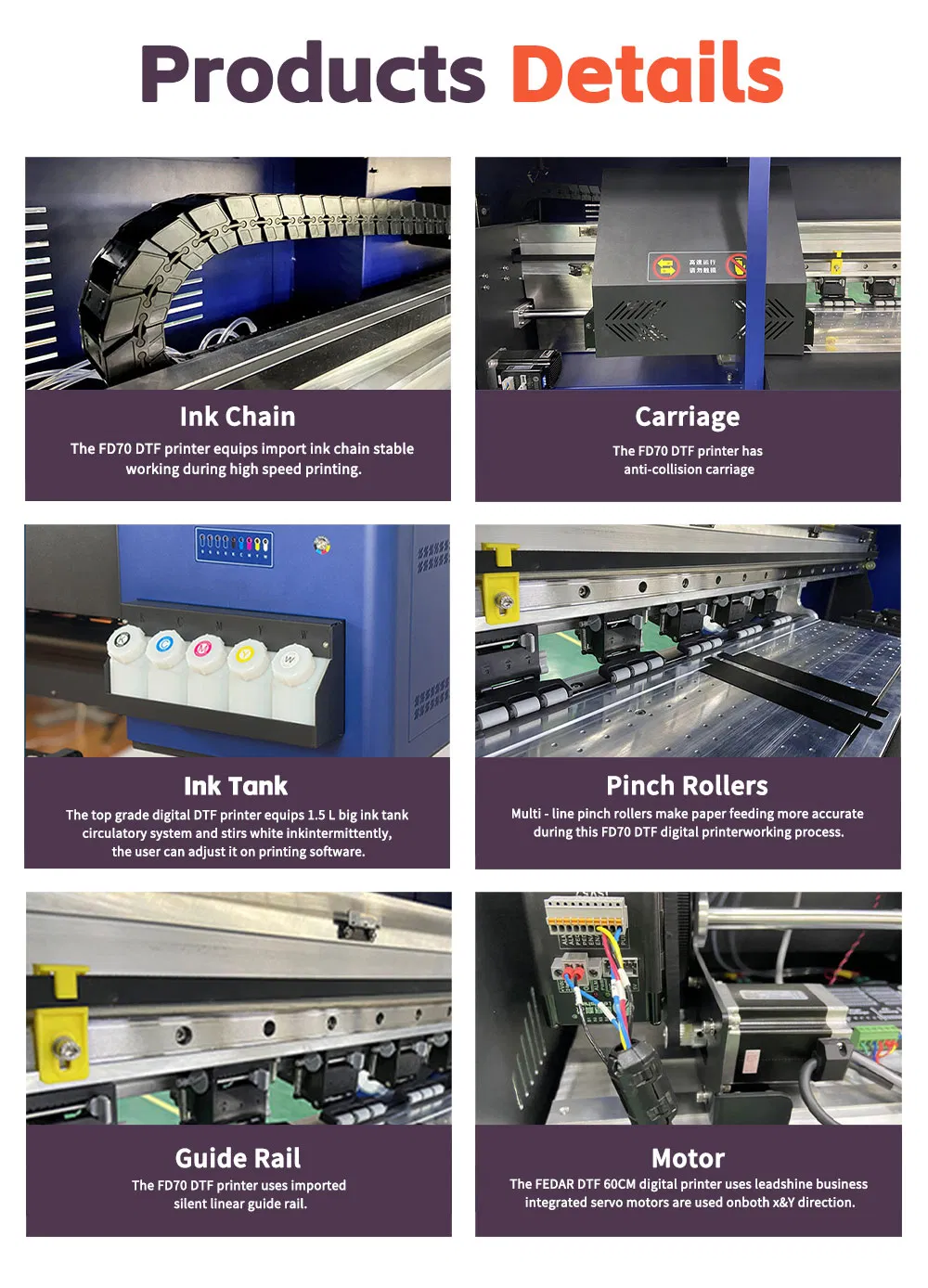

Product Showcase

Frequently Asked Questions

What materials can be printed using the FD70-4 DTF printer?
This DTF printer is highly versatile and can print on a wide range of fabrics, including cotton, polyester, nylon, canvas, and blends, making it ideal for T-shirts, hoodies, and sportswear.
What is the advantage of using 4*i3200A print heads?
The 4*i3200A print heads provide significantly higher printing speeds and exceptional resolution compared to single or dual-head setups, ensuring professional-grade quality for high-volume production.
Does this printer require special transfer paper?

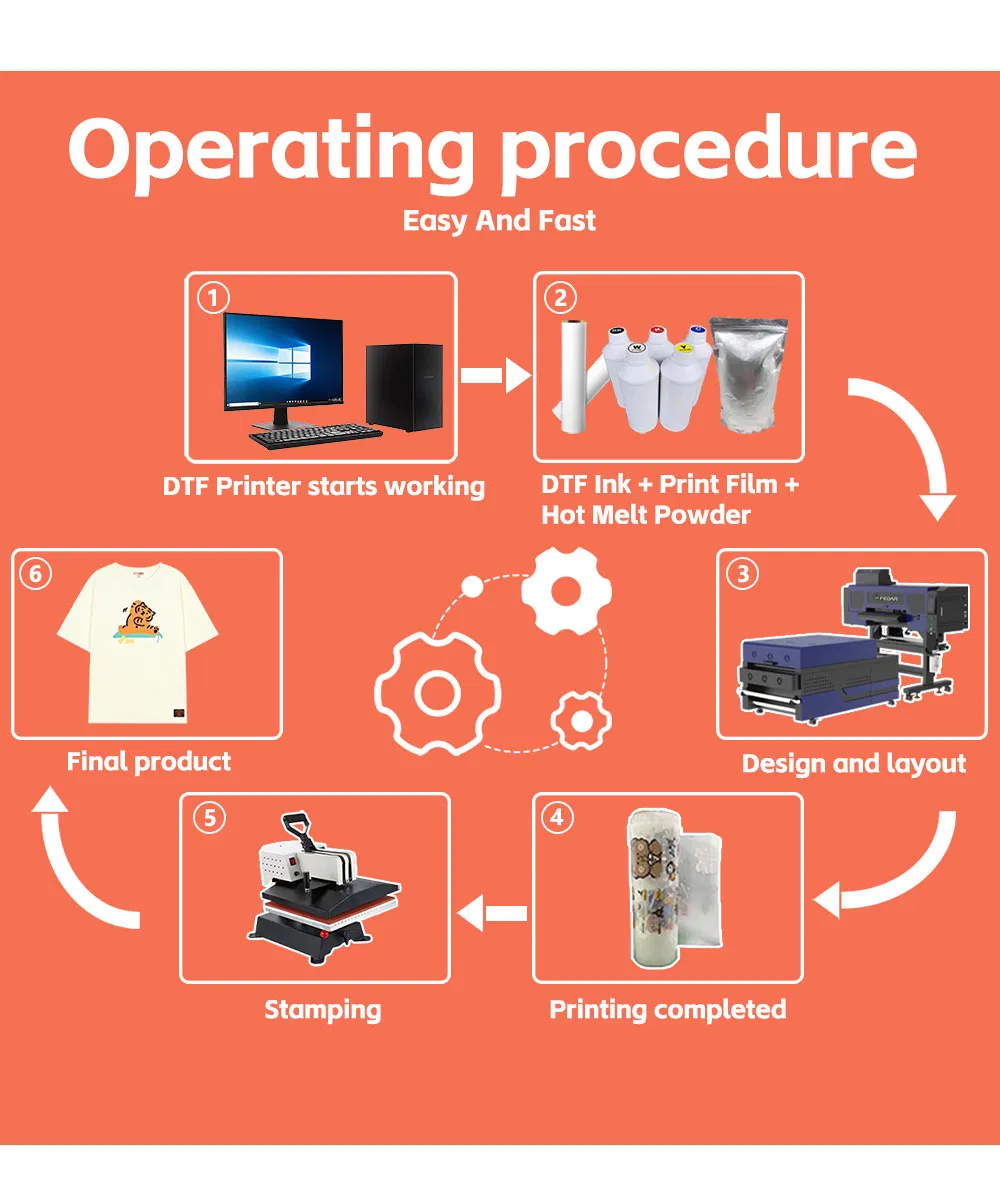

No, DTF (Direct to Film) technology transfers designs directly onto a special film, which is then applied to the garment. This eliminates the need for the traditional pre-treatment required in DTG or extra transfer papers.
What ink type does the machine use?
The machine uses high-quality textile pigment inks, available in CMYK and White, as well as fluorescent colors like FY, FM, FB, FR, and FG for vibrant and durable results.
What is the maximum printing width of this model?
The FD70-4 supports a maximum printing width of 600mm, which is perfect for most garment and textile applications.
What file formats are supported for printing?
The system supports professional design formats including Tiff, JPG, EPS, and PDF, allowing for seamless integration with standard RIP software.
