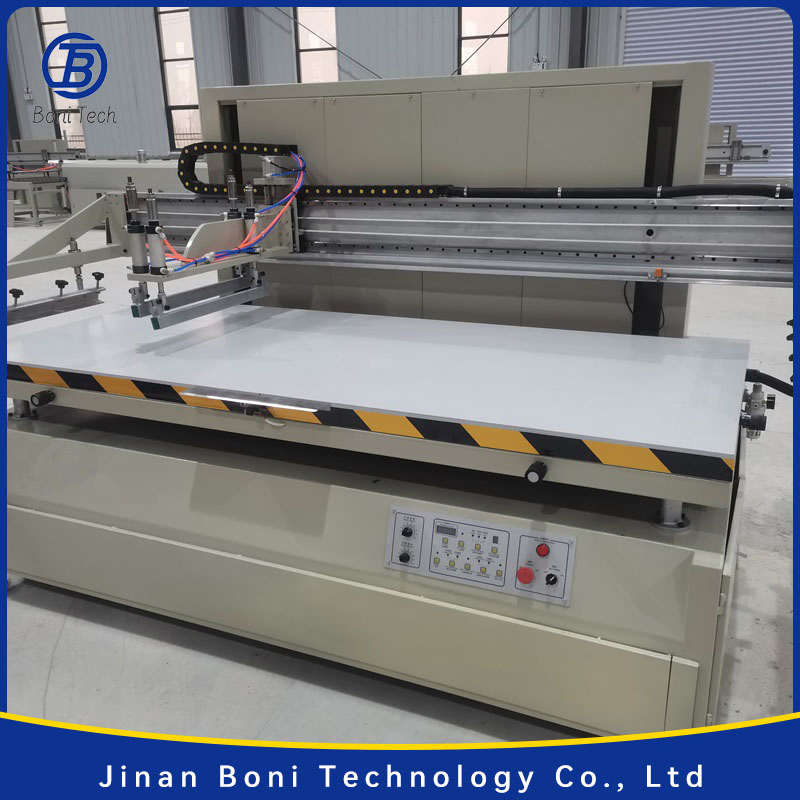

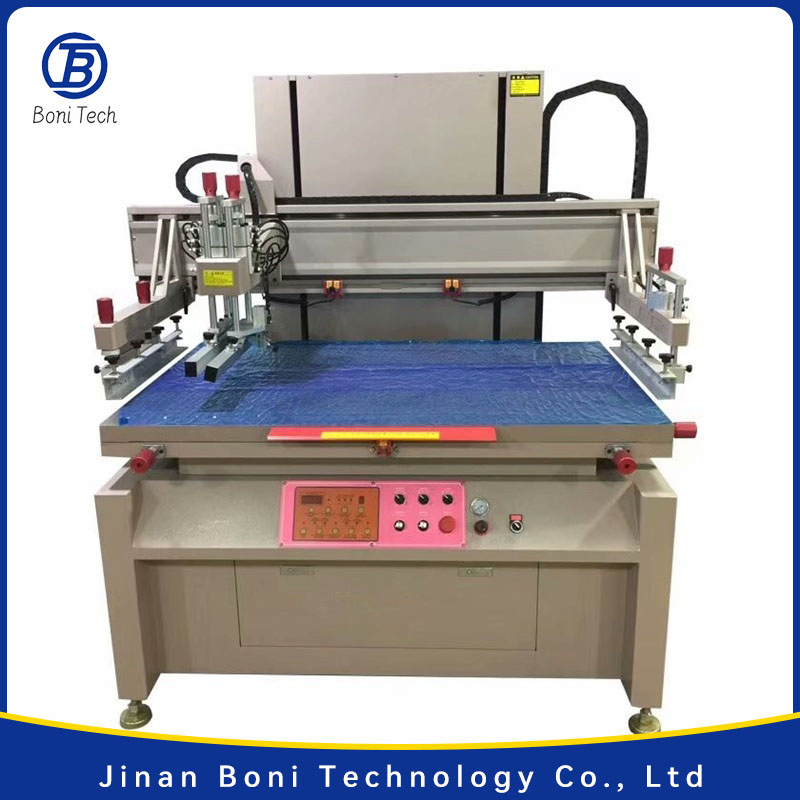

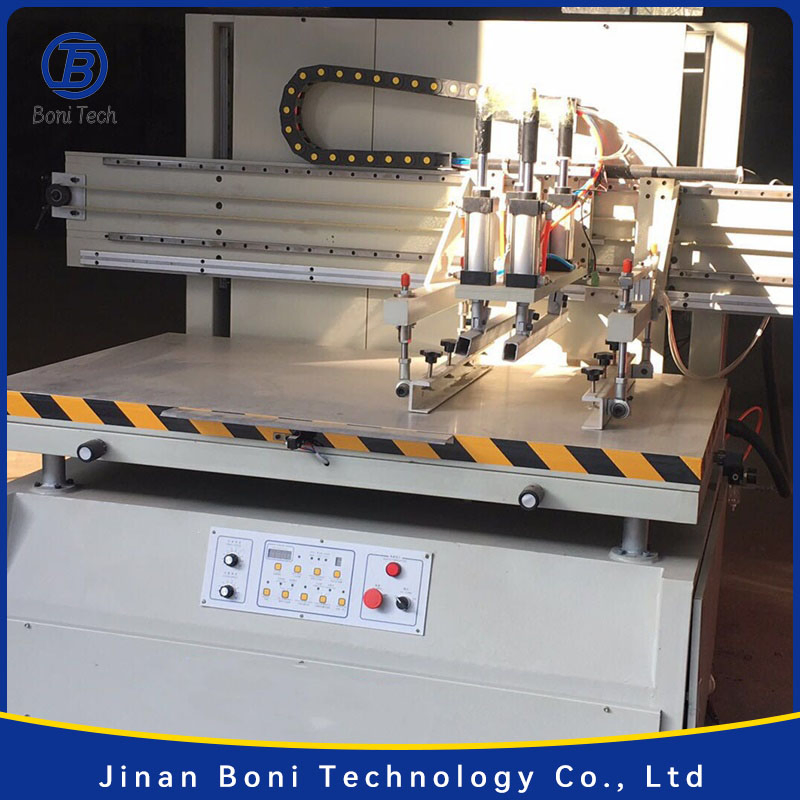

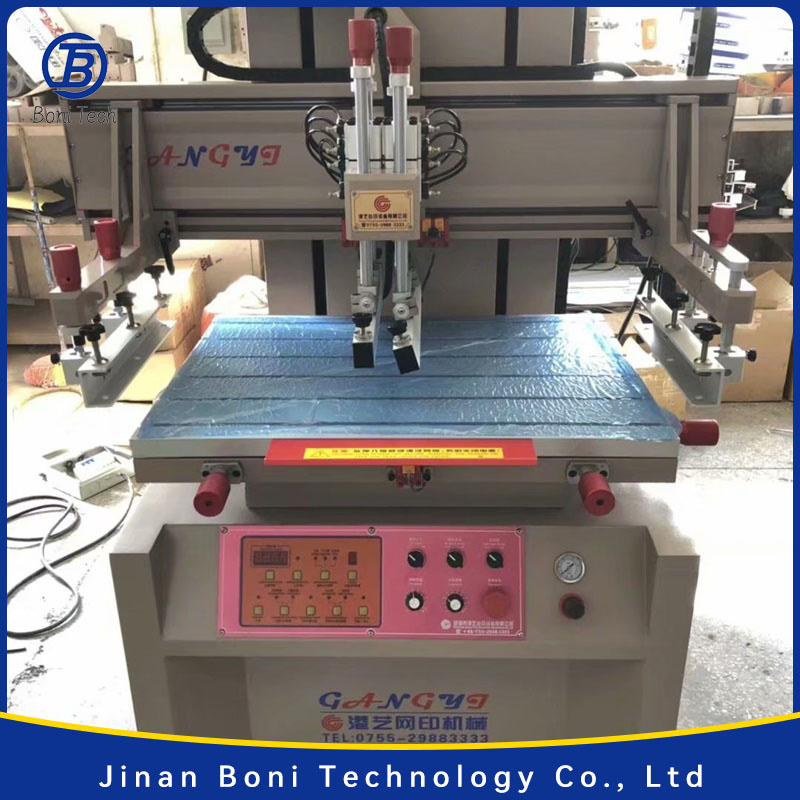

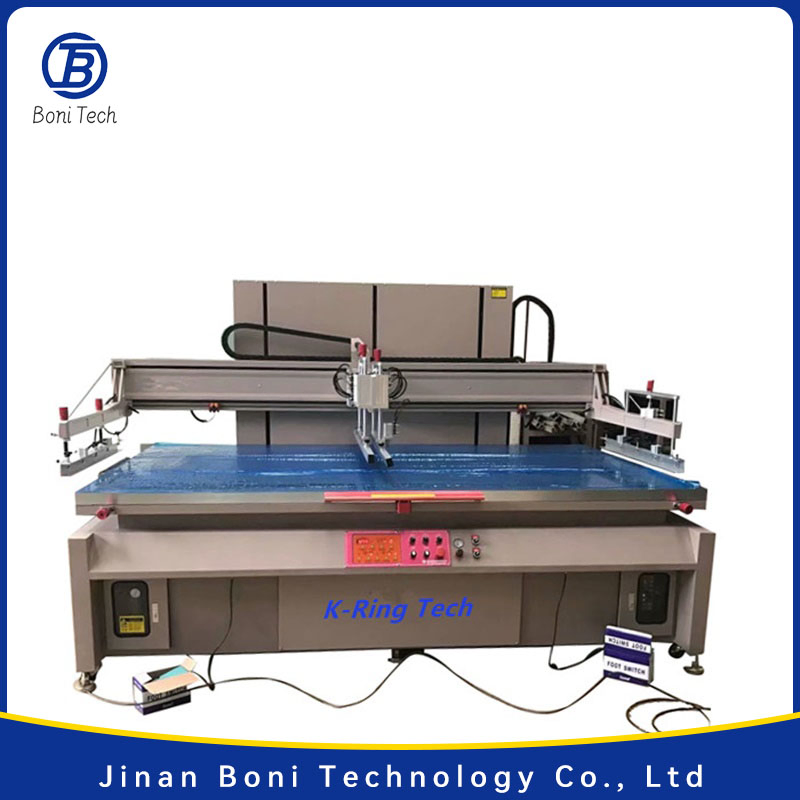

Factory Sales Shoe Surface Screen Printing Machine for Small Business Making Machine

1 / 5

Factory Sales Shoe Surface Screen Printing Machine for Small Business Making Machine

Customization:	Available
After-sales Service:	Support
Warranty:	12 Months

Send Inquiry

Product Description

Basic Specifications

Type

Vertical Screen Printing Machine

Style

Screen-process Printing Press

Structure

Platen Press

Color & Page

Single-Colour Printing Press

Application

Packaging Printing

System Supported

PCB

Grade

Automatic

Power

380V/220V (± 20V), 50Hz - 60Hz

HS Code

8443192900

Capacity

25/PCS/Month

Packaging & Delivery

Package Size

150.00cm * 90.00cm * 180.00cm

Gross Weight

880.000kg

Transport

Standard Export Wooden Case

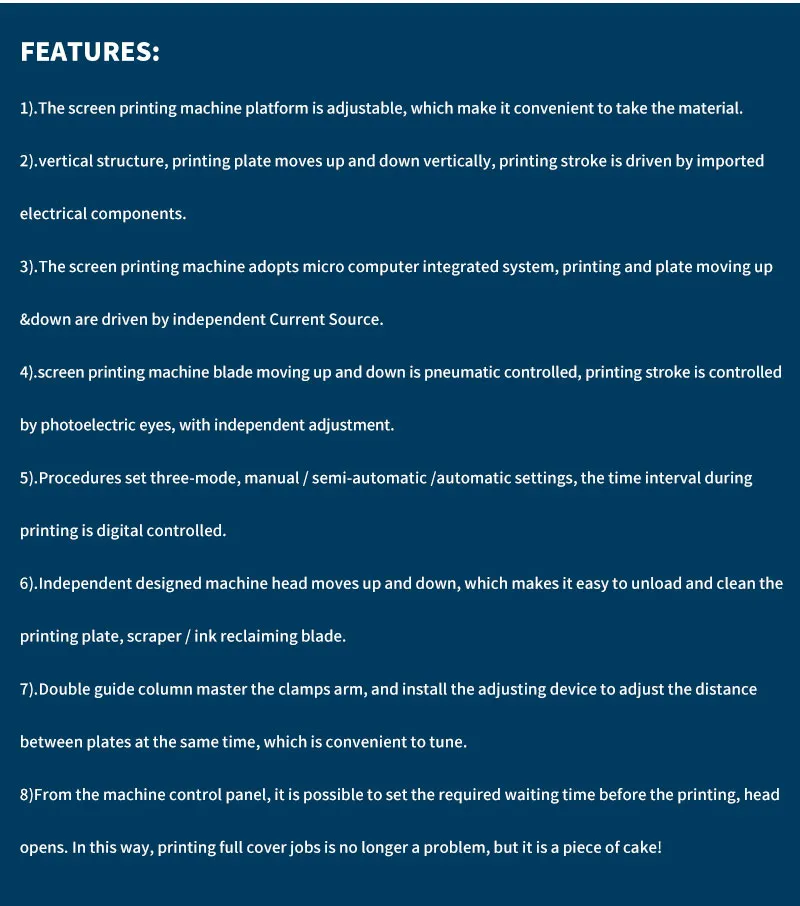

Main Features

✔Four columns lifting and dropping structure for stable printing table.

✔Motor-driven screen plate lift with manual height micro-adjustment.

✔Printing head driven by motor with linear guidance for adjustable speed and travel.

✔Stainless steel vacuum platform with precision register micro-adjustment.

✔Adjustable printing angle, pressure, and screen spacing.

✔Integrated safety guard for secure operation.

✔Automatic precise positioning and printing after manual loading.

✔Equilibrium pressure system ensures uniform printing results.

✔Pneumatic off-grid system with adjustable height to match printing speeds.

Model	KRS-4060	KRS-6090	KRS-80150
Max printing area	400*600mm	600*900mm	800X1500mm
Worktable size	500*700mm	700*1000mm	900x1600mm
Printing speed	1150pcs/h	950pcs/h	650pcs/h
Max mesh frame	600*930mm	800*1230mm	1100x2100mm
Substrate height	0-30mm	0-30mm	0-30mm
Plate precision	±0.05mm	±0.05mm	±0.05mm
Printing pressure	0.6-0.8 kg/cm2	0.6-0.8 kg/cm2	0.6-0.8 kg/cm2
Voltage/power	380v/2.1kw	380v/2.5kw	380/4kw
Net weight	450kg	550kg	800kg

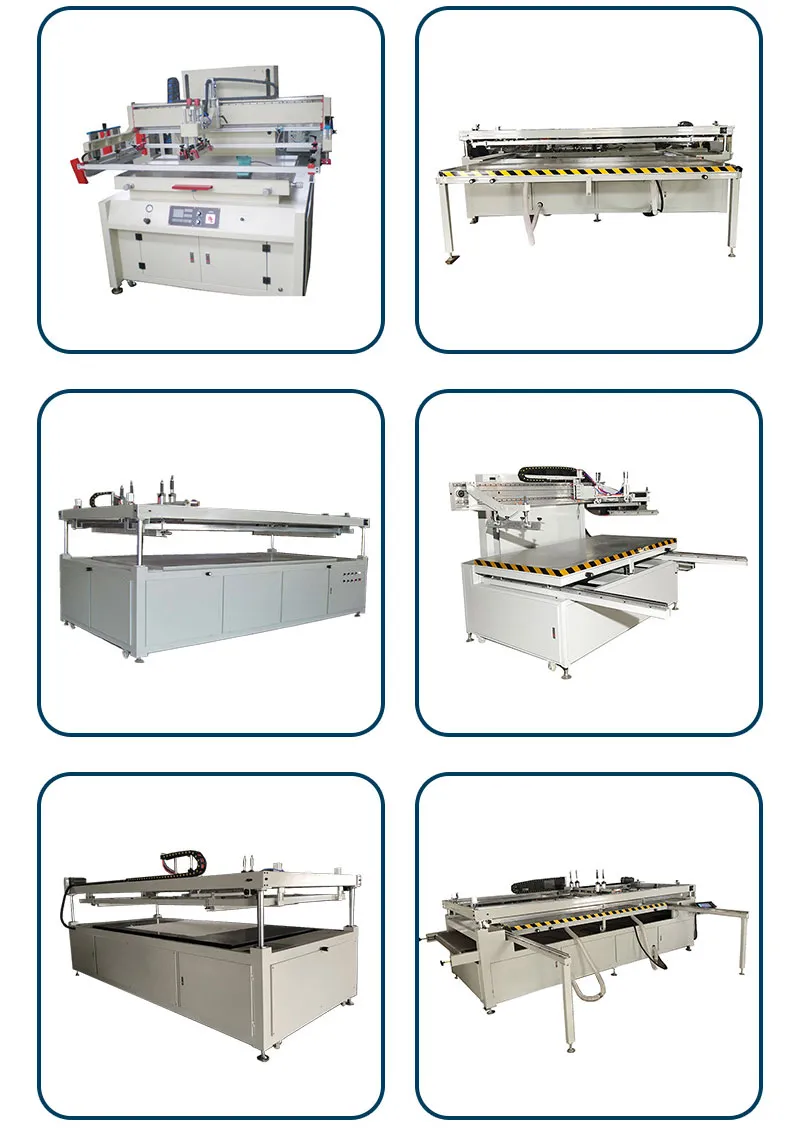

Model	KR100120	KR120180	KR120250	KR160250	KR200300
Printing area(mm)	1000x1200	1200x1800	1200x2500	1600x2500	2000x3000
Table size(mm)	1100x1400	1300x2000	1300x2600	1700x2600	2200x3200
Frame size(mm)	1500x1700	1700x2300	1500x2900	1900x2900	2600x3600
Printing speed	600pcs/h	600pcs/h	580pcs/h	580pcs/h	550pcs/h
Total power	5.8kw	6kw	6.8kw	7kw	7.2kw
Weight	780kgs	920kgs	1050kgs	1250kgs	1600kgs

Frequently Asked Questions

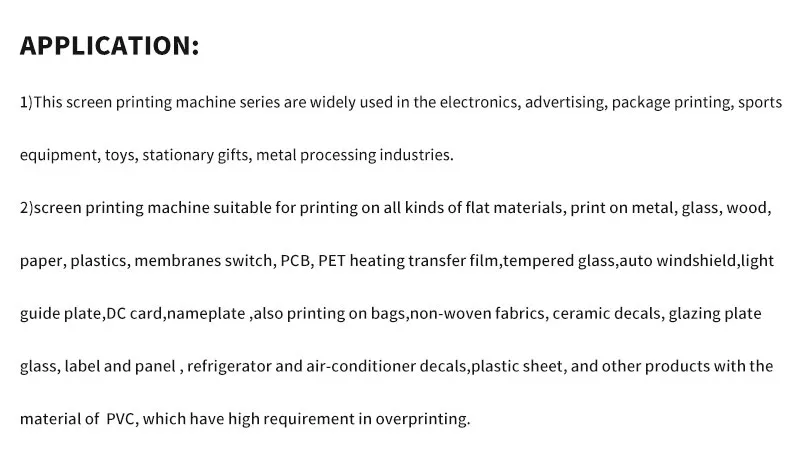

Q1: What materials can this vertical screen printing machine handle?

It is primarily designed for flat substrate printing, such as packaging materials, PCBs, shoe surfaces, and various flat industrial components.

Q2: How does the vacuum worktable benefit the printing process?

The stainless steel vacuum platform securely holds the substrate in place during the printing cycle, ensuring high precision and preventing material movement.

Q3: Is the printing speed and travel distance adjustable?

Yes, the motor-driven printing head allows for full adjustment of both the printing speed and the travel distance to suit different production requirements.

Q4: What are the power and air pressure requirements?

The machine typically requires 380V or 220V power supply (50Hz-60Hz) and an air pressure of 5-7 bar for pneumatic components.

Q5: Does the machine support custom sizes?

Yes, we accept customer orders for specific sizes beyond the standard models listed in the specification tables.

Q6: How is the precision of the machine maintained?

Precision is maintained through a combination of linear guidance systems, micro-adjustment registers, and a stable four-column lifting structure, achieving tolerances as fine as ±0.01mm to ±0.05mm.
