Dry Powder Automatic Fire Suppression Systems for Industrial Printing Machines Fss

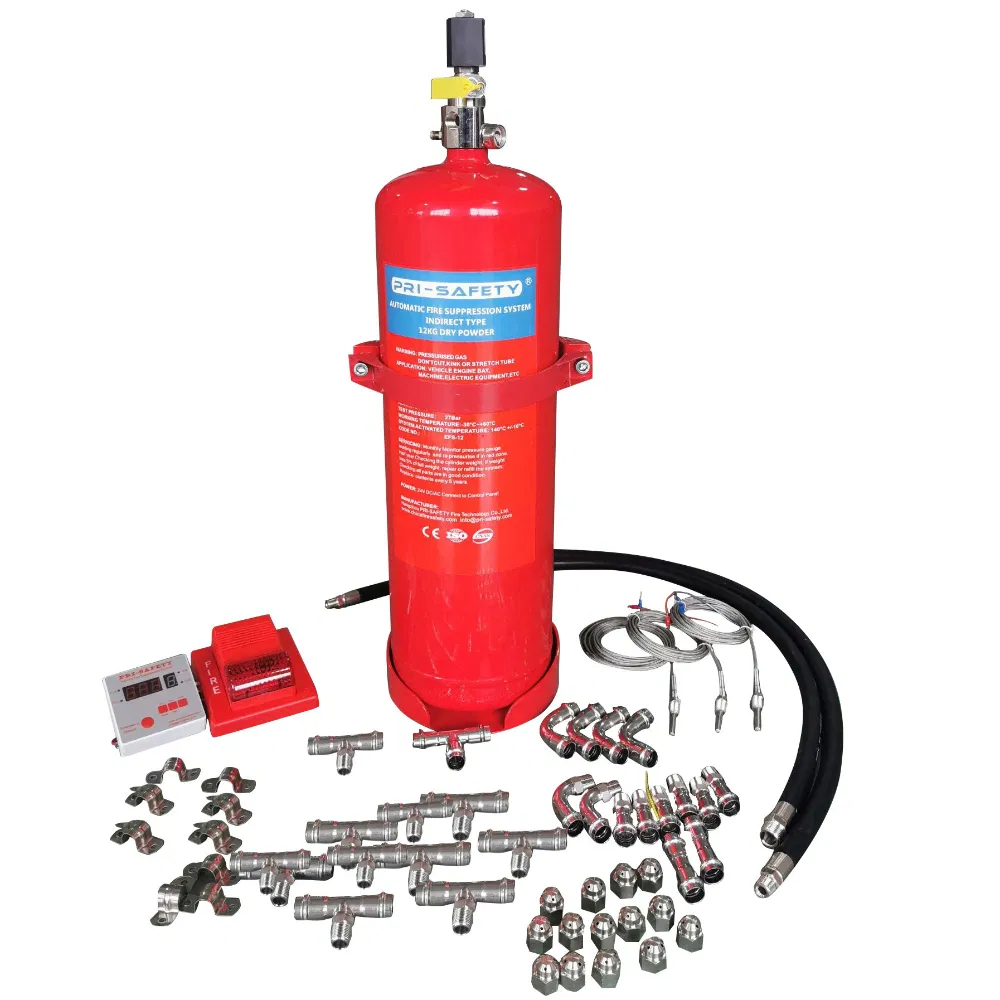

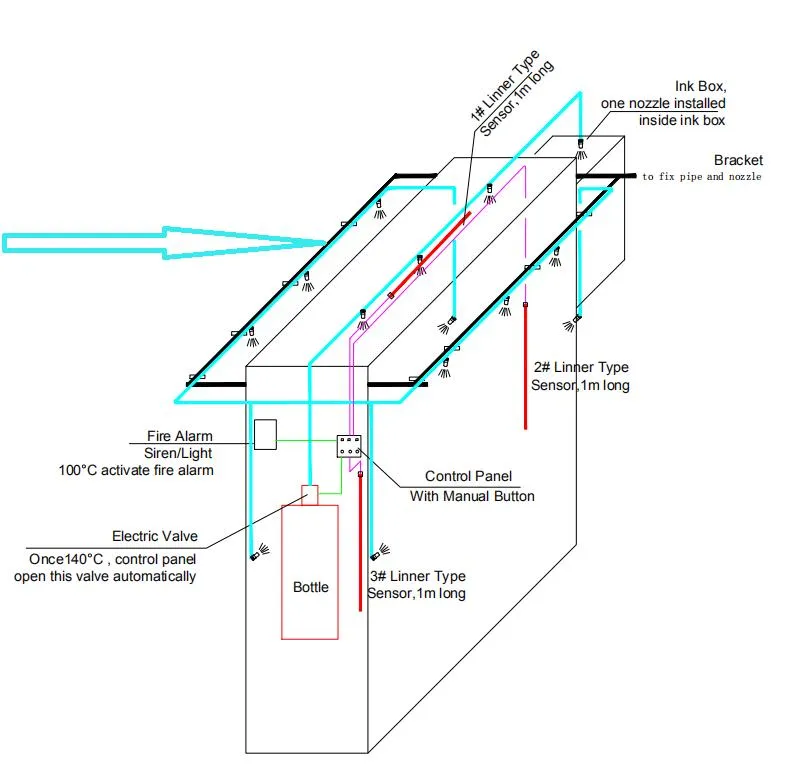

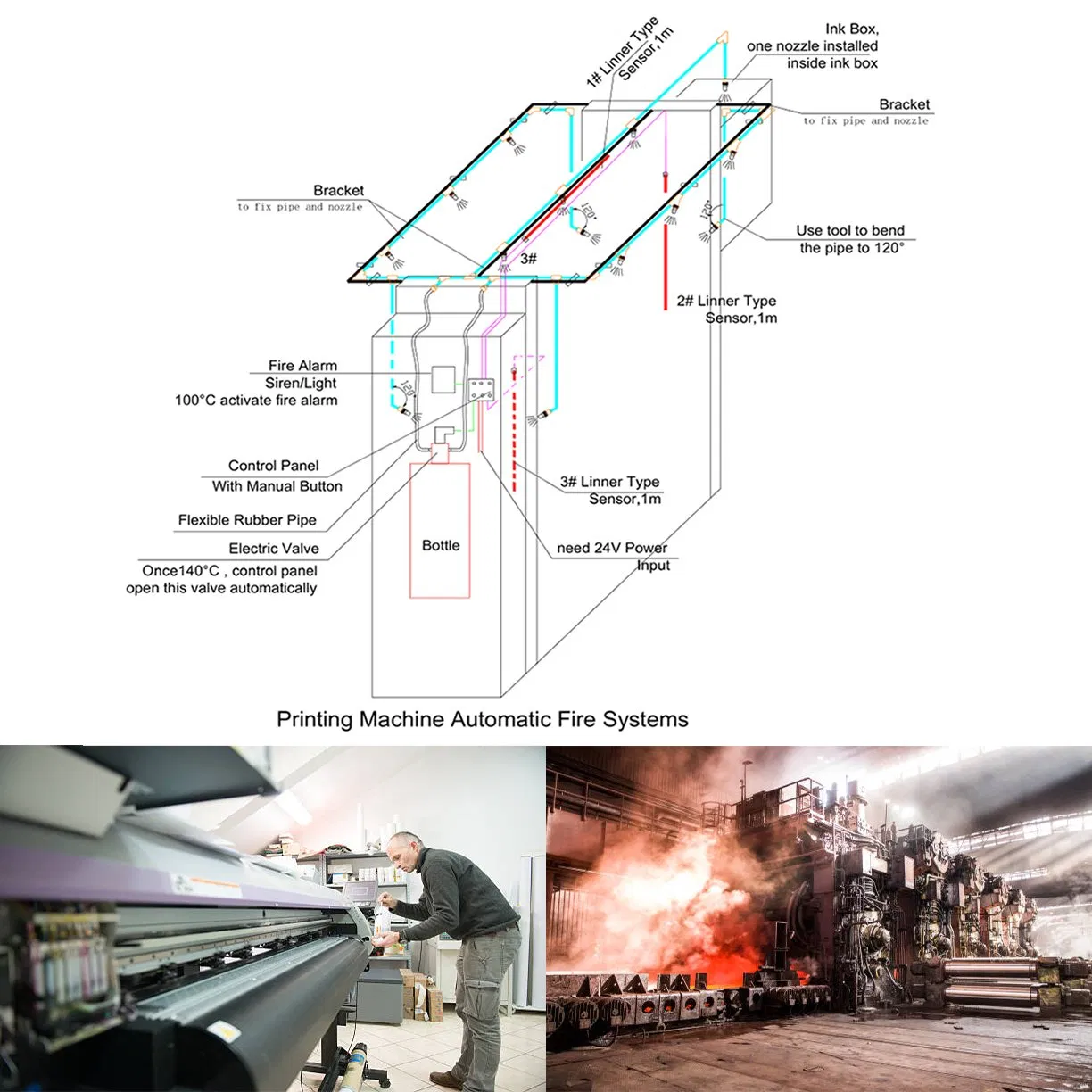

The automatic printing machine fire system consists of a tank cylinder, a solenoid valve with pressure gauge, discharge tube, fire alarm, control panel and thermal detection cord. The tank is filled with dry powder agent and nitrogen driving gas.

The alarm system starts when the thermal cord detects an ambient temperature of 100ºC. The suppression system activates and discharges the extinguishing agent at 140ºC.

The solenoid valve is held in a latched position without power until a signal is received from the control panel. Once released, the latching solenoid opens the cylinder valve. It also includes an emergency release button for manual operation.

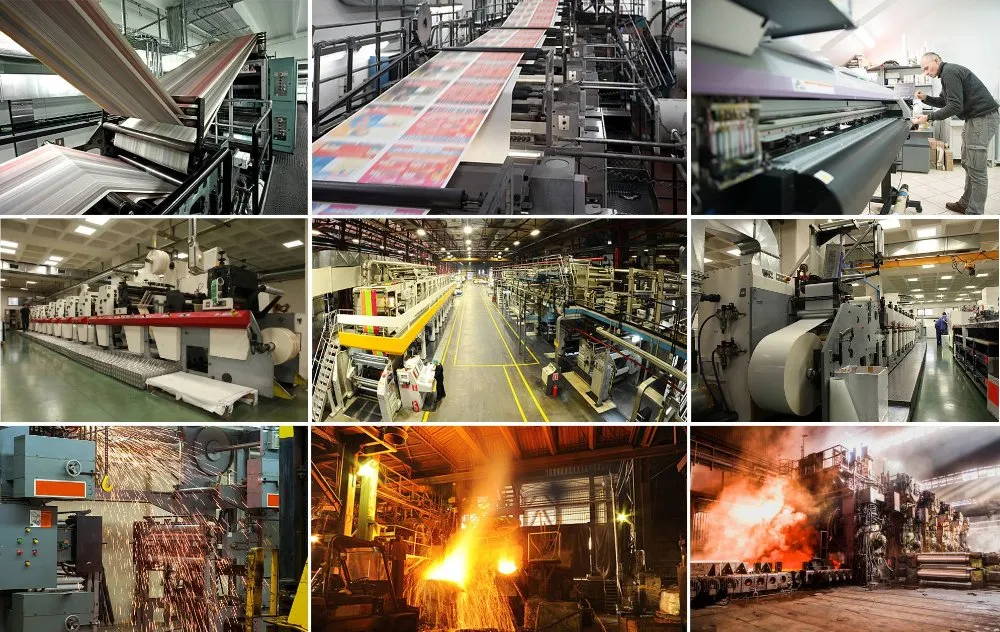

Designed for environments where fire risks are high and equipment is valuable:

• Electronic computer rooms and data processing centers.
• Industrial printing machines and rolling machines.
• Paint-spraying production lines and aging-electrical equipment.
• Telecommunications facilities and process control rooms.
• Flammable liquid storage areas and ship engine rooms.

We are a professional manufacturer specializing in fire suppression systems and extinguishers with over 10 years of experience in production and exporting. Our products carry certifications such as CE, EN3, EN671, EN1869, and UL.

Key product range includes: Fire extinguishers, Aerosol systems, Fire hose reels, Fire hydrants, Sprinkler systems, and Fire alarms. We provide high-quality solutions and professional service for global markets.
