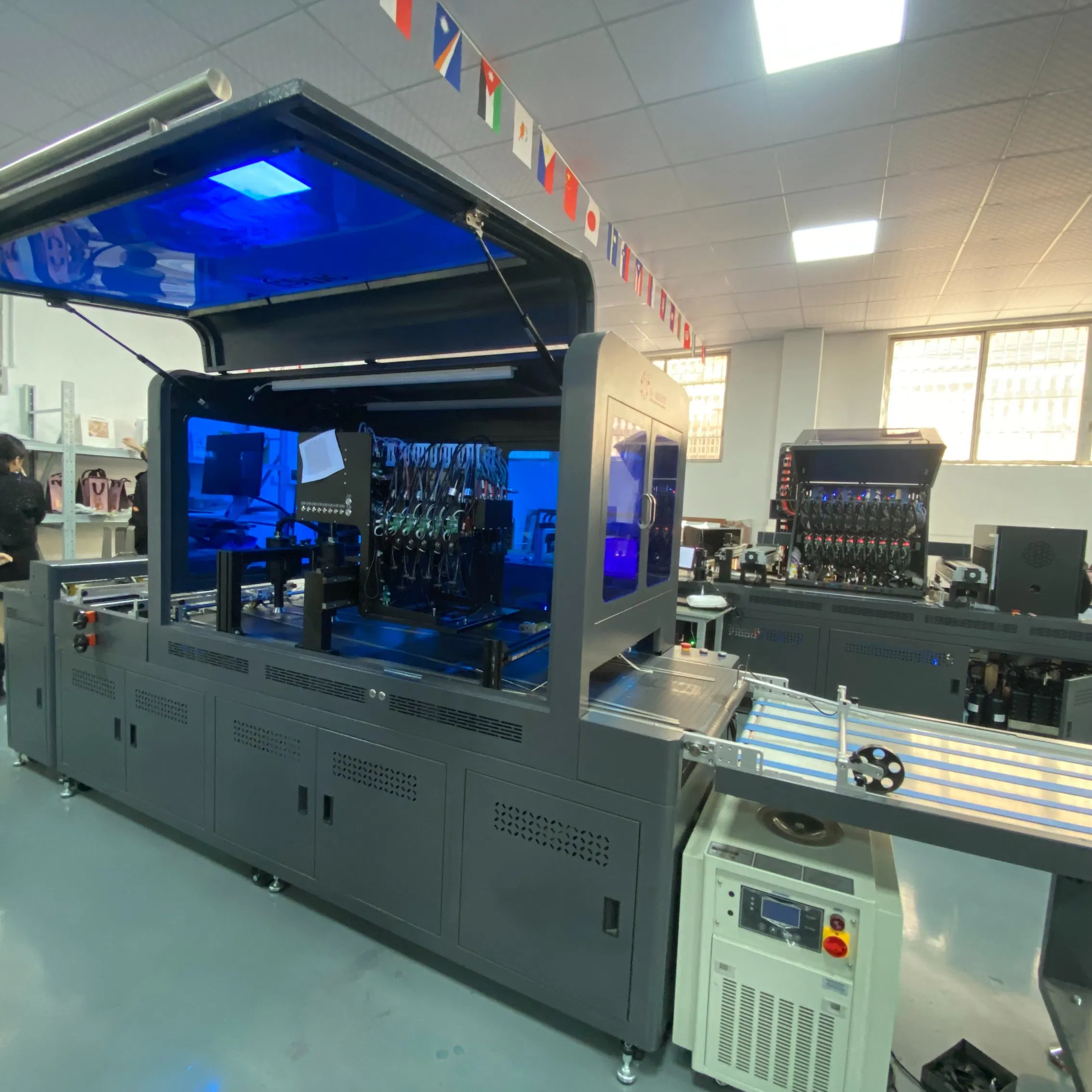

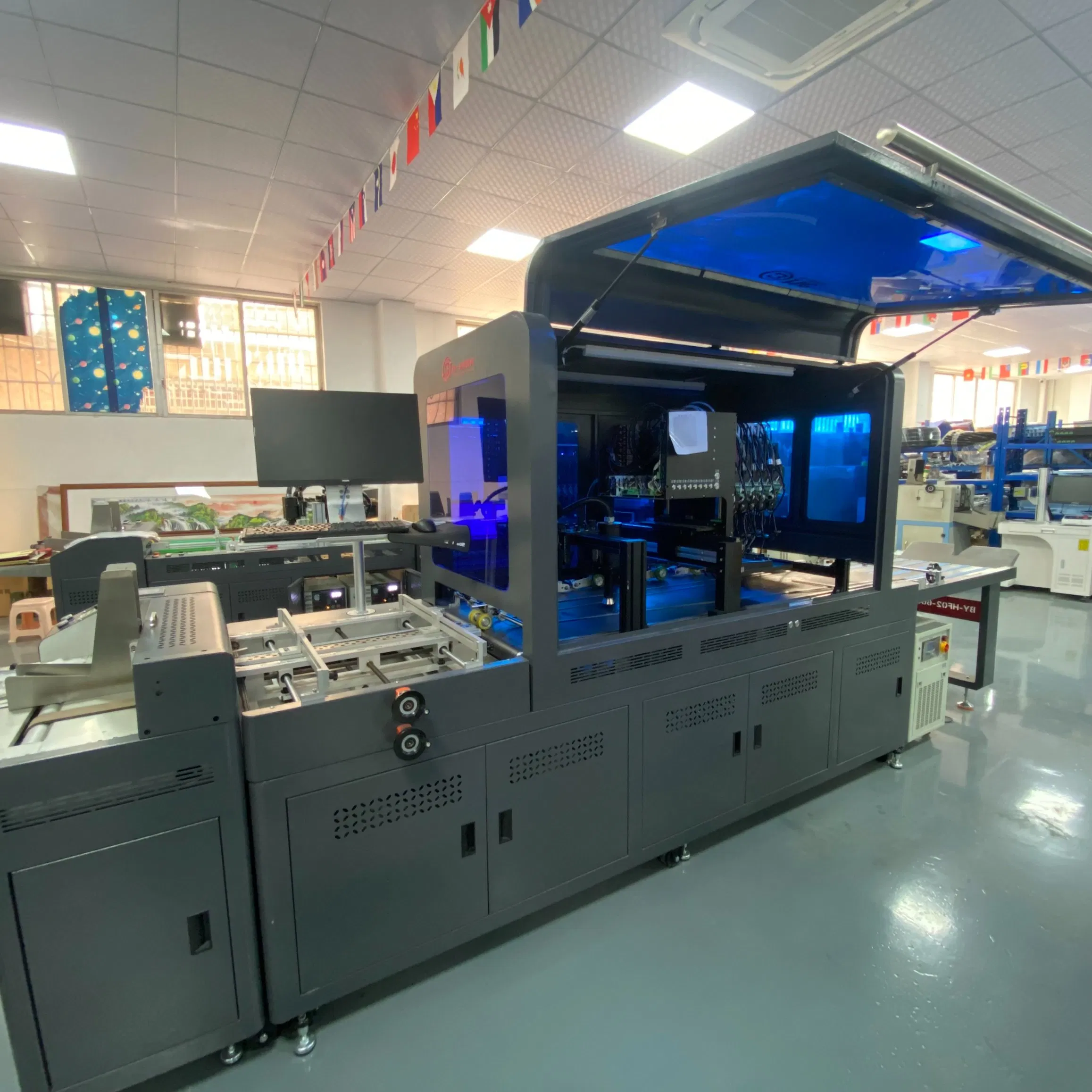

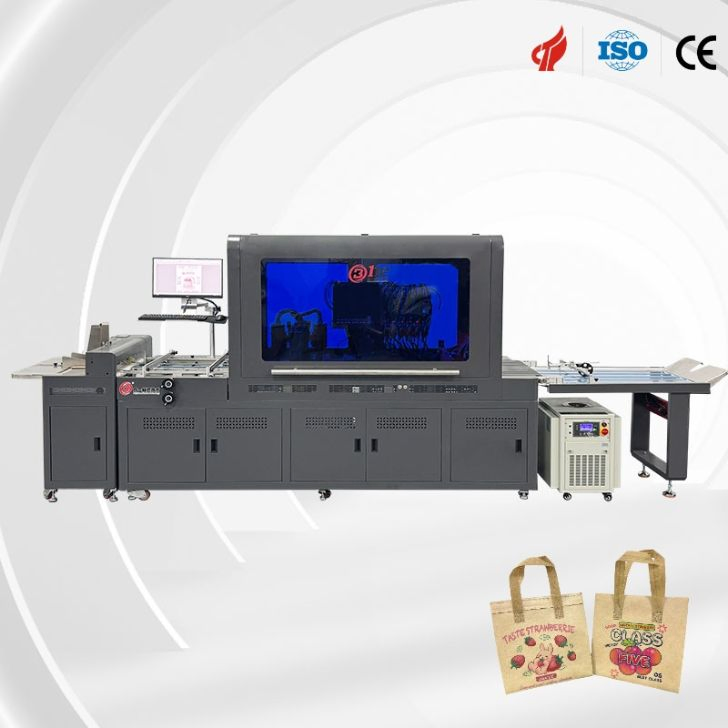

Direct Print UV Digital System for Custom Patterns on Bags

i

Basic Information

Model NO.

BY-HF02-800C-UV

Structure

Digital Printing

Color & Page

Multi-Colour Printing Press

Usage

Paper, Label, Card, Cloths Printer

Automatic Grade

Automatic

Material

Painted Carbon Steel

Feature

Stable, High Speed, Easy Operation

Production Capacity

80 sets/Year

★

Product Description

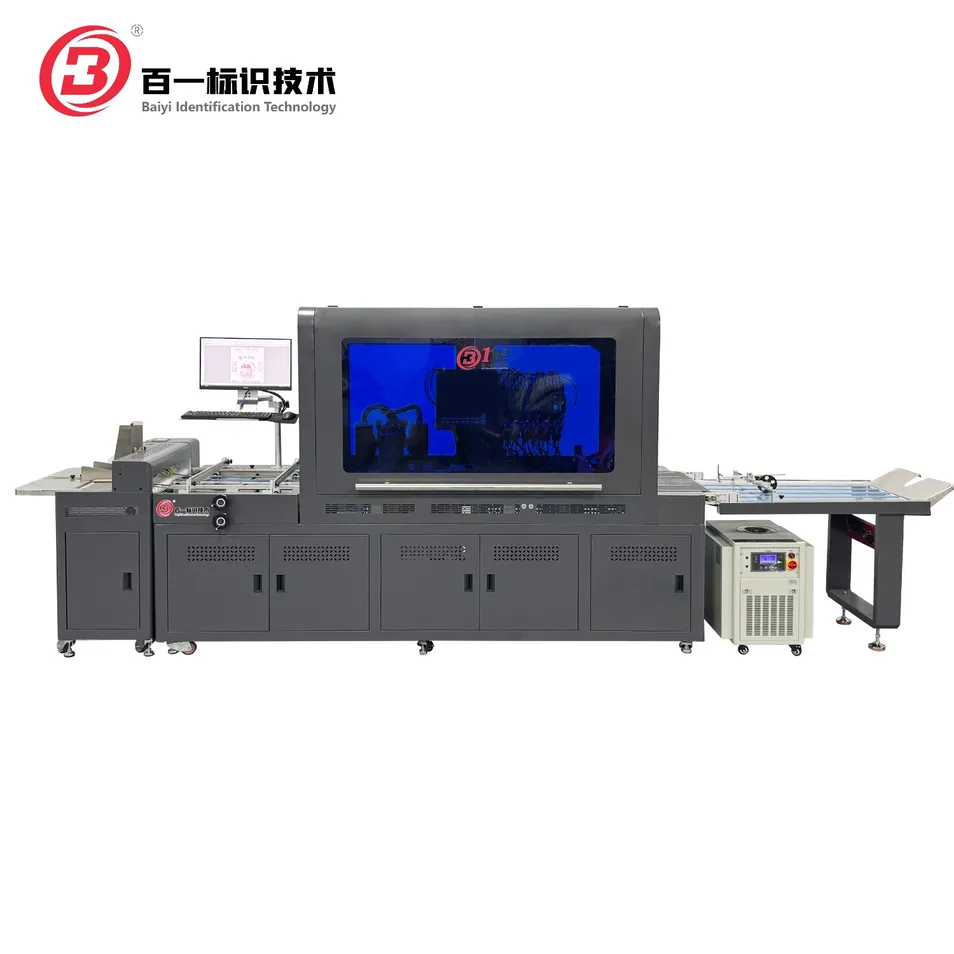

DIGITAL PRINTING MACHINE: This advanced UV digital printing machine is specifically engineered for high-precision printing on coated non-woven bags and diverse substrate materials.

Featuring professional-grade Ricoh G5/G6 printing heads with exceptional 20mm working height capacity, this customized system delivers outstanding full color CMYK printing with 100mm printing width coverage.

✔

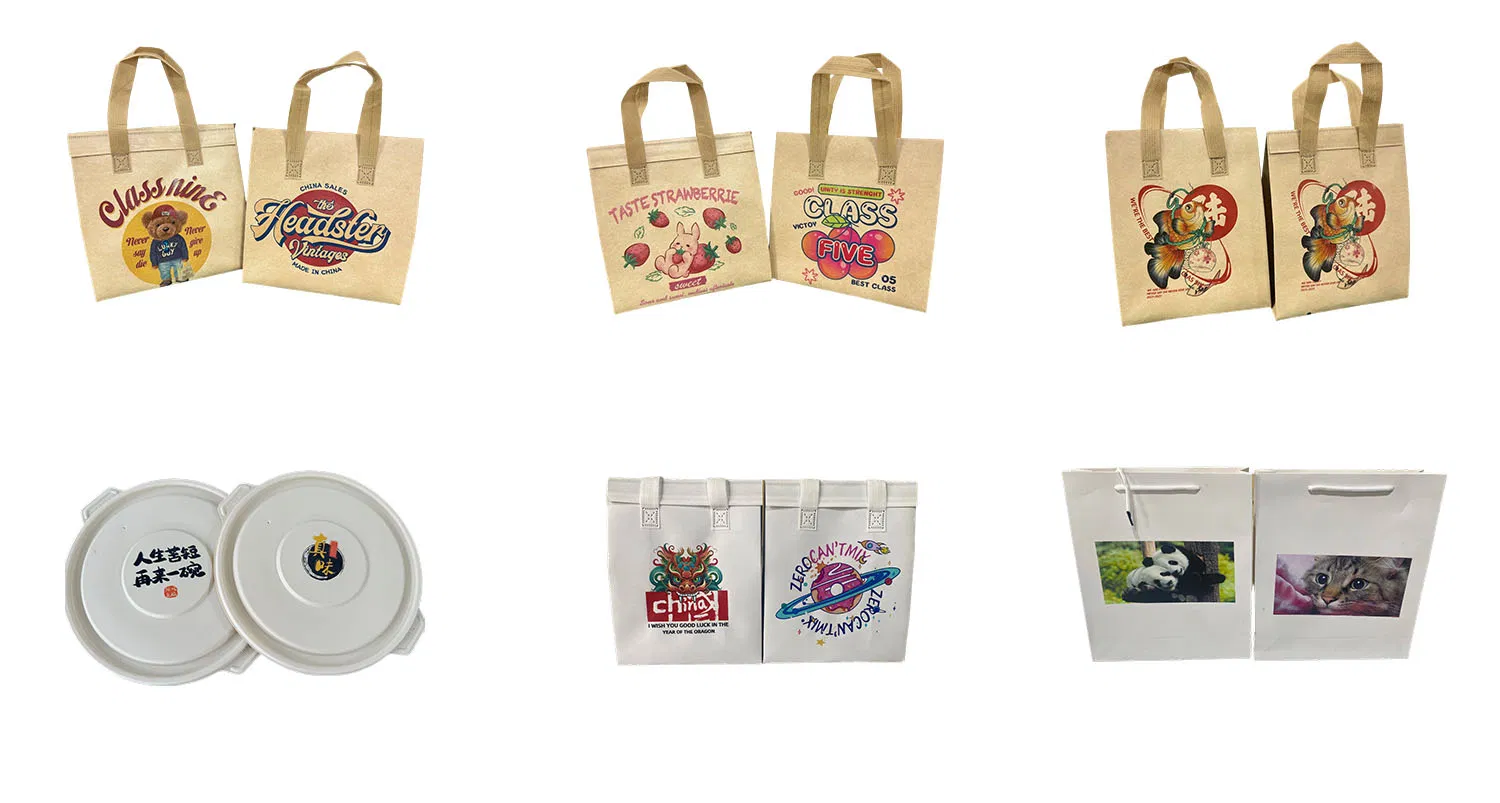

Versatile Applications

Non-Woven Bag PrintingCoated non-woven shopping bags, promotional tote bags, and reusable bags.

Packaging MaterialsCoated paper bags, cardboard packaging, and branding boxes.

Plastic ProductsPlastic bags, lunch boxes, food containers, and PVC packaging.

Wooden DecorationWooden boxes, panels, bamboo products, and decorative crafts.

Metal SurfacesMetal sheets, aluminum products, and industrial tin containers.

⚙

Technical Parameters

Technical Specifications
Printing Head	Ricoh G5/G6
Quantity of Head	8 Pcs
Printing Color	CMYK Full Color
Printing Width	100MM
Resolution	360 DPI
Printing Speed	15M/Min
Voltage	220VAC, 50HZ
Power	Approx 6.5Kw
Available Size	60-450 * 50-550 * 0.05-1mm

📷

Detailed Photos

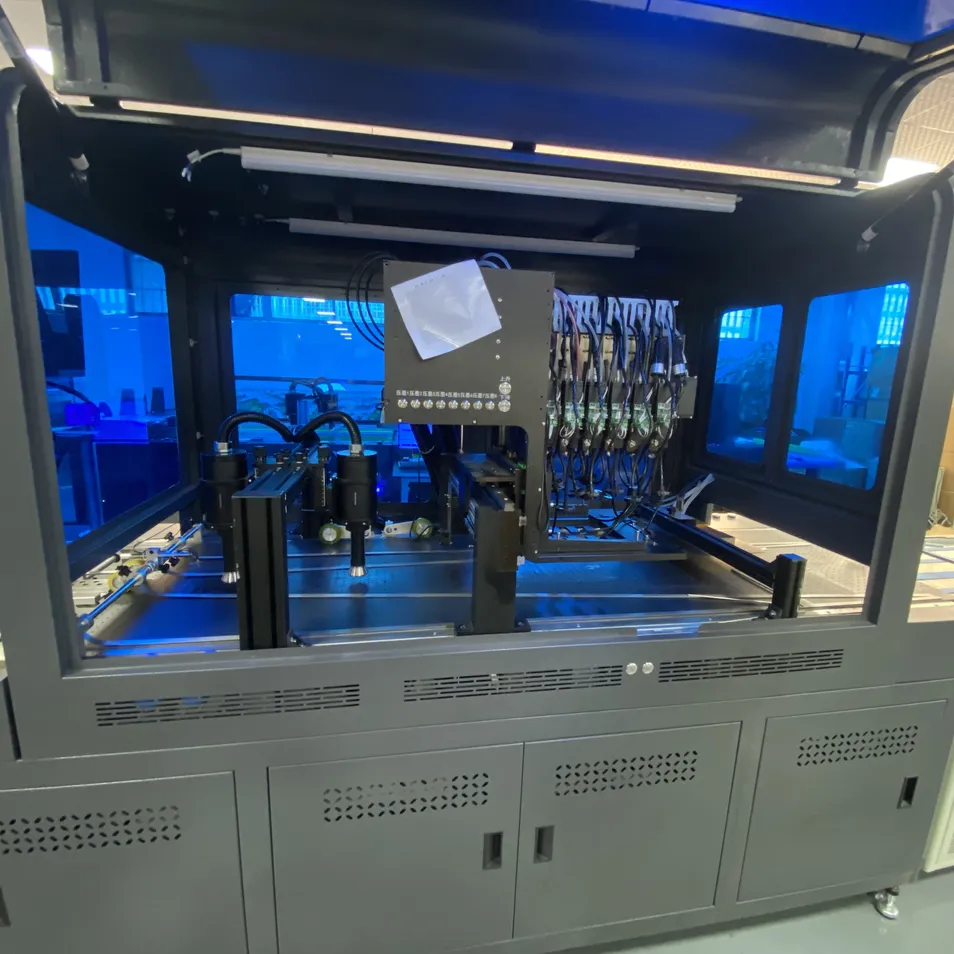

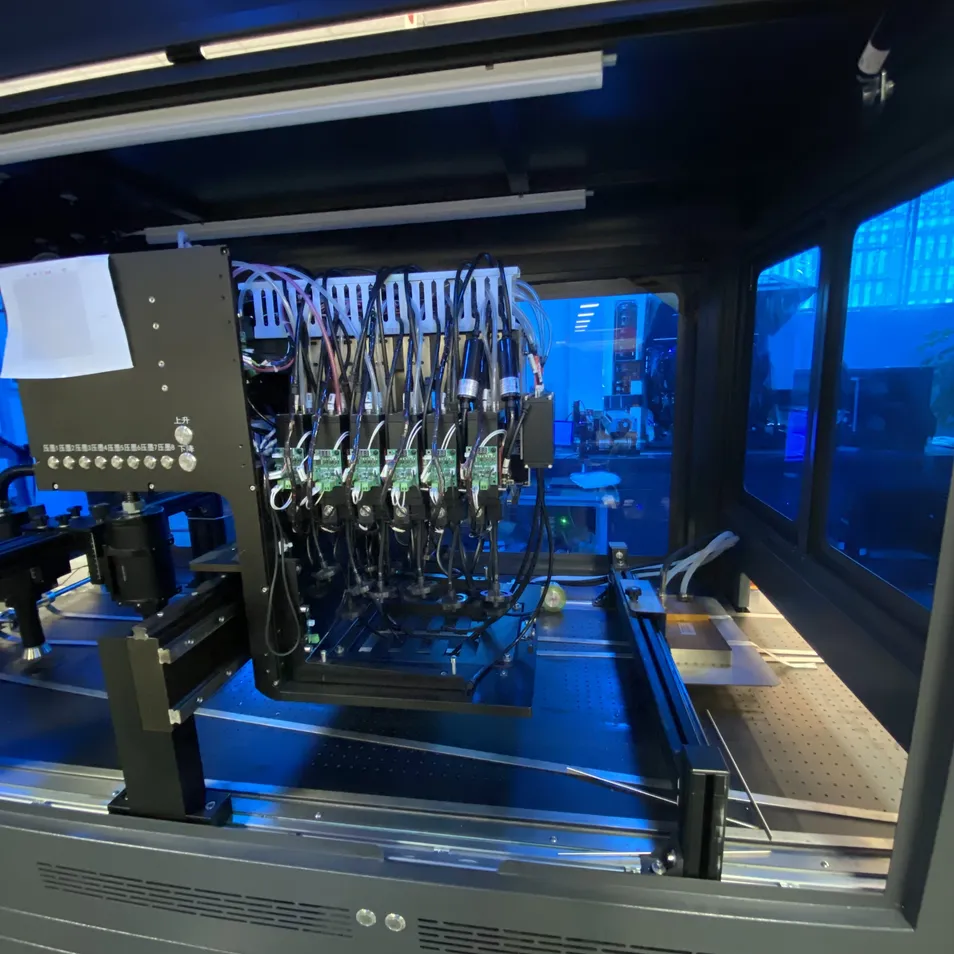

Advanced Ricoh Technology

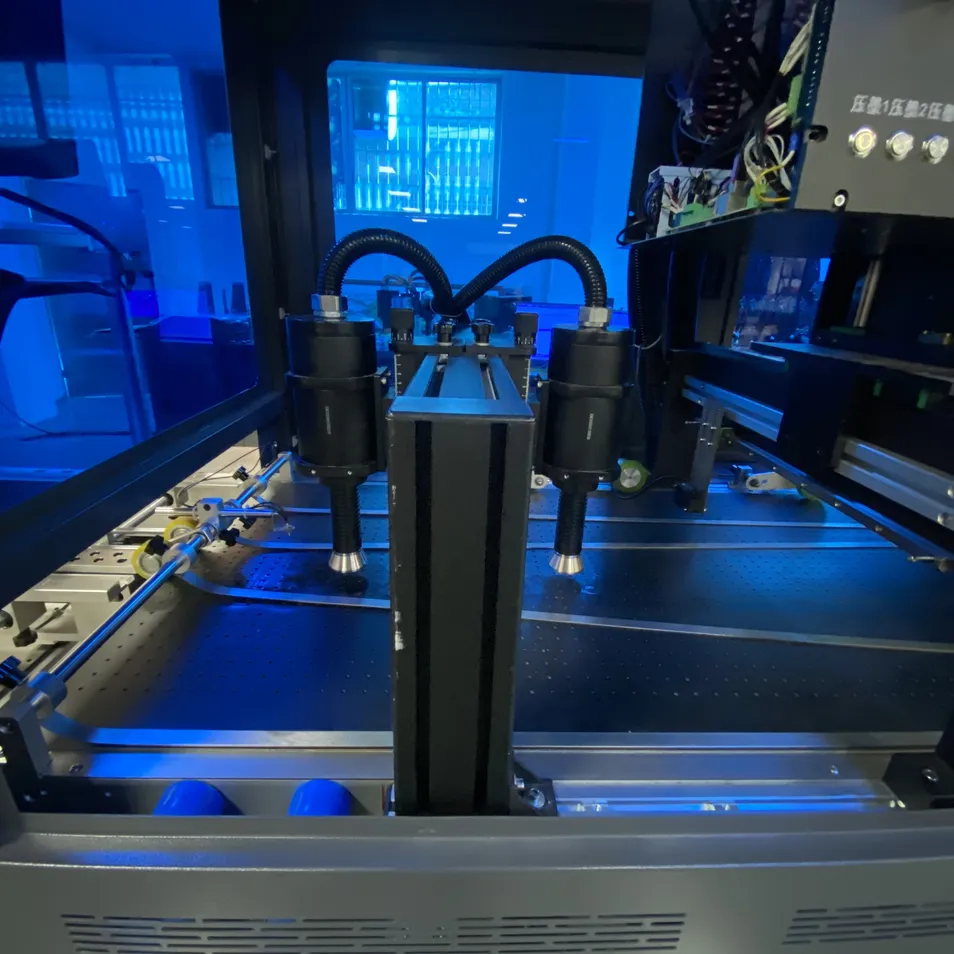

Auto-Rectify & Plasma Device

▩

System Configuration

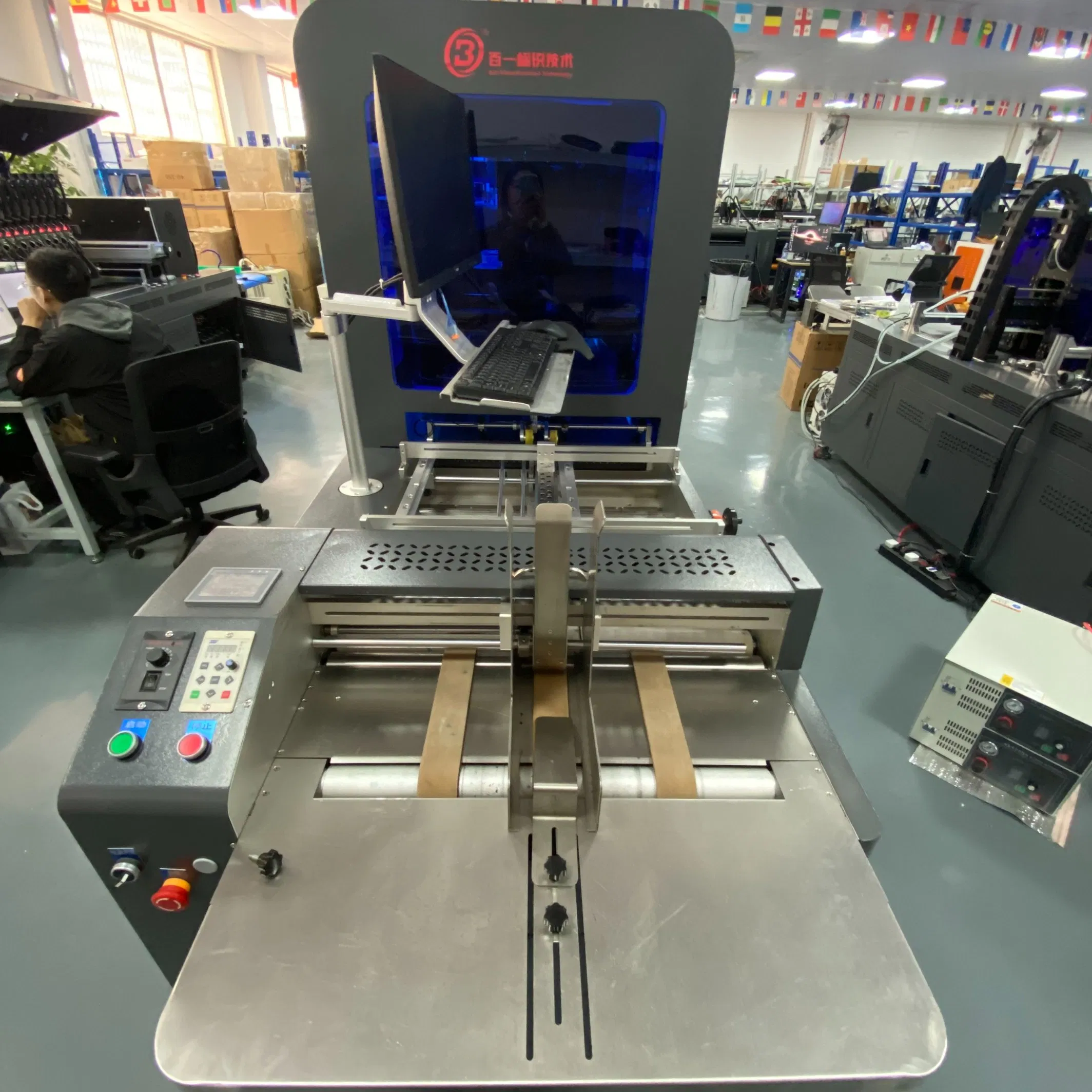

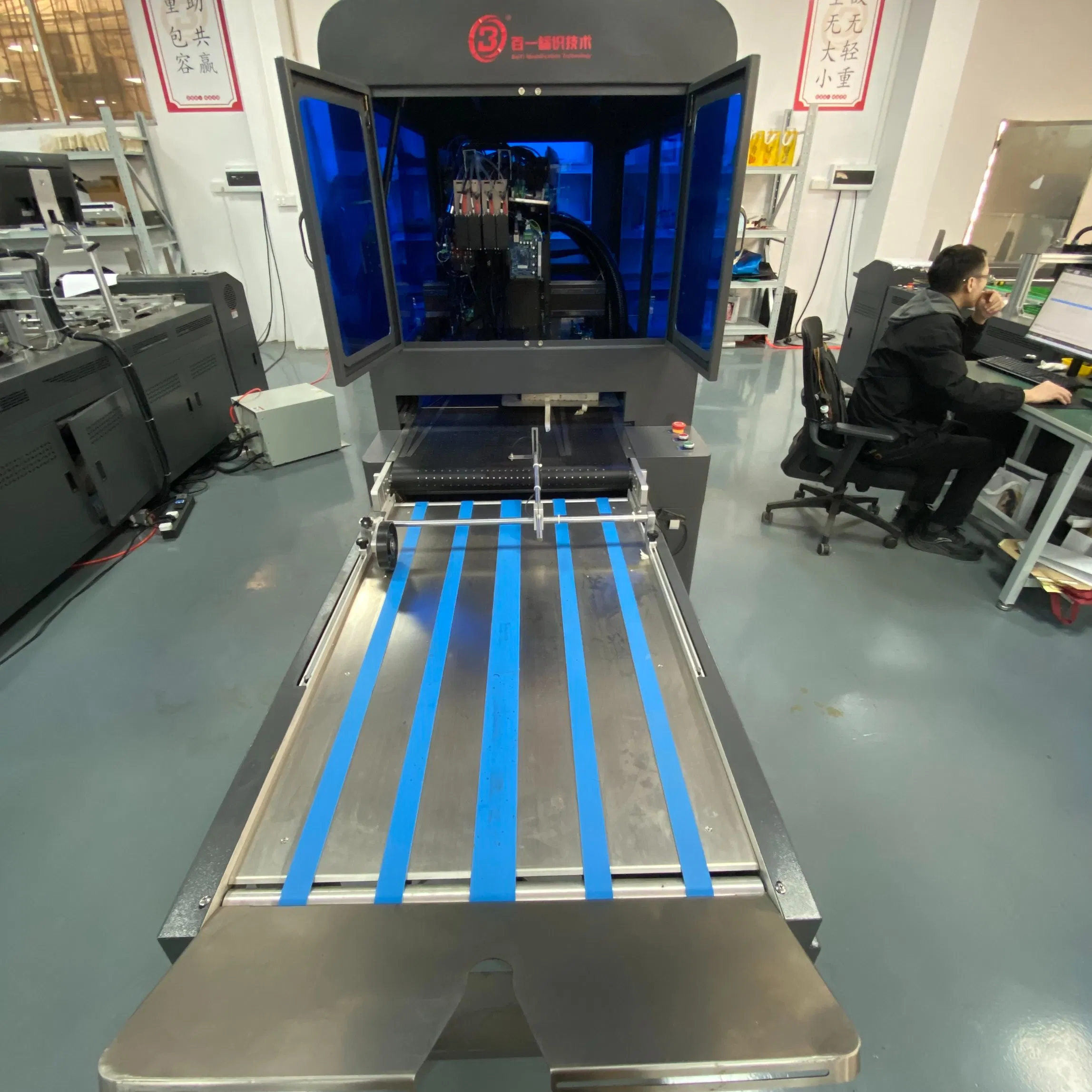

1. Feeding Platform: Multi-friction belt (down-out), independent electric adjustment, cross-ball product position correction, and double flow vacuum pump. Conveyor size: 2000*600MM.

2. UV Printing System: Embedded industrial control with HMI, electric anti-collision design for nozzles, circulating ink supply, and 8pcs Ricoh heads configuration.
