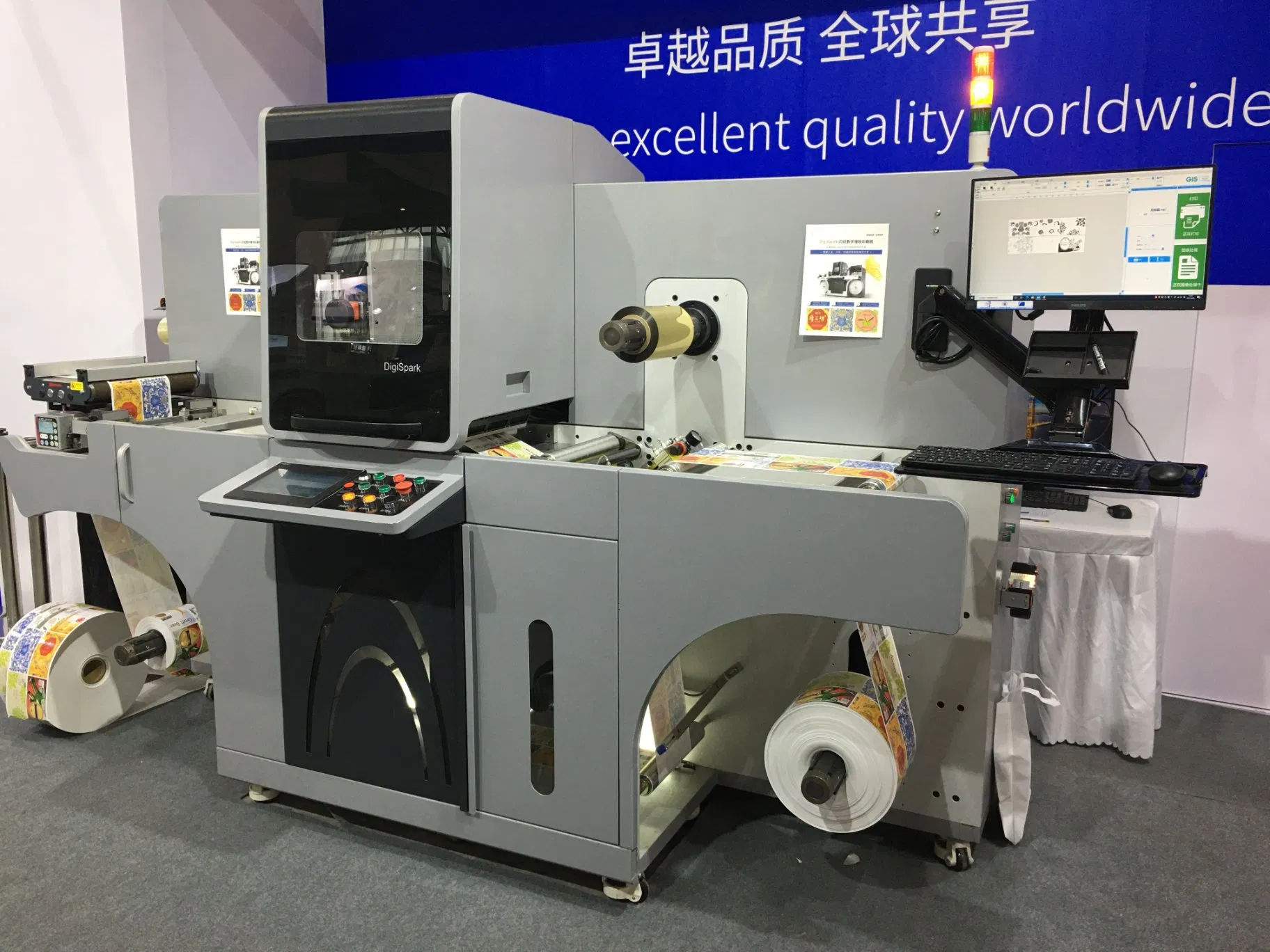

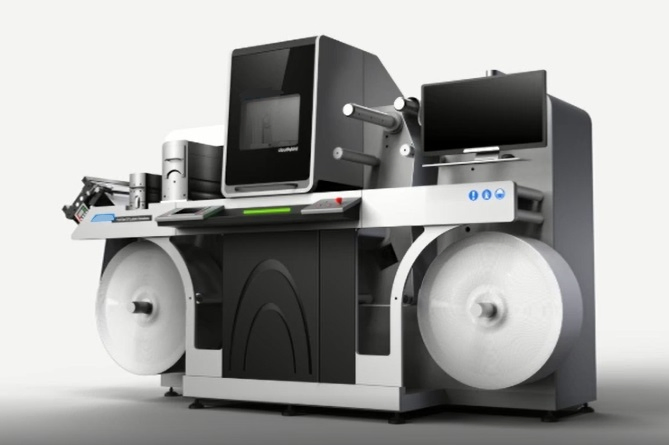

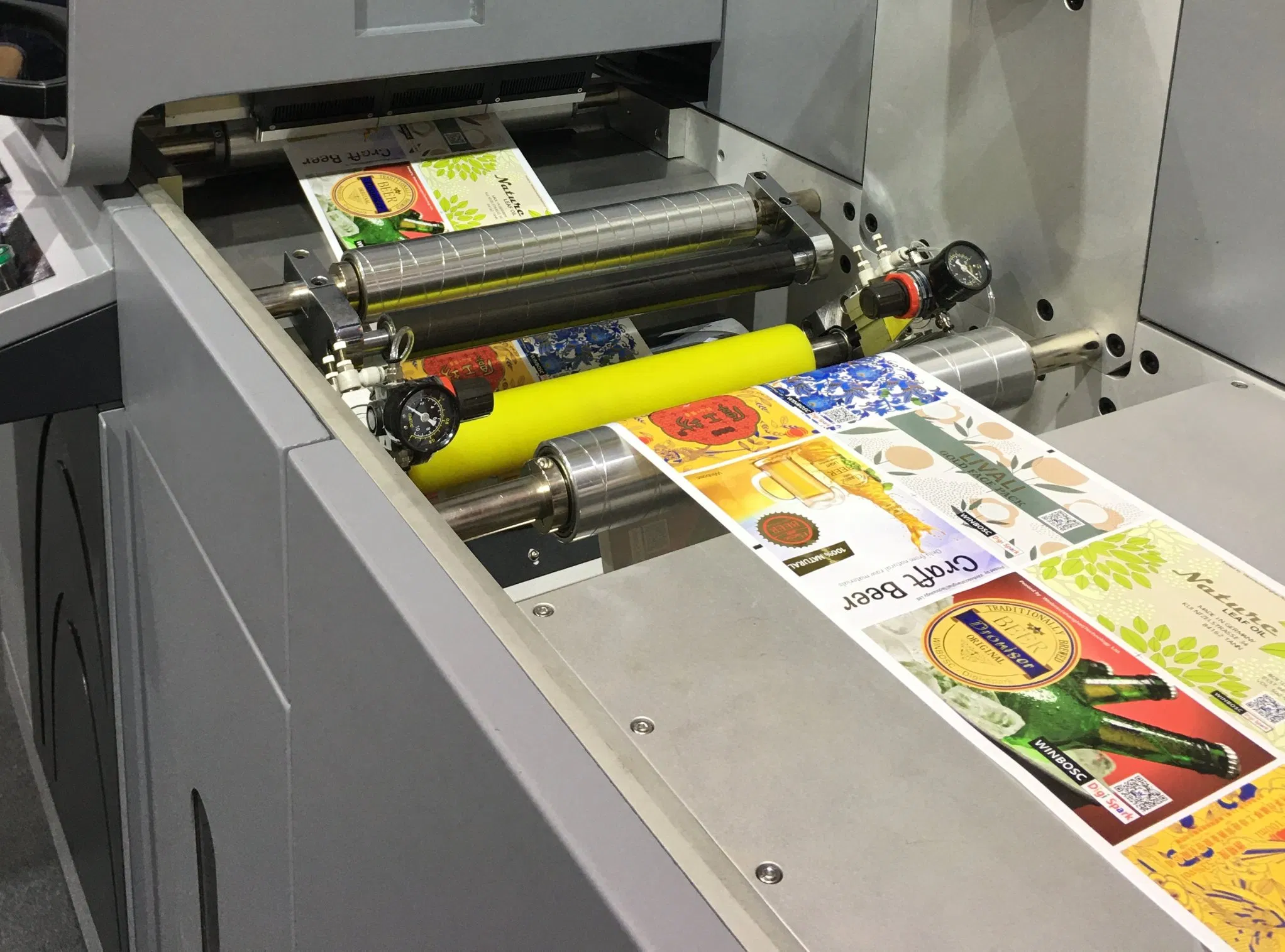

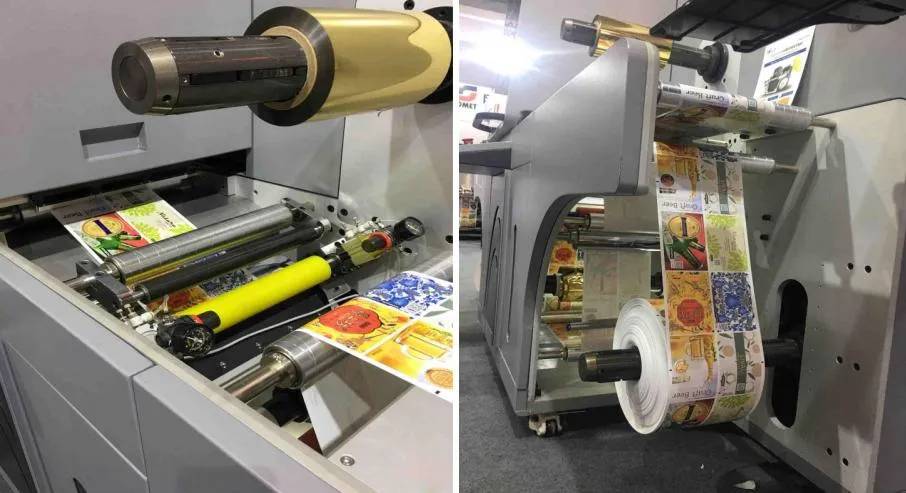

Digispark is a digital post-press effect enhancement machine. It utilizes digital UV varnish ink-jet technology to achieve the varnish and foil stamping 3D shining effect.
| Model: DigiSpark | |
|---|---|
| Printing Technology | UV Piezo DoD (drop on demand)-inkjet |
| Resolution | Up to 1440*360 dpi |
| Printing Speed | Max. 60m/min (depend on polymer layer thickness) |
| Variable Image System | PDF, optimized PDF, Optional barcode system |
| Supported Image Standards | PDF, PDF/VT, TIFF, JPEG, BMP & other database files |
| Substrates | Offset, Digital, Plastics, Laminated and coated substrates |
| Printing Image Width | 288mm (extendable to 320 mm) * 10 m (Length) |
| Polymer Layer Thickness | From 10 up to 200 microns |
| Ink Curing | Inter UV-LED Pre-curing / Full curing by UV-LED |
| Substrates Thickness | 30-400 microns |
| Machine Dimensions | 3500mm x 1900mm x 1800mm (LxHxW) |
| Electrical Requirements | Voltage: 3x380, ±5% 3 phases +G+N; Frequency: 50/60 Hz |
| Weight | 2800kg |
Key Advantages: Low Cost, High Efficiency, High Added Value, and Rapid Completion for all order lengths.
1. High Productivity: Short production procedures from computer to label with high-speed output.
2. Digital Edge: Spot UV finishing allows customers to see and feel the 3D effect immediately. Flexible varnish thickness on demand.
3. UV Inkjet Tech: Drop-on-Demand Piezoelectric print heads ensure consistent quality from the first to the last page.
