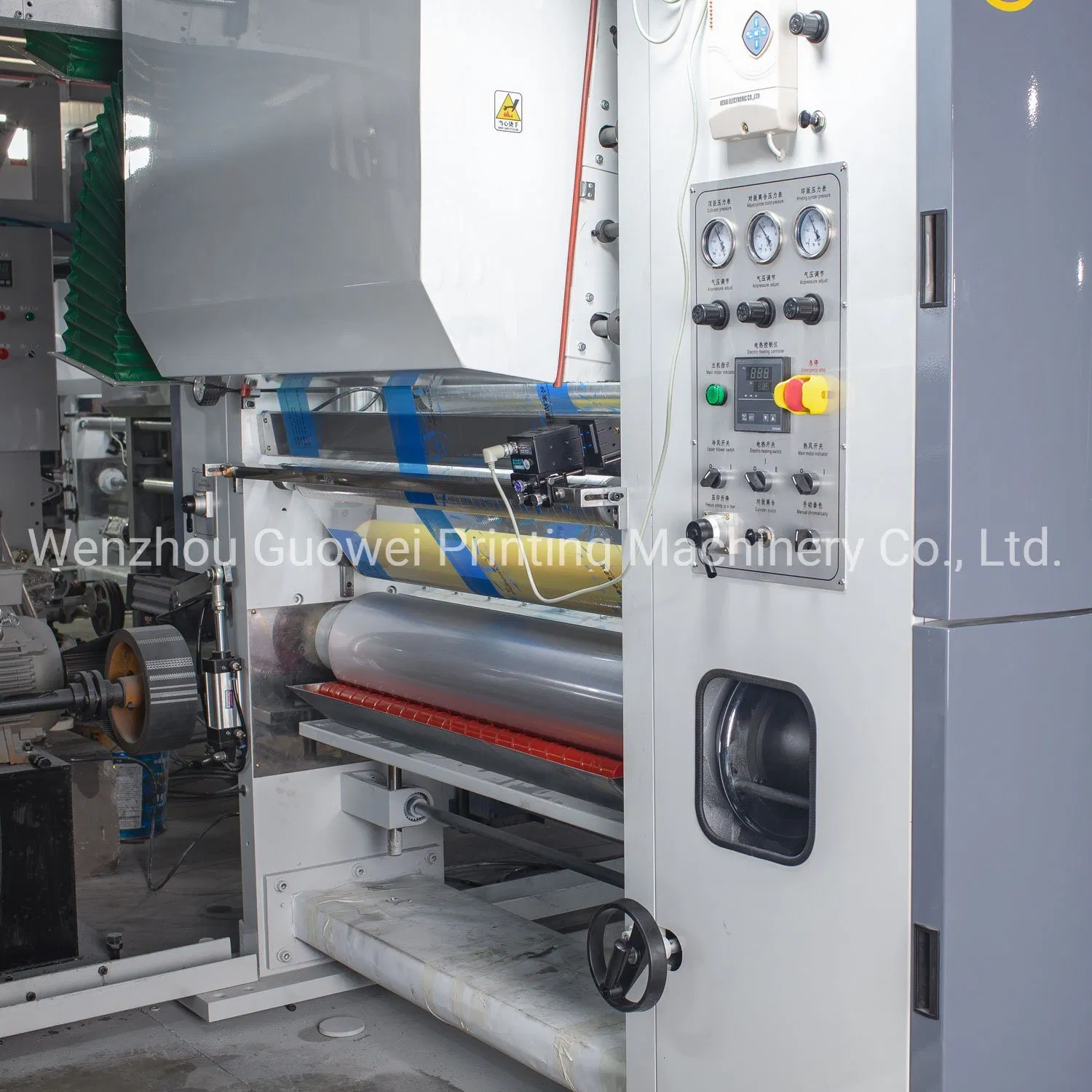

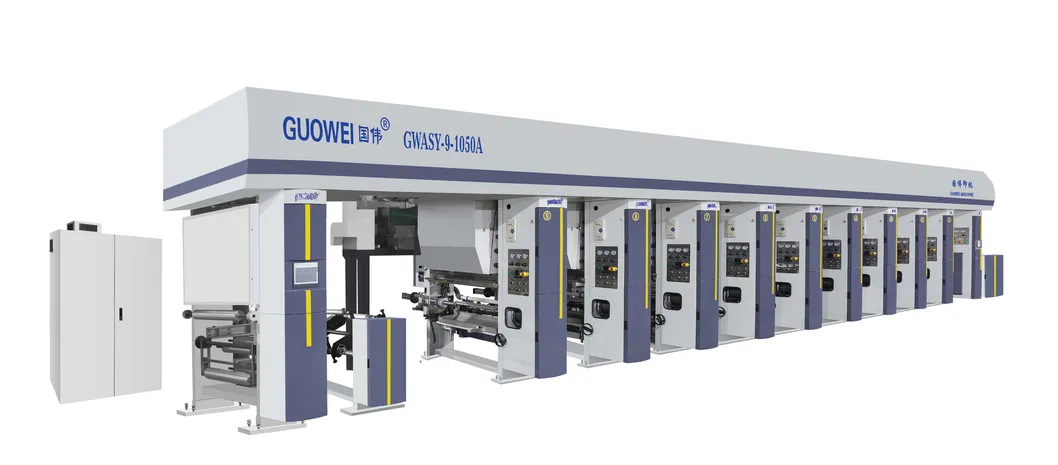

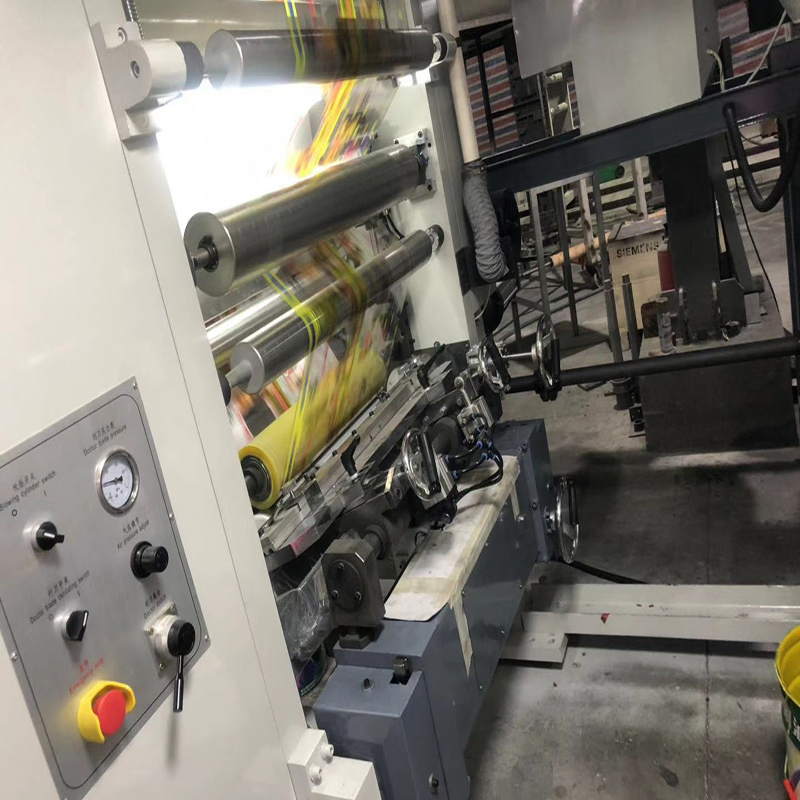

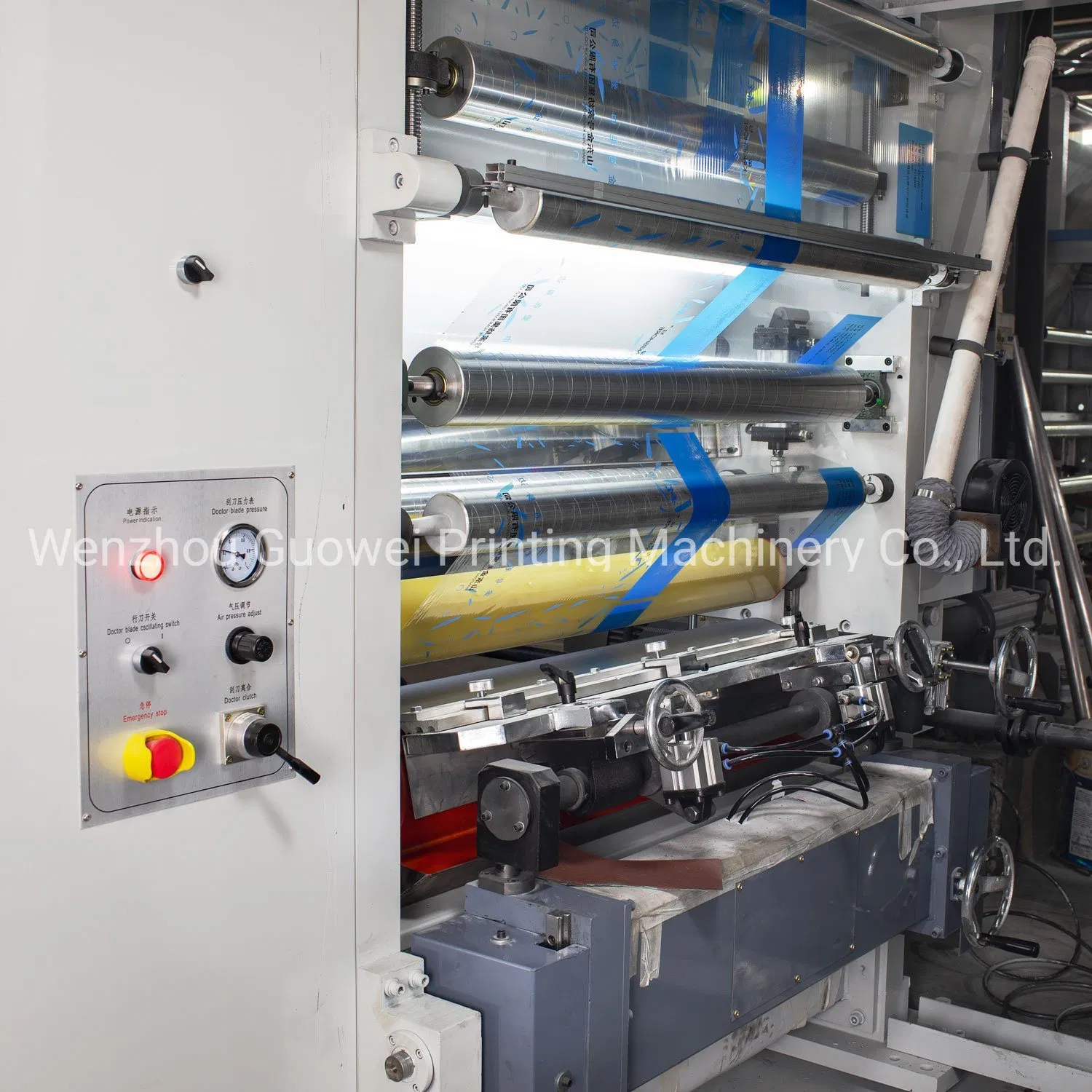

Digital Intaglio Printing Equipment with Electric/Steam/Oil Heating

Application and Features

1. This machine is designed for printing on BOPP, PET, PVC, PE, aluminum foil, and roll paper. It excels in high-grade continuous multi-color printing for various thin film reel materials.

2. Unwind and Rewind utilize an outside-type rotary rack with air shaft loading/unloading for fast and secure replacement.

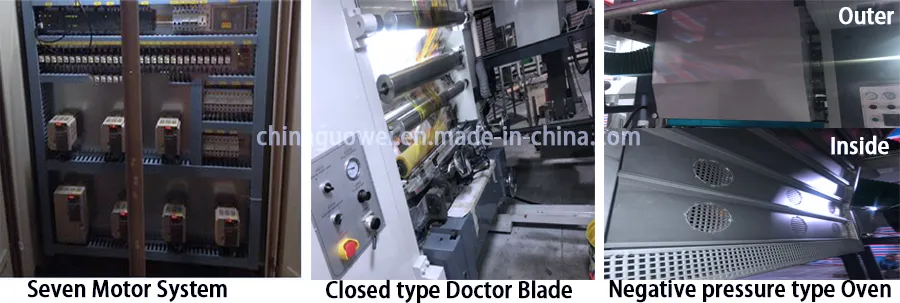

3. Vertical register system ensures high precision with minimal waste. The doctor blade system features a double-axis driven by an independent motor.

4. Features patent drying technology using high-temperature axial fans with built-in heating.

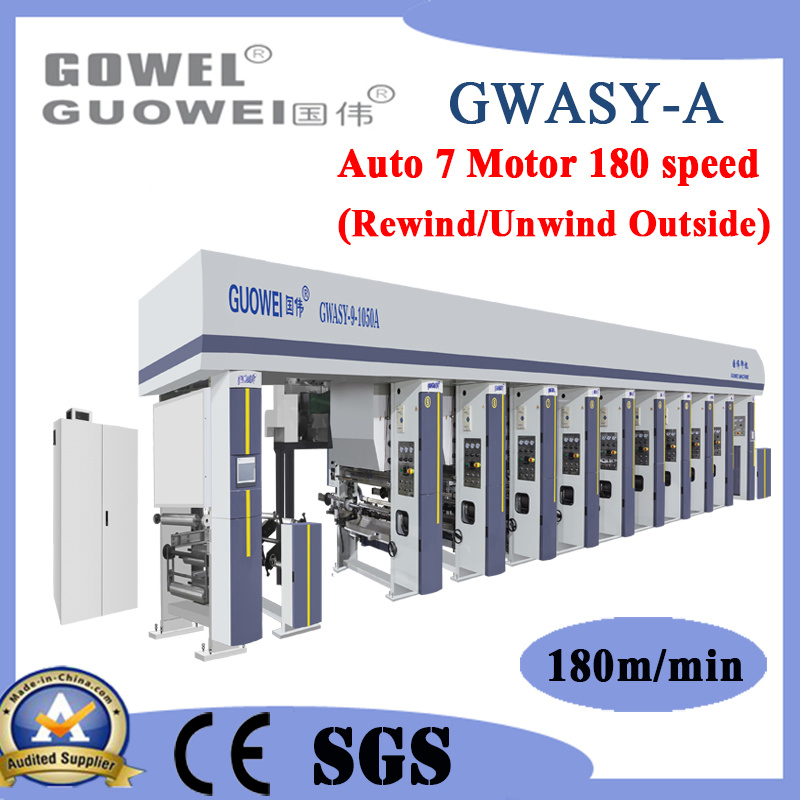

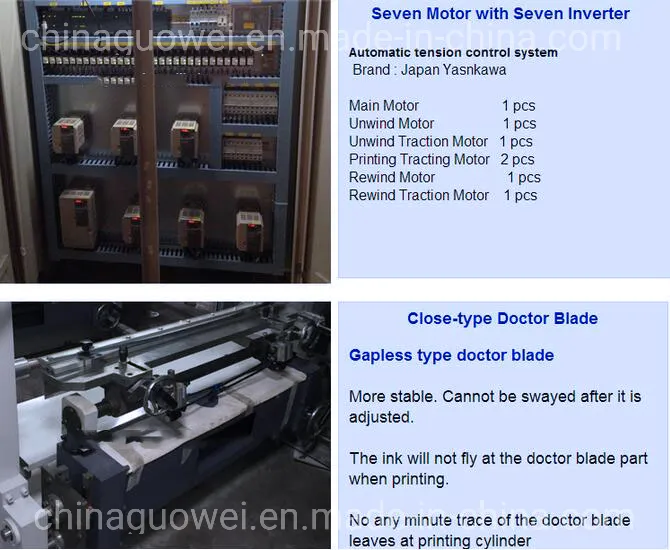

5. Advanced control system including Siemens PLC, YASKAWA frequency converter, and a seven-motor tension control system with premium imported components.

Unwinding & In-feed Unit

• Double working position rotary rack with built-in arms.
• Independent drive control with vector frequency conversion.
• Closed-loop tension detecting and oscillating roll stabilization system.
• 360-degree positive and negative rotation.
• Traction roller clutch regulated by pneumatic components.

Drying & Rewinding Unit

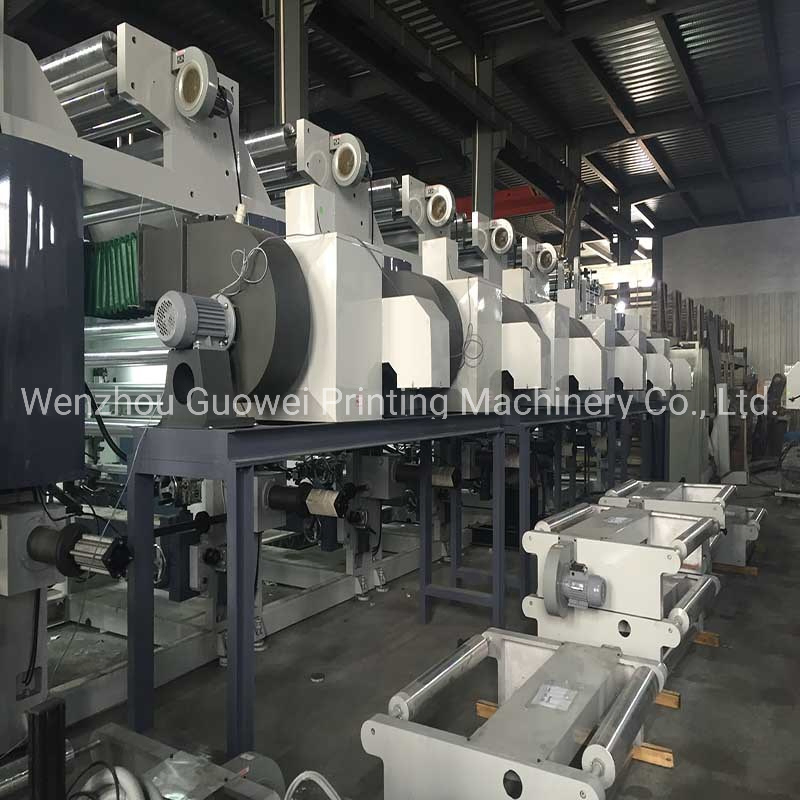

• Monochromatic group independent drying system.
• Energy-saving heat source return air utilization.
• Continuous constant temperature intelligent control.

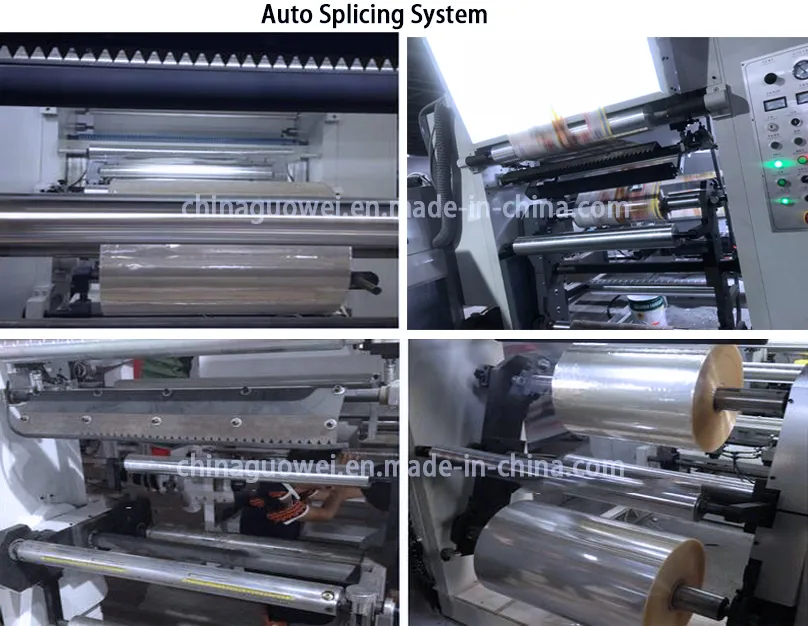

• High-speed non-stop refueling with automatic cutting.
• Integral type high-strength low-alloy cast iron frame for stability.

Packaging Details: Wooden pallet or plastic film protection.

Delivery Time: 30-60 days.

Loading Port: Ningbo Port.
