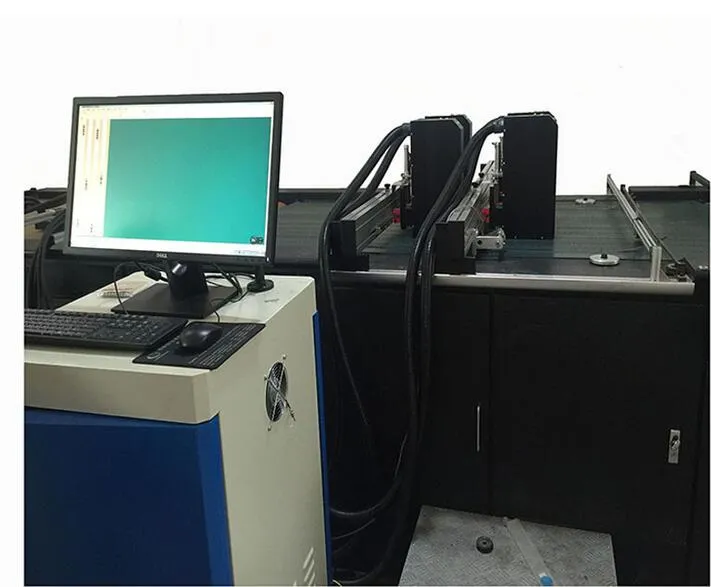

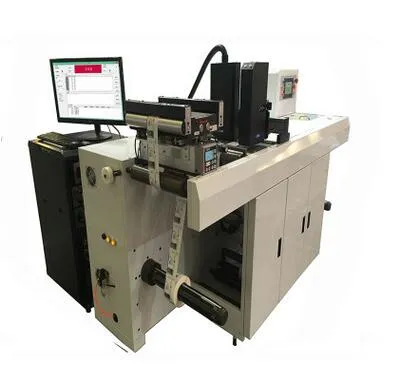

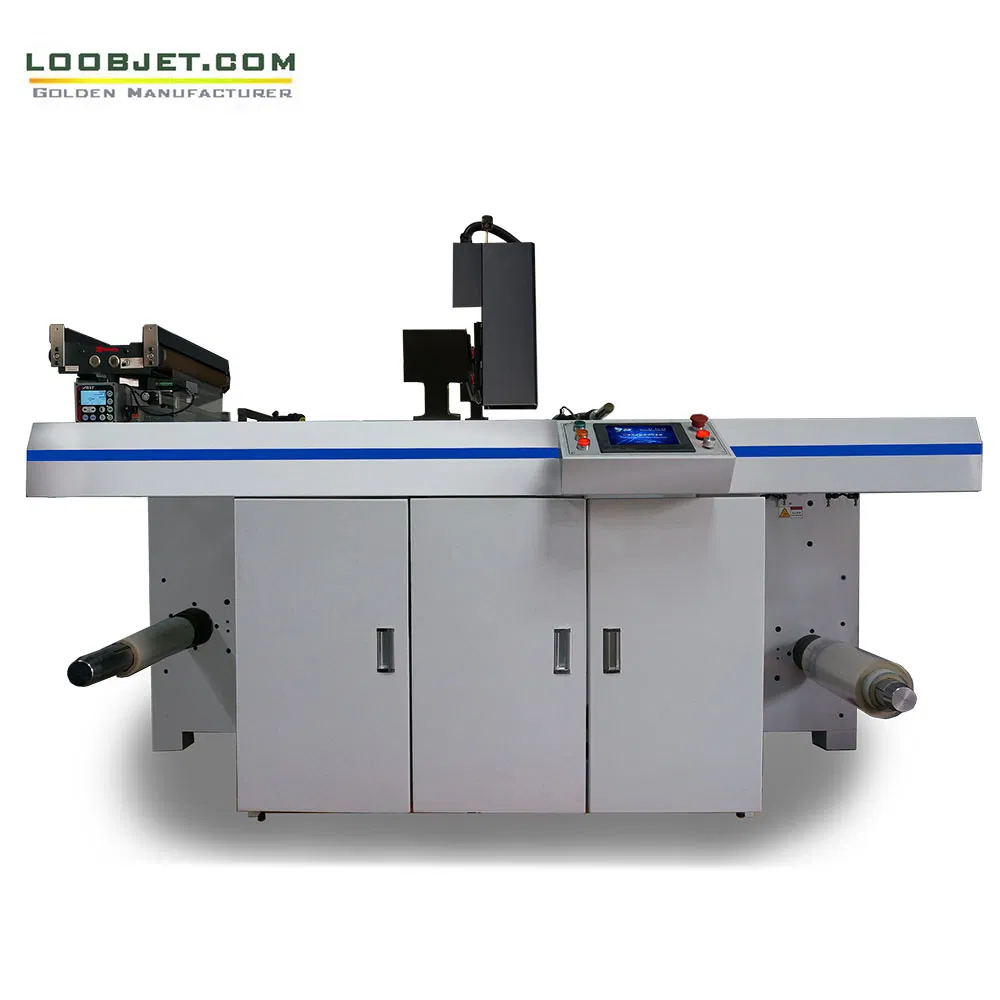

QR Codes Digital Label Press
LOOBJET UV DOD inkjet system adopts industrial piezoelectric on-demand inkjet technology, significantly improving production speed and spray printing quality. Equipped with industrial high-resolution and high-speed DOD piezoelectric print heads, it meets the rigorous demands for mailings, barcodes, bills, checks, packages, and marking applications.

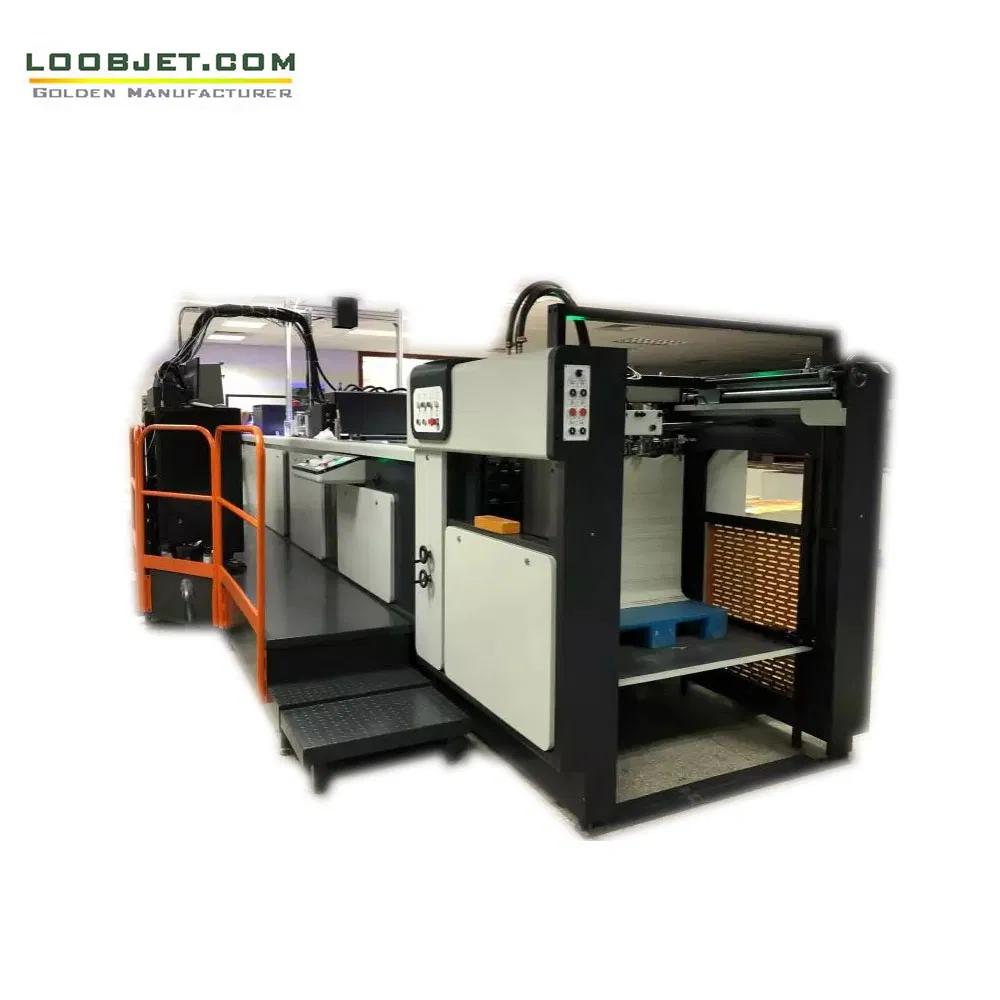

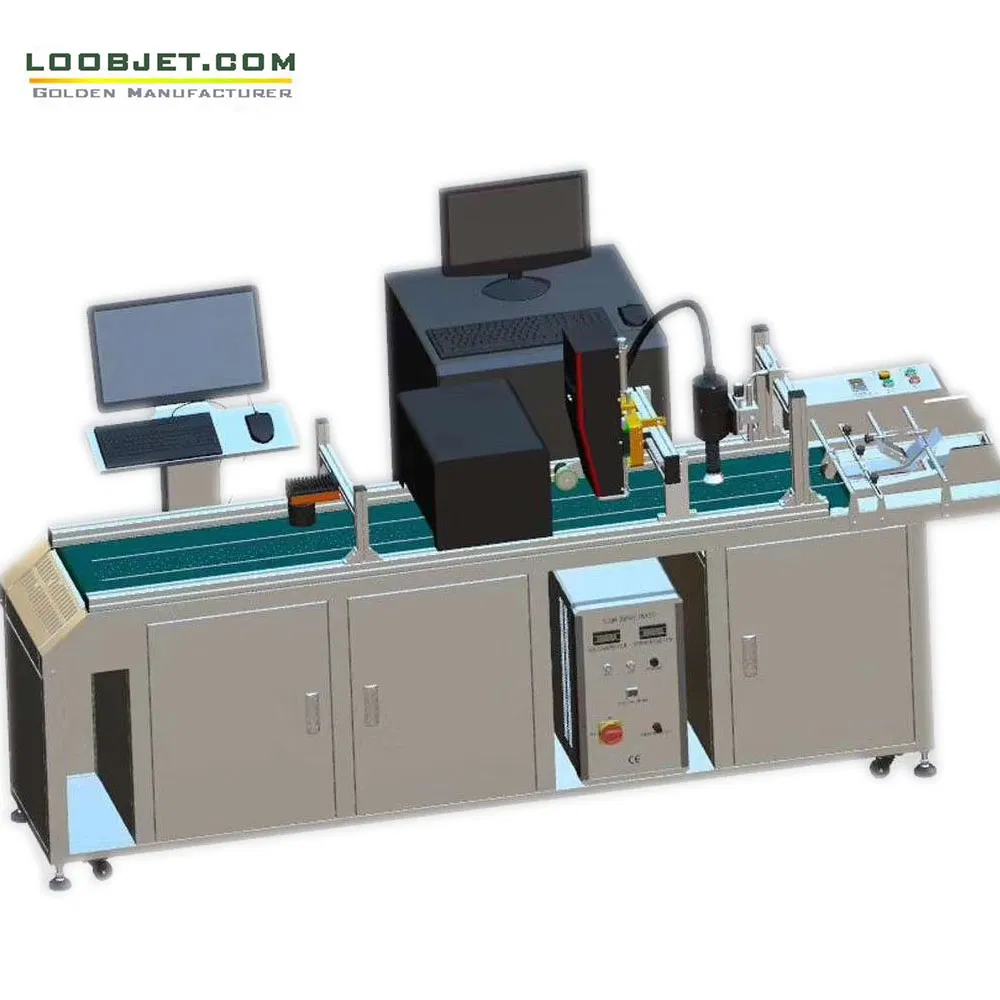

This system is ideal for web printing, sheet-fed, and both online and offline target printing. Its modular design allows for easy integration into existing transport systems, creating value-added opportunities.
Our Printer Control Software (PCS) provides a user-friendly interface to control jetting waveforms, temperature, and monitoring status. Features include database checking, DPI settings, and motor speed control.

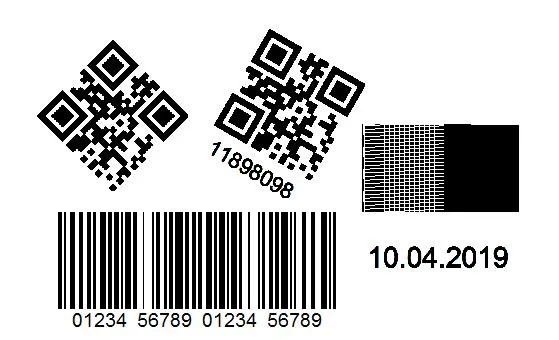

Variable Data Printing: Supports text, dates, logos, serial numbers, barcodes, and database photo images. Compatible with .CSV, .XLS, .XLSX, .TXT, and PDF files.
Supported Languages: English, Spanish, German, French, Portuguese, Russian, Chinese (Simplified & Traditional).

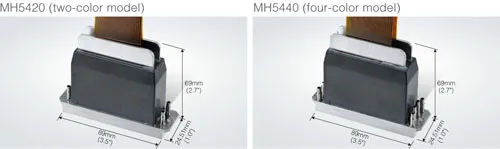

| Model | VDG540/VDK720/KY108 | Print Head | Ricoh GN5/Konica 1024i/KY |
| Origin | Japan | Resolution | Up to 600×600 DPI |
| Single Head Width | 54mm / 72mm / 108mm | Max Speed | 180m/min (at 600x200dpi) |
| Max Width | Seamless Joint up to 24 units | Method | Piezoelectric Ink-jet |
| Drop Size | 5-21 PL | OS | Windows 7 |

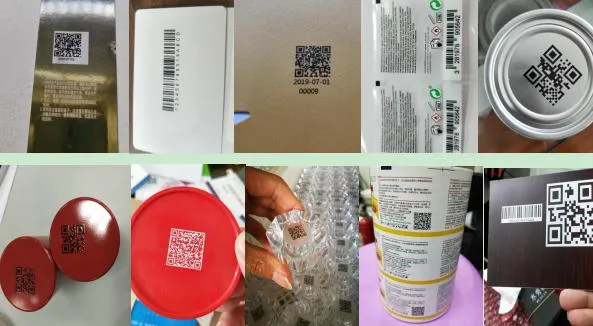

| Barcodes | UPC, EAN, CODE128, PDF417, QR, DATAMATRIX | File Formats | Excel, TXT, PDF, BMP |

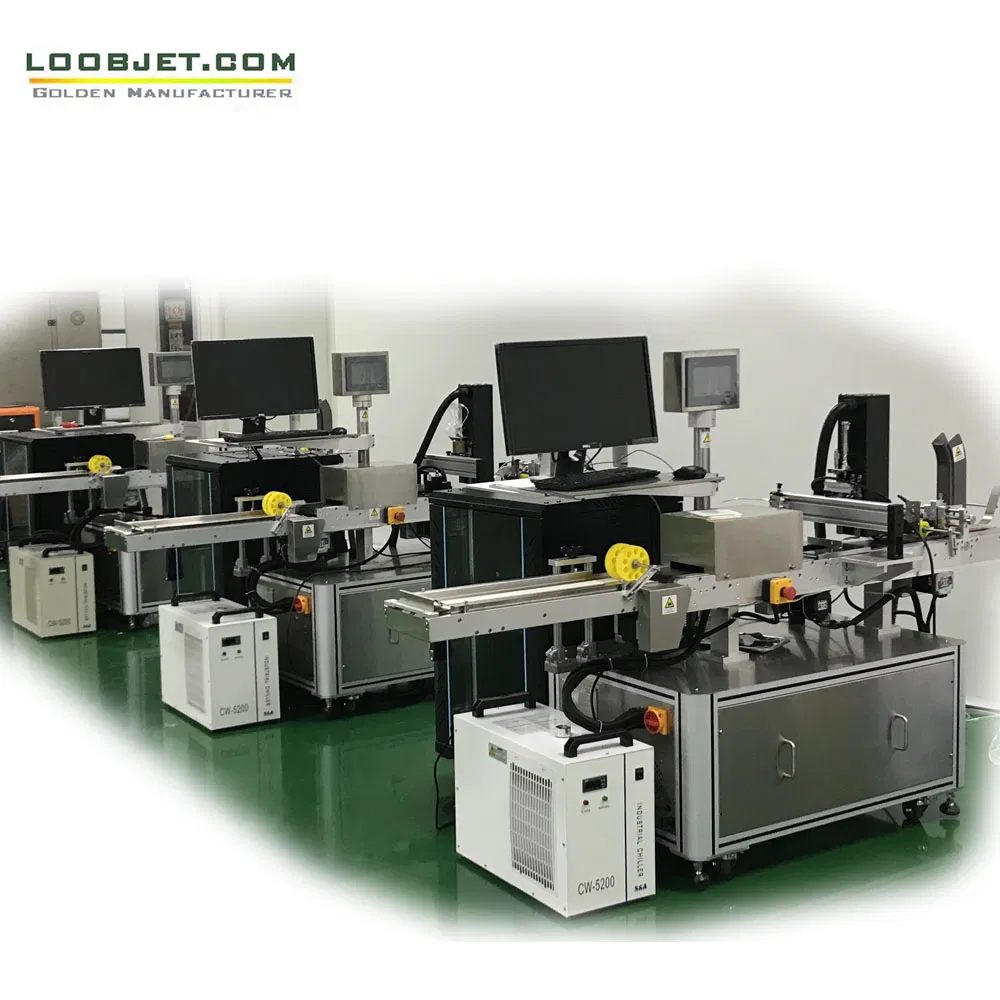

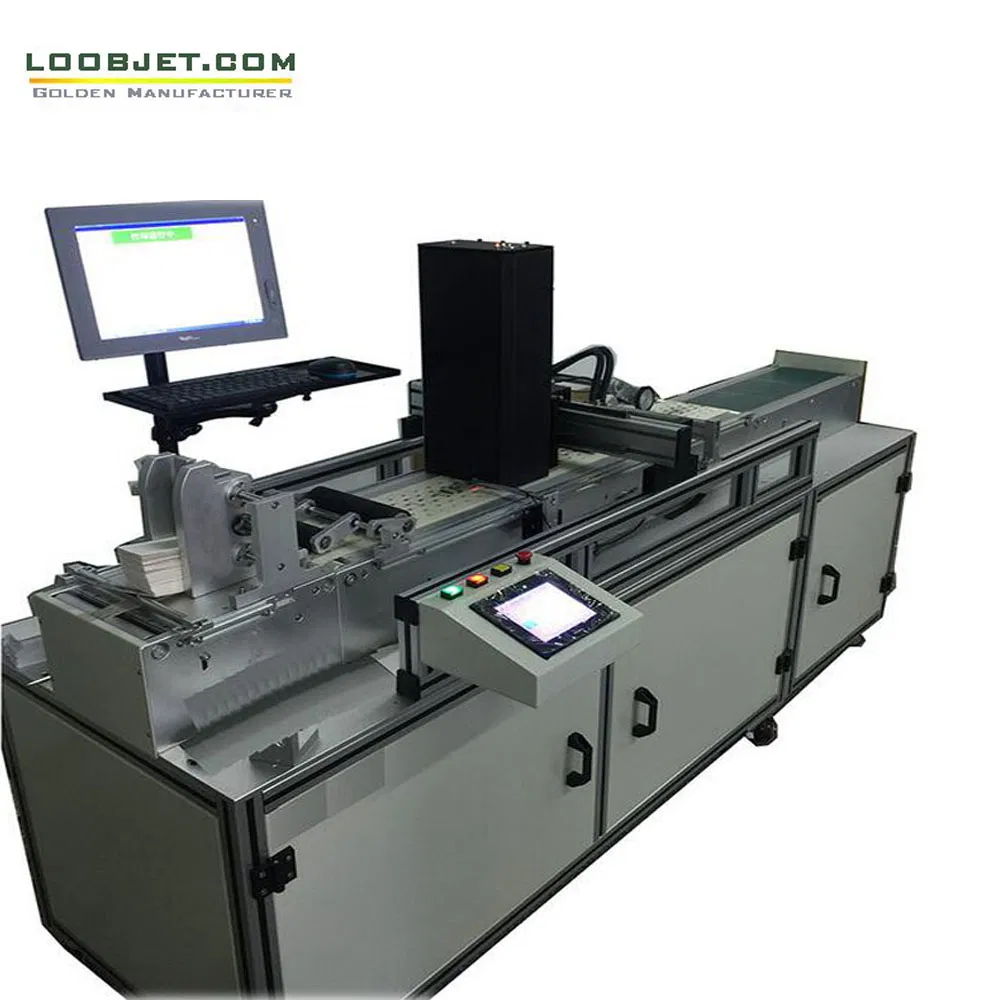

Clothing tag inkjet printing line reference available.
