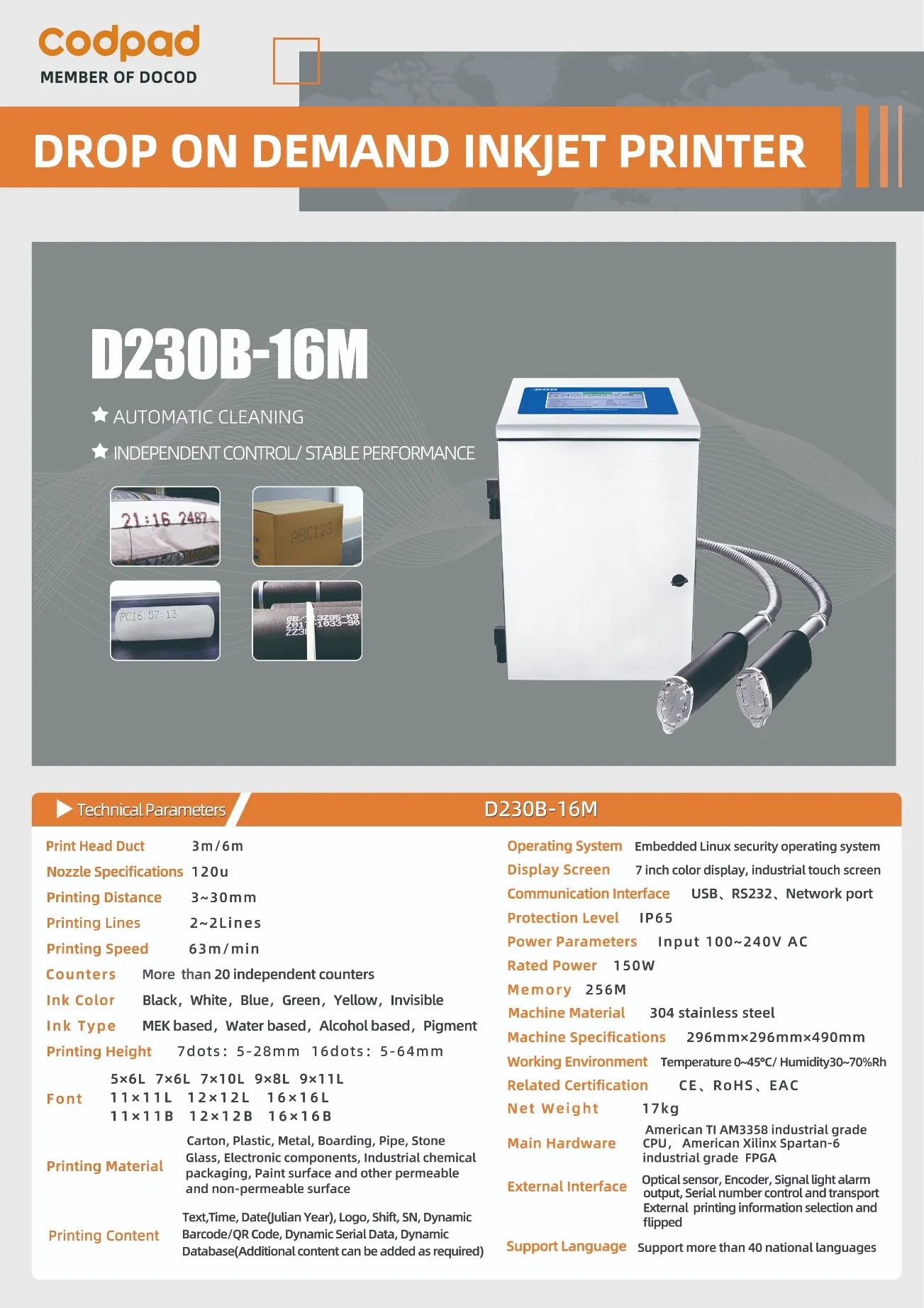

| Print Head Duct | 3m/6m |
| Nozzle Specifications | 80u, 120u, 150u |
| Printing Height | 7 dots: 5-28mm | 16 dots: 5-64mm (1-2 lines) |
| Printing Distance | 3~30mm |
| Max. Printing Speed | 63m/min |
| Ink Colors | Black, white, red, blue, green, yellow, invisible |
| Ink Type | Ketone-based, water-based, alcohol-based, acetone-based, pigment-based |
| Printing Material | Permeable and non-permeable surfaces (cartons, plastics, metals, pipes, glass, electronic components, etc.) |
| Print Content | Text, time, date, pattern, shift, serial number, dynamic barcode/QR code, database |
| Operating System | Embedded Linux security operating system |
| Display Screen | 7 inch industrial color touch screen |
| Protection Level | IP65 |
| Machine Material | 304 Stainless Steel |
| Main Hardware | American TI AM3358 industrial grade CPU, American Xilinx Spartan-6 industrial grade FPGA |
| External Interface | Network port, USB, RS232, Photocell, encoder, alarm light |
| Languages | Supports 40+ national languages |
1. Adopts high-reliability Drop-On-Demand inkjet solenoid valve technology.
2. Reliable, strong, and durable performance suitable for various harsh industrial environments (dusty, wet, vibration).
3. High precision technology ensures highly reliable performance and extremely low maintenance requirements.

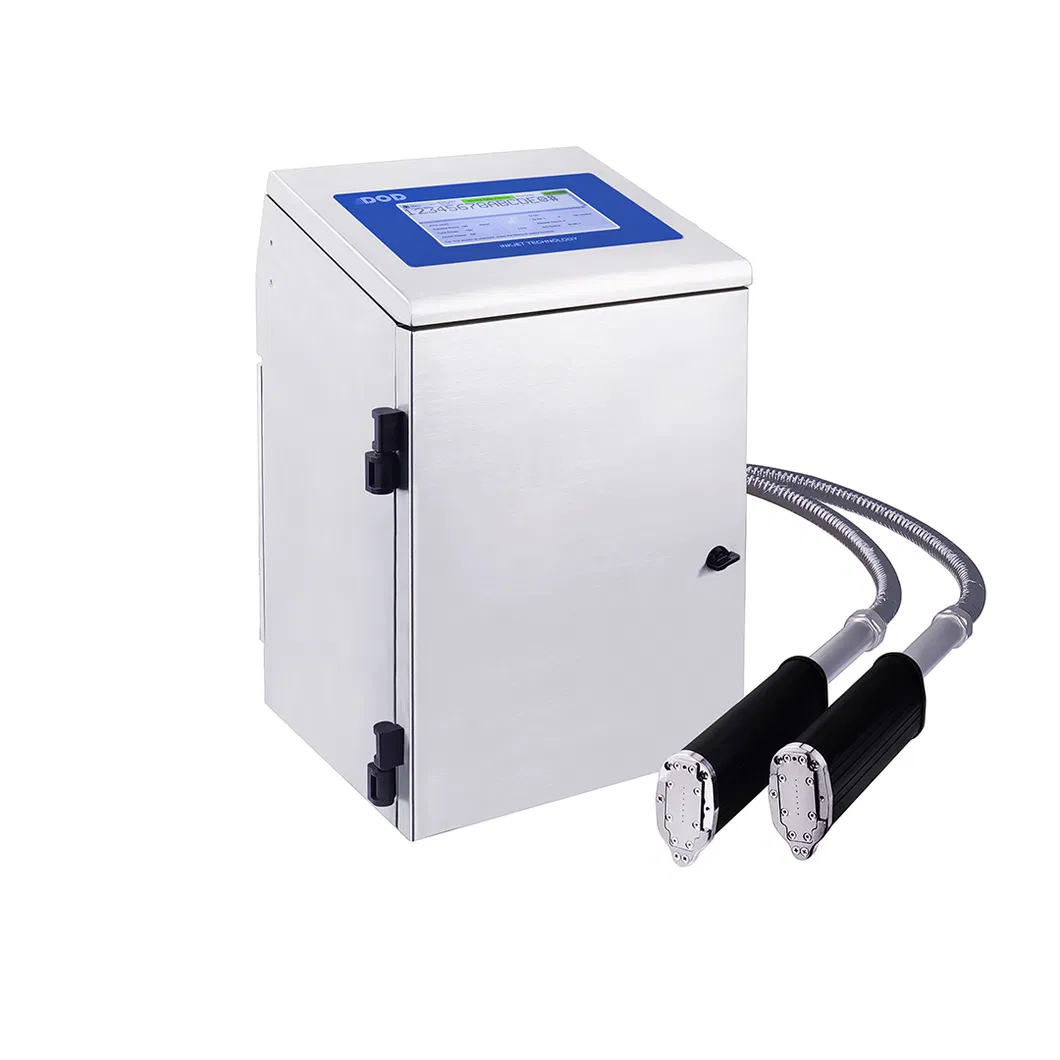

Advanced Printhead Design
The nozzle uses wear-resistant gemstone material for rounder dots and longevity. Rotatable head allows for various characters and fonts. Includes a built-in cleaning valve module.

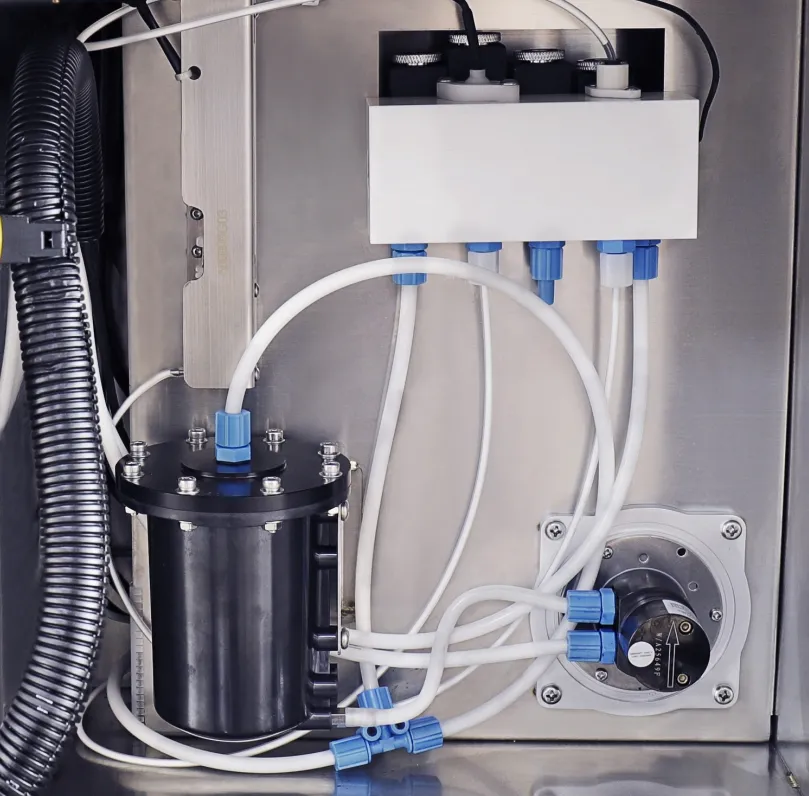

Robust Ink System
Stable internal pump design eliminates the need for an external air source. Features an automatic stirring system for white/pigment inks to prevent precipitation.
