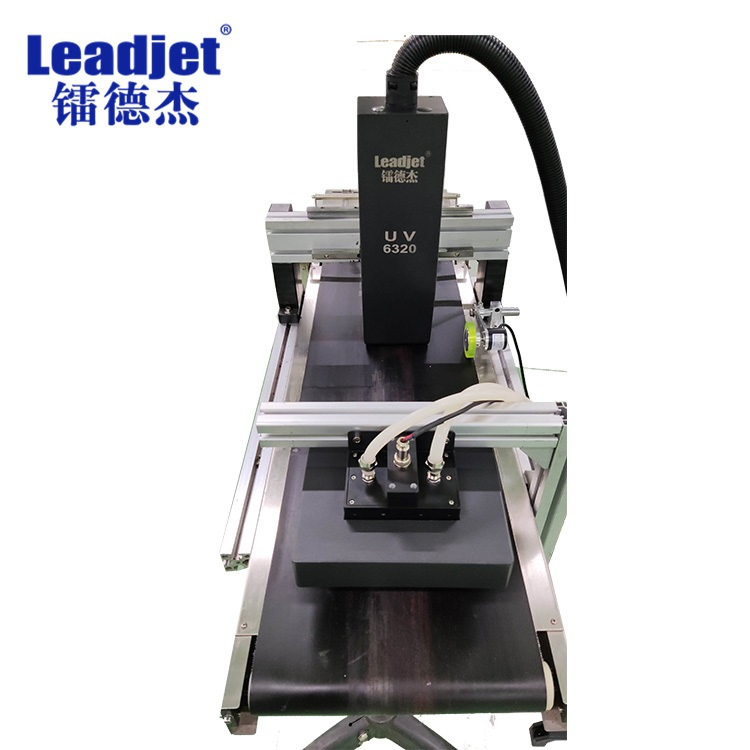

| Model NO. | 6320 |
| Type | Thermal Foam Coding Machine |
| Usage | Daily Industrial, Chemical Products, Drug, Food |
| Automatic Grade | Fully Automatic |
| Principle of Classification | Thermal Inkjet Technology |
| Application of Classification | High Resolution Ink Jet Printer |
| Working Patterns | On-Line |
| Supplies | Ink |
| Packaging | Box |
| Curing Type | UV-LED Curing |
| Ink Type | Eco-Friendly UV Ink |
| Material Feeding Method | Single Sheet/Roll to Roll |
| Printing Precision | 200dpi-300 Dpi Adjustable |
| Production Capacity | 1000/Year |

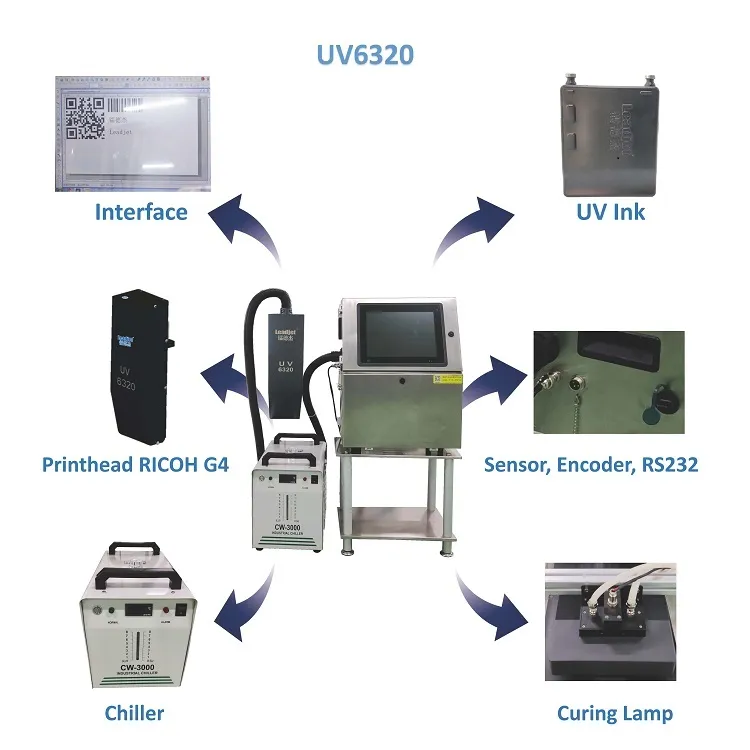

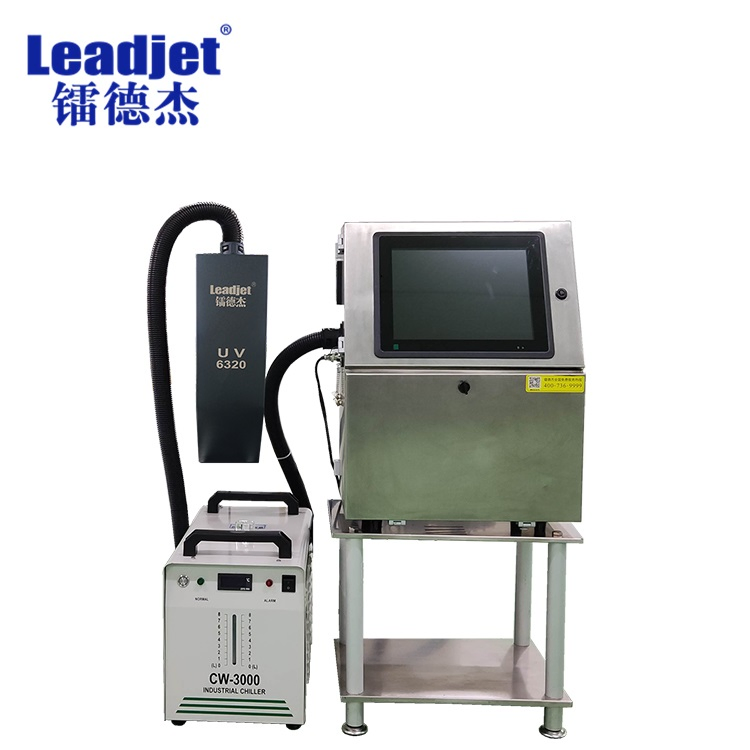

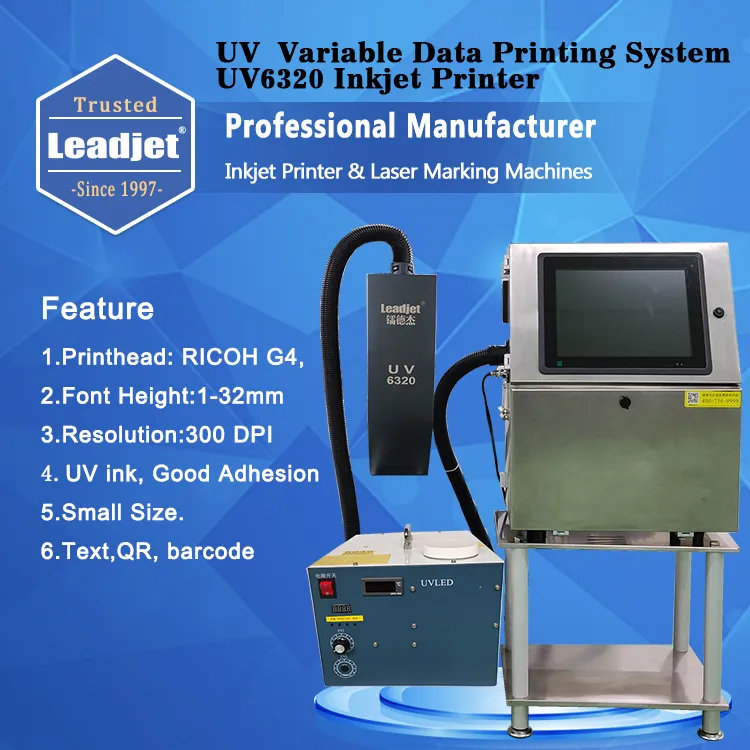

| Model | UV6320 |

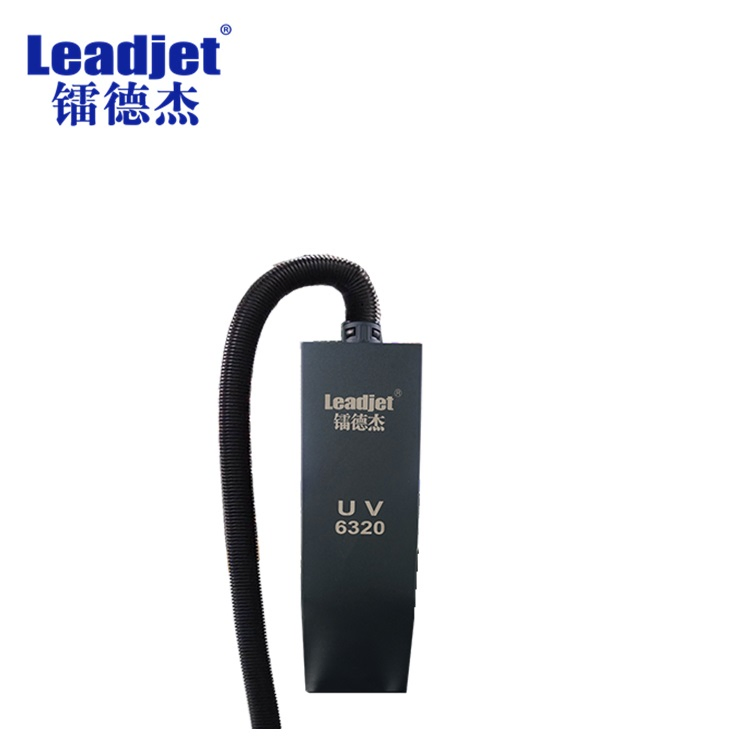

| Printhead Type | Piezoelectric Printhead (Ricoh) |
| Resolution & Speed | 200 DPI: 200m/min; 300DPI: 155m/min |
| Nozzle Qty | 640 |
| Character Height | 1-32mm |
| Print Distance | 2-5mm |
| Print Content | Text, Date/time, lot number, serial number, barcode, variable QR code image, etc. |
| Printheads Qty | 1~4 (Driven by One Controller) |
| Data Interface | USB 2.0, RS232, Ethernet, PLC, RS485 |
| Ink Drop | 7PL |
| Curing Type | LED-UV Cold light curing |
| Ink Type | UV Ink |

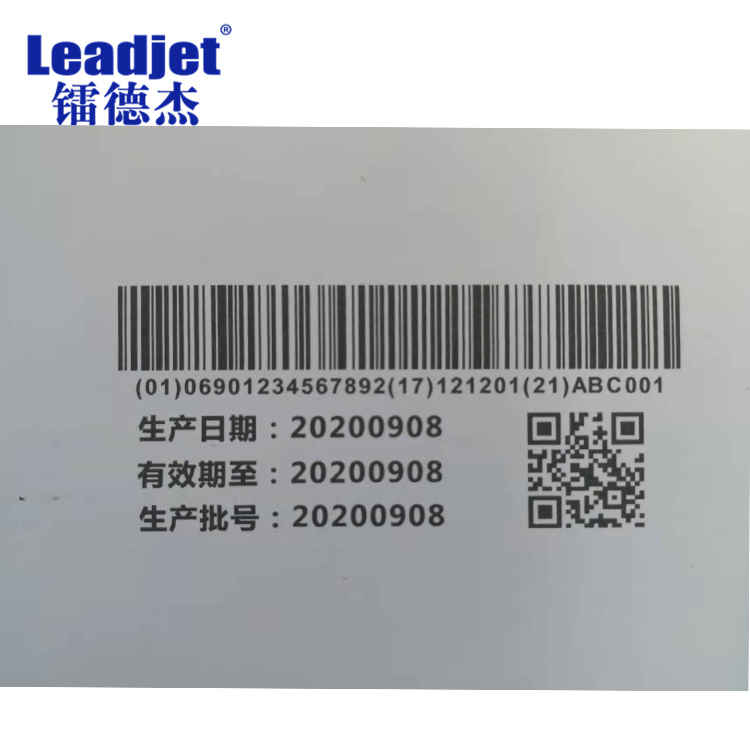

Live printing of barcodes, QR codes, EAN128, Code39, Code128, Data Matrix, and shift times. Supports up to 180 kinds of barcodes.
One controller can drive up to 4 printheads. Heads can be combined freely to print on multiple sides of materials.
Print on paper, plastic, metal, glass, ceramic, PET, PP, PE, label, and more. Ideal for food, beverage, and pharmaceutical industries.
Modular design with low maintenance. Perfect SDK available. Supports PLC, RS232, and RS485 for system integrators.
