Full Color High Speed Books Inkjet Digital Printing System

Customization:	Available
After-sales Service:	Online Support
Warranty:	12 Month

Send Inquiry

Product Description

Basic Specifications

Model NO.

VDG108

Plate

Variable Data

Structure

Inkjet Printing

Color & Page

Single-Colour Printing Press

Automatic Grade

Automatic

Printing Speed

100m/Min

Resolution

150-600dpi

Ink Solution

Porous, Semi-Porous and Non-Porous Support

Origin

China

Production Capacity

500 Sets/Year

Product Overview

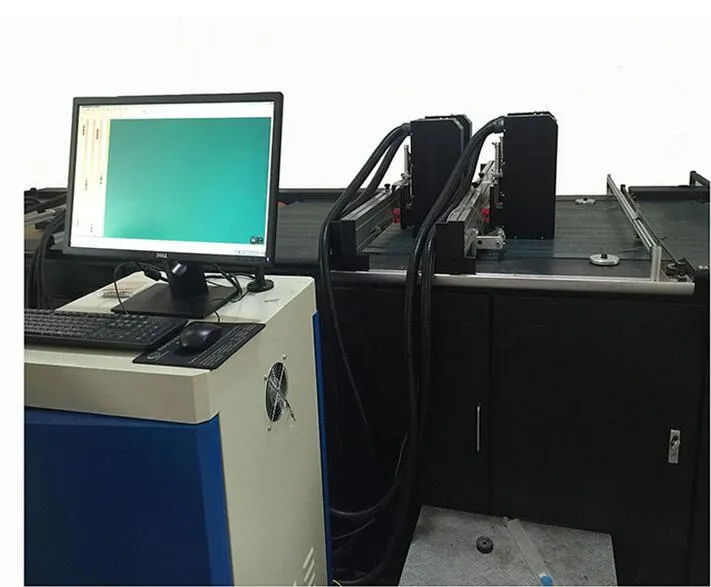

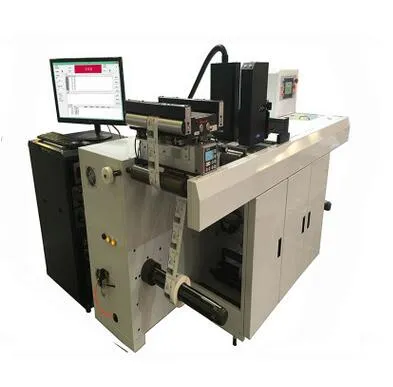

The UV DOD inkjet system adopts industrial piezoelectric on-demand inkjet technology, significantly improving production speed and spray printing quality. Equipped with high-resolution industrial DOD piezoelectric print heads, it meets rigorous demands for mailings, barcodes, bills, checks, packages, and marking applications.

This system is suitable for web printing, sheet-fed, and both online and offline target printing. Its modular design allows easy integration into existing transport systems, creating more value-added opportunities for digital printing operations.

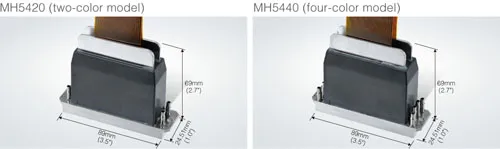

Technical Details & Nozzle Specifications

Nozzle Type

Ricoh GEN5 / Kyocera 108 / Konica 1024i

Nozzle Lifespan

>3 years / 10 billion prints

Single Print Width

54 / 72 / 108 mm

Printing Units

1 ~ 24 groups (Extendable)

Linear Speed

70 ~ 180 m/min

Compatible Media

Paper, Plastics, PVC, PP, PE film

Professional Control Software

The Printer Control Software (PCS) provides a user-friendly interface to control waveforms, temperature, and printer status. Features include:

✔ Variable Data Support: Handles text, dates, serial numbers, barcodes, and database photo images.
✔ File Compatibility: Supports .CSV, .XLS, .XLSX, .TXT and PDF files.
✔ Multi-Language: English, Spanish, German, French, Portuguese, Russian, and Chinese.

Technical Parameters

Feature	Specification	Feature	Specification
Print Head	Ricoh GN5/Konica 1024i/KY	Resolution	Up to 600×600 dpi
Printing Speed	180m/min (600×200dpi)	Method	Piezoelect ink-jet
Drop Size	5-21PL	System	Windows 7 / Windows 10
Inks	Original SGS UV Inks	Port	Gigabit Ethernet
Barcodes	QR, DataMatrix, PDF417, EAN128	Files Format	Excel, TXT, PDF, BMP

Packaging & Delivery

Package Size

550.00cm * 150.00cm * 120.00cm

Gross Weight

5000.000kg

Transport Package

Box/Pallet

Frequently Asked Questions (FAQ)

What materials is this inkjet printer suitable for?

The system is highly versatile and works on various materials including paper, plastics, PVC, PP, and PE films, making it ideal for labels, cards, and packaging.

What is the maximum printing speed available?

Depending on the resolution, the printer can reach speeds up to 180m/min at 600×200dpi. At a standard 600×600dpi, it operates at approximately 75m/min.

Does the software support variable data printing?

Yes, the included software supports variable text, dates, times, serial numbers, barcodes, and database photo images sourced from CSV, XLS, XLSX, TXT, and PDF files.

How many print heads can be integrated into the system?

The modular design allows for 1 to 24 groups of print heads to be extended with seamless jointing to meet different width requirements.

What is the expected lifespan of the industrial print heads?

The Ricoh and Kyocera industrial piezoelectric nozzles are designed for heavy use, typically lasting more than 3 years or up to 10 billion printing cycles.

Which operating systems are supported?

The Printer Control Software (PCS) is designed to run on Windows environments, supporting real-time printing via a Gigabit Ethernet interface.
