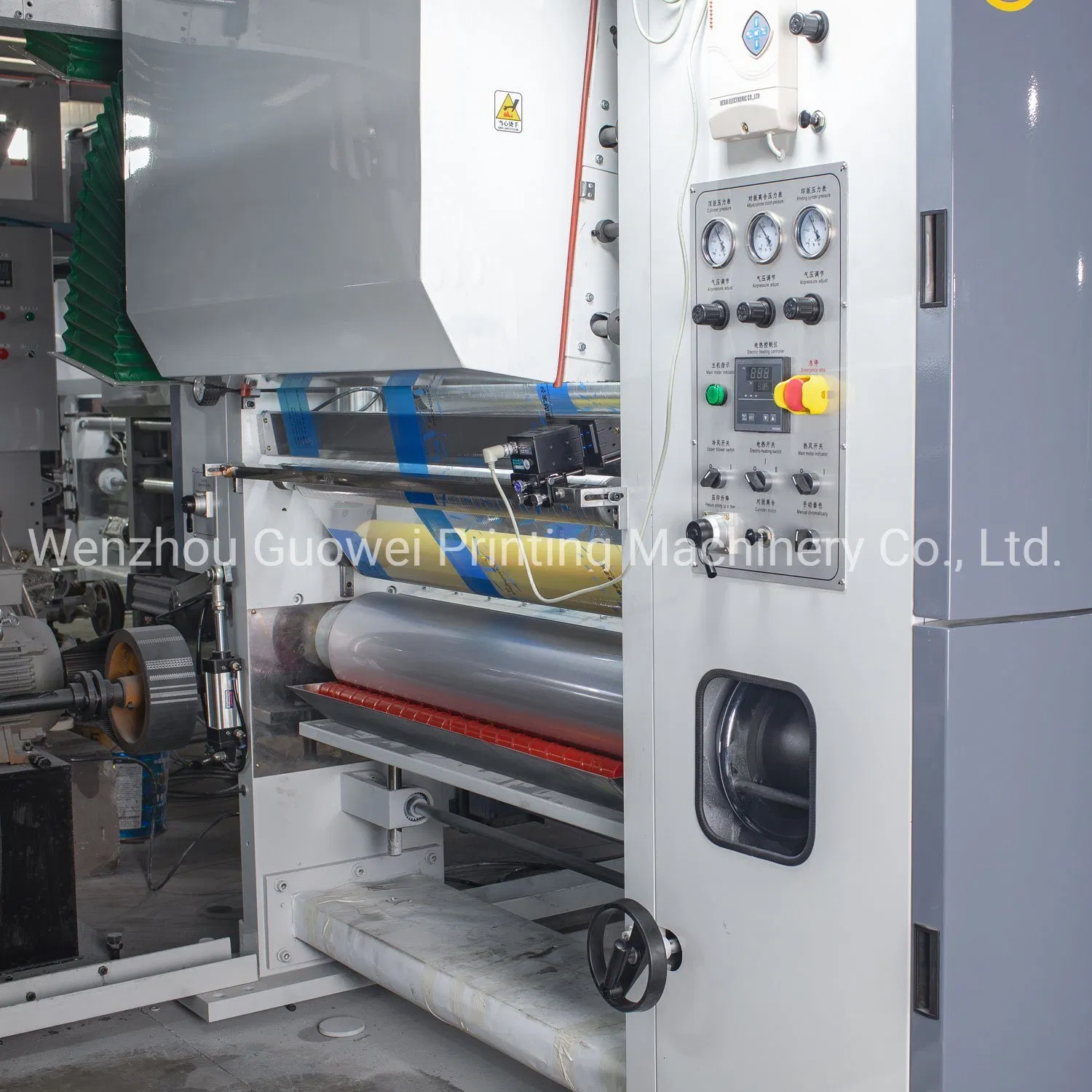

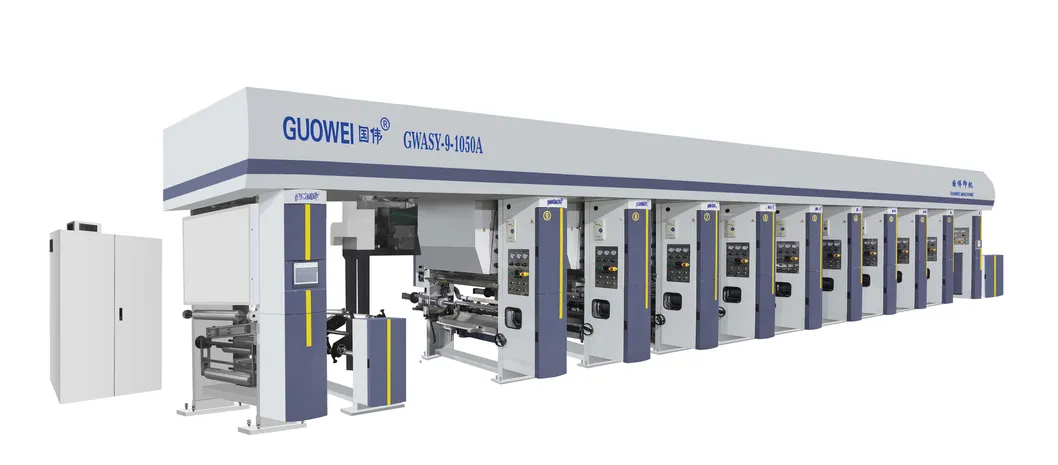

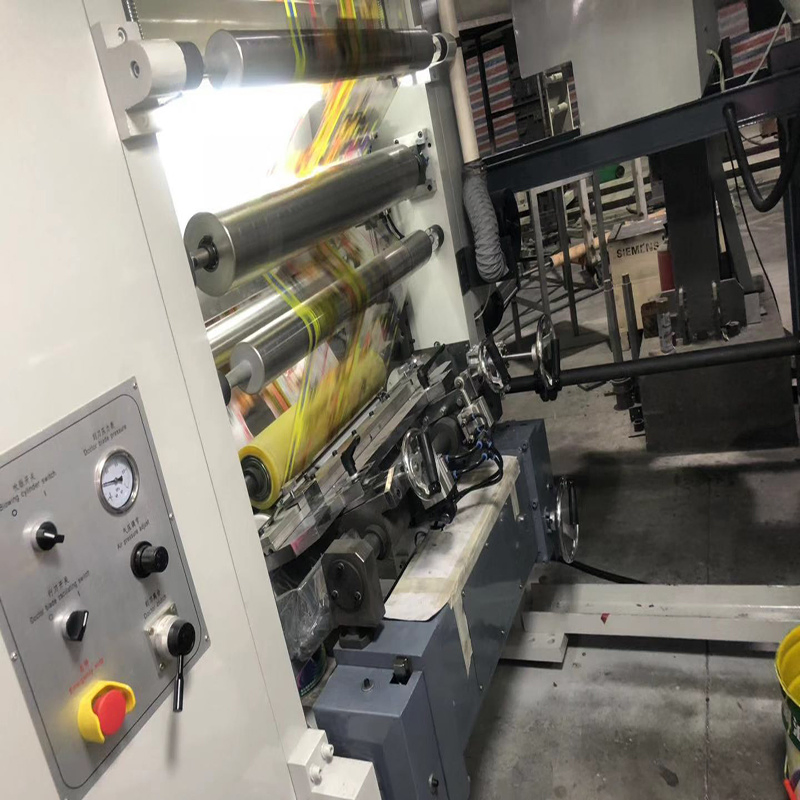

CE Approved Digital Paper Gravure Printing Equipment with Computer Control
Basic Specifications
Applicable Material
Textile, Film, Paper, Plastic
Usage
Flexible Packaging Gravure Printing
Color & Page
Multi-Colour Printing Press
Printing Color
8 (Adjustable)
Register Precision
+-0.1mm
Production Capacity
10 Sets/Month
Application and Features
🎯
Versatile Material Compatibility:
Used for BOPP, PET, PVC, PE, aluminum foil, and roll paper. Ideal for high-grade continuous color printing.
⚙️
Advanced Control System:

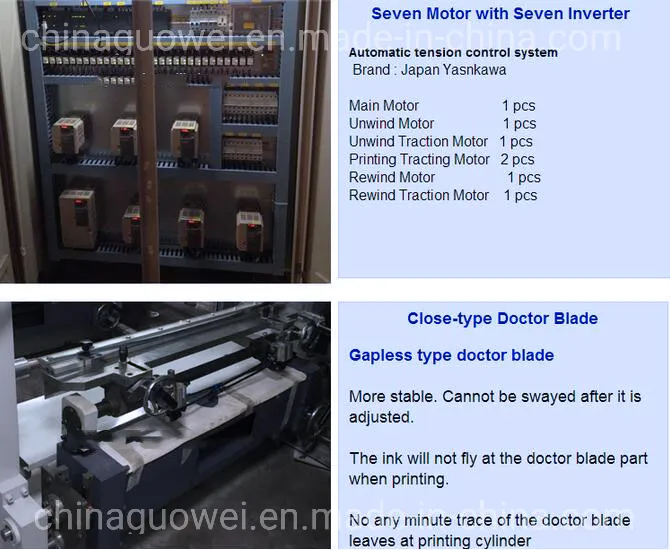

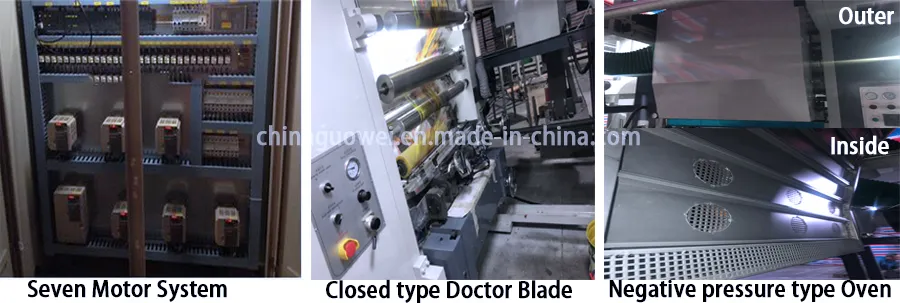

Equipped with Siemens PLC control, YASKAWA frequency converter, and a seven-motor tension control system.
🛡️
High Precision Printing:

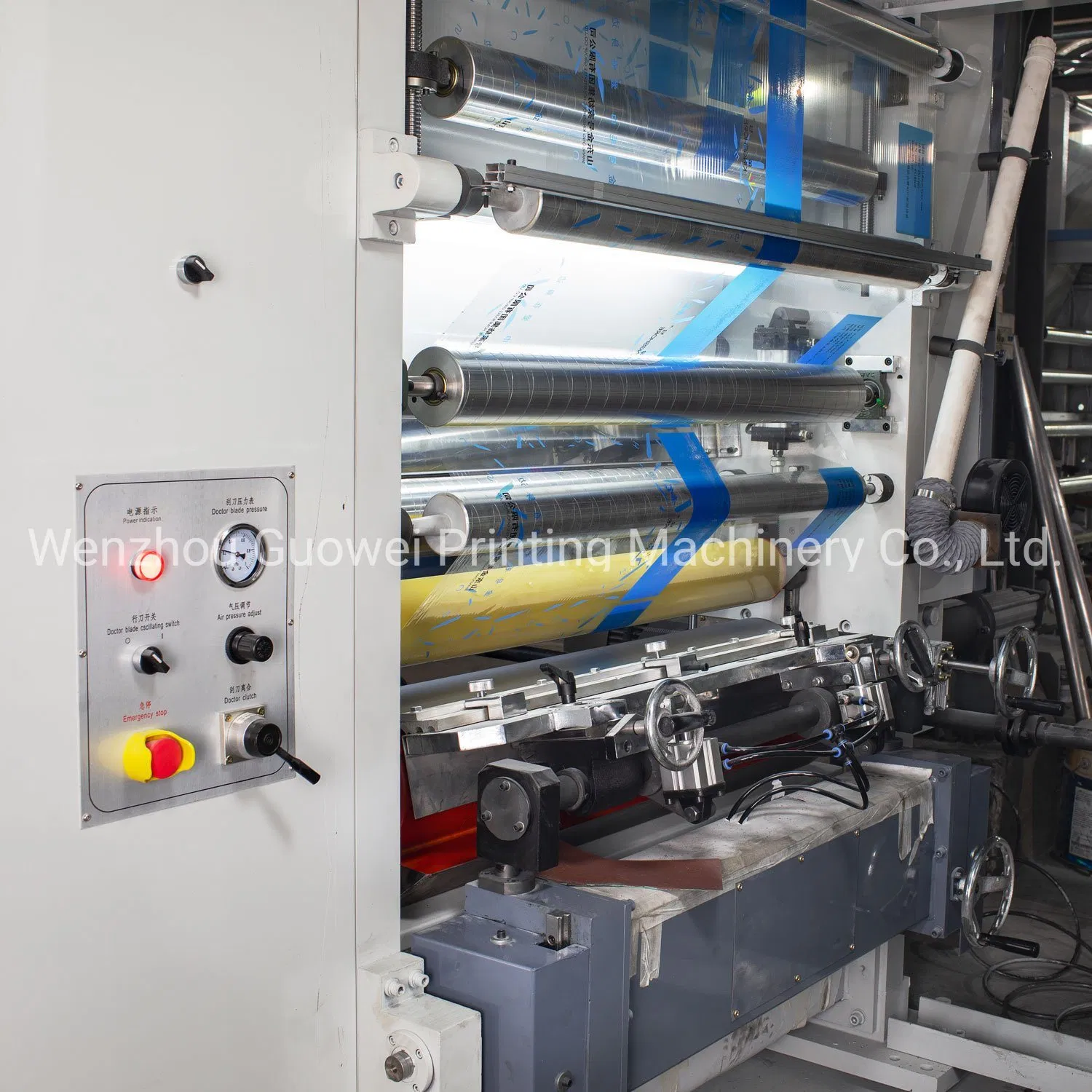

Vertical register system ensures high precision and less waste. Doctor blade features a double-axis independent motor drive.
🔥

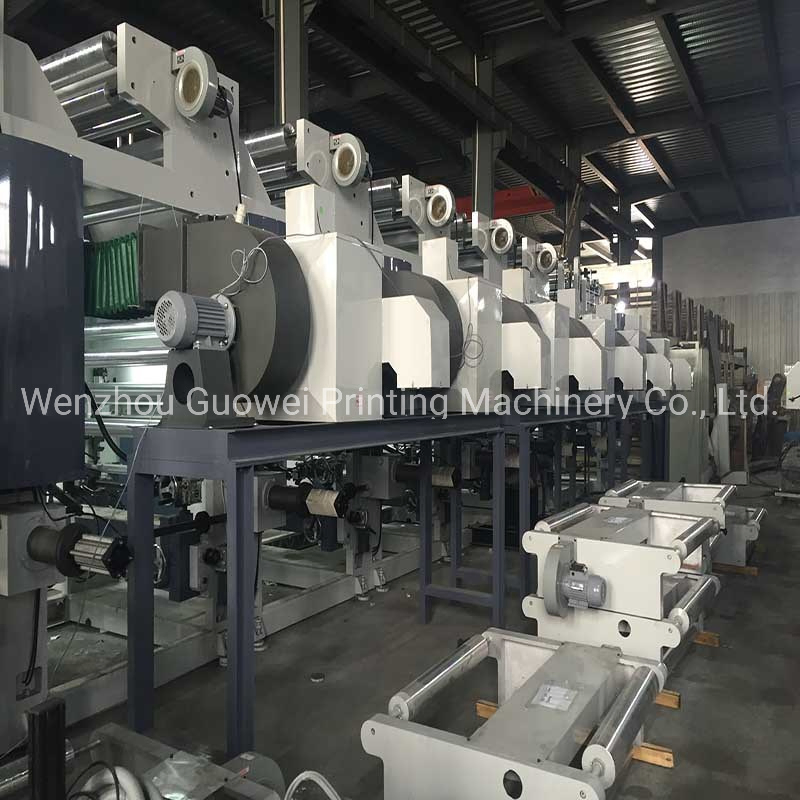

Efficient Drying:
Patent technology dry oven using high-temperature axial fans and built-in heating for energy efficiency.
Technical Parameters
| Parameter Item |
Details |
| Printing Material | BOPP, PET, PVC, PE, aluminum foil, roll paper |
| Color Range | Multicolor 8 (Scalable from 1-13 colors) |
| Max. Printing Width | 600mm / 800mm / 1000mm / 1100mm / 1200mm |
| Max. Printing Speed | 180 m/min |
| Cylinder Diameter | 100-320 mm |
| Drying Method | Electric, Steam, or Oil Heating |
| Register Precision | +-0.1mm |
Unwinding & In-feed Unit
- Built-in arms double working position rotary rack.
- Independent drive control system with vector frequency conversion.
- Closed-loop tension control with oscillating roll stabilization.
- Traction steel roller driven by independent motor for stability.
Drying & Rewinding Unit
- Independent drying system for monochromatic groups.
- Energy-saving oven design with heat source return utilization.

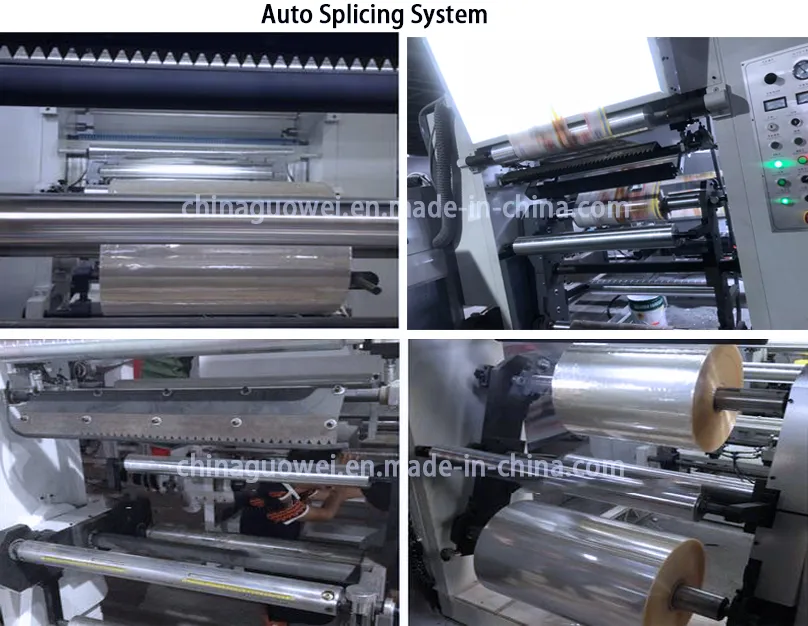

- High-speed non-stop refueling with automatic cutting.
- Constant temperature intelligent control (Max 75ºC).
Frequently Asked Questions
1. What materials can this gravure printing machine handle?
The machine is designed for a wide range of materials including BOPP, PET, PVC, PE, aluminum foil, and various types of roll paper.

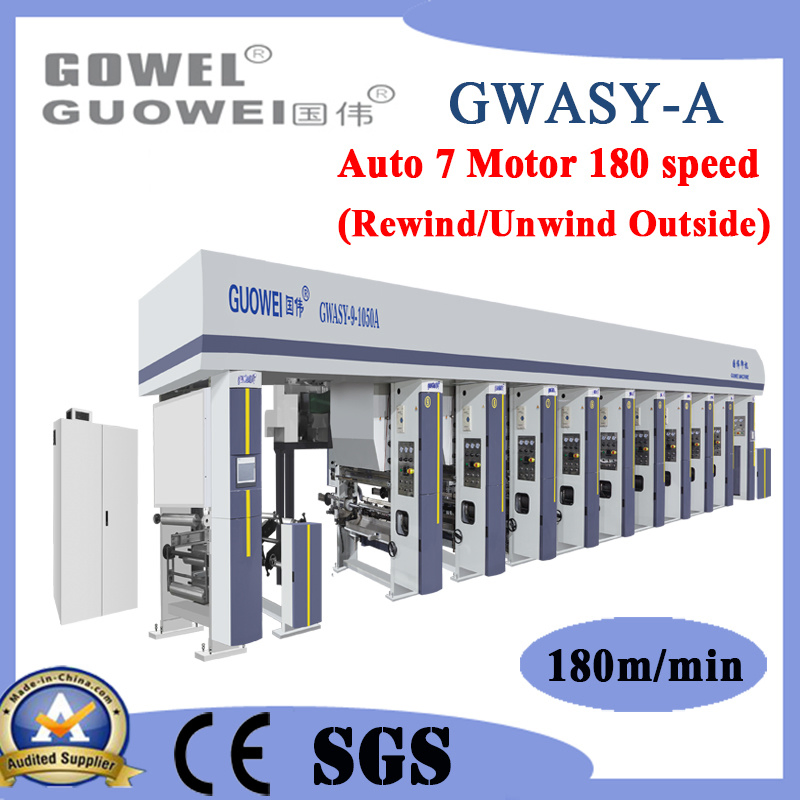

2. What is the maximum printing speed of the GWASY-A model?
The machine can reach a maximum printing speed of 180 meters per minute with high register precision of +-0.1mm.
3. How long is the warranty period?
All machines come with a one-year guarantee, starting from the date of finished installation.
4. Is overseas technical support available?
Yes, engineers are available to service machinery overseas. The buyer is responsible for travel expenses, visa costs, and a daily salary for the engineer.
5. What are the packaging and delivery details?
Machines are packaged using wooden pallets or plastic film. Delivery typically takes 30-60 days via ports such as Ningbo.
6. Where is the production facility located?
Our factory is located in China, approximately 40 minutes by plane or 5 hours by train from Shanghai. We provide pick-up services for visiting clients.
