Cap and Lids Logo Codes Printing System

Customization:	Available
Plate:	Variable
Structure:	Non-Contact

Send Inquiry

Product Description

Basic Information

Model NO.

KY320

Color & Page

Multi-Colour Printing Press

Usage

Paper, Label, Card, Cloths Printer

Automatic Grade

Automatic

Printing Interface

USB3.0

Printing Speed

50m/Min

System Supported

Windowsxp32

Color Support

Cmyk+W+V

Overprint

+-0.05mm

Max.Web Dia.

600mm

Material Weight

60-250G/M2

Total Power

45kw

Gross Weight

3000kgs

Transport Package

Wooden Cases

Specification

3200*1800*800mm

HS Code

8443322100

Production Capacity

100sets/Year

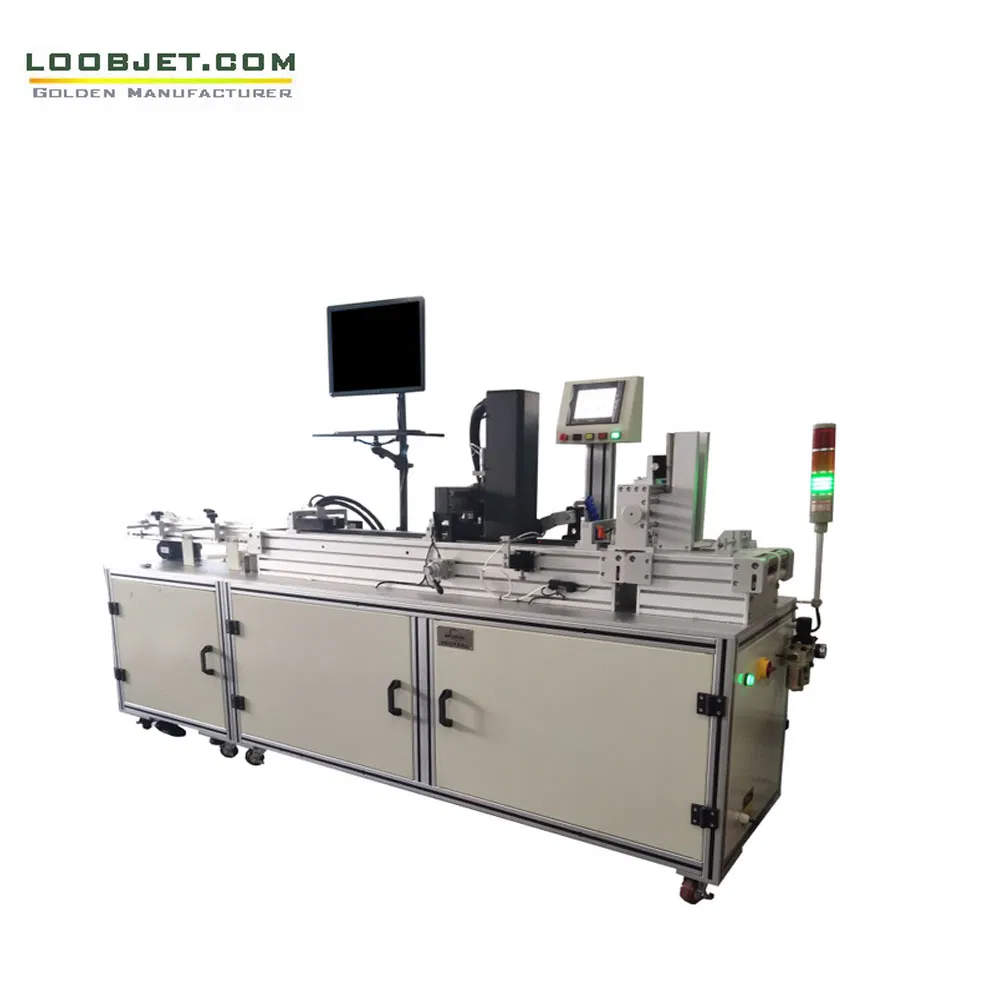

UV DOD Digital Inkjet Printer

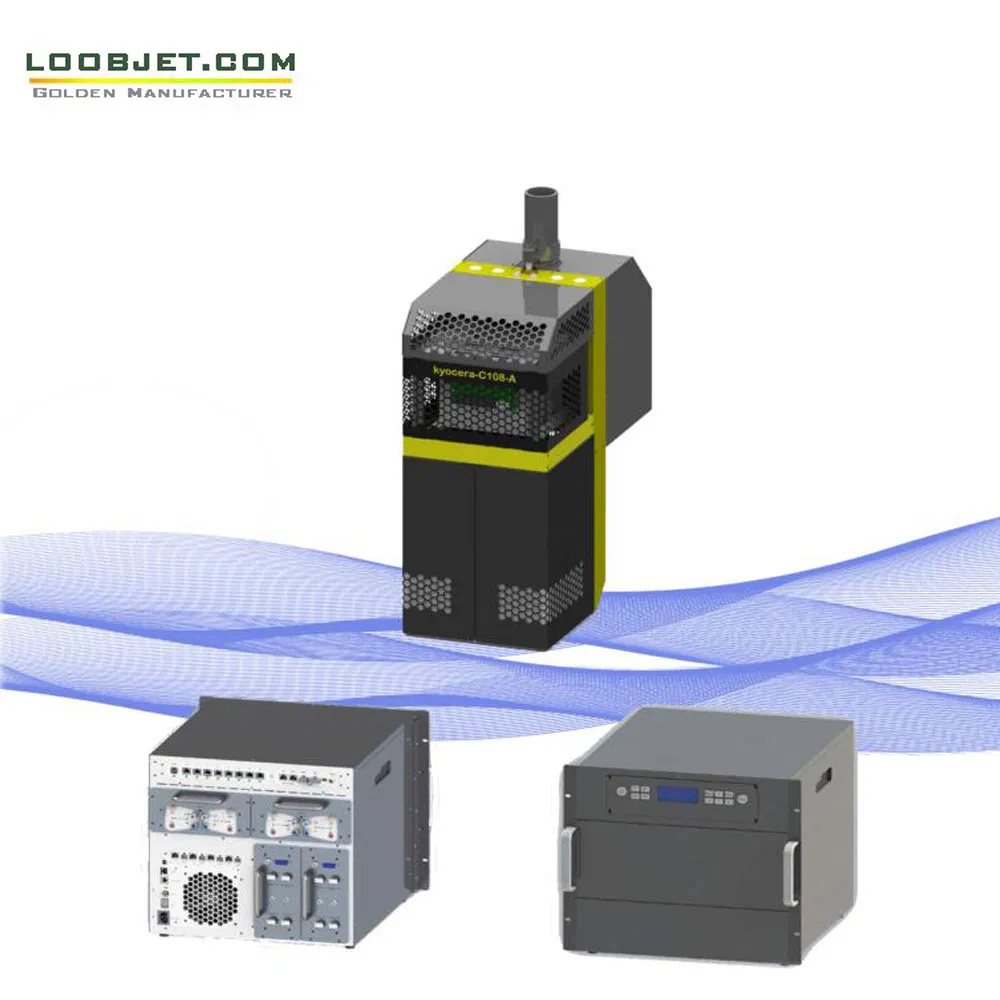

Systems Composition

The printing system of Kyocera PH is an industrial level digital four-color printing engine system, it mainly used for packaging and printing industry, which is equipped with 12 pics industrial levels Kyocera PH.

Kyocera nozzle can print at high speed with high precision, 4 colors 600 * 1200dpi, and the maximum printing speed can be reach 50m / min.

System Features

✔

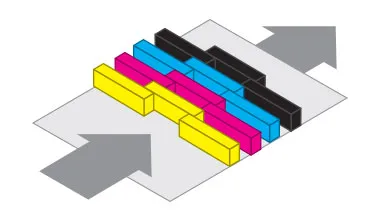

High Resolution: 12 pics industrial grade Kyocera PH, UV/water-based nozzles (printing width 324mm) are used, reaching 600 * 1200dpi.

✔

High Speed: Industrial single pass non-contact printing technology up to 50m / min at 600dpi.

✔

Maximum Printing Width: 324mm.

✔

Versatile Material Support: Suitable for all kinds of paper/adhesive labels without pre-coating. Supports variable barcodes, 2D codes, and image printing.

✔

Color Support: CMYK four colors, or more customized spot colors accepted.

✔

Efficiency: Average preparation time less than 1 minute; seamless roll changing and content changing.

✔

Advanced Software: Equipped with powerful Rip, image processing, and data transmission for efficient color correction.

✔

Automatic Processing: Intelligent ink and air supply balance. Maintains negative pressure even during sudden power loss.

✔

Industrial Durability: Designed for 24/7 production with industrial piezoelectric nozzles.

Technical Parameters

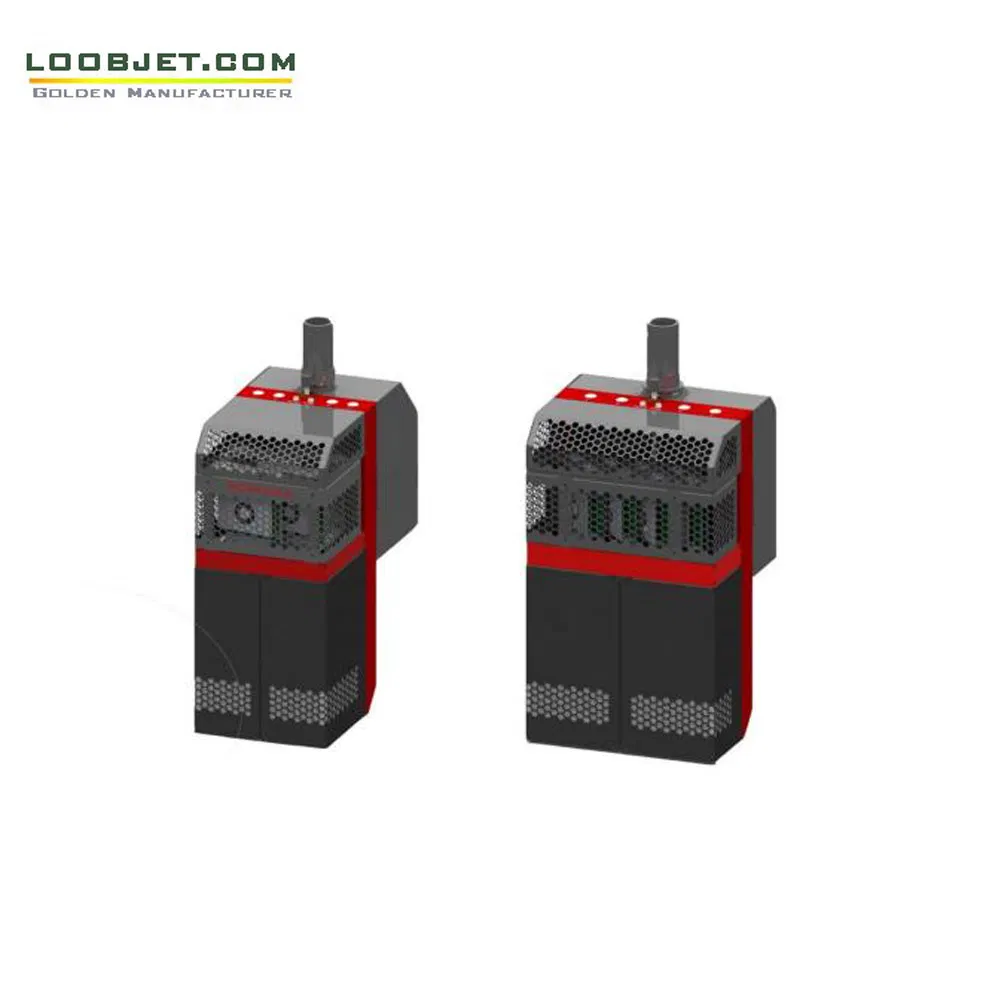

PH Parameters

Nozzle Model	Kyocera
Printing Width (Unit)	108mm
Number of Nozzles	2656
Single Nozzles Density	600dpi
Ink Drop	3.5pl, 7pl, 11pl, 14pl adjustable
Grayscale	8 levels
Nozzle Size	200L * 30W * 69.4H
Nozzle Frequency	35kHz - 40KHz

Other Specifications

Ink Type	UV/water base ink
Ink Color	CMYK (Expandable to Orange, Purple, White, or Spot color)
Curing Type	Drying module or quick drying ink
Power Requirements	AC220V 50 / 60Hz
Air Supply	6-8 PA, clean and dry
Printing Platform	Single-fed or roll-fed
Material Weight	60-250g/m2
Material Type	Ordinary paper, offset paper, adhesive labels

Frequently Asked Questions

1. What is the maximum printing speed of the KY320?

The system can reach a maximum printing speed of 50m/min at 600dpi resolution.

2. What type of printheads are used in this printer?

It utilizes industrial-grade Kyocera piezoelectric printheads, known for high precision and 24/7 durability.

3. Does it require pre-coating for label printing?

No, the printer can print high-quality patterns directly on various papers and adhesive labels without the need for pre-coating.

4. What colors are supported by the system?

The standard configuration supports CMYK four colors, and it can be expanded to include White (W), Varnish (V), or other spot colors.

5. What kinds of variable data can be printed?

The system supports various variable barcodes, 2D barcodes, and complete variable image printing.

6. How does the intelligent ink supply system handle power failures?

The intelligent ink system maintains negative pressure even during sudden power loss, ensuring the system can resume work quickly once power is restored.
