BOPP PE Apparel Sector Printing Flexographic Printing Machine

Basic Specifications

Model NO.

YTB

Printing Page

Double Faced

Printing Color

4 Colors

Anilox Roller

Ceramic Anilox Roller

Dryer

Electrical Heater

Type

Flexographic

Application

Flexible Packaging Printing

Printing Speed

90m/min

Material

Plastic Film (PE, BOPP, PVC, CPP, Shrink Film, etc.)

Tension

Auto Tension System

Rewind System

Central Type Rewind

EPC

Ultrasonic Web Guide

Product Description

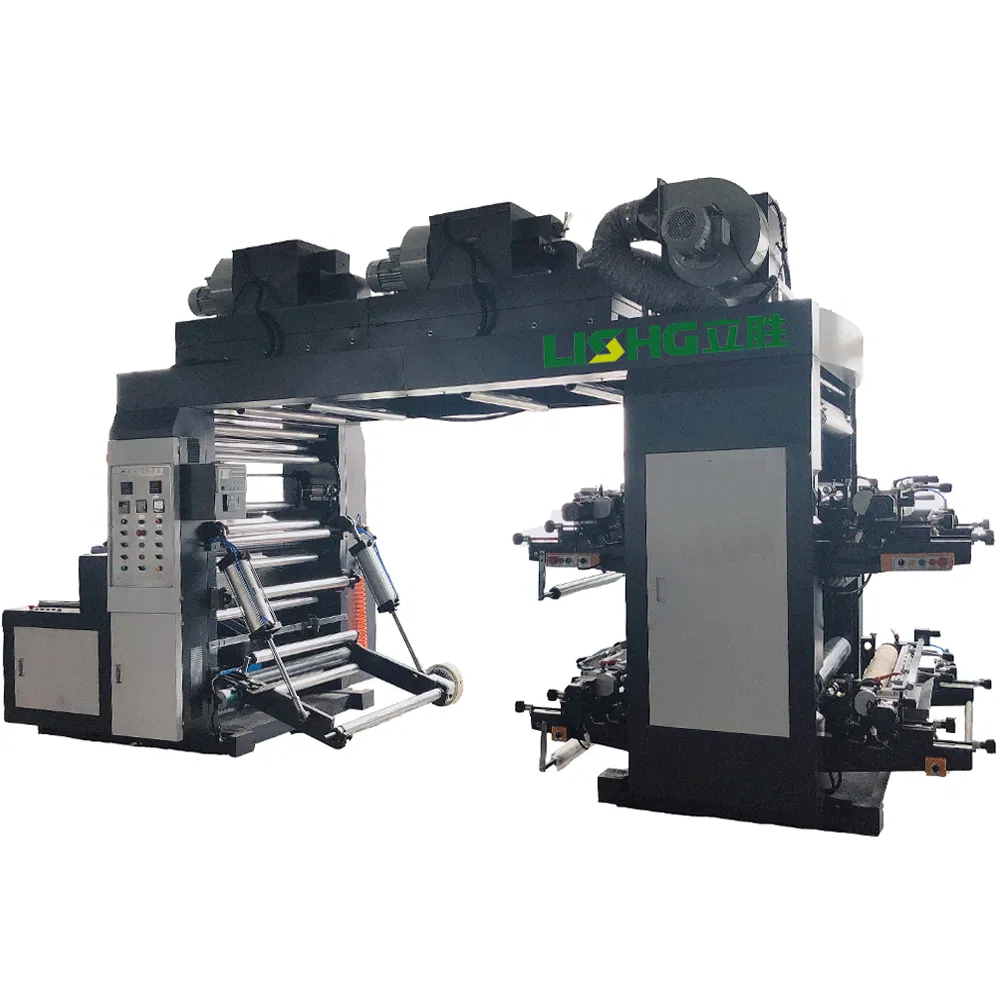

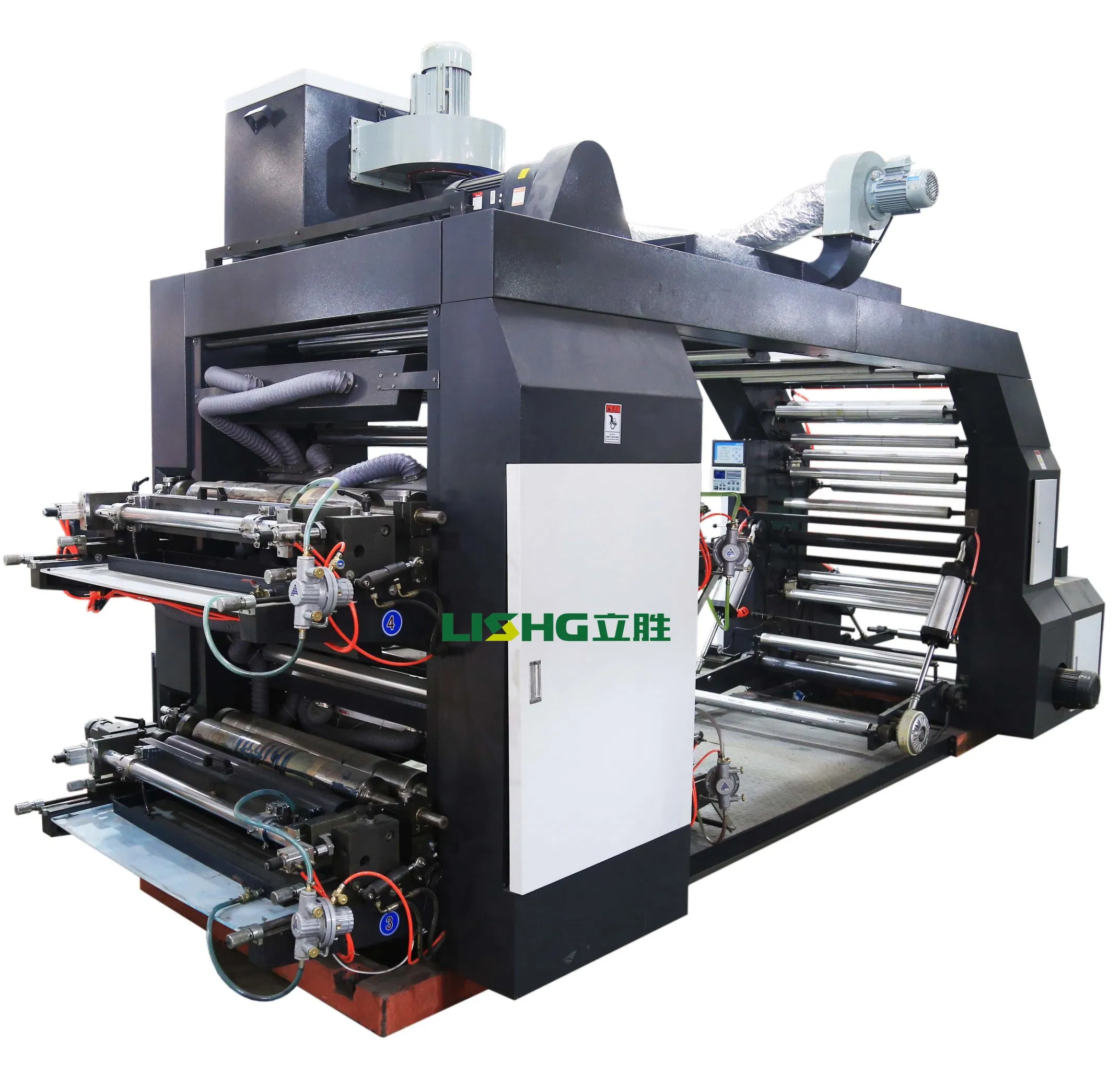

4 Colors High Speed Flexographic Printing Machine

This machine is ideal for printing packaging materials such as paper, PE, PP bags, cellophane, and roll materials. It is excellent equipment for producing paper packing bags for food, supermarket handbags, vest bags, and clothes bags.

Printing Samples

Technical Parameters

Item	600mm	800mm	1000mm	1200mm	1400mm	1600mm
Printing Color	4 Colors (PC: 4+0, 3+1, 2+2)
Printing Length	7.5"-40" / 7.5"-50" (190~1250mm)
Mechanical Speed	100m/min
Printing Speed	60-90m/min (Depends on material)
Master Motor	3.7kw	3.7kw	5.5kw	5.5kw	7.5kw	7.5kw
Electrical Heater	14kw	16kw	20kw	22kw	24kw	26kw
Weight (Approx)	4500kg	4750kg	5000kg	5250kg	5500kg	5750kg

Main Characteristics

✔ Easy operation, flexible starting, accurate color register.

✔ Automatic stop system: Machine stops at preset quantity or when material is cut off.

✔ Hydraulic printing cylinder lift/lower with automatic ink stirring.

✔ Even ink distribution via ceramic anilox cylinder.

✔ Reliable drying system synchronized with high-speed rotation.

✔ 360° continuous and adjustable longitudinal register device.

✔ Frequency control of motor speed for various printing requirements.

Suitable Materials

Paper Series	Kraft paper: 40-350gsm, Coated paper: 30-350gsm, Silicone paper: 50-350gsm, Thermal paper, etc.
Plastic Film	PVC: 10-120micron, OPP: 10-120micron, PE: 20-120micron, PET/CPP: 20-120micron.
Others	Woven/Non-woven fabrics: 15-120micron, Toilet paper, light leather, etc.

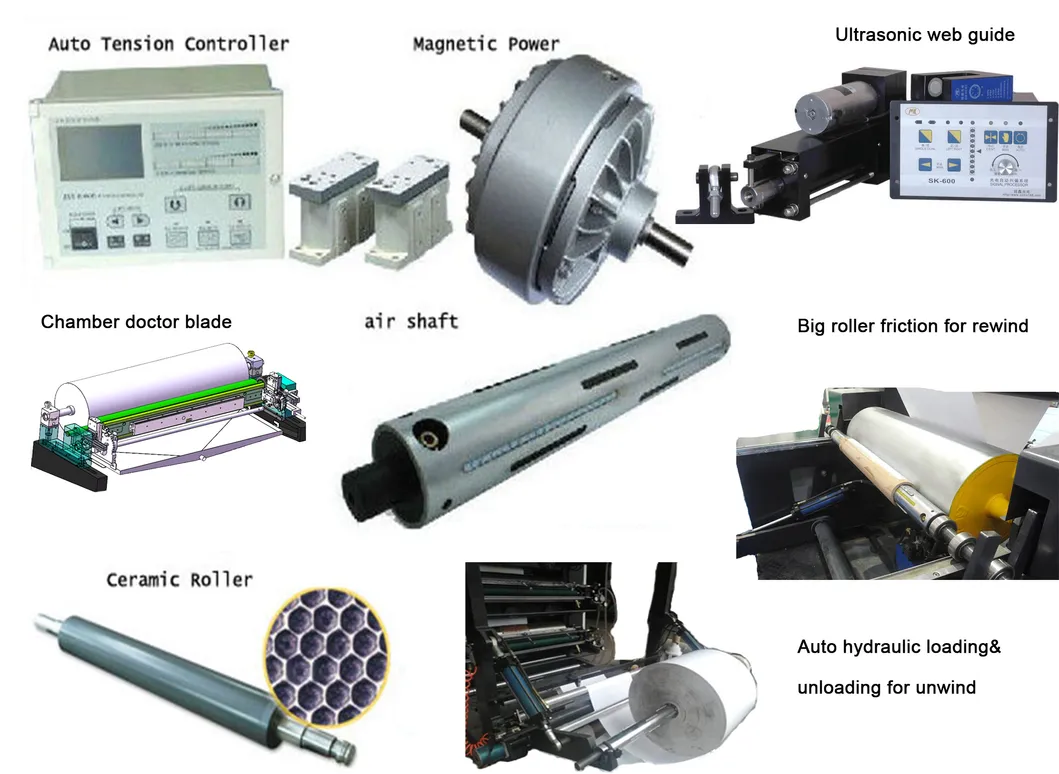

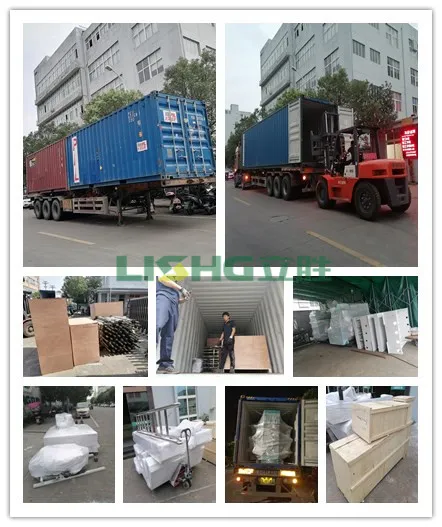

Main Configuration & Transport

Optional Features: PLC Control, Auto pneumatic/hydraulic loading, Video Inspection system.

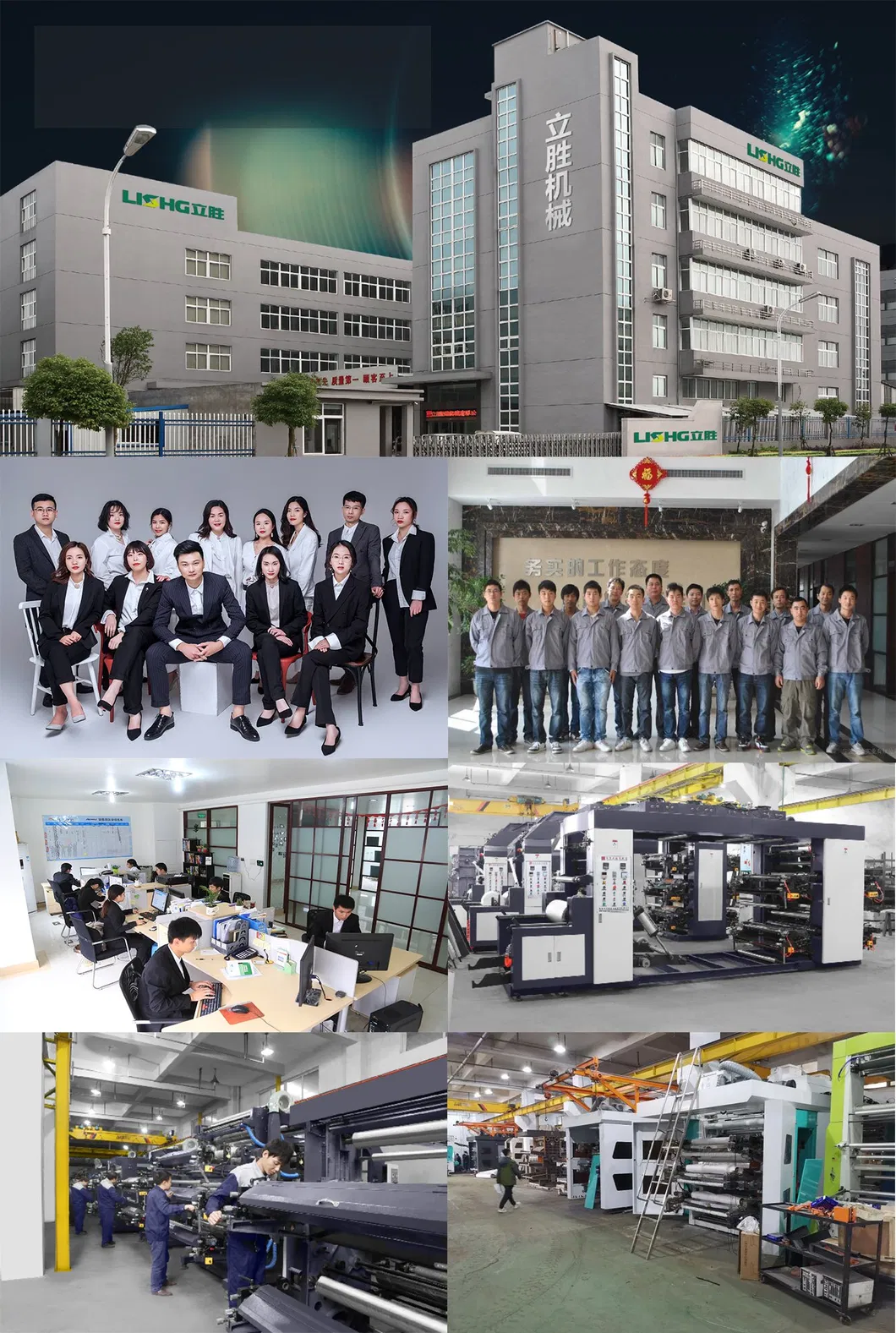

Service & Quality

Frequently Asked Questions

Are you a factory or trading company?

We are a professional factory with over 20 years of experience in machinery manufacturing, and our products are sold worldwide.

Where is your factory located?

Our factory is located in China. We welcome all clients from home and abroad to visit our production facility.

What materials can this machine print on?

This is a multifunctional machine capable of roll-to-roll printing on paper, plastic films, woven, and non-woven fabrics.

Can I get printing samples?

Yes, we can provide free samples for your reference, though delivery charges for international couriers are typically the responsibility of the client.

How is the after-sales service handled?

We provide comprehensive after-sales support and can arrange for engineers to provide overseas installation and training services.

Why choose our machinery?

We are industry leaders in China with a focus on high-quality production and reliable service, successfully exporting to over 60 countries.
