Awellcure UV LED Curing System Ink Dryer with 2 Years Warranty for Narrow Web Label Printing

1 / 5

Awellcure UV LED Curing System Ink Dryer with 2 Years Warranty for Narrow Web Label Printing

Customization:	Available
After-sales Service:	Repair, Replacement in Gurantee
Warranty:	12 Months

Send Inquiry

Product Description

📋

Basic Information

Model NO.

AW20400H1

Input Voltage

AC85~240V(50/60Hz)

Cooling Method

Air/Water-Cooled

LED Life

20,000 hrs

Control Method

RS232/Pedal/PLC

Interface

Touch Screen

LED Beam Size

10X300mm

Wavelength

365/385/395/405nm

Material

Pure Aluminum

UV Intensity

1~20W/Cm2

⚡

Product Description

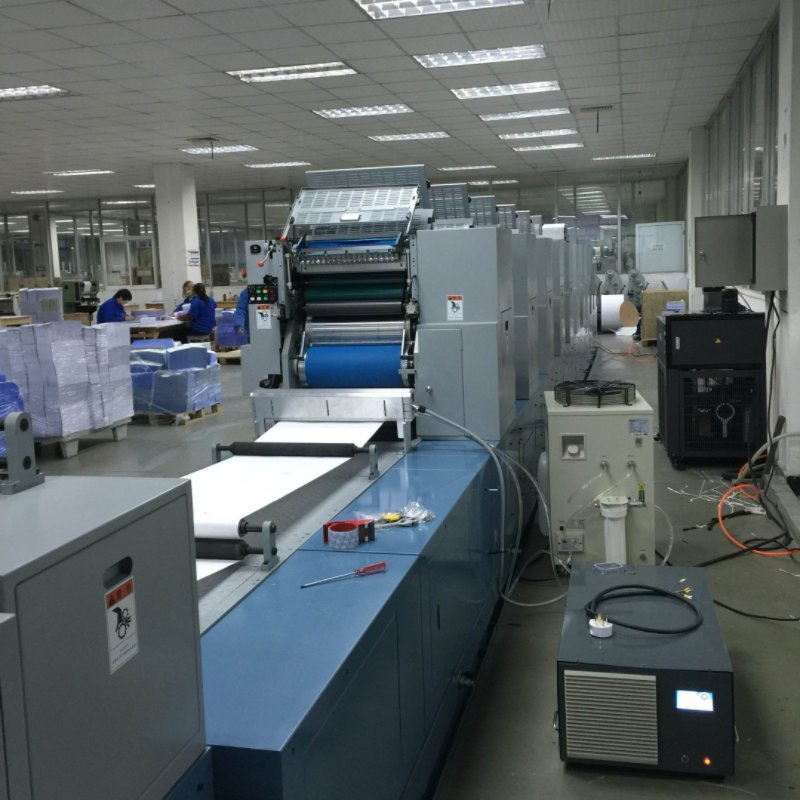

UV LED Curing System Ink Dryer for Narrow Web Label Printing

Model: AFL-300x10

Key Features of Controller

External input signal controls UV irradiation via MCU, PLC, or scanner devices.
Status LEDs for real-time monitoring (Start, Stop, Working, Alarm).
RS232 interface for parameter programming and software updates.
Direct lighting control via foot switch or sensor connection terminals.

Advantages of UV LED Technology

Zero infrared radiation: Ideal for heat-sensitive materials.
Instant on/off: No warm-up phase required, improving productivity.
Energy Efficient: Significant power savings compared to traditional lamps.

📊

Technical Specifications

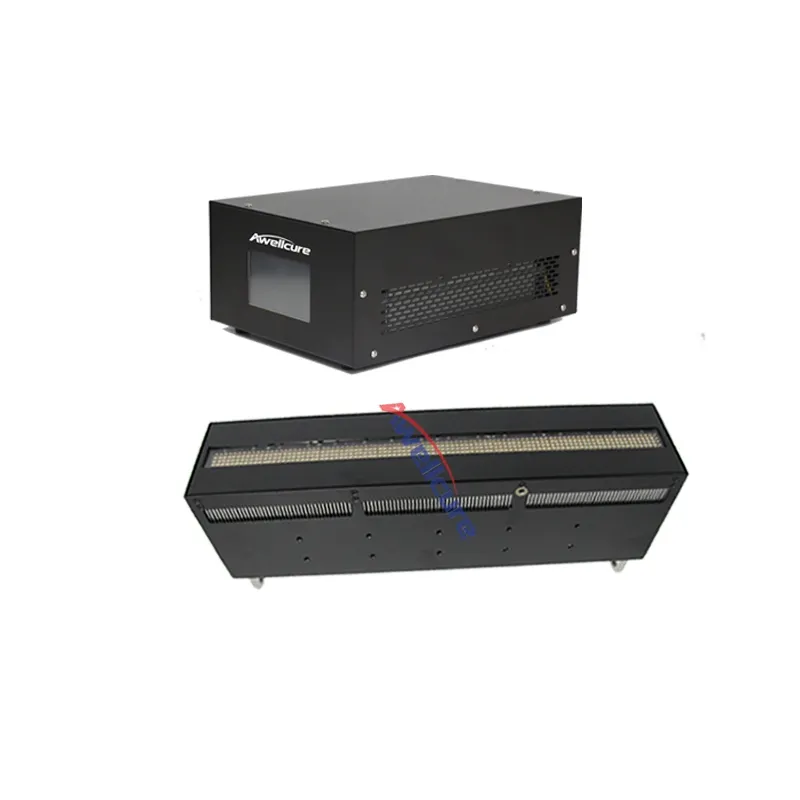

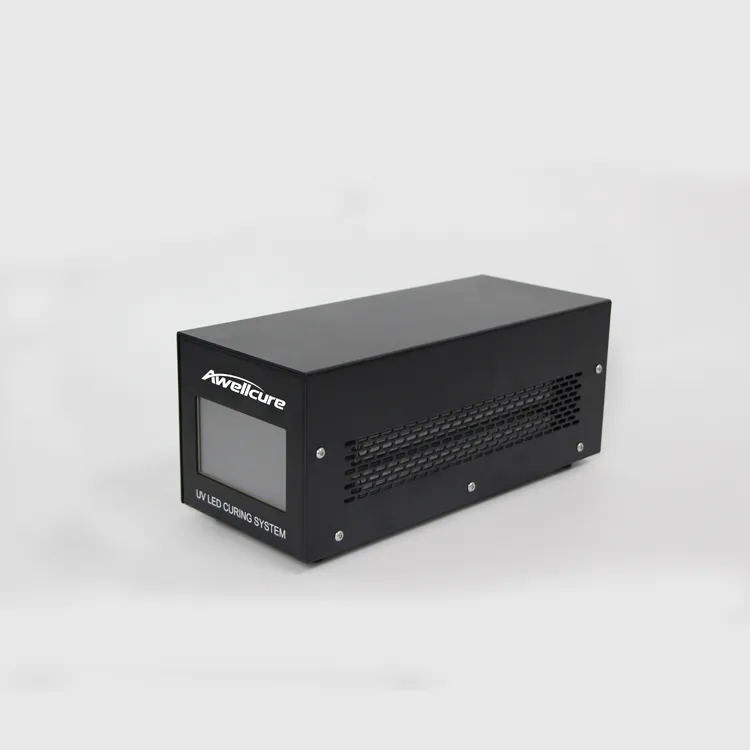

Controller Specifications
Voltage	100-240V AC
Material	Pure Aluminum
Heat Dissipation	Fan Cooling
Control Interface	Touch / Pedal / RS232 Port / PLC
Power Adjustable Range	10% ~ 100%
Irradiation Modes	Manual, Automatic (0.1-999.9S), Ladder (1-20 Steps), Pulse
Working Environment	0-45℃ / 30-85% RH

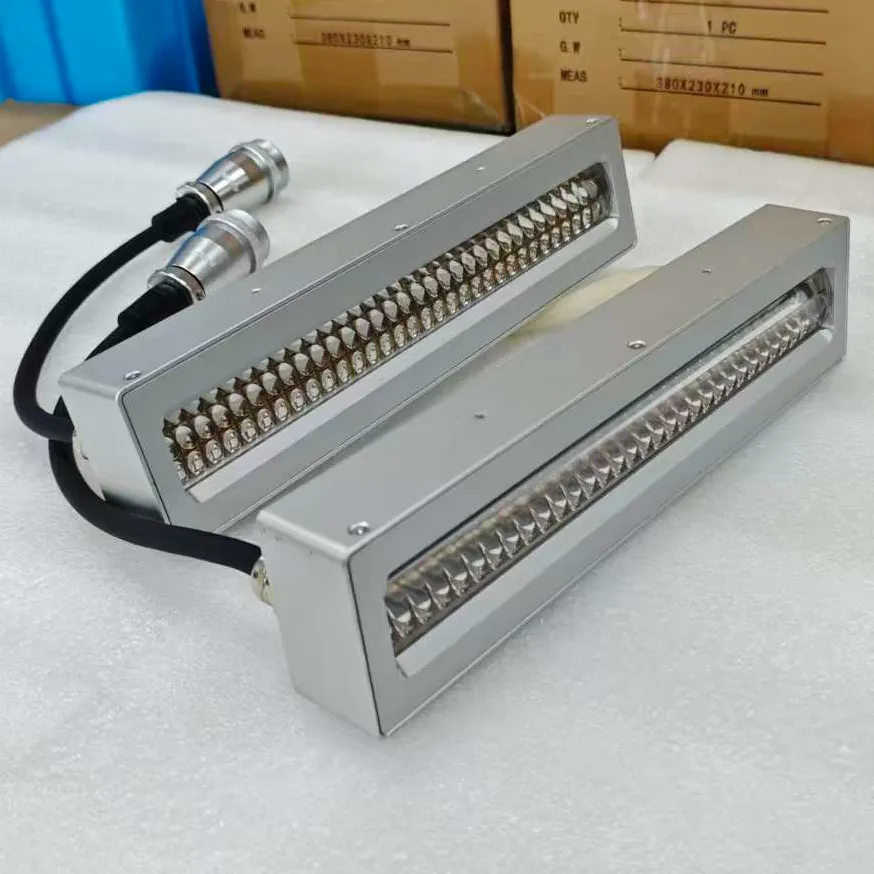

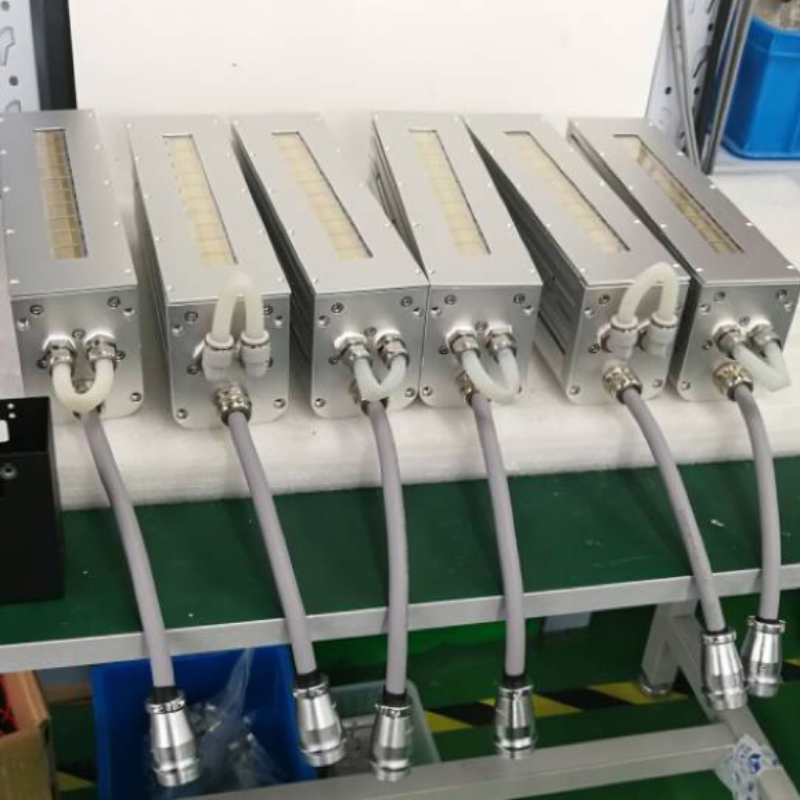

Irradiation Head Specifications
LED Type	High-Performance Imported Chips
LED Lifespan	20,000 Hours (@80% power)
Wavelength Range	365nm / 385nm / 395nm / 405nm (±5)
Luminous Size	10 x 300mm
Peak Intensity	2700mW/cm² (Customizable)
Cooling Method	Air Cooled / Water Cooled
Cable Length	Standard 2M/5M (Customizable)

🔄

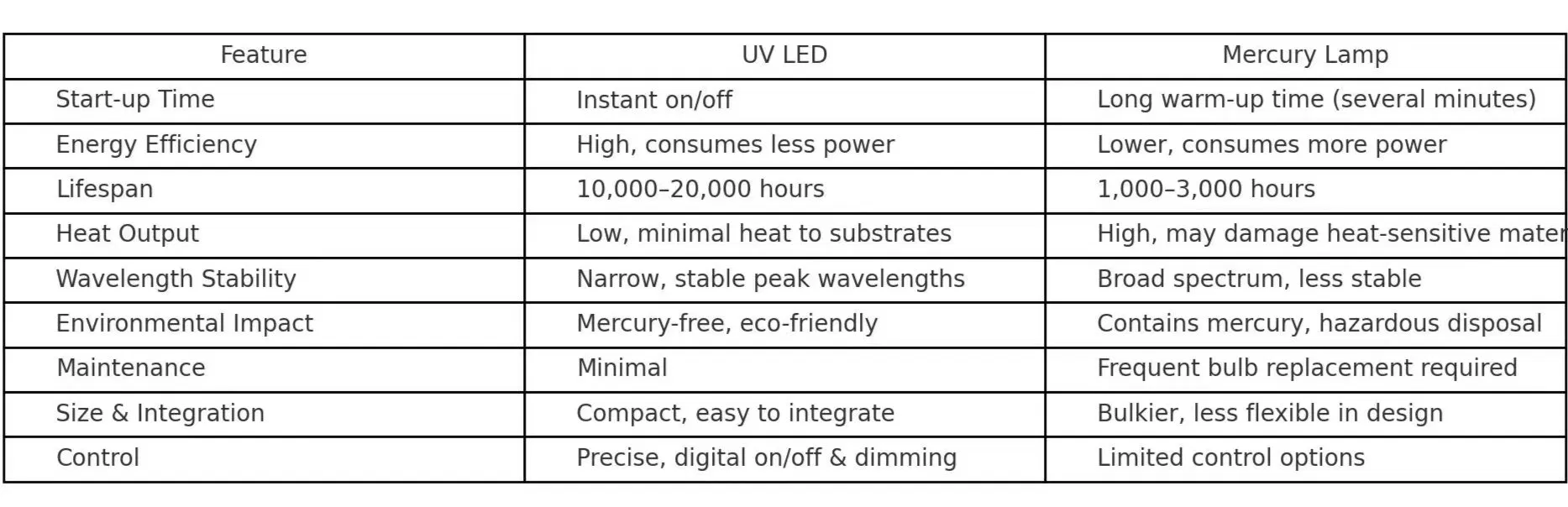

UV LED vs. Mercury Lamp

UV LED systems offer faster response times, greater energy efficiency, and a more environmentally friendly footprint for industrial applications.

🎯

Industrial Applications

UV Adhesive: Optical communications, medical consumables, camera modules, and touch screens.
UV Coating: PCBA, chip packaging, precision machining, and automotive components.
UV Ink: Flexo printing, digital inkjet, screen printing, and 3D printing.

🛠️

Support & Service

Standard Warranty

12 Months

Extended Warranty

Optional up to 36 Months

Technical Support

24/7 Global Assistance

Training

Remote or On-site Training Available

🏢

Professional UV Solutions

Providing cutting-edge UV LED Curing Systems with over 12 years of expertise. Certified with ISO 9001, CE, and RoHS, our solutions are exported to over 50 countries, backed by continuous R&D innovation and strict quality control.

Product Range

UV-LED Spot, Line, and Area systems
UV-LED Curing Ovens & Conveyors
UV Measuring Systems

Why Choose Us?

OEM/ODM Capability
Turnkey Project Solutions
Competitive Global Logistics

Frequently Asked Questions

Why should I choose a UV LED curing system over a mercury lamp?

UV LED systems provide a significantly longer service life (up to 20,000 hours), lower energy consumption, instant on/off capabilities, and are environmentally friendly as they do not contain mercury.

What is the expected lifespan of the UV LED head?

The UV LED head is designed to last for approximately 20,000 hours when operating at 80% power, which is many times longer than traditional bulbs.

Can the emitting window size and UV intensity be customized?

Yes, any size of the emitting window and the peak irradiance levels can be customized to meet the specific requirements of your industrial application.

What materials are typically cured with this system?

It is primarily used for curing UV-sensitive materials such as UV glues, UV inks, UV adhesives, varnishes, and protective coatings.

How do I determine the right power intensity for my production?

The required intensity depends on your specific UV-sensitive material and the desired production speed. Our system allows for 10%-100% power adjustment to fine-tune your process.

What control methods does the system support?

The system supports multiple control methods including a Touch Screen interface, Pedal switch, RS232 serial communication, and PLC integration for automated lines.
