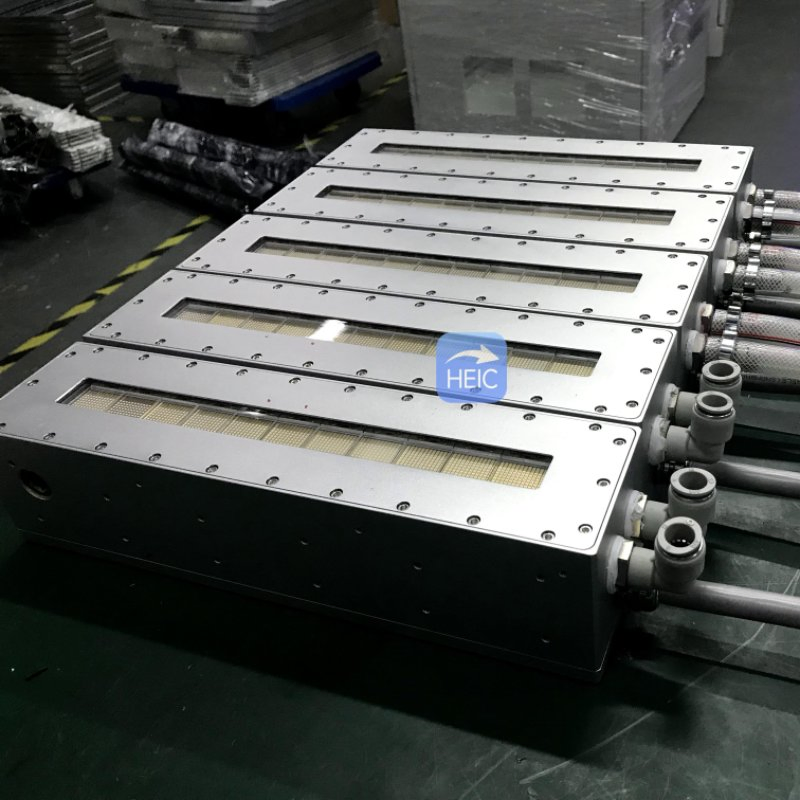

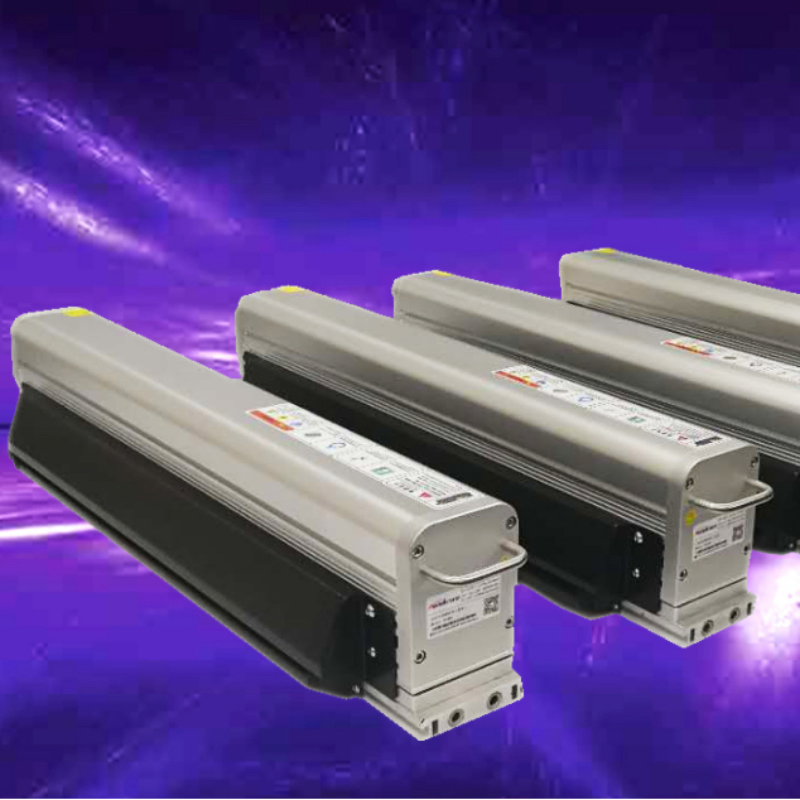

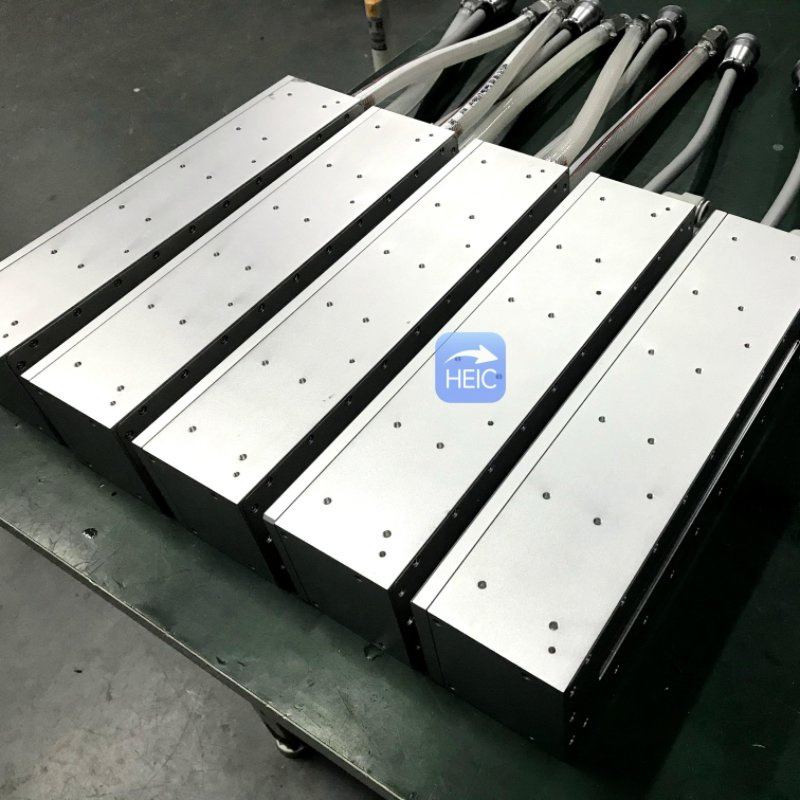

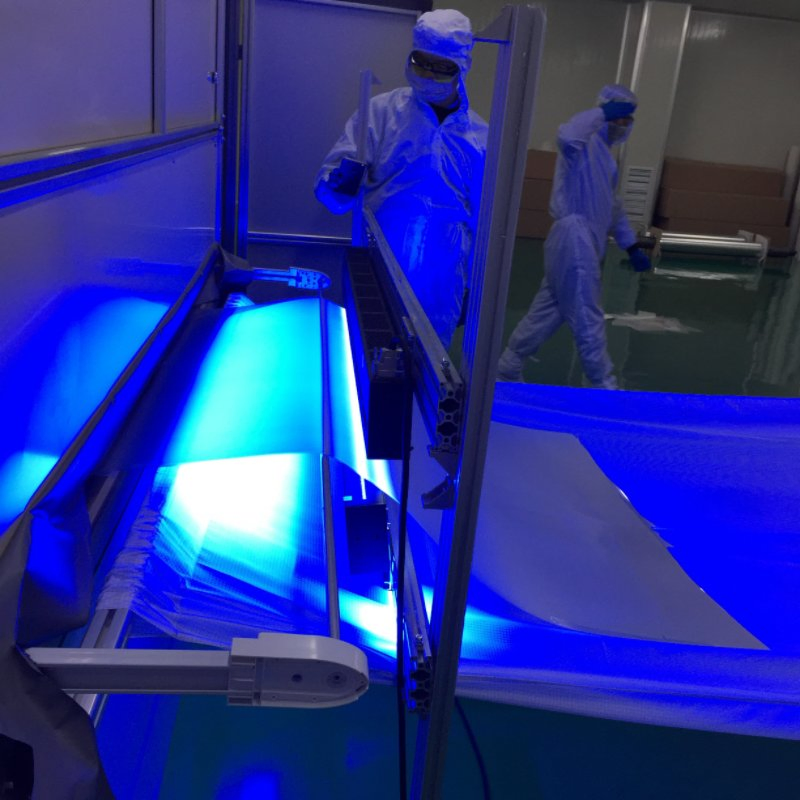

This high-performance UV drying system is designed for professional flexo printing. The system features a controller capable of driving multiple irradiator heads, providing a flexible and scalable solution for industrial production lines.

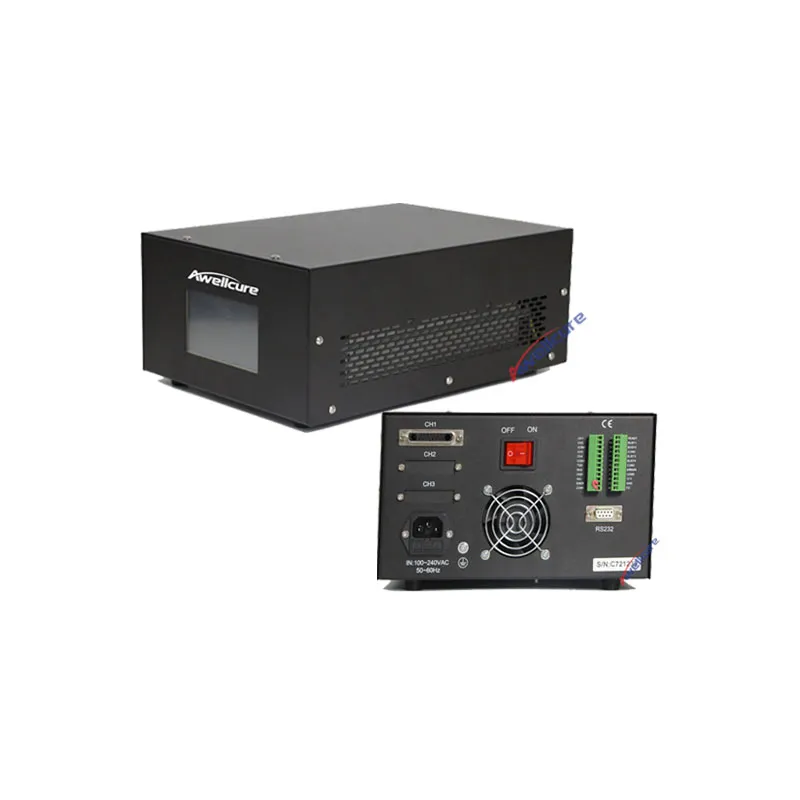

| Controller Specifications | |
|---|---|
| Voltage | 100-240V AC |
| Heat Dissipation | Water Cooling |
| Irradiation Power Range | 10% ~ 100% |
| Irradiation Modes | Manual, Automatic (0.1-999.9s), Ladder (Step), Pulse |
| Communication | RS232 Serial Port / I/O Interface |
| Working Temp. | 0 - 45℃ |

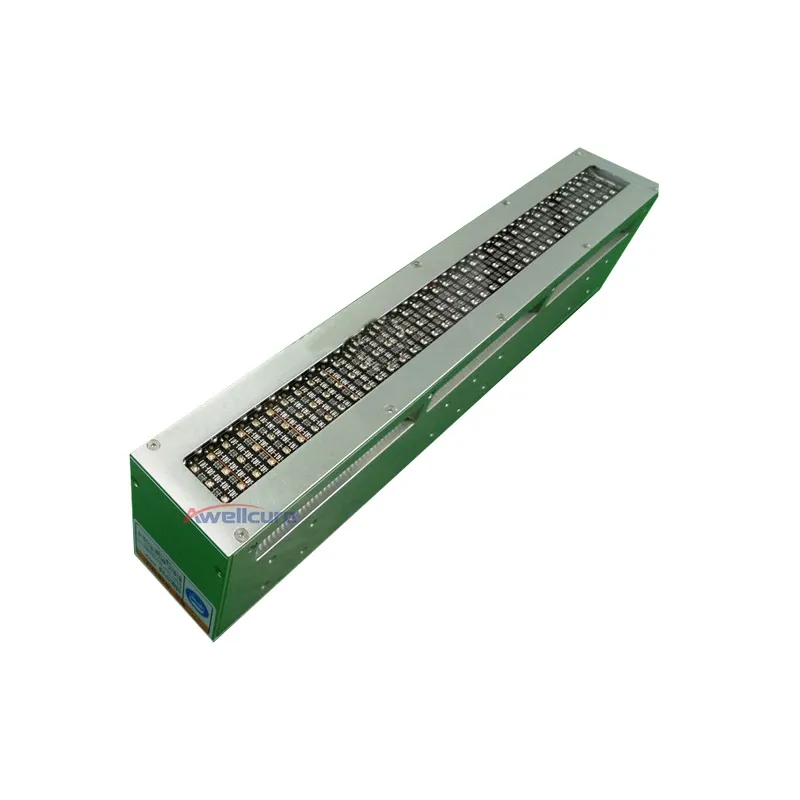

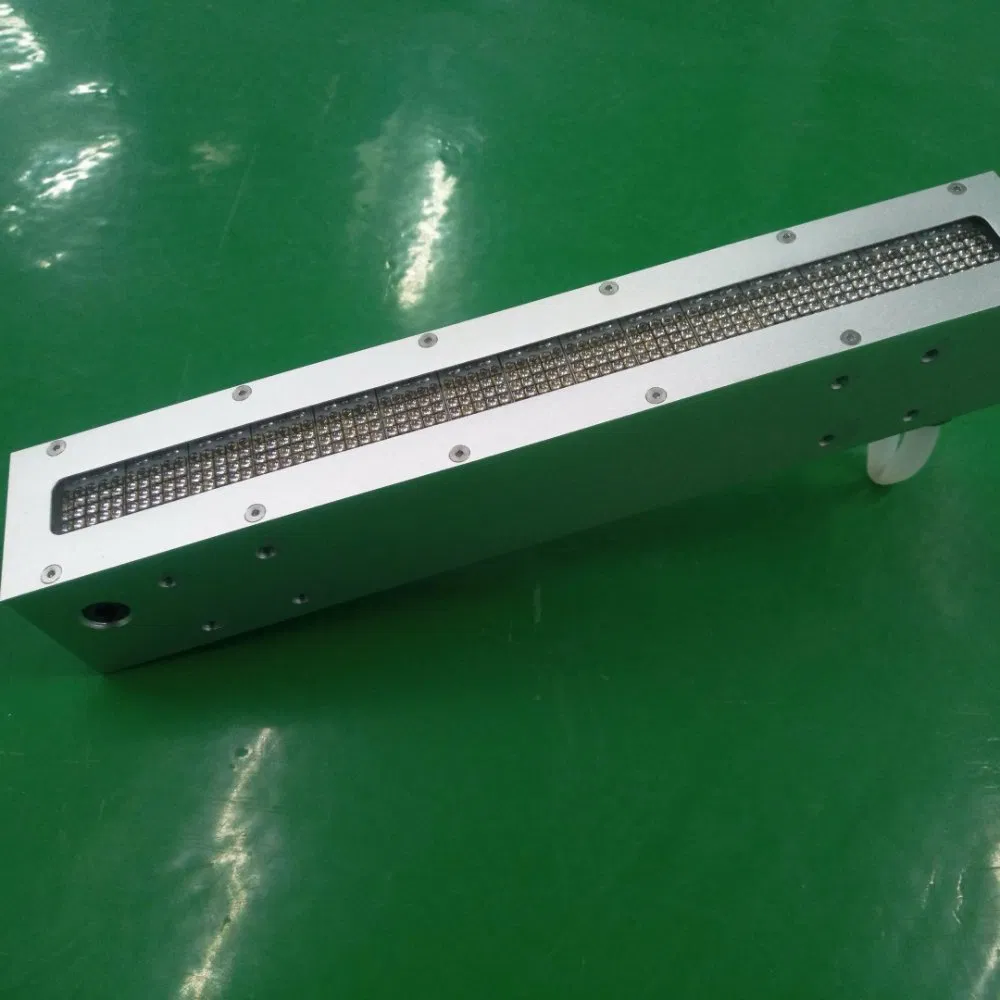

| Irradiation Head Details | |
|---|---|
| UV LED Lifespan | 20,000 Hrs (@80% power) |
| Peak Intensity | 14W/cm² |
| Luminous Size | 25 x 300mm |
| Recommend Distance | 10mm |
| Cable Length | Standard 2M/5M (Customizable) |

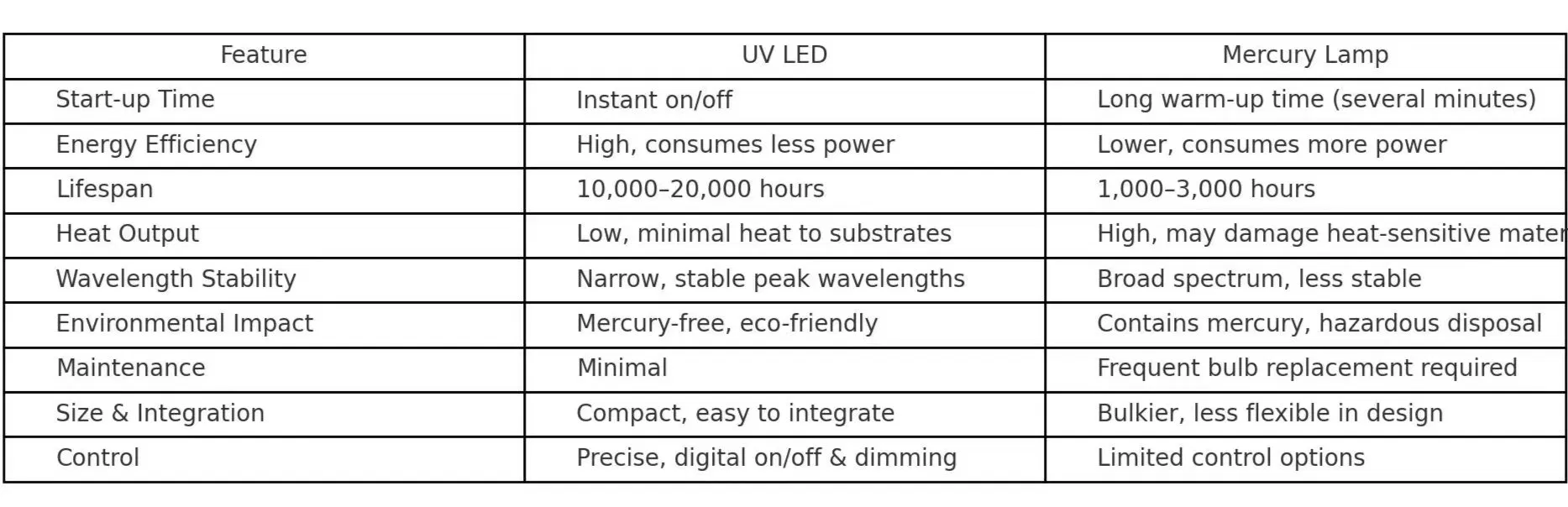

UV LED curing systems offer faster response, greater energy efficiency, and a longer lifespan compared to traditional mercury lamps. They are more environmentally friendly and perfect for modern industrial printing.

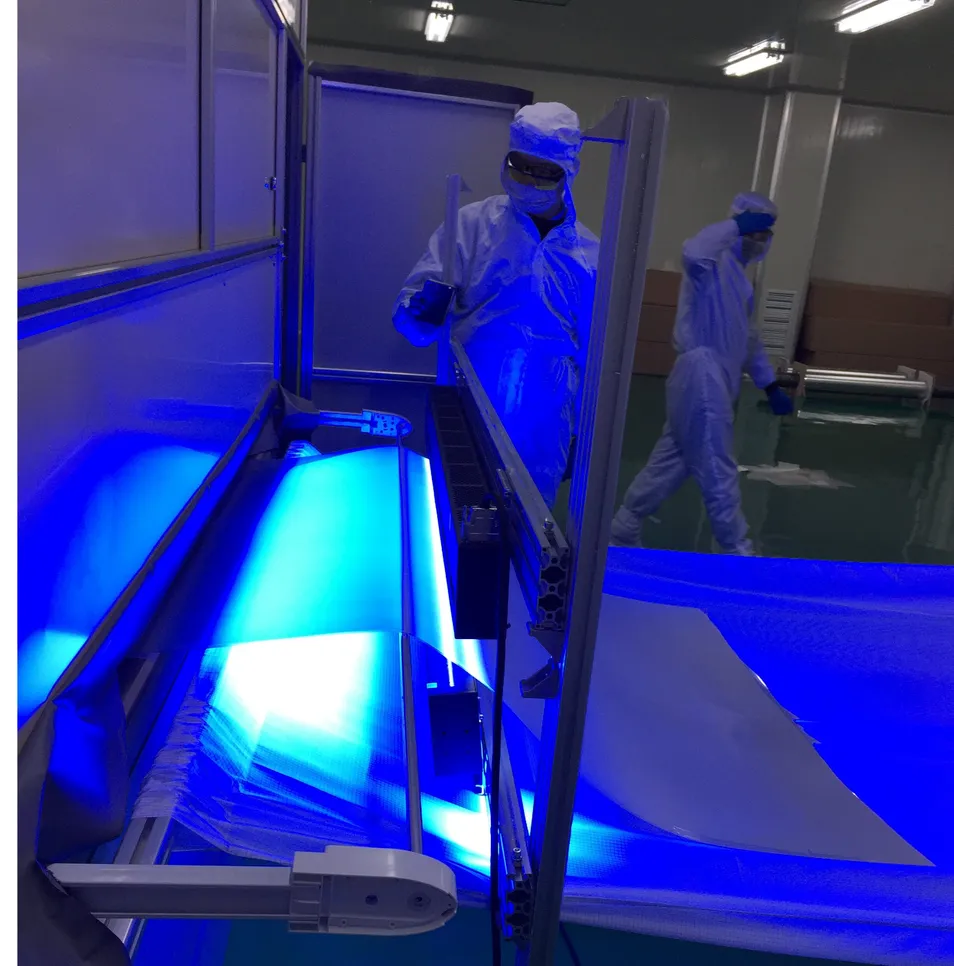

Optical communications, microelectronics, medical consumables, camera modules, and touch screens.
PCBA, precision machining, chip packaging, and the automotive industry.

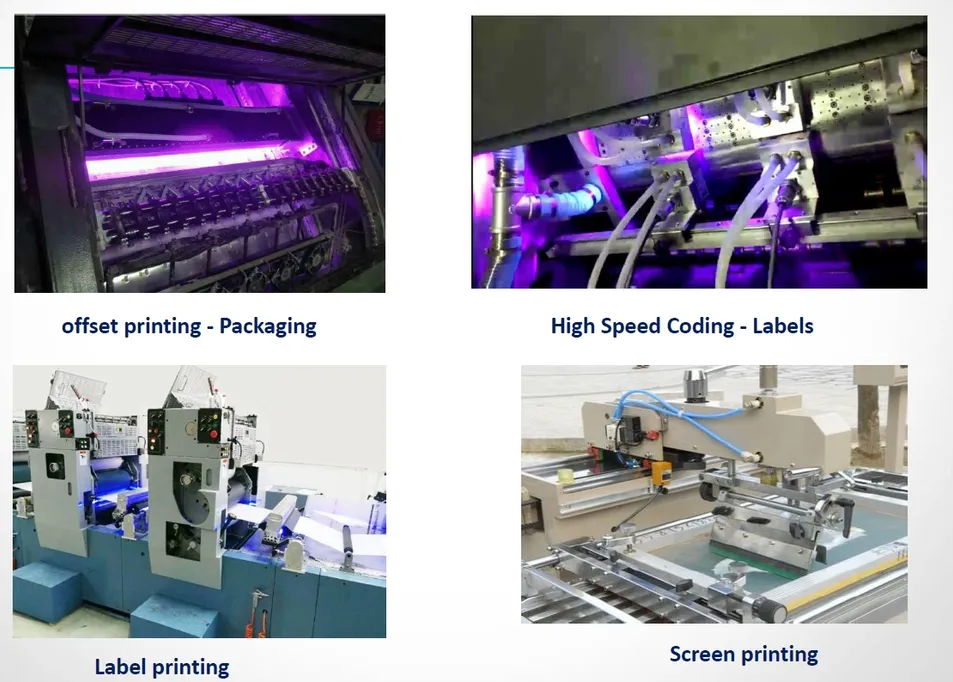

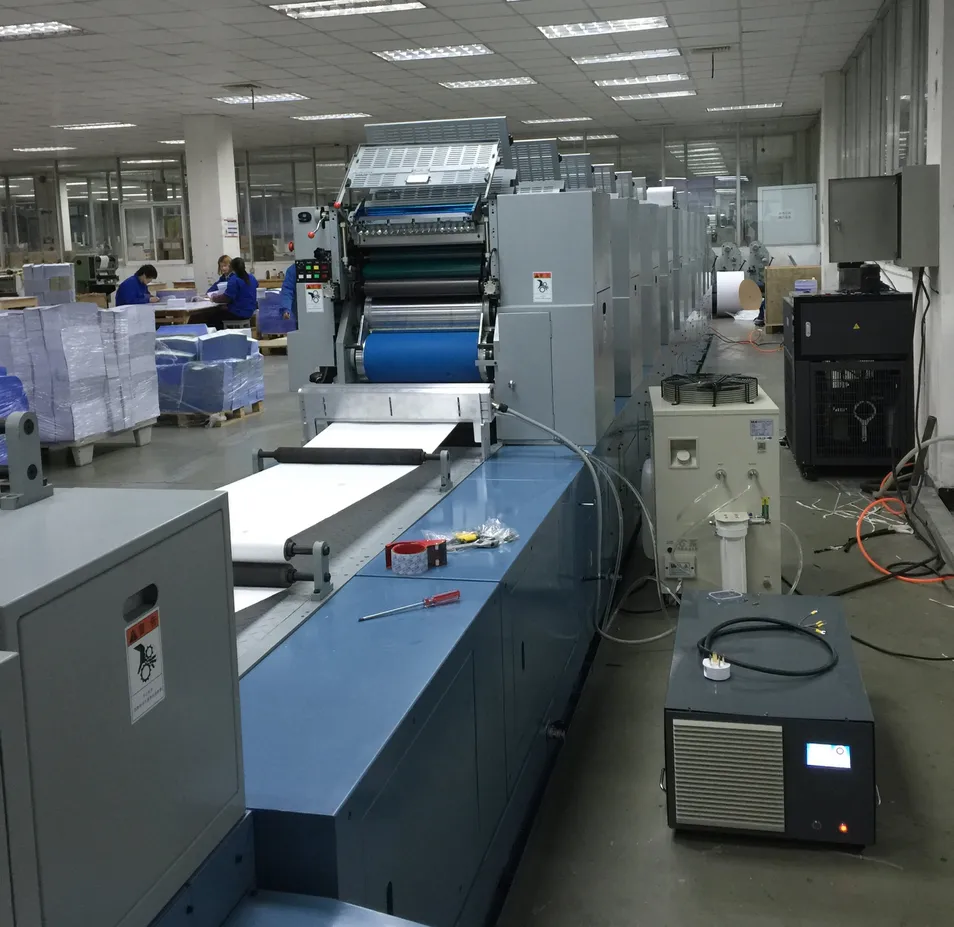

Digital printing, flexo printing, screen printing, and 3D printing.
