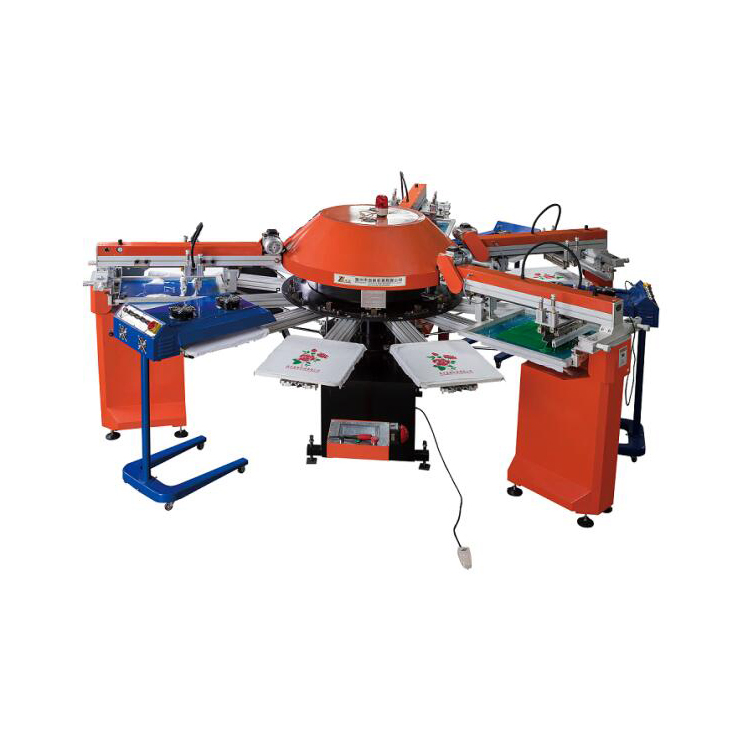

Spg Automatic Series Rotary Garments Rop T Shirt Textile Clothes Sheet Screen Printing Machine with Ce Certificate

Still deciding? Get samples of $ !
Request Sample

Product Description

📊
Basic Info.
Model NO.
SPG
Structure
Rotary Printing Press
Color & Page
Multi-Colour Printing Press
Application
Advertising Printing
Print Interface
1000Base-T
System Supported
Windowsxp32
Color
4-10 colors
Transport Package
Standard Wooden Package
Specification
CE
HS Code
8443192290
Production Capacity
30 Sets/Year
⚙️
Product Description
SPG series is our high-tech automatic textile printers. Aimed for higher production output and faster recovery of investments, it's equipped with intelligent micro-processor, minimal maintenance requirement but top quality print result, leading to the superior printer in any print workshop.

It is available in 4, 6, 8, 10, 12, 14 and 16-color models with 500×700mm maximum image area. The machine is suitable for printing on garment materials, T-shirts, sleeves, pant legs, fabric sheets, paperboards, glass plates, EVA and PVC/PU sheets & bags etc.
Screen Printing Machine Tech

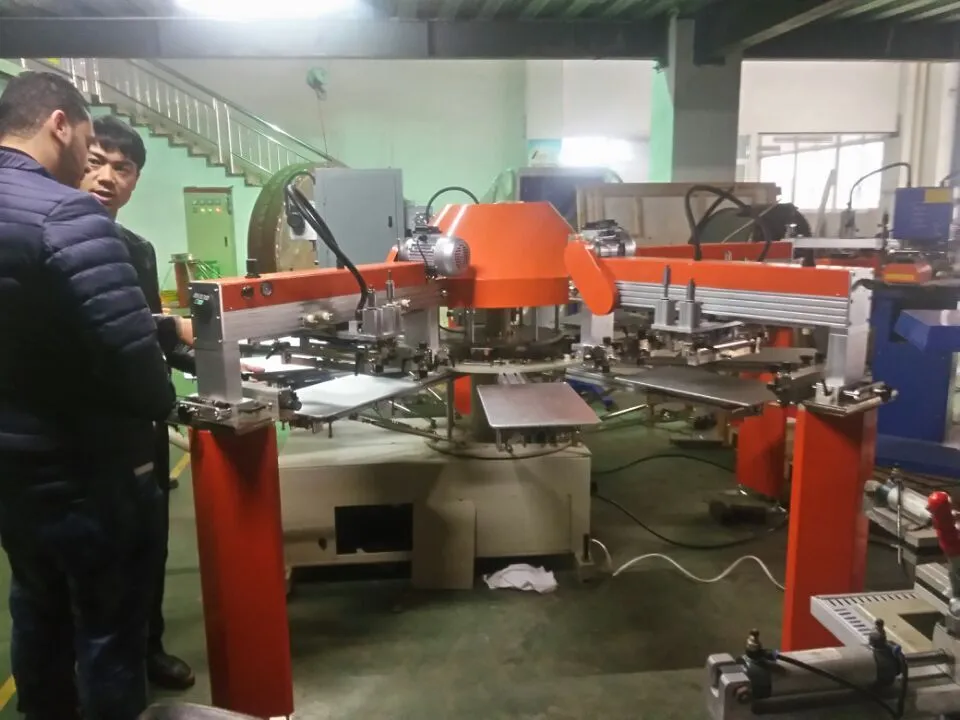

Machine Detail 1

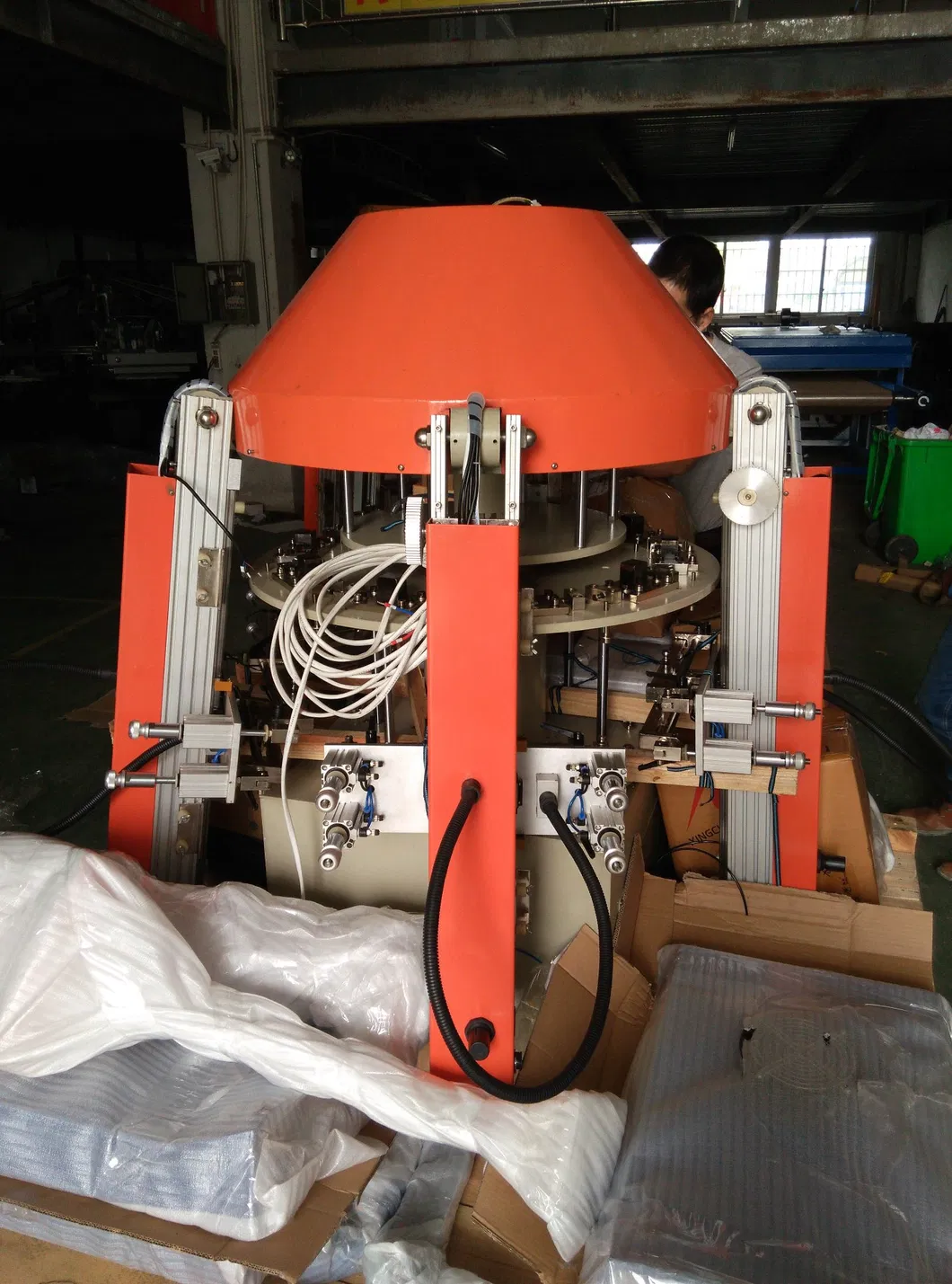

Machine Detail 2

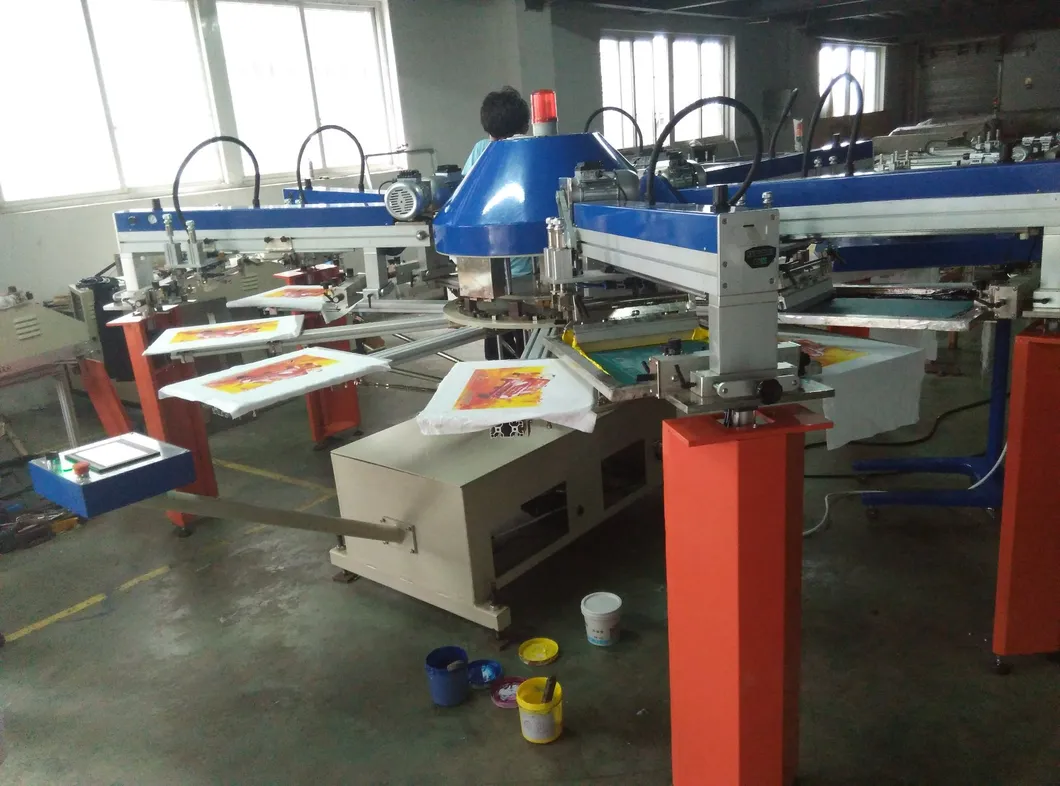

Machine Detail 3
📋
Main Technical Parameters
Model SPG-104/8 SPG-156/10 SPG-158/12
Color/Station4-6/84-8/106-10/12
Max Image Dimension300×400mm300×400mm300×400mm
Platen Dimension400×500mm400×500mm400×500mm
Air Requirement≥1.0Mpa≥1.0Mpa≥1.0Mpa
Output700pcs/h700pcs/h700pcs/h
Main Motor Power2.0Kw2.0Kw2.0Kw
Max Power13.5Kw13.5Kw13.5Kw
DimensionΦ3400×1600mmΦ3400×1600mmΦ3400×1600mm
Weight700Kg800Kg900Kg
Electric Parts Configuration
Part Name Brand
Touch ScreenColorful 10 inch
Power SwitchMEAN WELL
Servo MotorYaskawa
TransducerDELTA (0.4KW/220V)
AC ContactorCHNT
Middle RelayOMRON (24VDC)
Proxity SwitchOMRON
Emergency SwitchSCHNEIDER
PLCTaiwan Yonghong
BeltMegadyne (Italy)
🎨
Printing Sample & Packaging
Printing Sample
Packaging & Shipping:
Packaging and Shipping
Certifications:
Quality Certification
🛠️
Our Services
  • Warranty: 1-year limited warranty after installation. Free replacement for broken spare parts during this period.
  • Installation & Training: 1-2 engineers can be dispatched to the buyer's factory for setup and training.
  • Technical Support: Professional guidance to ensure efficient machine operation.
  • Global Presence: Technical support offices and service centers available in multiple regions.
Frequently Asked Questions
What information is needed for a precise quotation?
To recommend the suitable machine, please provide the number of colors required, the maximum printing size (e.g., 500x700mm), and the requested hourly capacity.
What is the Minimum Order Quantity (MOQ) and delivery time?
The MOQ is 1 set. Delivery typically takes about 20 workdays after receiving the 30% T/T deposit.
What materials can this rotary screen printing machine handle?
It is ideal for garment materials, T-shirts, sleeves, pant legs, fabric sheets, paperboards, glass plates, EVA, and PVC/PU sheets.
How many colors can the SPG series support?
The series is versatile, available in 4, 6, 8, 10, 12, 14, and up to 16-color models to meet various production needs.
What are the payment terms for international orders?
We accept T/T with a 30% deposit and 70% before shipment, or L/C at sight.
Is on-site installation provided?
Yes, we can send engineers to your facility for installation and staff training, with associated travel costs covered by the buyer.
