Automatic Powder Feeding System and Automatic Feeding System Solution for Dyeing Production Line
Automatic Powder Feeding System and Automatic Feeding System Solution for Dyeing Production Line
Automatic Powder Feeding System and Automatic Feeding System Solution for Dyeing Production Line
1 / 3
Automatic Powder Feeding System and Automatic Feeding System Solution for Dyeing Production Line
Automatic Powder Feeding System and Automatic Feeding System Solution for Dyeing Production Line
Automatic Powder Feeding System and Automatic Feeding System Solution for Dyeing Production Line

Automatic Powder Feeding System and Automatic Feeding System Solution for Dyeing Production Line

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information

Model NO.HR
Voltage380V/50Hz 3phase (Customizable)
Load Capacity1000-2000kg
CertificationCE, ISO9001: 2000
Warranty1 Year
ConditionNew
Machine ItemFeeding Solution for Dyeing Production Line
After-Sales Service24 Hours Technical Support
Working Experience32 Years
Delivery DateFast Delivery in 30 Days
Power45kw
HeatingDirect/Indirect Steam
Max Temp98 Degree
HS Code8451290000

Product Features

Brief Introduction

  • Suitable for dyeing natural, synthetic and chemical fibre in high count yarn such as Rayon Filament, Mercerized cotton, dull rayon, spun silk, R/N, supwash wool etc.
  • Strong and Firm structure using high quality corrosion resistant Stainless steel, durable and accurate.
  • Higher efficient circulation pump with Low Head-High Flow Design, providing soft and sufficient flow rate even at temperatures above 95ºC.
  • Innovative TRIANGULAR ROTATING SPRAY TUBE design enables delicate hank rotation movements and minimizes contact between fibre and metal.
  • Absolutely no tangle design.
  • Special designed Flow Adjuster-Three way valve can be adjusted according to quantity, count, and variety of yarn.
  • Ultra low energy consumption design (Patented), low water ratio dyeing (1:5-8) saves dye auxiliaries and steam.

Technical Specifications

Model (AKS) 880 860 840 830 820 810 805 803 802 801 800
Capacity (kgs)6404803202401608040241684
Spray tube (pcs)8060403020105322X1/21/2
Pump motor (KW)453722157.542.21.51.50.750.75
Driving motor (kw)3.72.21.51.50.750.370.20.20.20.20.2
Height (mm)27502750275027502700266026402640264026402640
Width (mm)18800165001200090506280366022301600133013301050

Product Showcase

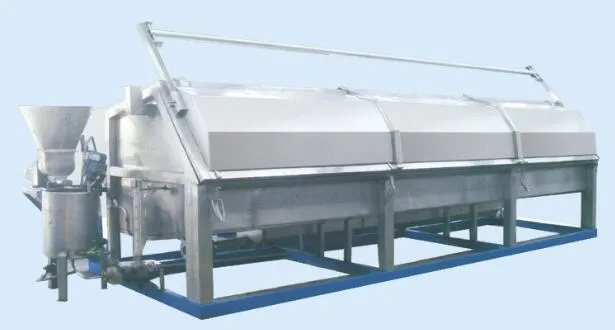

Dyeing Production Line 1

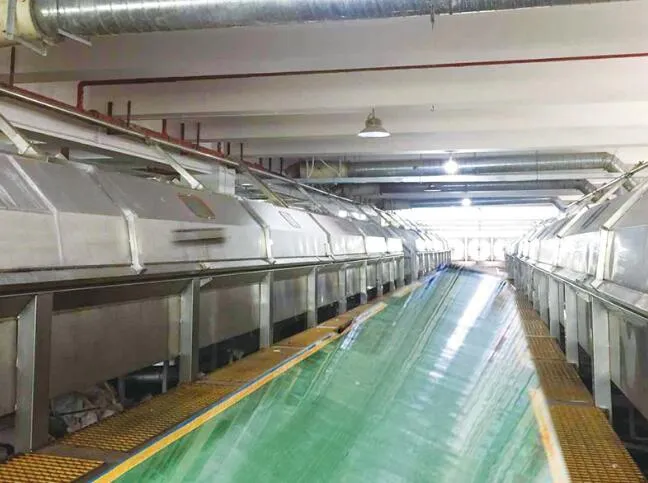

Dyeing Production Line 2
Dyeing Production Line 3

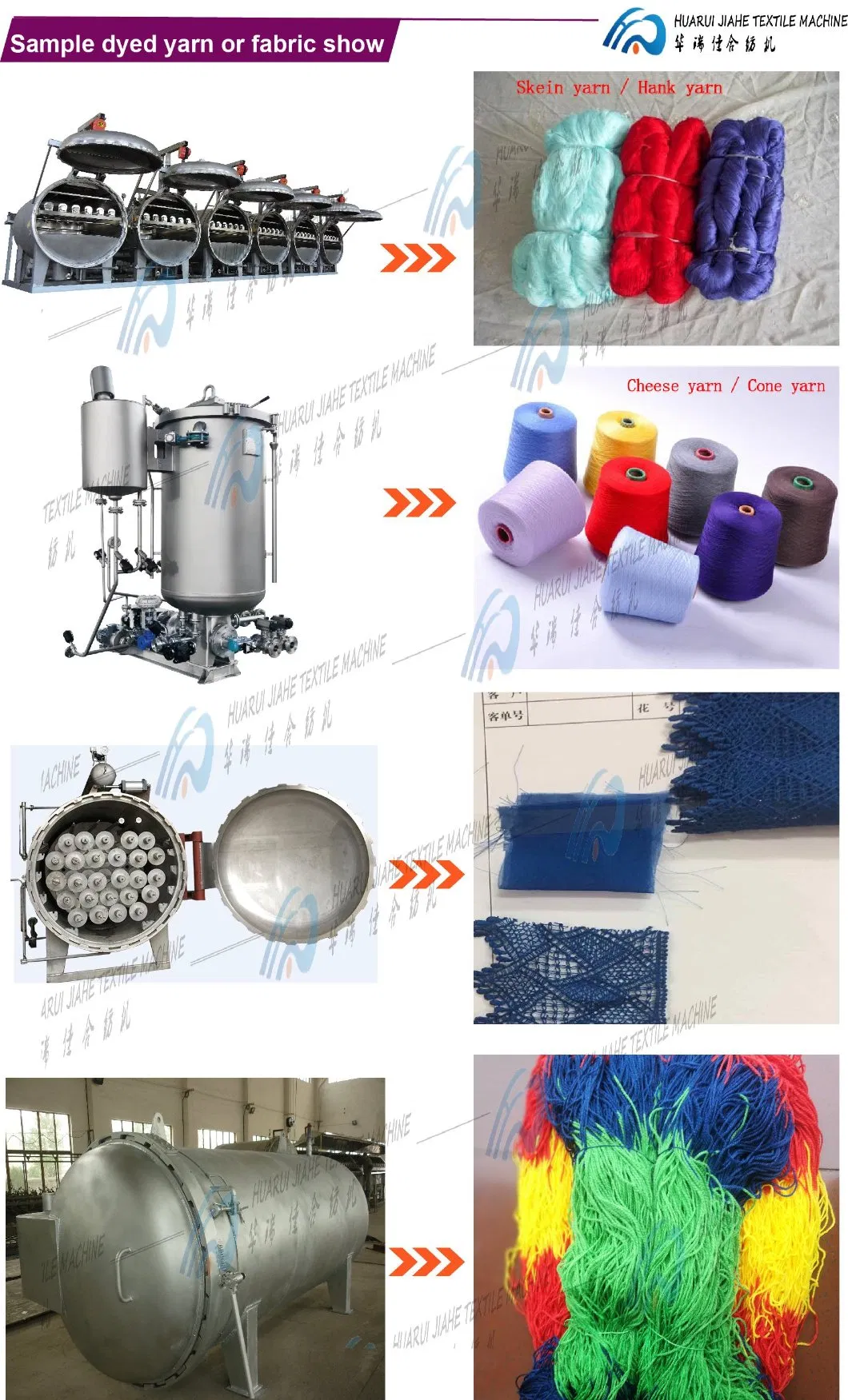

Dyeing Production Line 4

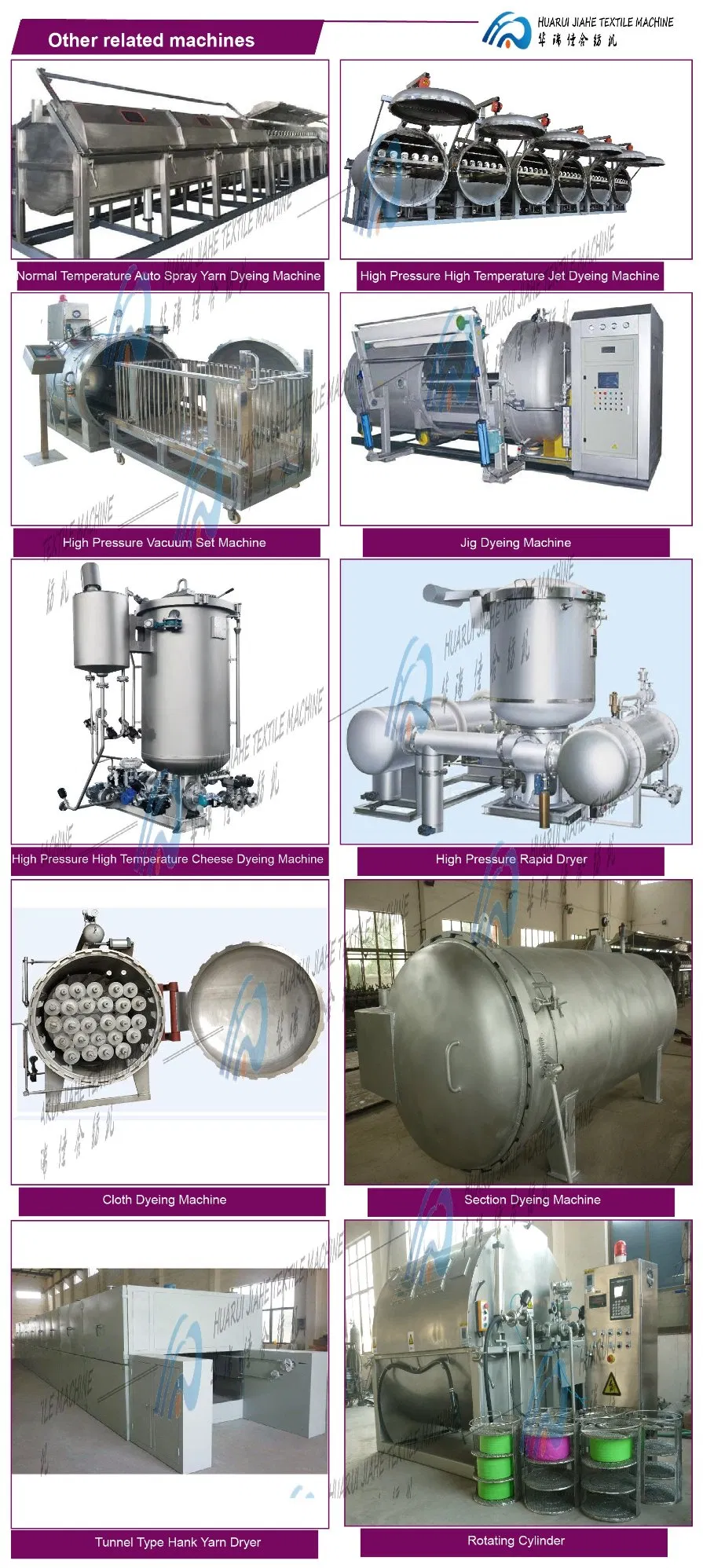

Dyeing Production Line 5
Dyeing Production Line 6
Dyeing Production Line 7
Dyeing Production Line 8

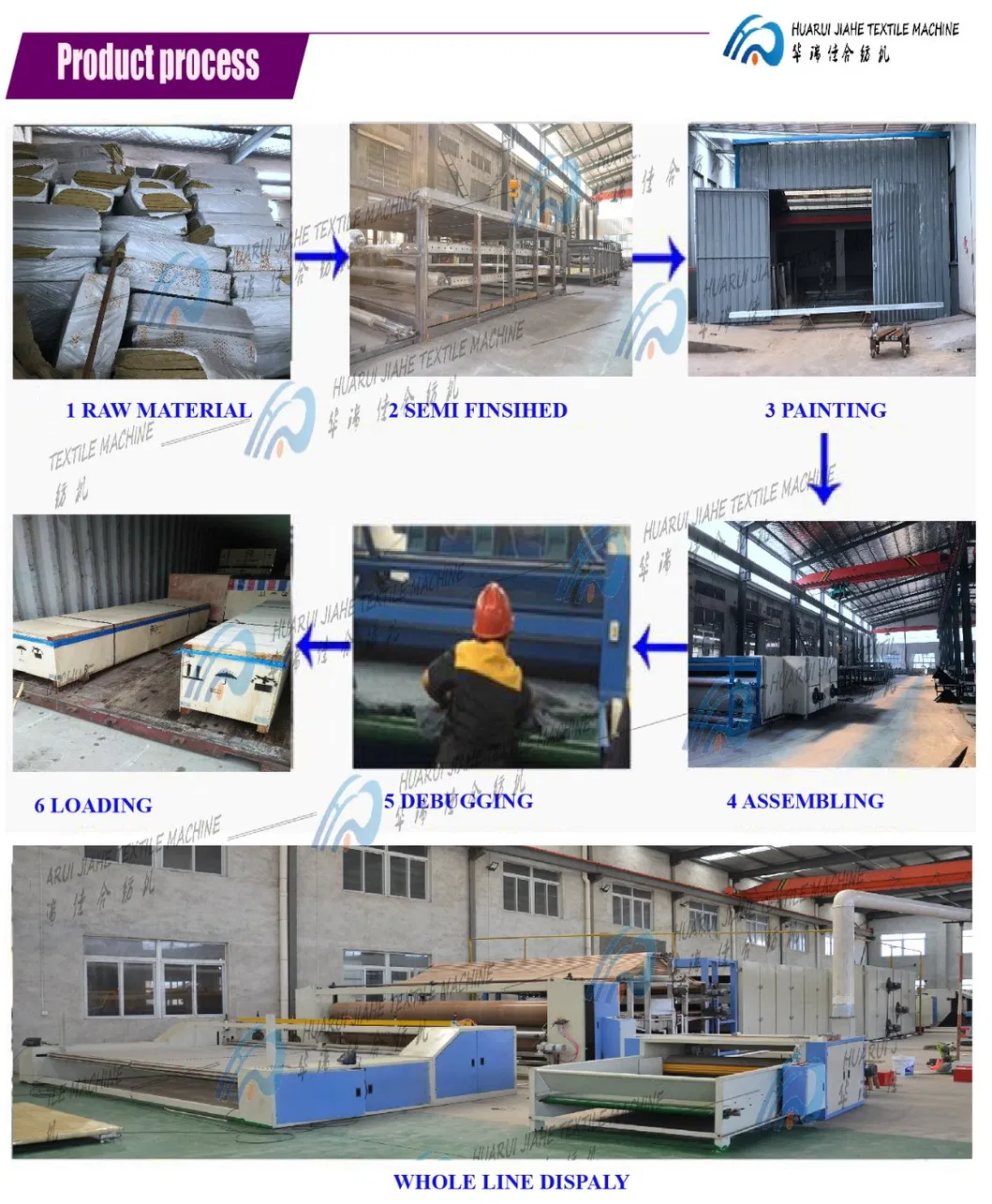

Dyeing Production Line 9
Dyeing Production Line 10

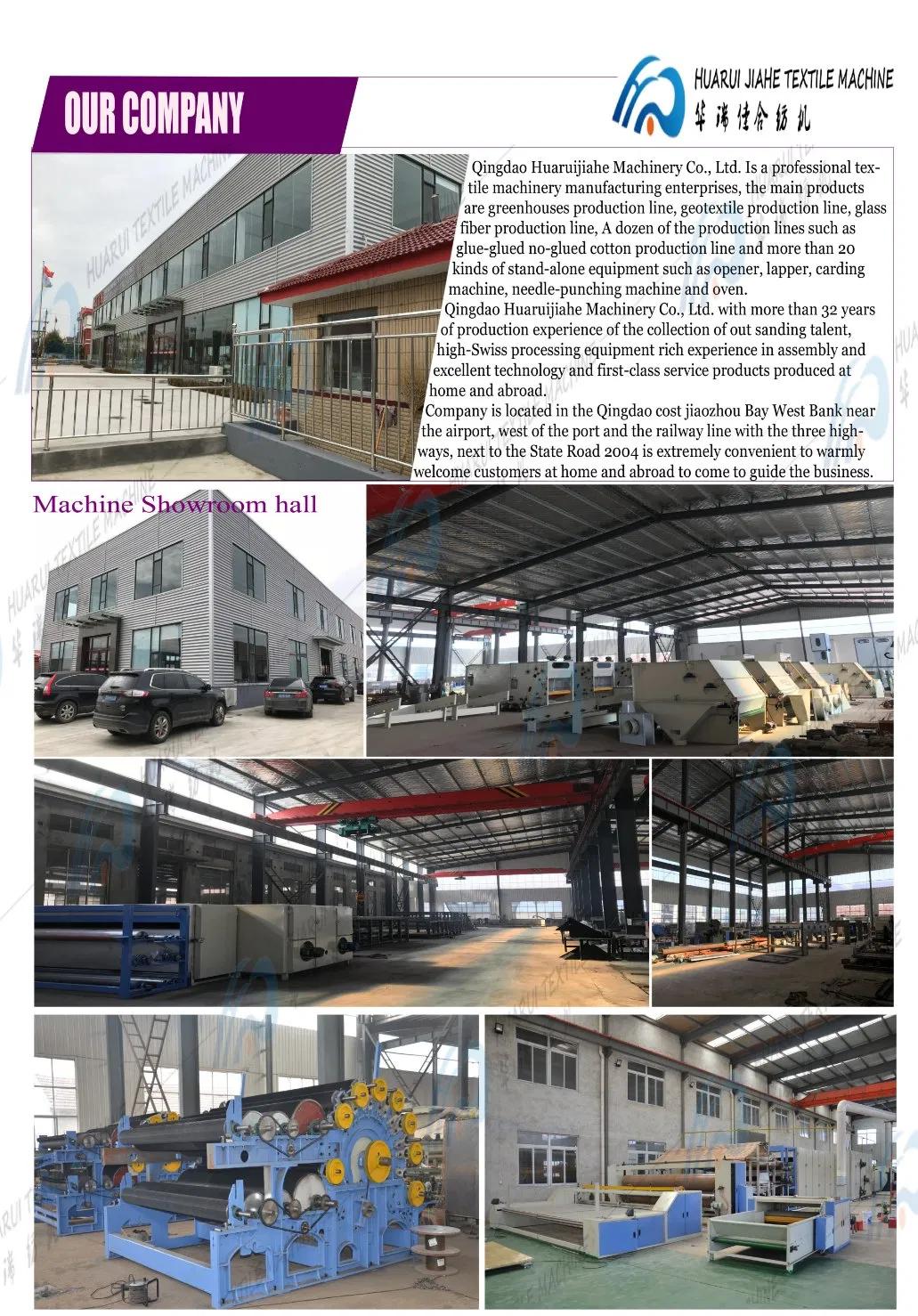

Dyeing Production Line 11
Dyeing Production Line 12

Our Core Advantages

  • High-grade, corrosion-resistant stainless steel construction.
  • Ultra-low bath ratio for significant energy and environmental savings.
  • Humanized automatic lifting bracket design.
  • Precision automatic feeding system.
  • Versatile direct and indirect heating combinations.
  • Certified with multiple invention and utility model patents.

Frequently Asked Questions

Q1: Which types of yarn are suitable for this dyeing machine? A: The machine is ideal for natural, synthetic, and chemical fibers, including Rayon Filament, Mercerized cotton, spun silk, and supwash wool.
Q2: How does the machine achieve energy savings? A: It uses a patented ultra-low bath ratio (1:5-8) design and high-performance motors, which reduce the consumption of steam, water, and dye auxiliaries.
Q3: Does the machine prevent yarn tangling during the process? A: Yes, the innovative triangular rotating spray tube design ensures delicate movement and prevents tangling by minimizing metallic contact.
Q4: What are the heating options available? A: The system supports both direct steam and indirect steam heating methods for flexible production needs.
Q5: What is the lead time for machine delivery? A: We offer fast delivery, typically within 30 days for standard configurations.
Q6: What kind of warranty and after-sales support do you provide? A: We provide a 1-year warranty with free spare parts and services within the first 12 months, along with 24-hour technical support via multiple channels.
