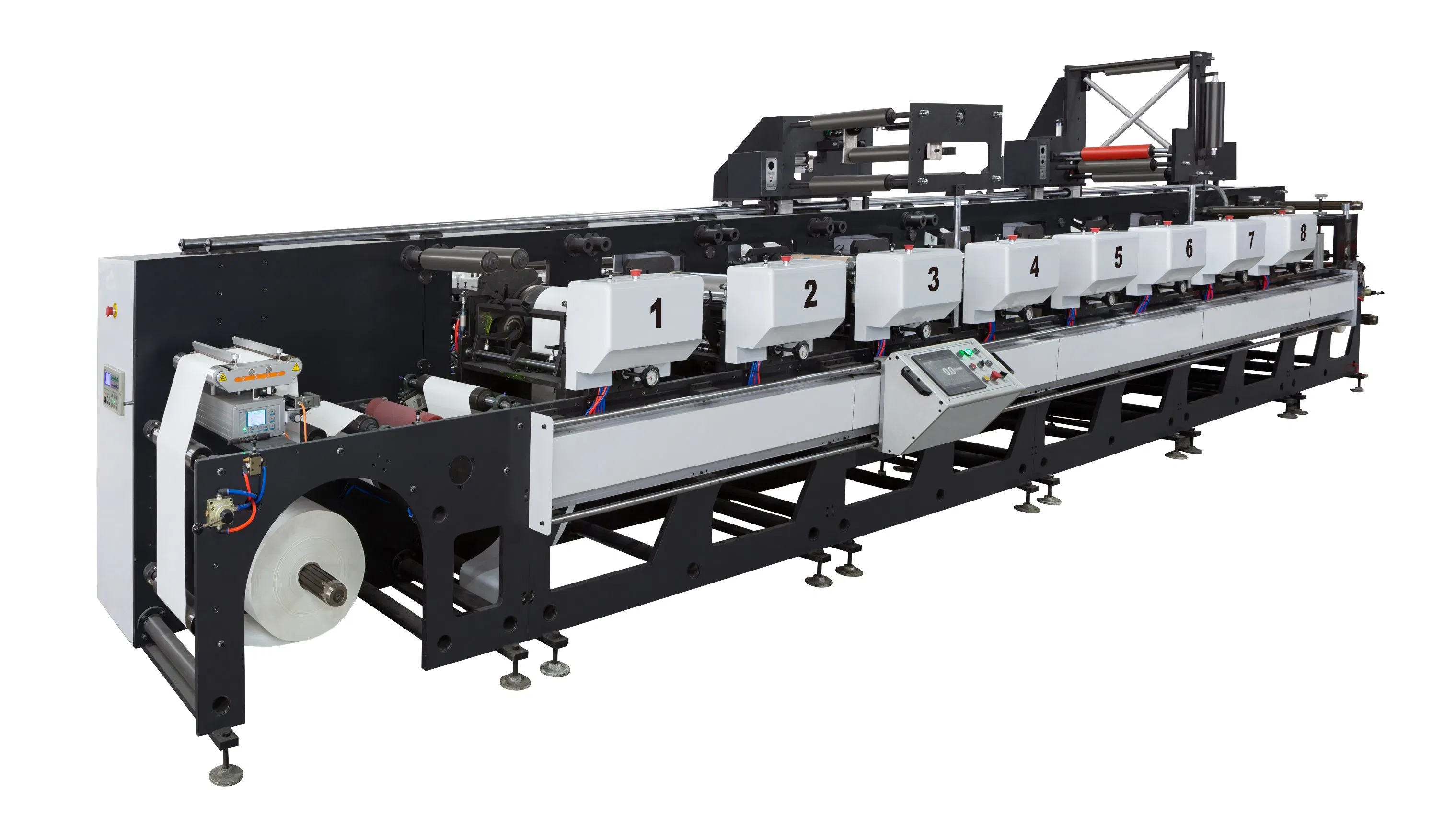

Factory Sale Automatic Screen Paper Cup Flexo Digital Logo Printing Machine Suppliers for Small Business
Factory Sale Automatic Screen Paper Cup Flexo Digital Logo Printing Machine Suppliers for Small Business
Factory Sale Automatic Screen Paper Cup Flexo Digital Logo Printing Machine Suppliers for Small Business
Factory Sale Automatic Screen Paper Cup Flexo Digital Logo Printing Machine Suppliers for Small Business
Factory Sale Automatic Screen Paper Cup Flexo Digital Logo Printing Machine Suppliers for Small Business
1 / 5
Factory Sale Automatic Screen Paper Cup Flexo Digital Logo Printing Machine Suppliers for Small Business
Factory Sale Automatic Screen Paper Cup Flexo Digital Logo Printing Machine Suppliers for Small Business
Factory Sale Automatic Screen Paper Cup Flexo Digital Logo Printing Machine Suppliers for Small Business
Factory Sale Automatic Screen Paper Cup Flexo Digital Logo Printing Machine Suppliers for Small Business
Factory Sale Automatic Screen Paper Cup Flexo Digital Logo Printing Machine Suppliers for Small Business

Factory Sale Automatic Screen Paper Cup Flexo Digital Logo Printing Machine Suppliers for Small Business

Customization: Available
After-sales Service: Yes
Warranty: 1 Year
Send Inquiry

Product Description

RY 550-8 Color 4+4 Stacked Printing Press

RY-550 Printing Press
Basic Specifications
ModelRY-550
Printing PageSingle Faced
Printing Color8 Colors
Anilox RollerCeramic Anilox
DryerUV & IR
Printing Speed70m/Min
Max Paper Width560mm
Voltage380V 3pH 50Hz
Raw Material30-300GSM Paper
Key Features & Unwinding Unit
  • Unwinding System: Paper changing unit with a maximum diameter of 800mm and 3-inch paper roll core.
  • Web Guide Device: Electronic induction device for automatic correction of paper position and precise alignment.
  • Tension Control: Automatic force control system equipped with tension induction and electromagnetic braking.
  • Safety Systems: Intelligent machine stops automatically when the roll paper is depleted.
  • Paper Splicing: Integrated splicing platform and pneumatic lifting paper shaft for efficient operation.
  • Accuracy: Paper feeding unit with automatic tension control to ensure superior overprinting accuracy.
Technical Parameters
Parameter Item Specification
ModelRY550-8 color
Maximum Unwinding Diameter800mm
Maximum Winding Diameter800mm
Printing Length175-450mm
Maximum Paper Width560mm
Maximum Printing Width550mm
Registration Accuracy±0.15mm (Optimized)
Gear Specifications1/8CP
Machine Speed80m/min
Plate Thickness1.7mm
Mounting Tape Thickness0.38mm
Frame Construction20mm Thick wall panels
Product Gallery
Printing Detail 1
Printing Detail 2
Printing Detail 3
Printing Detail 4
Full Machine View
Frequently Asked Questions
What types of materials can the RY-550 process?
The machine is designed for raw materials ranging from 30 to 300GSM paper, making it ideal for various flexible packaging and paper cup printing applications.
How does the machine ensure printing accuracy?
It uses an electronic induction paper web guide device for automatic correction and an automatic tension control system to maintain high registration accuracy during high-speed operation.
What is the maximum printing speed of this equipment?
The RY-550 has a maximum machine speed of 80m/min, with a standard operating printing speed of approximately 70m/min depending on the material.
What drying options are available on this model?
This model is versatile, featuring both UV and IR drying systems to accommodate different types of inks and printing requirements.
What is the maximum capacity for paper rolls?
Both the unwinding and winding units support a maximum diameter of 800mm, allowing for large rolls and reduced downtime for paper changes.
Does the machine include automated safety features?
Yes, the machine includes an automatic stop sensor that triggers when the roll paper runs out, preventing damage to the rollers or printing plates.
