Color & Page
Multi-Colour
Automatic Grade
Automatic
Printing Speed
60PCS/Hour
Push-Plate Stroke
600mm, 1.5kw Servo Motor
Hot Head Stroke
100mm, 750W Servo Motor
Perm Size
380mm, Center Span 600mm
Perm Temperature
0- 399°C
Production Capacity
100set/Month
Package Size
180.00cm * 140.00cm * 210.00cm

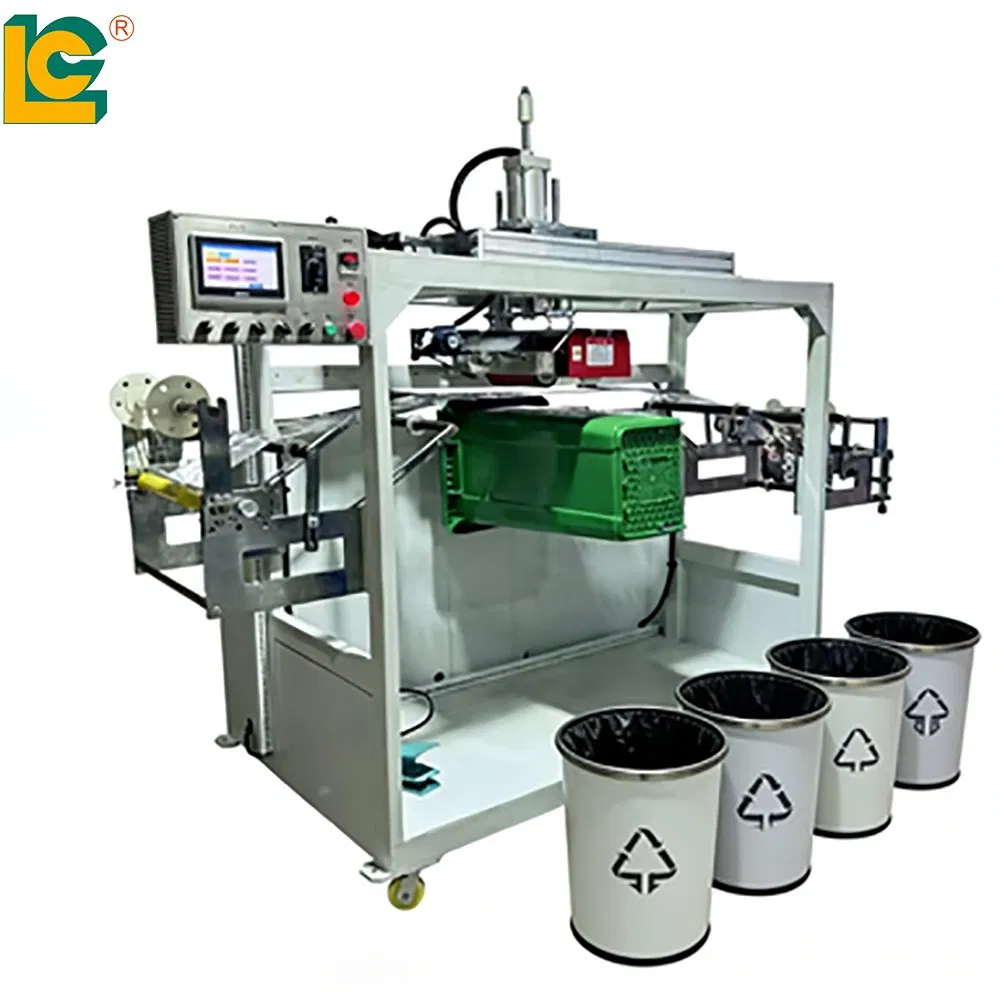

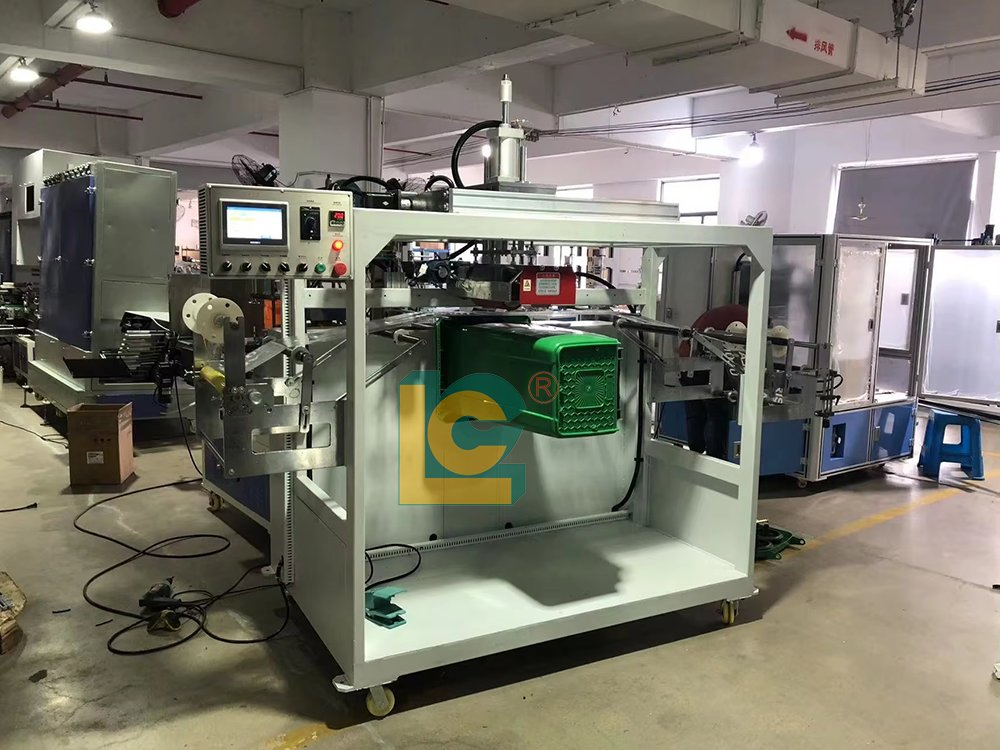

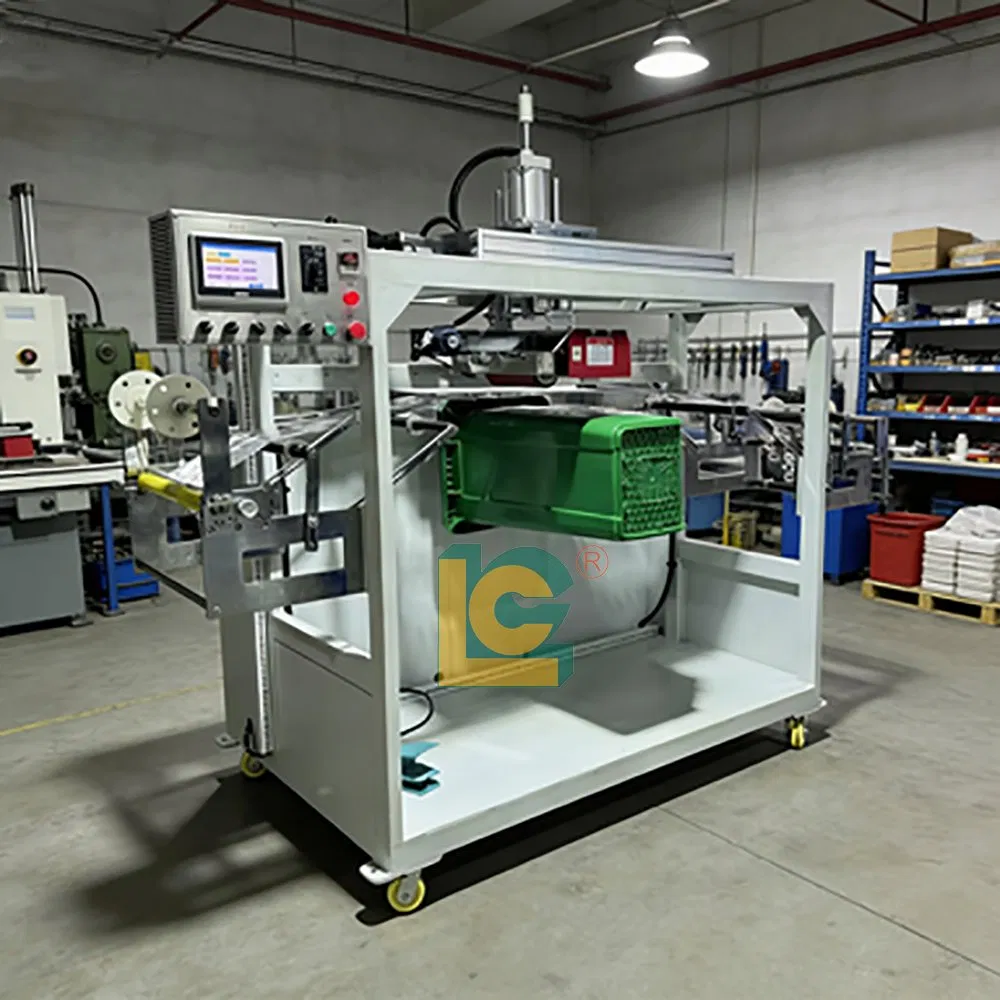

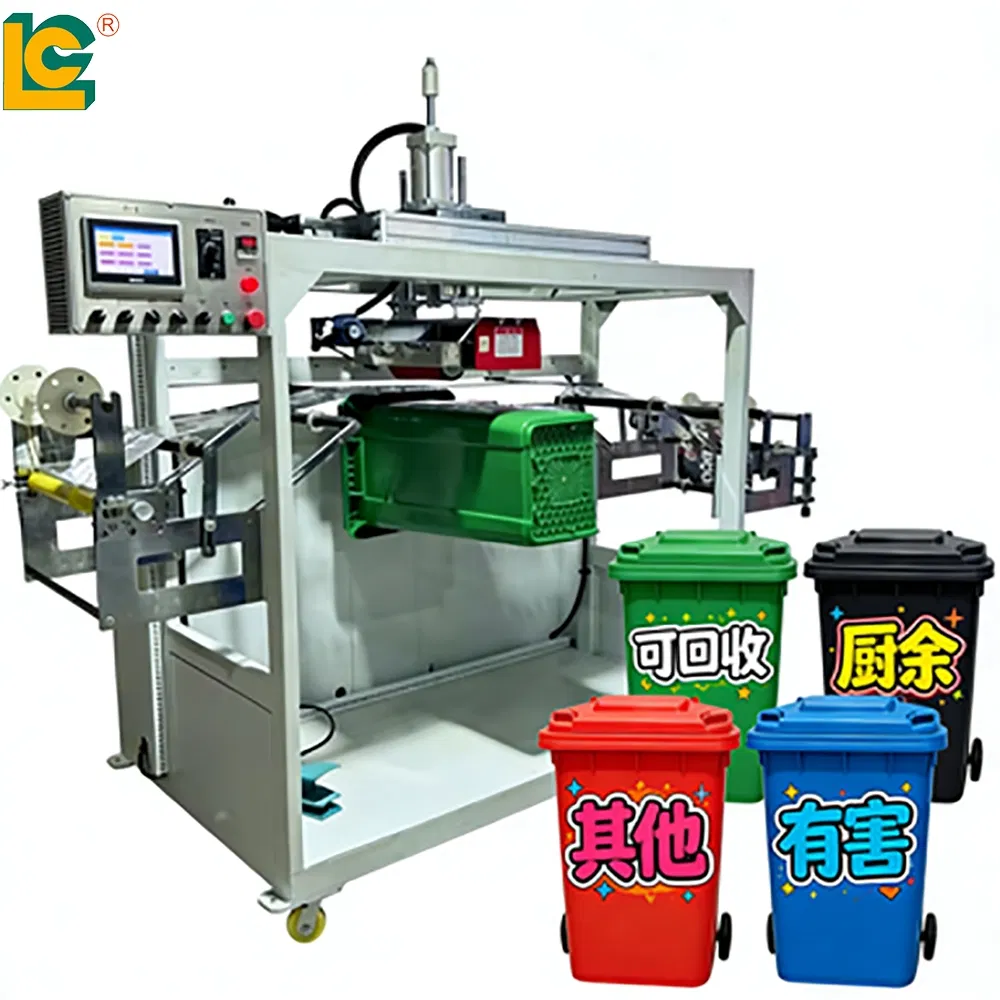

Discover the innovative Fully Automatic Plane Surface Heat Transfer Machine, specifically designed for Garbage Can printing. This cutting-edge solution ensures precision and efficiency for all your plastic garbage bin needs.
| Usage | trash can printer |
| Automatic Grade | Automatic |
| Color & Page | Multicolor |
| Voltage | 220V 50/60HZ |
| Dimensions(L*W*H) | 2000*1800*2100MM |
| Weight | 1200KG |
| Warranty | 1 Year |
| Key Selling Points | High Productivity |
| Stamping area | 500*500mm |
| Perm size | 380mm |
| Max speed | 60pcs/h |
| Hot stamping temperature | 0ºC~399ºC |
| Heating power | 2000W |
| Air pressure | 5-7 bar |
Heat transfer machine with beautiful elegant appearance, it is mainly used for various square trash cans of different sizes. Special for plastic like ABS, PP, PE, PS, AS, PVC, acrylic etc.
✔
Gilding press elbow mechanism design, less compressed air consumption, strong steady pressure.
✔
Stamping pressure, temperature, hot pressing time is adjustable.
✔
Work table can be customized to move back and forth automatically for safe and fast operation.
✔
Automatic document feeder and collection with high precision positioning.
✔
Equipped with Taiwan FOTEK electric eye for high-precision tracking control of thermal transfer paper.
✔
Equipped with emergency stop safety devices to protect the safety of the operator.

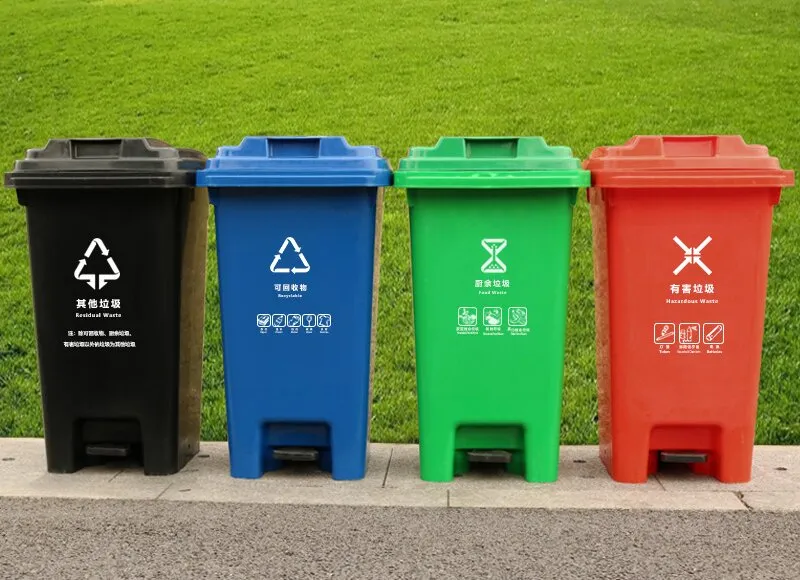

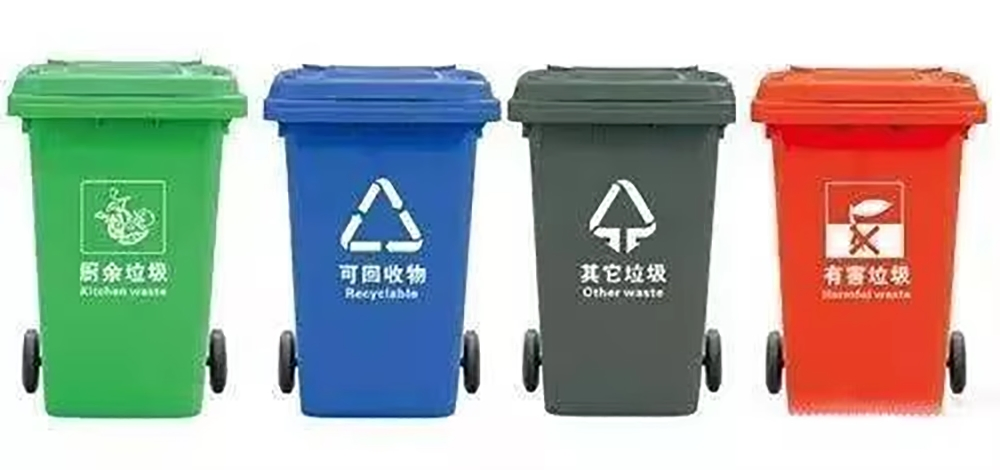

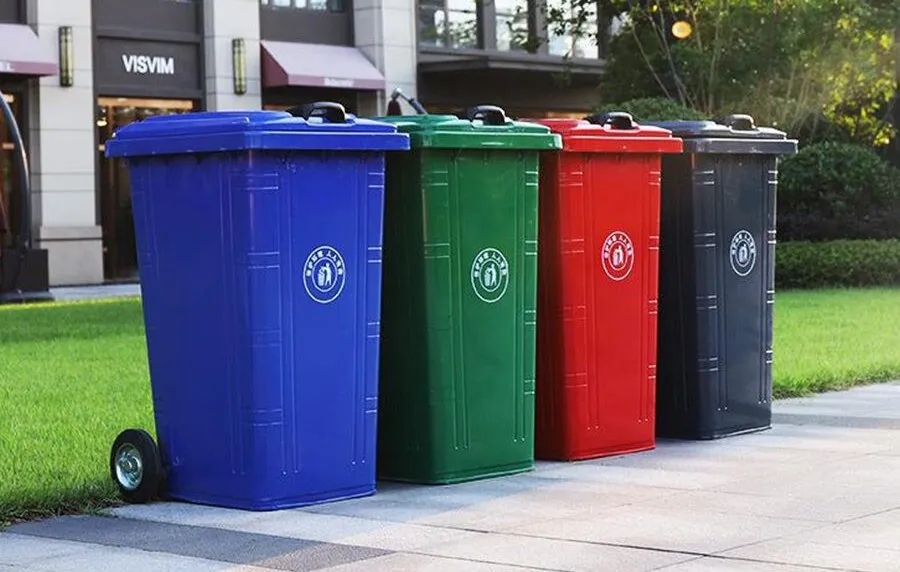

Witness the exceptional quality and vivid results produced by our state-of-the-art heat transfer equipment. Each sample showcases the machine's ability to deliver striking, long-lasting prints.
Frequently Asked Questions
What materials can this heat transfer machine print on?
The machine is specially designed for various plastics including ABS, PP, PE, PS, AS, PVC, and Acrylic.
What is the maximum printing area of the LC-TH500R?
The maximum stamping area for this model is 500mm x 500mm, making it ideal for large items like garbage bins.
How fast can the machine print?
The machine features a production speed of approximately 60 pieces per hour, ensuring high productivity.
Is the stamping temperature adjustable?
Yes, the hot stamping temperature can be precisely adjusted between 0ºC and 399ºC to suit different transfer foils and materials.
Does the machine include safety features for the operator?
Absolutely. The machine is equipped with emergency stop safety devices and a customized automatic work table to ensure safe and easy operation.
What kind of power supply does it require?
The machine operates on a standard voltage of 220V at 50/60HZ with a heating power of 2000W.
