Fully Automatic Controlled Gravure Printing Equipment for Bag and Label Production with High Strength Structure

Customization:	Available
Warranty:	One Year
Certification:	CE

Basic Specifications

Model NO.:BM-400D

Condition:NEW

System Supported:Windowsxp64

Printing Interface:USB3.0

Applicable Material:Stickers, Textile, Film, Paper, Plastic

Automatic Grade:Automatic

Printing Speed:400m/Min

Printing Width:1000mm

Total Power:300kw

Registration Accuracy:±0.1mm

Technical Parameters

Parameter Item	Specifications
Max. speed	400m/min
Max. width of web	1050mm
Max. diameter of unwinding/rewinding	Ø600-800mm
Tension control range	20-50kg/Full Width
Inside diameter of roll core	76mm
Diameter of printing cylinder	Ø120-360mm
Machine dimension	Approx 20000(l)4000(w)3800(h)mm
Machine weight	Approx. 40000kg

Product Overview

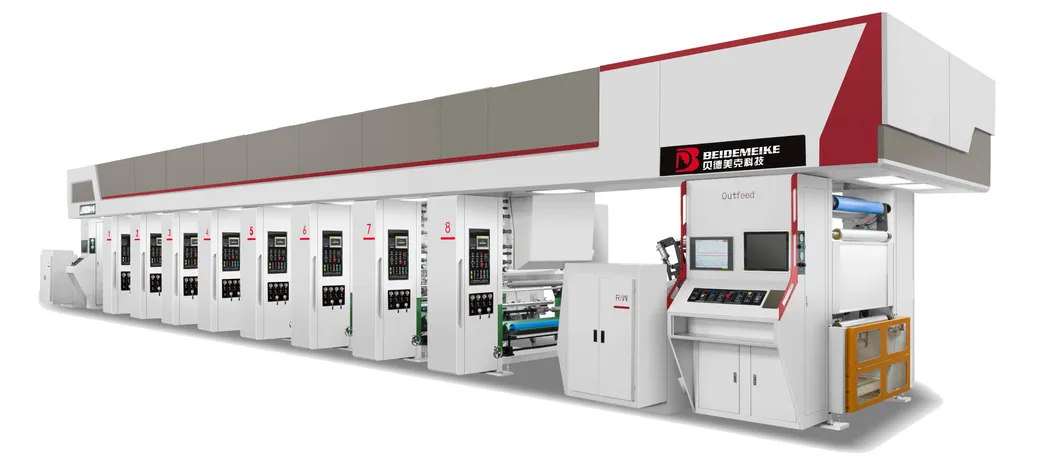

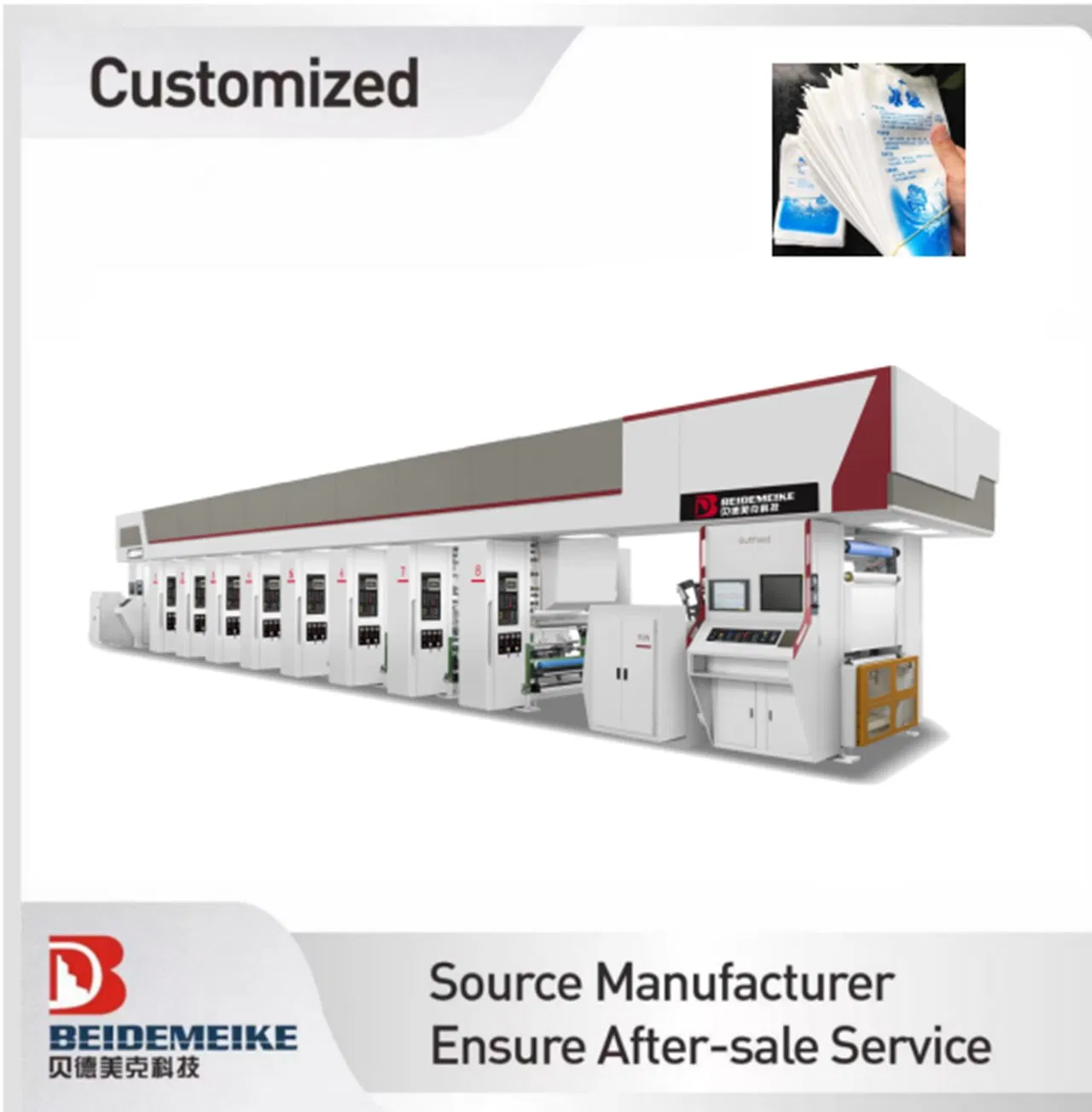

BM-400D Electronic Shaft-Driving Gravure Printing Machine

Discover the remarkable capabilities of our Electronic Shaft-Driving Gravure Press, a marvel of modern engineering with top-tier features. Designed for low energy consumption and minimal operational loss, it offers simplicity in use and advanced intellectualization. Whether handling large-batch surplus products or catering to small-batch product groups, this machine is perfect for long-term production needs. It expertly combines flexible packaging orders with optimal personnel configuration, optimizing and enhancing printing operations.

Main Features

Wide Application: Suitable for BOPP, PET, PVC, PE, aluminum foil, and roll paper with excellent thin film reel material printing properties.
Unwind and Rewind: Unwinding fixed single-station and rewind double-station with air shaft loading/unloading for secure and reliable replacement.
Precision Printing: Vertical register system ensures high precision and less waste. Doctor blade operates with double-axis driven by an independent motor.
Advanced Drying: Features patent technology with high-temperature axial fans and built-in heating in the dry oven.

Applications & Materials

Material	Min. Thickness	Max. Thickness
BOPP	12μm	60μm
PET	10μm	60μm
BOPA	15μm	60μm
PE / LDPE	35μm	100μm
Paper	30g/m²	120g/m²

Manufacturing & Logistics

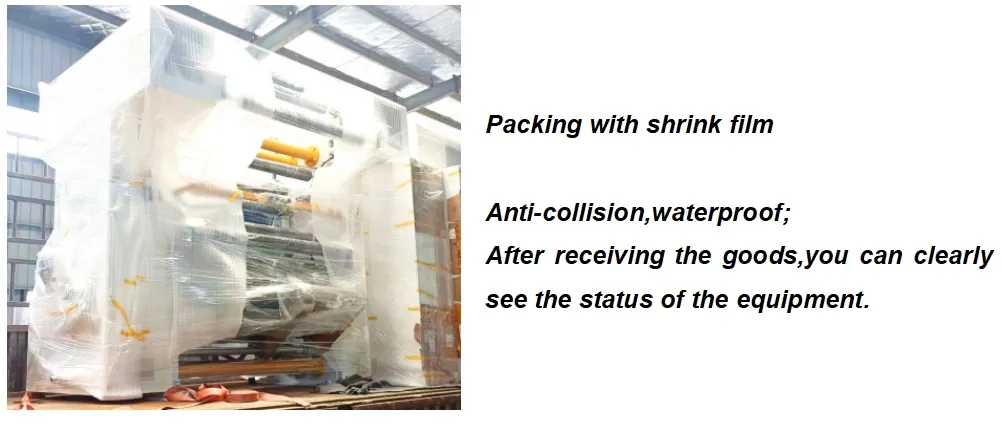

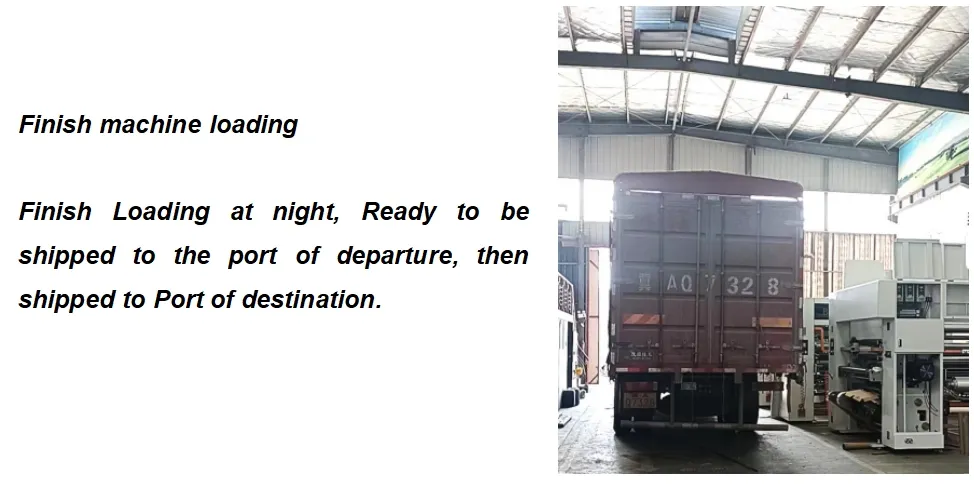

Whenever our esteemed customers have a requirement, our devoted team ardently packs machines to guarantee prompt delivery. Each step, from careful packaging to secure loading, is executed with precision to ensure your equipment arrives in perfect condition.

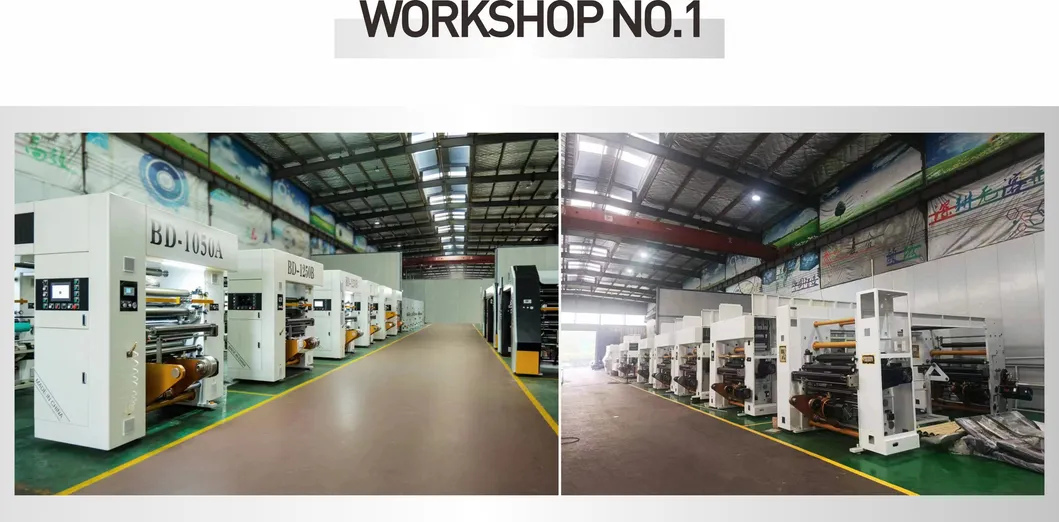

Exhibition Show & About Us

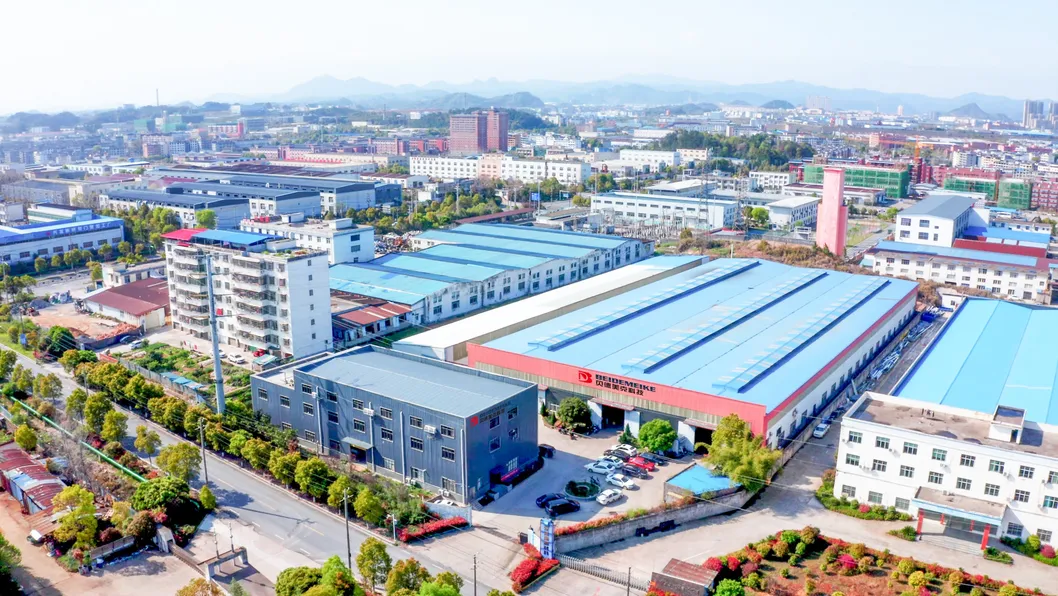

We are a beacon of innovation in the industry, focusing on the creation and advancement of premium flexible packaging machinery solutions. Our high-performance solvent-less lamination equipment features integrated glue mixers, designed to cater to diverse needs in the flexible packaging sector. With an extraordinary annual market growth, our products are established in key packaging hubs worldwide.

Frequently Asked Questions

Q: Can you provide OEM and ODM services? A: Absolutely! We provide exceptional OEM and ODM services. Whether it's material, color, or style, we customize every detail to align perfectly with your vision.

Q: How quickly can I get a price quote? A: We are committed to efficiency and aim to provide a precise and competitive quote within 8 hours of your inquiry.

Q: What is the typical delivery time? A: Our standard delivery timeline is approximately 30 days following order confirmation to ensure quality and timely service.

Q: What are the payment terms? A: We require a 30% deposit via T/T in advance, with the remaining 70% due prior to shipping.

Q: What kind of after-sale service do you offer? A: We offer a comprehensive one-year warranty. Our team is committed to resolving any quality issues swiftly, including free replacement of parts.

Q: What are your primary advantages? A: We are a certified manufacturer with stringent quality control, competitive pricing, efficient 24/7 operations, and a comprehensive one-stop service.
