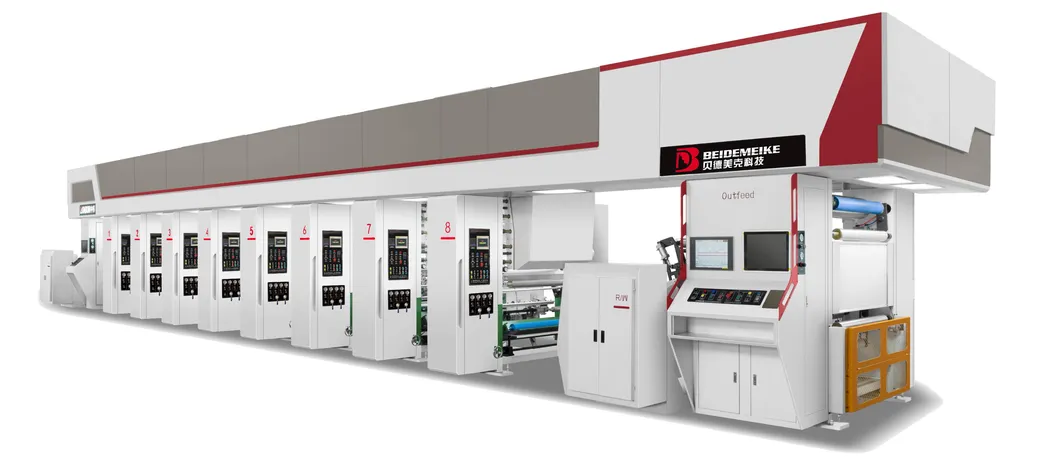

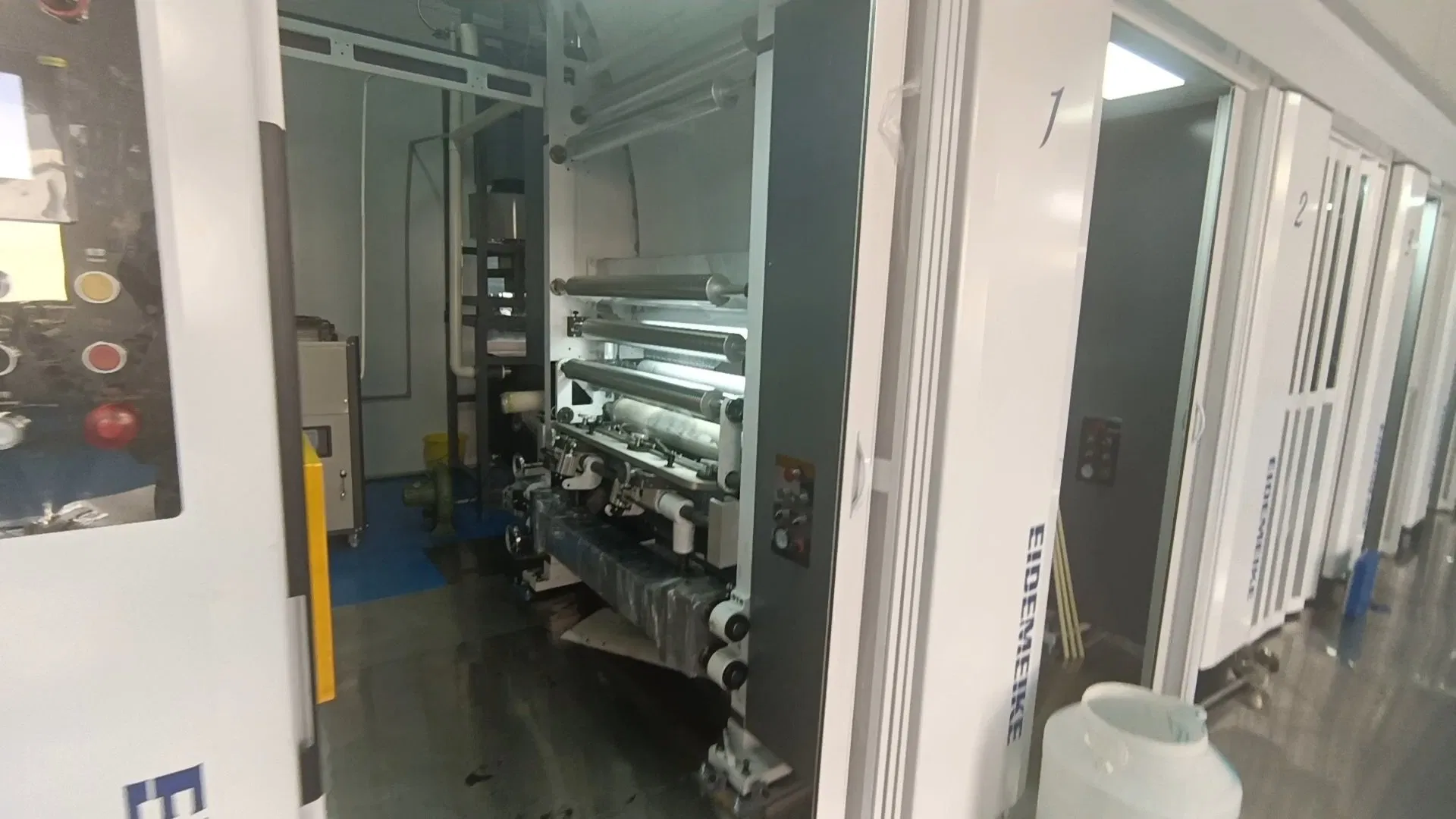

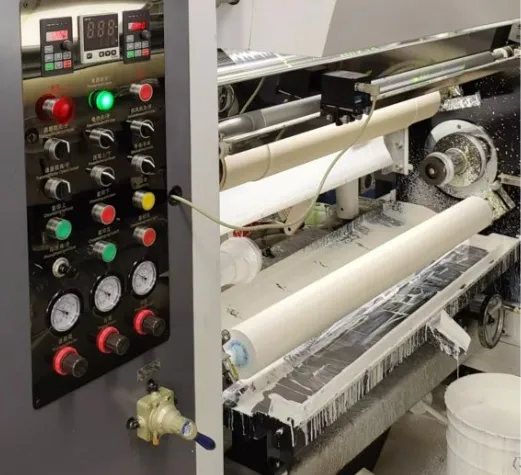

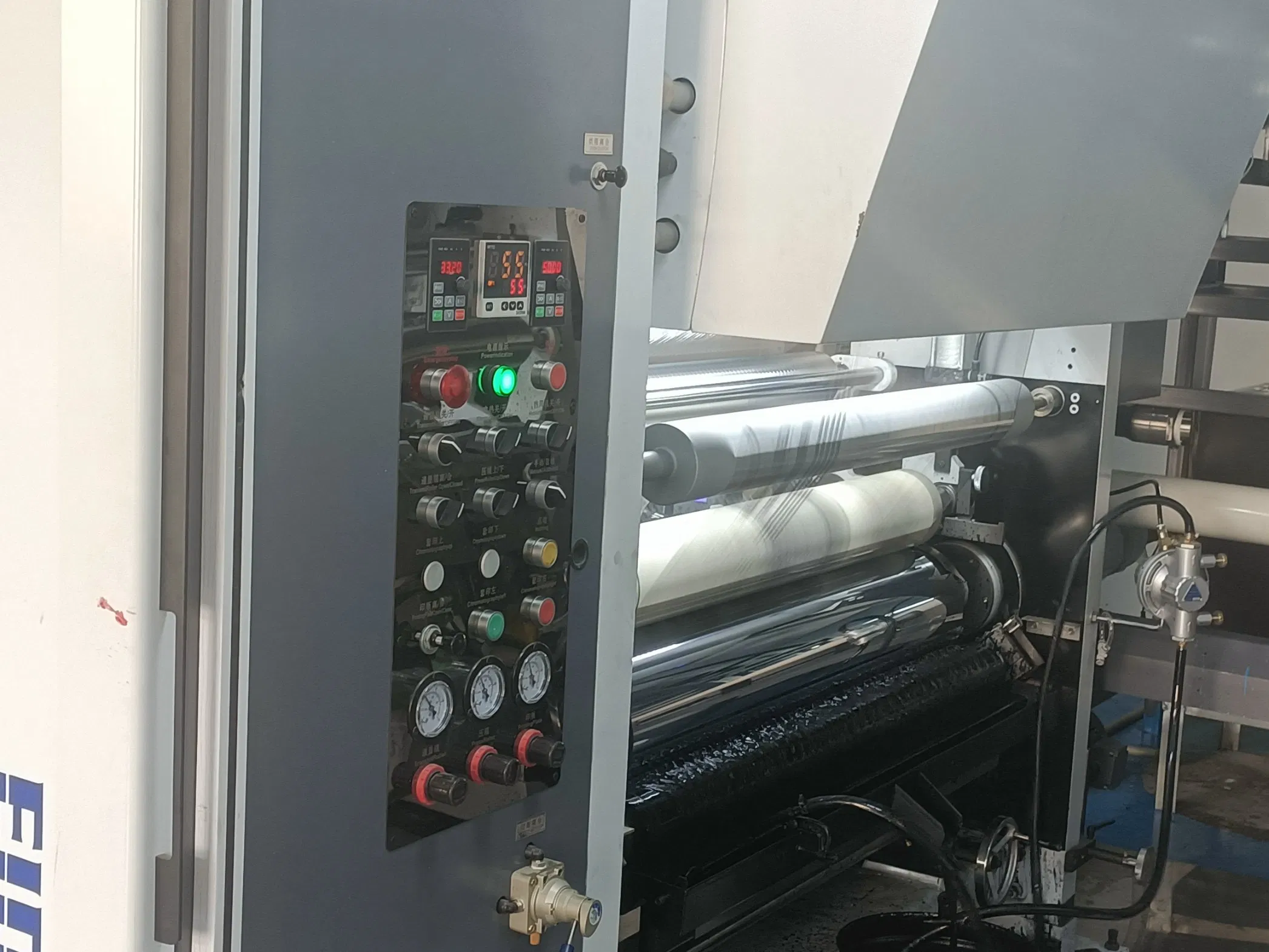

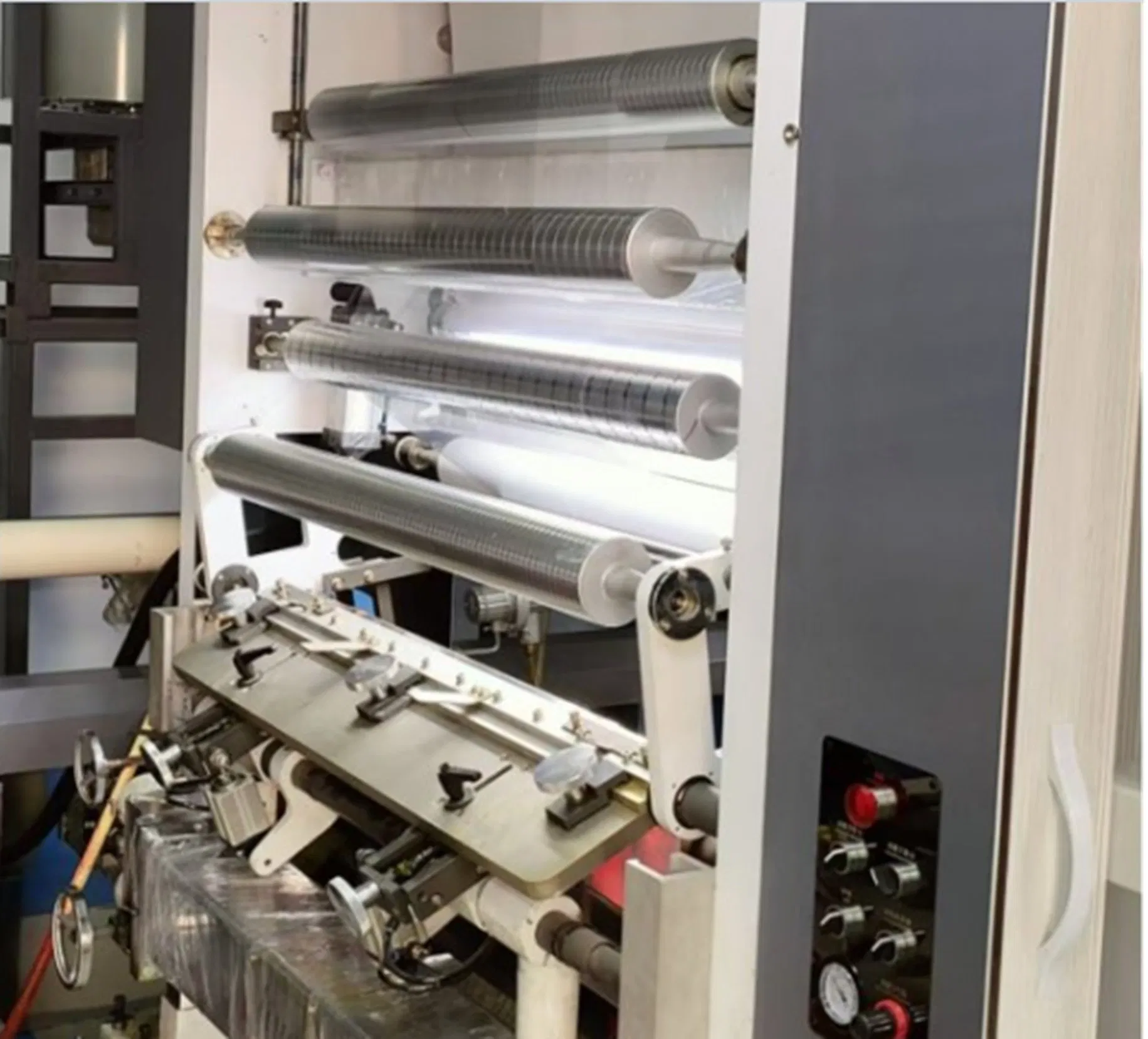

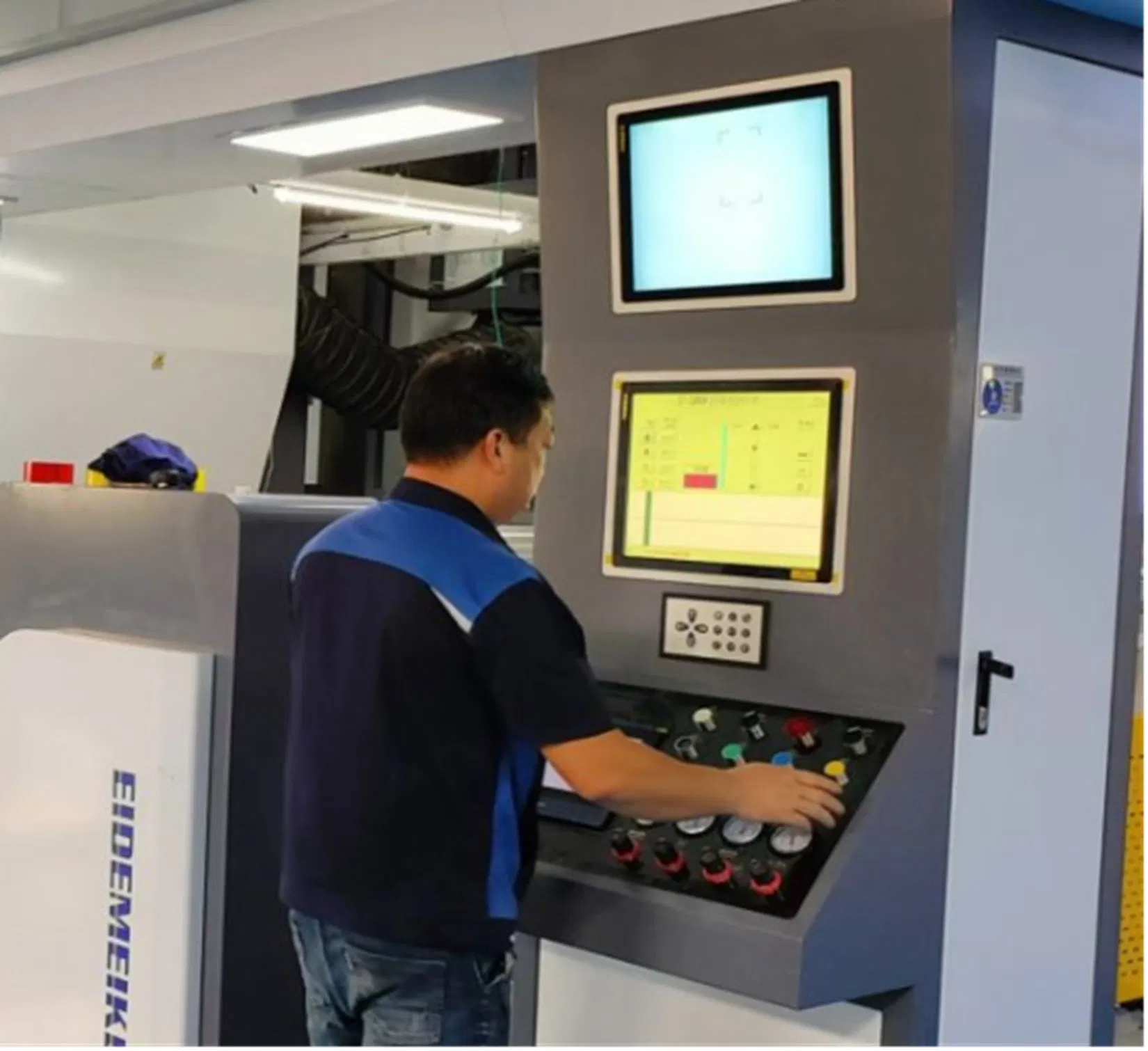

The BM-400D Gravure Printing Machine combines the advanced characteristics of various printing technologies. It is composed of an unwinding unit, feeding traction unit, printing unit, drying unit, discharging traction unit, winding unit, and an electrical control part with corresponding instruments. Controlled by a sophisticated computer system, this rotogravure printing machine utilizes a high-performance 7-motor tension control system. All operations, including automatic roll changing, are managed via PLC and a user-friendly Human-Machine Interface (HMI), supplemented by a high-definition video inspection system.
Equipment Composition: The equipment primarily consists of units for feeding, unwinding and cutting, unwinding traction, printing, drying, winding traction, winding and cutting, and discharging.
Function Description: By harmoniously integrating these components, the machine efficiently executes high-speed color printing on various specified materials, achieving impressive industrial printing capabilities.
| Model Parameter | Specifications (BM-400D) |
|---|---|
| Max. Speed | 400m/min |
| Max. Width of Web | 1050mm |
| Effective Printing Width | 1000mm |
| Max. Diameter of Unwinding/Rewinding | Ø600-800mm |
| Inside Diameter of Roll Core | 76mm |
| Diameter of Printing Cylinder | Ø120-360mm |
| Accuracy of Computer Registration | ±0.1mm |
| Total Power | Approx 300kw |
| Machine Dimensions | Approx 20000(L) * 4000(W) * 3800(H) mm |
| Machine Weight | Approx 40000kg |
| Material | Min. Thickness | Max. Thickness |
|---|---|---|
| BOPP | 12μm | 60μm |
| PET | 10μm | 60μm |
| BOPA | 15μm | 60μm |
| PE | 35μm | 100μm |
| Paper | 30g/m² | 120g/m² |
| LDPE | 35μm | 100μm |
Remark: Actual production speed depends on production conditions such as material, solvent type, and operator skill.

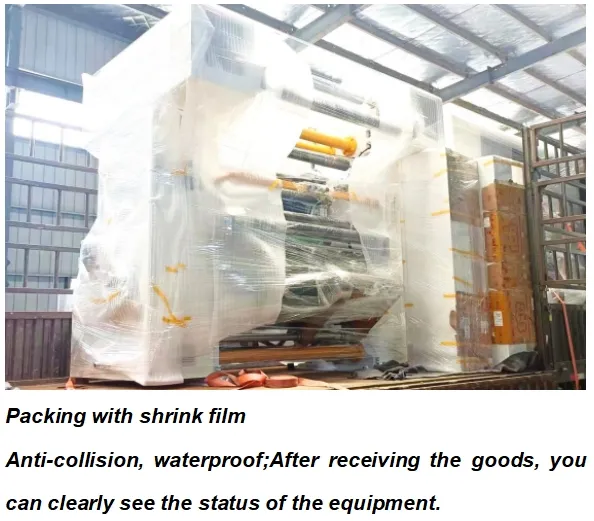

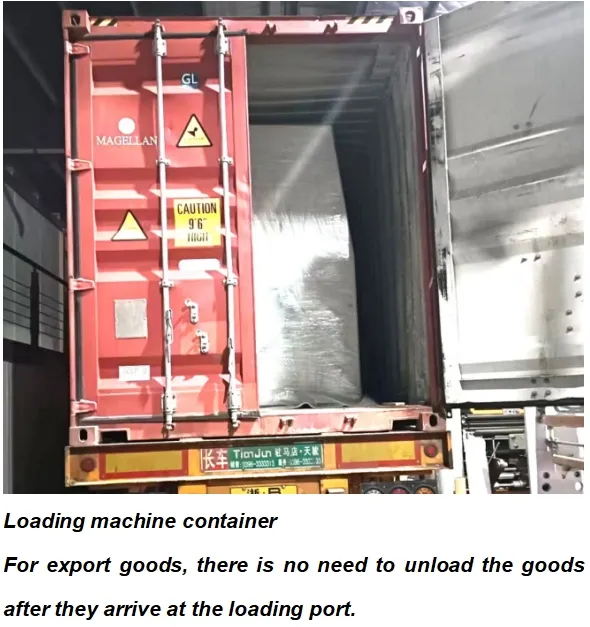

Our dedicated factory team ensures machines are meticulously packed and prepared for prompt delivery. We utilize state-of-the-art lamination and printing equipment, exported globally to meet diverse packaging solutions with excellence.
We are a pioneering production-oriented enterprise focused on the development and manufacture of high-performance soft packaging machinery. With an annual growth rate of 50%, our market share extends to major packaging hubs both domestically and internationally. Our machinery is lauded for its exceptional cost-effectiveness and advanced functionality.
