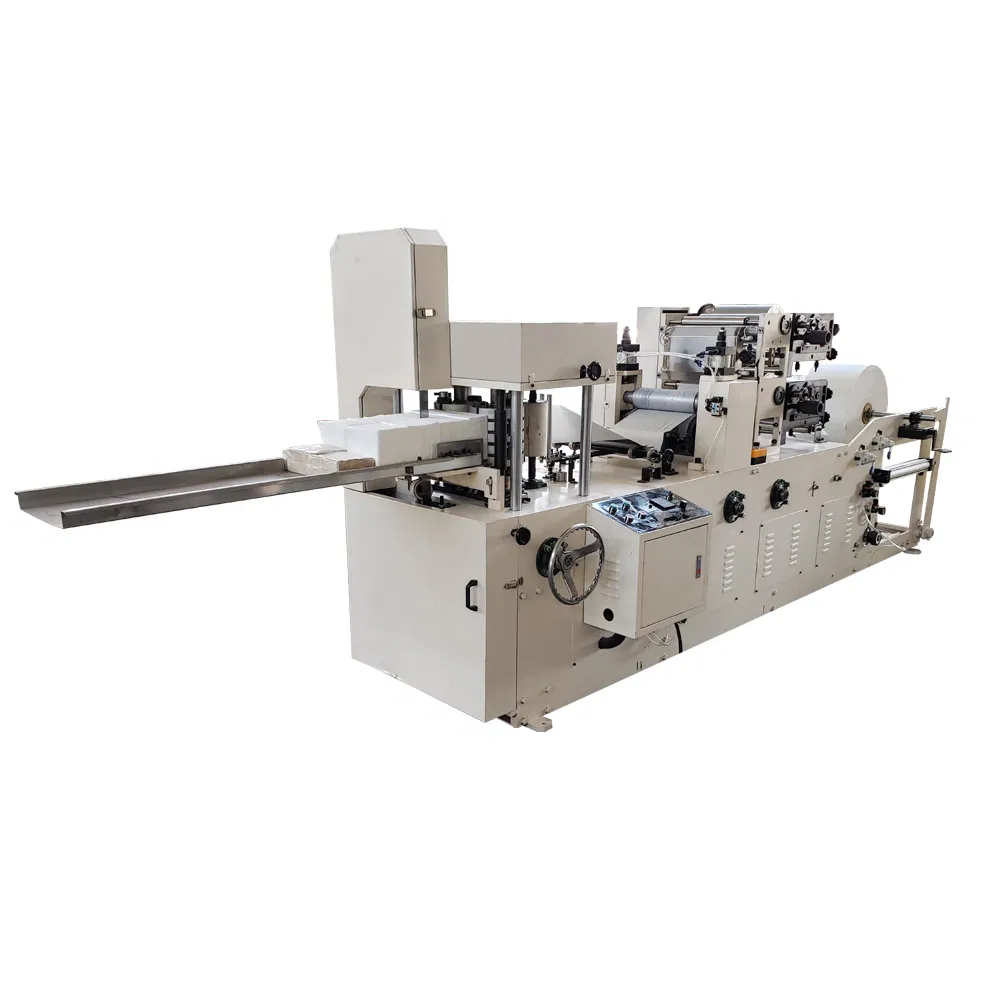

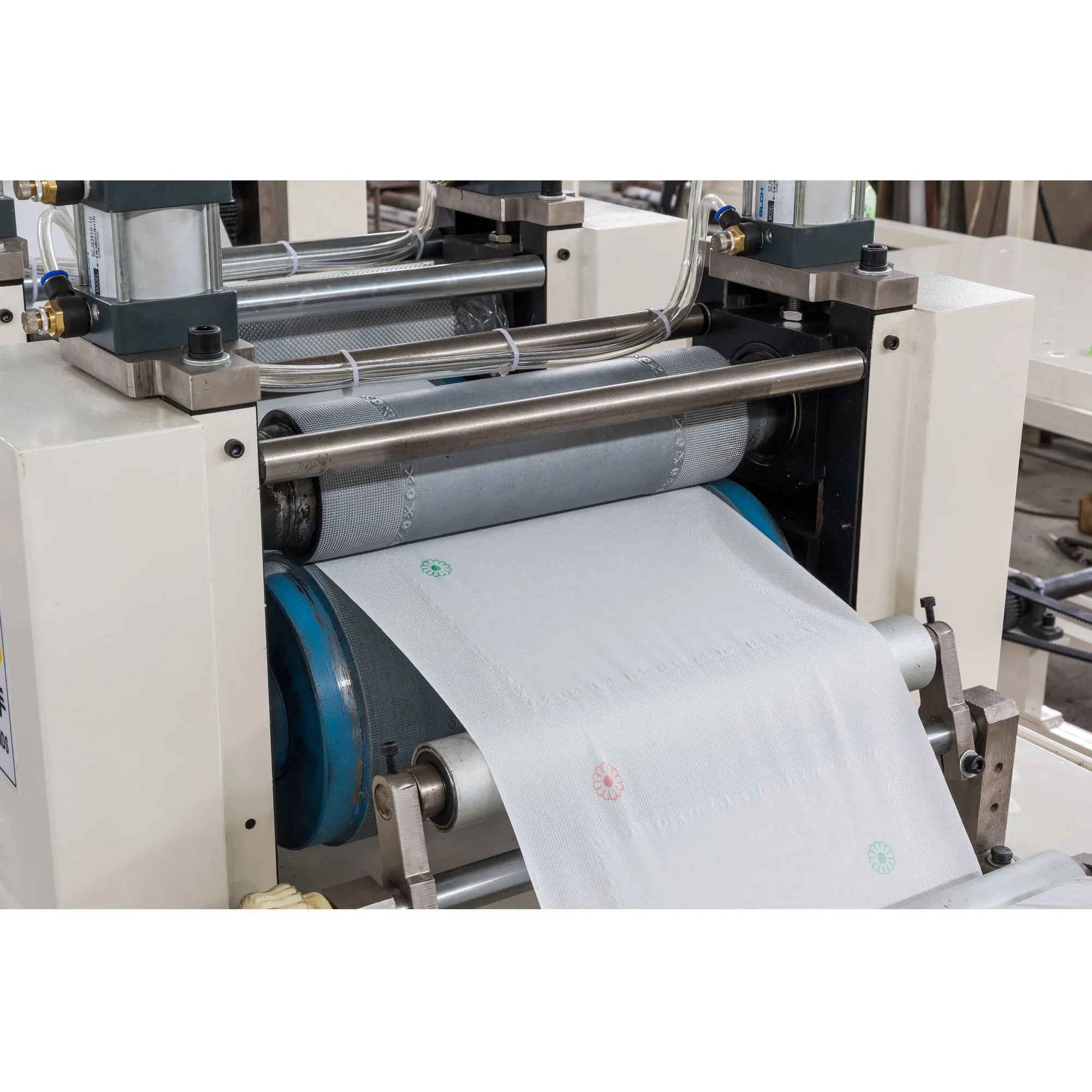

Automatic Color Printing Table Napkin Tissue Paper Making Machine for Small Business
Automatic Color Printing Table Napkin Tissue Paper Making Machine for Small Business
Automatic Color Printing Table Napkin Tissue Paper Making Machine for Small Business
Automatic Color Printing Table Napkin Tissue Paper Making Machine for Small Business
Automatic Color Printing Table Napkin Tissue Paper Making Machine for Small Business
1 / 5
Automatic Color Printing Table Napkin Tissue Paper Making Machine for Small Business
Automatic Color Printing Table Napkin Tissue Paper Making Machine for Small Business
Automatic Color Printing Table Napkin Tissue Paper Making Machine for Small Business
Automatic Color Printing Table Napkin Tissue Paper Making Machine for Small Business
Automatic Color Printing Table Napkin Tissue Paper Making Machine for Small Business

Automatic Color Printing Table Napkin Tissue Paper Making Machine for Small Business

Customization: Available
After-sales Service: Video Technical Support, Online Support
Warranty: 1 Year
Send Inquiry

Product Description

Basic Information
Model NO.
XY-OQ-7000A
Jumbo Roll Width
Same as Finished Product
Jumbo Roll Diameter
1200mm
Production Speed
400-700 Sheets/Min
Printing Unit
1-3 Colors
Folding Style
1/2, 1/4, 1/6, 1/8
Function
Embossing, Folding, Counting, Cutting
HS Code
84418090
Product Description

Automatic Color Printing Table Napkin Tissue Paper Making Machine

The Embossing Napkin Folding Machine is designed to cut through the paper tray after embossing and automatically fold it into a square or rectangular-shaped napkin. It features clear and bright overlay accuracy and high-speed stationary operation, making it ideal equipment for high-grade napkins.

Main Function Characteristics

  • Transmission belt drive configuration for smooth operation.
  • Pattern matching paper rolling device for significant pattern clarity.
  • Electronic counting with dislocation row output.
  • Folding plate and manipulator formed by a band sawing cutter.
  • Customizable models available based on specific requirements.
Technical Data Specifications
Parameter Specification Details
Working Width400mm / 330mm / 300mm / 270mm / 240mm / 230mm/ 200mm
Printing Unit1-3 colors as per requirement

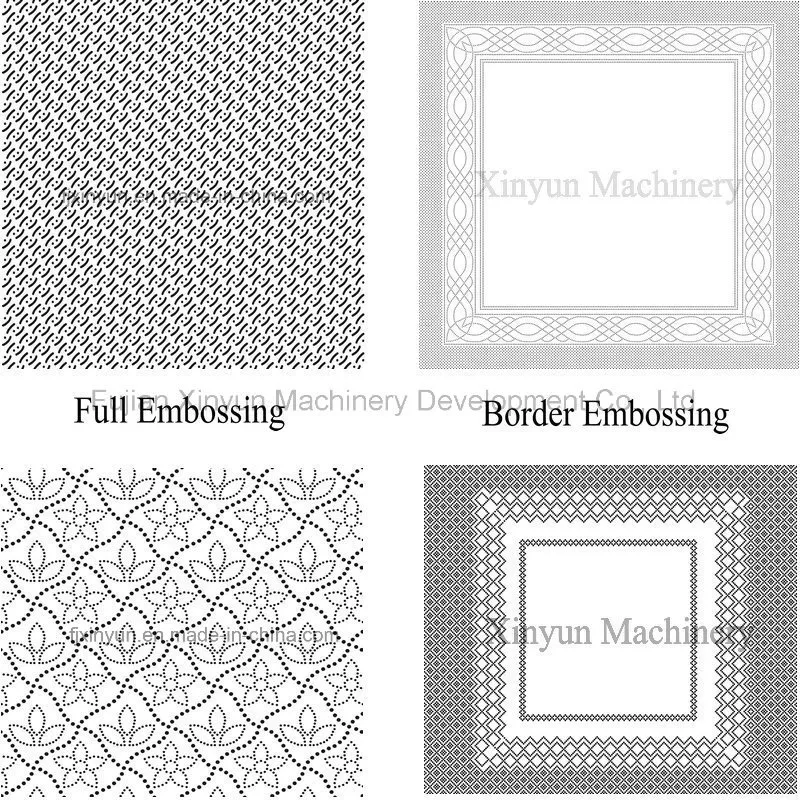

Embossing UnitFull or border pattern as per requirement
Parent Roll Diameter1200mm
Interfolding Style1/4 fold, 1/6 fold, 1/8 fold
Production Speed400 to 700 sheets per min (varies by paper quality)
Installed Power4.5 KW (380V 50Hz)
Controlling SystemFrequency Drive
Machine Weight1000kg
Space Required3.4-4.2m x 0.9m x 1.5m
Production Flow & Machine Display

Production Process: Printing → Embossing → Folding → Counting → Cutting

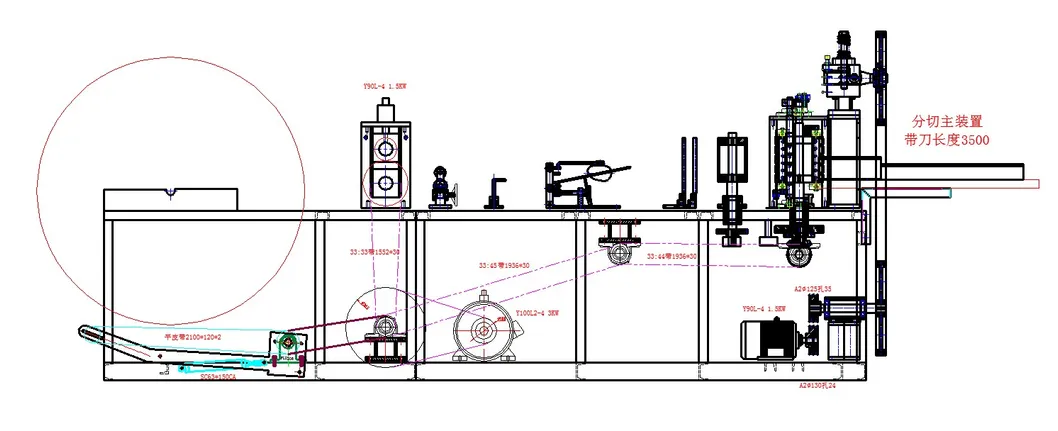

Napkin Machine Production Flow

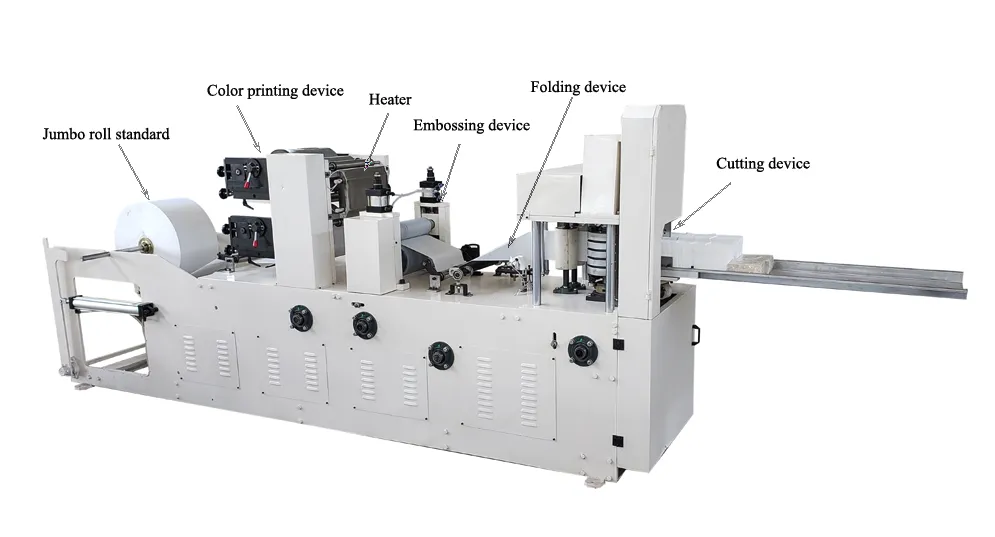

Automatic Table Napkin Machine

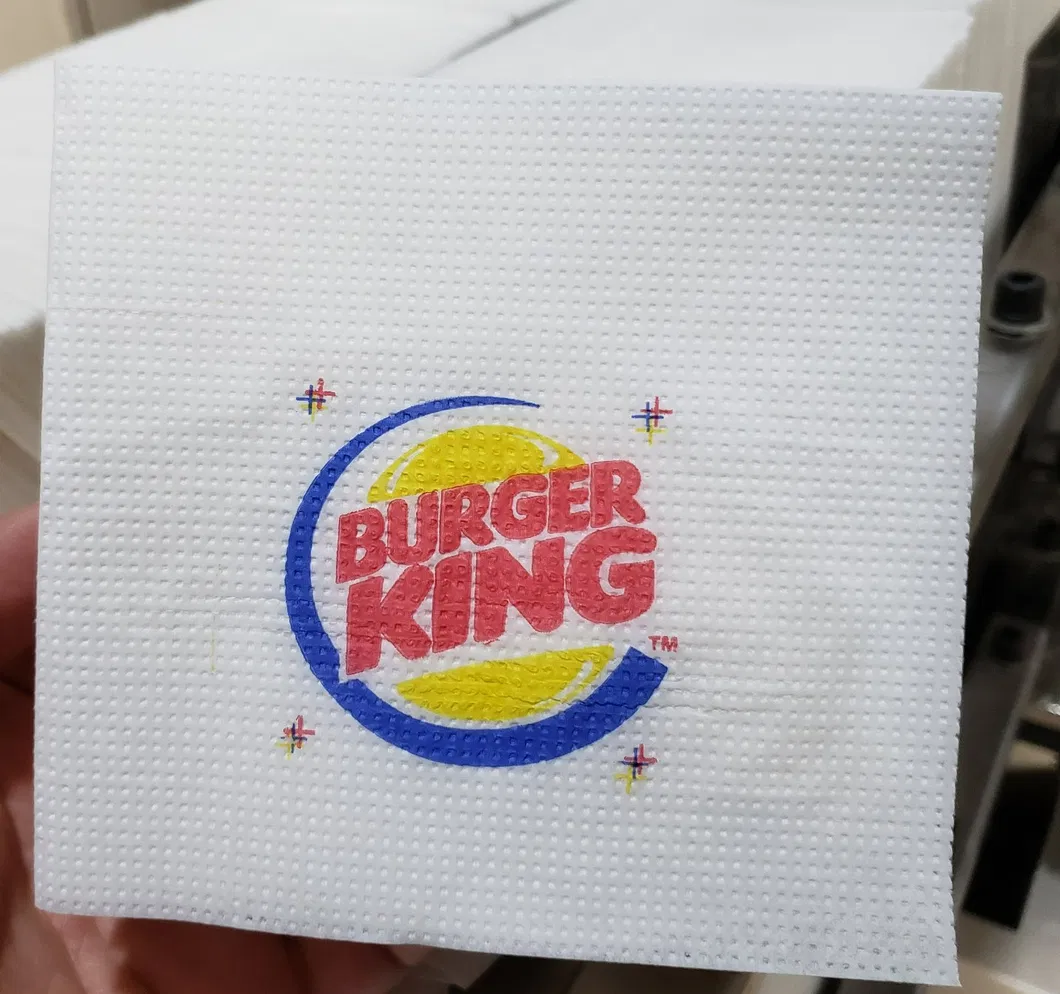

Paper Folding Details

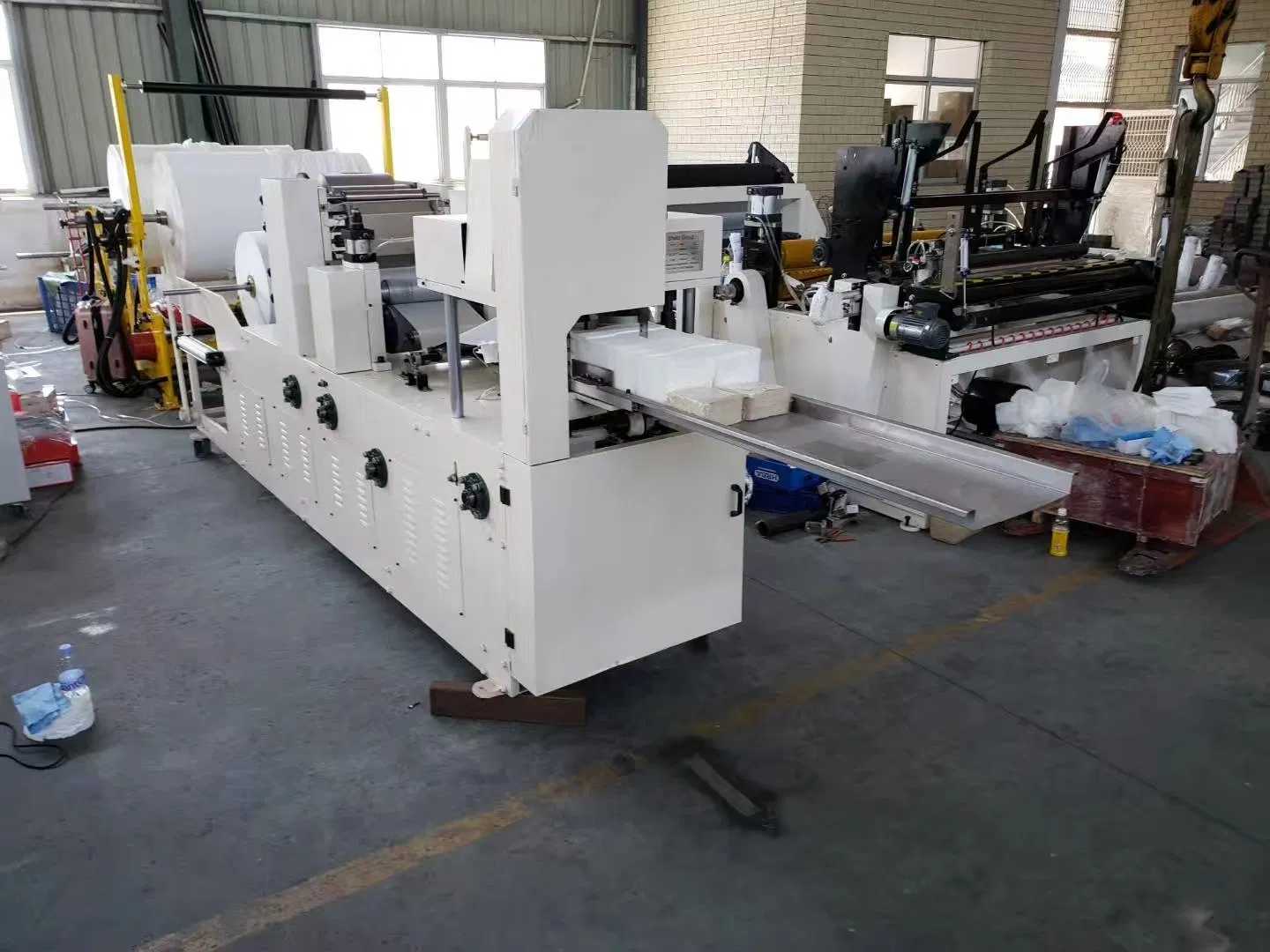

Napkin Machine Workshop

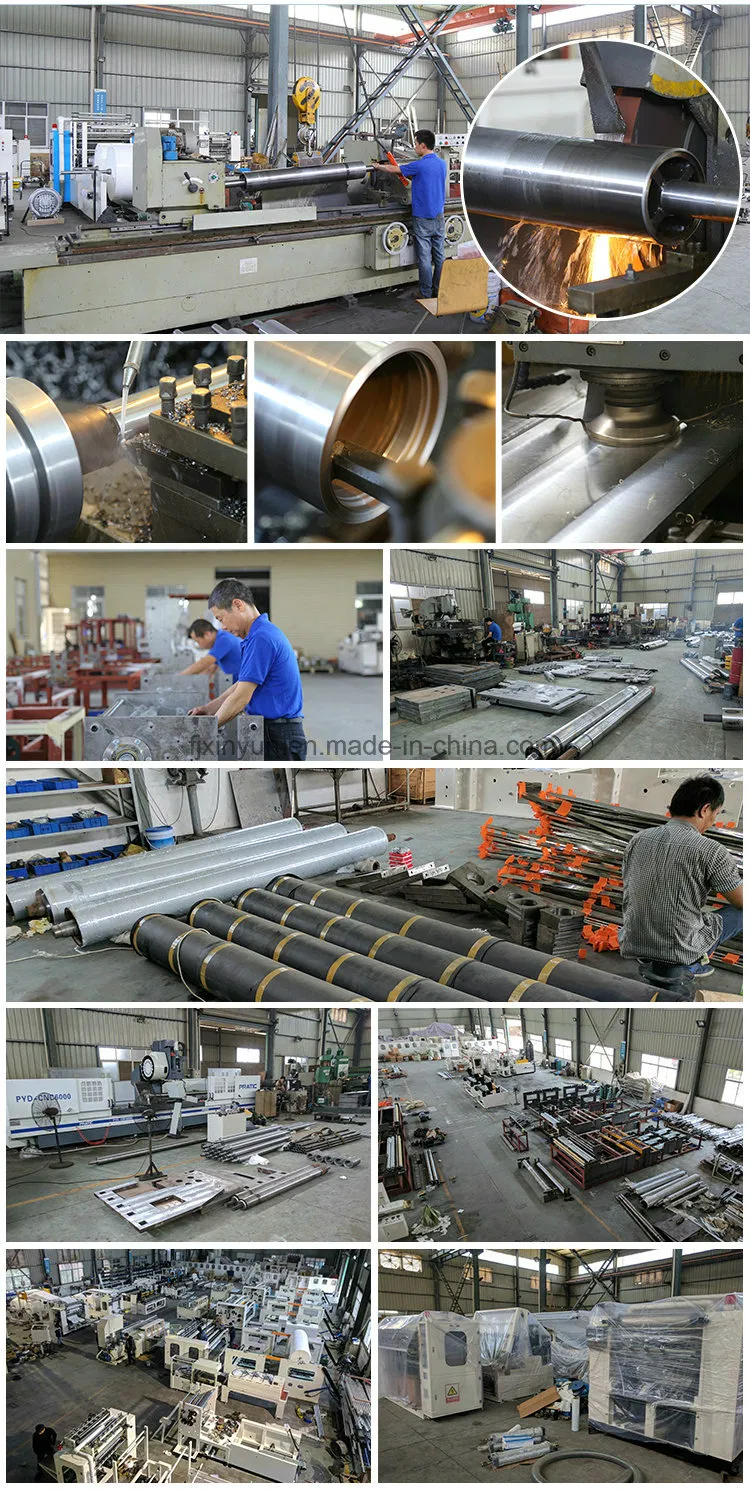

Parts Processing
Why Choose Our Machines?
  • High-quality machinery with competitive pricing.
  • Rapid response: Any technical inquiries are addressed within 24 hours.
  • Two-year free guarantee and lifetime maintenance support.
  • Instructional DVD provided for easy operation and setup.
  • On-site technician installation and training services available upon request.

Comprehensive Paper Converting Solutions

Professional supplier of various tissue machinery including:

  • Toilet Paper & Kitchen Towel Machines (1.2m–2.8m width)
  • Facial Tissue Machines (2-8 output lanes)
  • Napkin Paper Machines (L-fold, 1/4, 1/6, 1/8 and multi-fold)
  • Hand Towel Machines (C, V, N/Z fold types)
  • Pocket Tissue & Cutting/Packing Production Lines
Frequently Asked Questions
What is the production capacity of this napkin machine?
The machine can produce between 400 to 700 sheets per minute, depending on the quality of the paper and the specific configuration.
Can the machine handle multi-color printing?
Yes, it supports 1 to 3 color printing units based on your specific production requirements.
What folding styles are supported?
The machine is versatile and can be configured for 1/2, 1/4, 1/6, and 1/8 folding styles to meet different market demands.
Is the embossing pattern customizable?
Yes, we offer both full embossing and border pattern embossing options as per your requirements.
What kind of after-sales support is provided?
We provide a two-year guarantee, lifetime maintenance, operation videos, and the option for technician installation at your facility.
