Advanced Digital Printing System with High-Speed Single Pass Capability

Customization:	Available
After-sales Service:	Lifelong Maintenance
Warranty:	One Year

Send Inquiry

Product Description

📋

Basic Information

Model NO.

HX-501-UV

Plate

Lithography Printing

Structure

Platen Press

Color & Page

Multi-Colour Printing Press

Usage

Paper Printer, Label Printer, Card Printer, Cloths Printer

Automatic Grade

Semi-Automatic

Printing Interface

USB3.0

System Supported

Windows2000

Max Print Width

27.1mm/33mm

Print Accuracy

600 Dpi

📦

Packaging & Delivery

Package Size

160.00cm * 100.00cm * 165.00cm

Gross Weight

380.000kg

✨

Product Description

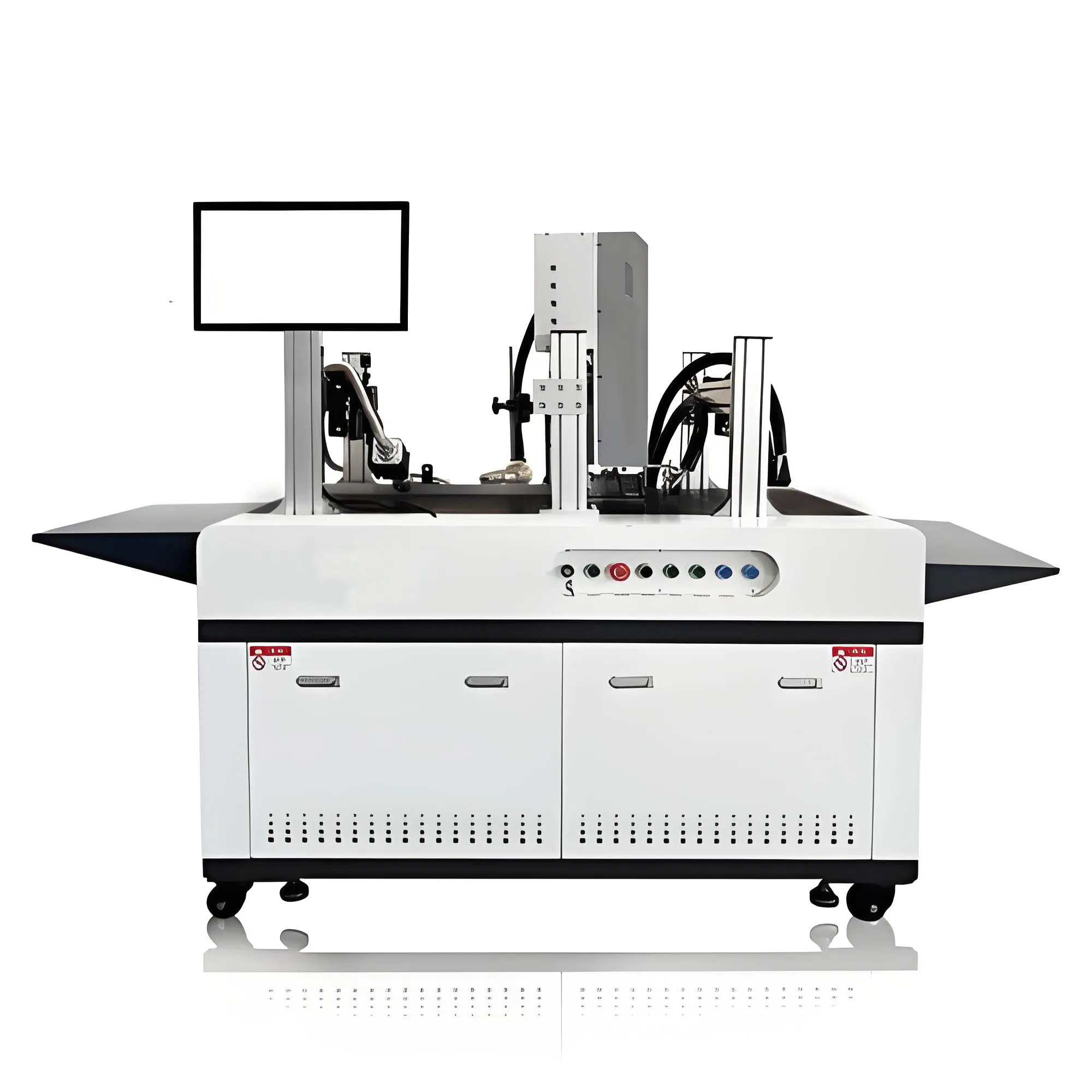

Advanced Digital Printing System with High-Speed Single Pass Capability

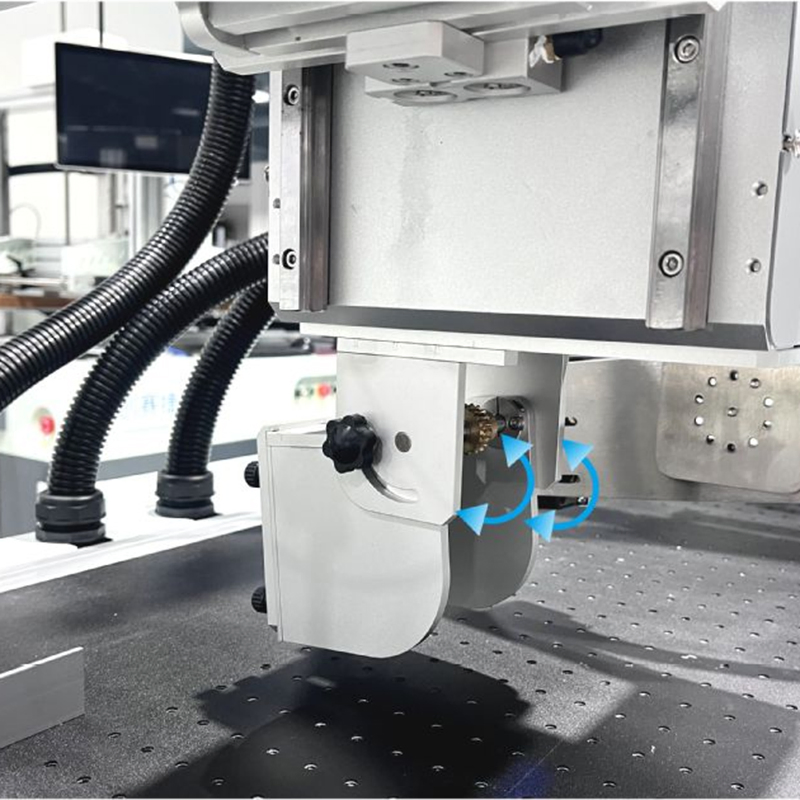

Each print head covers an effective width of 33mm. To meet broader printing demands, multiple heads can be seamlessly spliced together. These heads boast cutting-edge micro-piezoelectric technology.

🚀 Applications

Expertly crafted for non-absorbent materials, this print head excels in industry packaging applications such as plastic cups, lunch-boxes, and egg cartons.

🛠️ Key Configurations

Print head: 1 PC
Software: MainTop

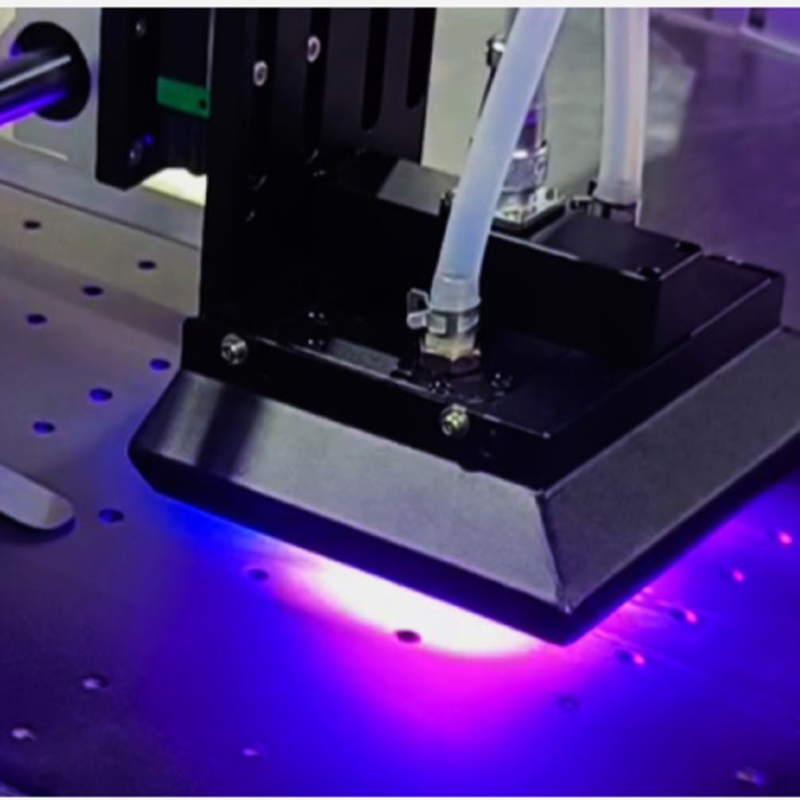

Ink type: Eco-friendly UV ink
Ink supply: Circular ink supply
Color profile: CMYK

📊 Printing Parameters

Feed length: 0 - 400 mm
Max print width: 27.1mm / 33 mm
Surface treatment: Plasma
Print speed: 0 - 20 m / min
Print accuracy: 600 dpi

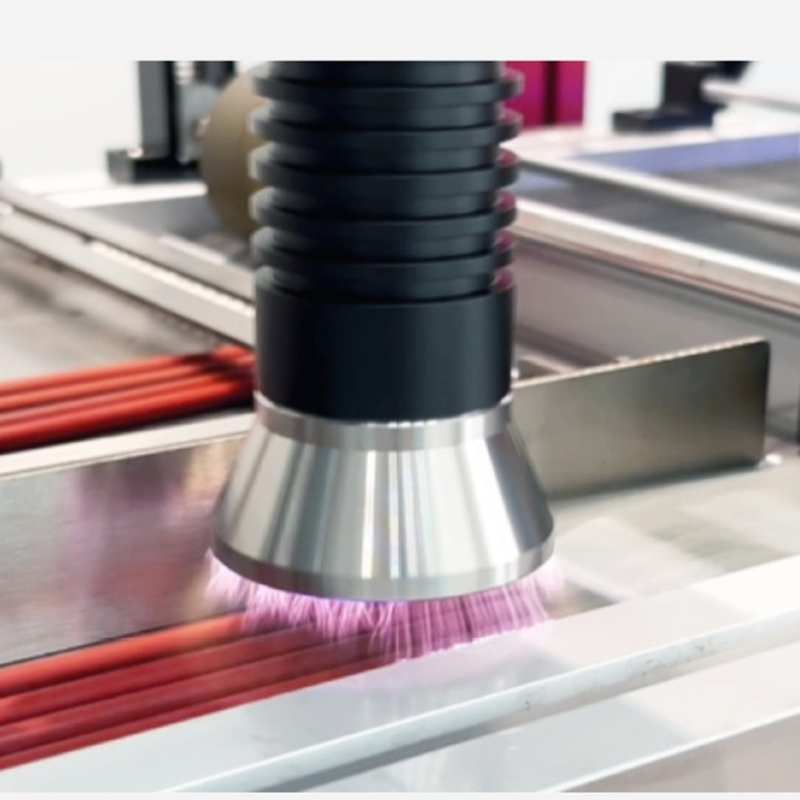

Plasma Treatment

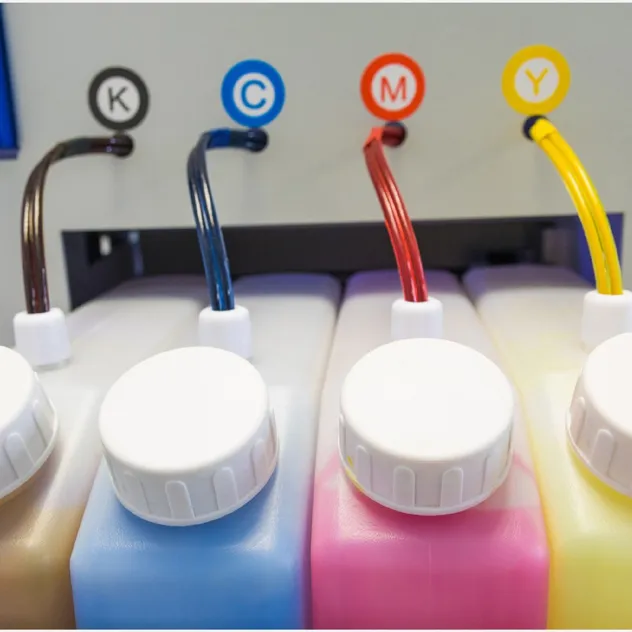

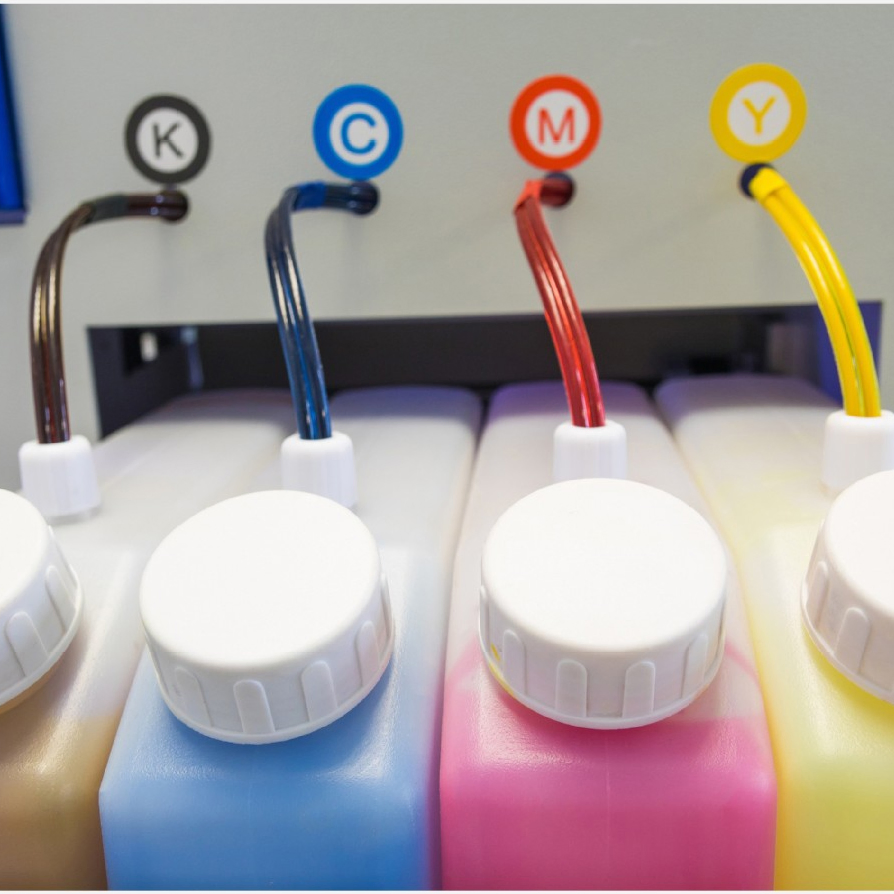

CMYK Colors

Printed Samples

⚙️

Technical Specifications

(Custom configurations available)

Model	HX-501-UV	HX-502-UV	HX-503-UV
Software	MainTop	MainTop	MainTop
Print head numbers	1 pc	2 pcs	3 pcs
Max print width	27.1mm / 33 mm	54mm	54mm / 108mm
Print speed	0 - 20 m / min	0 - 30 m / min	0 - 40 m / min
Print media	Plastic Cups, Egg Cartons, Plastic Bags	Plastic Cups, Egg Cartons, Plastic Bags	Plastic Cups, Egg Cartons, Plastic Bags
Ink type	Eco-friendly UV ink	Eco-friendly UV ink	Eco-friendly UV ink
Power supply	AC 220V, 50 HZ, 2500W	AC 220V, 50 HZ, 4000W	AC 220V, 50 HZ, 5000W

💡

Main Functions

Switch easily between friction feeding and vacuum suction to suit your dispensing needs.
Ensure consistent and stable production with an automatic continuous feeding system.
Smart counting and stacking eliminate manual counts, saving both labor and time.
Automatic deskew system prevents offset and misalignment during printing.

🛠️

After Sales Service

Standard Warranty: Benefit from 12 months of coverage.
Extended Warranty: Optional coverage for peace of mind up to 36 months.
Global Support: 24/7 technical support and access to spare parts.
Training: Enjoy on-site or remote training for operation and maintenance.

🏢

Why Choose Us?

OEM/ODM capabilities tailored to your needs
Competitive pricing with generous bulk discounts
Fast shipping and efficient customs clearance support
Comprehensive turnkey project solutions

Our Other Products:

Innovative Screen Printing Machine
Precision Pad Printing Machine
Advanced Hot Stamping Machine
Efficient Heat Transfer Printing Machine
Versatile Window Patching Machine

❓

Frequently Asked Questions

Q1: What materials can this digital printing system handle? A: It is designed for non-absorbent materials like plastic cups, egg cartons, plastic bags, and lunch boxes.

Q2: How fast can the machine print? A: Depending on the model, the printing speed ranges from 0 to 40 meters per minute.

Q3: Is the ink used environmentally friendly? A: Yes, the machine uses eco-friendly UV ink with a circular ink supply system.

Q4: Does the machine support automatic feeding? A: Yes, it features an automatic continuous feeding system and can switch between friction feeding and vacuum suction.

Q5: What is the printing accuracy of the UV printer? A: The system provides high-precision printing with an accuracy of 600 DPI.

Q6: What kind of technical support is provided? A: We offer 24/7 global technical support, on-site or remote training, and access to spare parts.
