Advanced Automatic Screen Printing Machine System for High-Precison Gasket Applications Jx-Gj3050
Advanced Automatic Screen Printing Machine System for High-Precison Gasket Applications Jx-Gj3050
Advanced Automatic Screen Printing Machine System for High-Precison Gasket Applications Jx-Gj3050
Advanced Automatic Screen Printing Machine System for High-Precison Gasket Applications Jx-Gj3050
Advanced Automatic Screen Printing Machine System for High-Precison Gasket Applications Jx-Gj3050
1 / 5
Advanced Automatic Screen Printing Machine System for High-Precison Gasket Applications Jx-Gj3050
Advanced Automatic Screen Printing Machine System for High-Precison Gasket Applications Jx-Gj3050
Advanced Automatic Screen Printing Machine System for High-Precison Gasket Applications Jx-Gj3050
Advanced Automatic Screen Printing Machine System for High-Precison Gasket Applications Jx-Gj3050
Advanced Automatic Screen Printing Machine System for High-Precison Gasket Applications Jx-Gj3050

Advanced Automatic Screen Printing Machine System for High-Precison Gasket Applications Jx-Gj3050

Customization: Available
After-sales Service: Lifelong Maintenance
Warranty: 1 Year Warranty
Send Inquiry

Product Description

Basic Information Overview
Model NO.
JX-GJ3050
Type
Automatic Screen Printing Machine
Style
Screen-process Printing Press
Structure
Flat-bed cylinder press
Color & Page
Single-Colour Printing Press
Application
Packaging Printing
Printing Speed
400-500 Prints/H
Voltage
220V
Air Pressure
5-7 Bar
Printing Area
300*500mm
Printing Table
400*650mm
Machine Weight
1000kg
Package Gross Weight
1250.00kg
Product Description

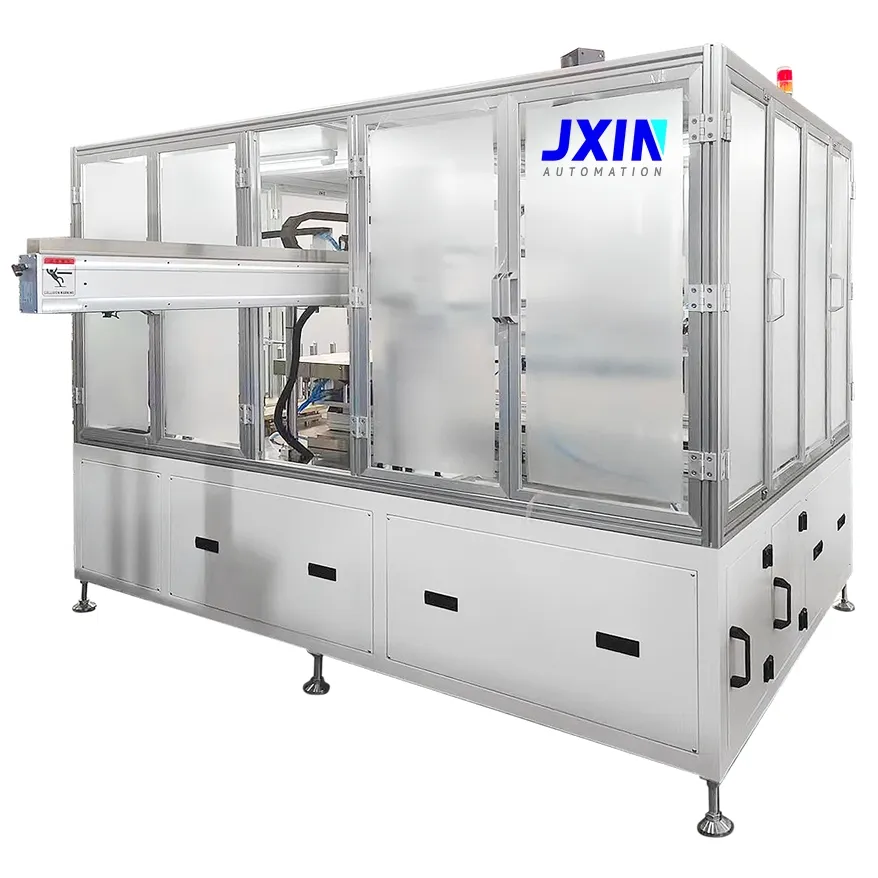

Automatic Screen Printing Machine

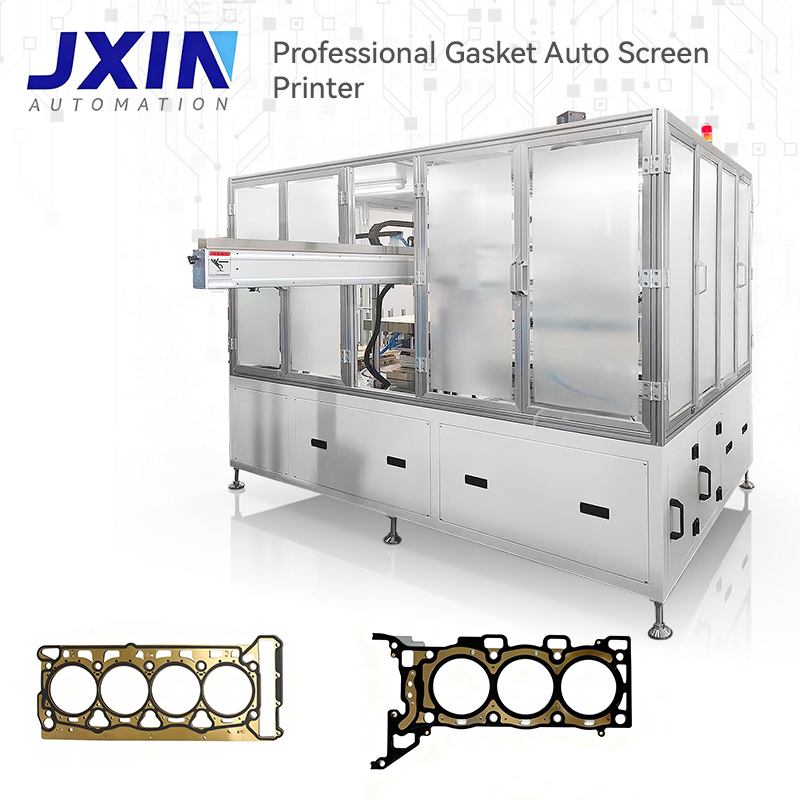

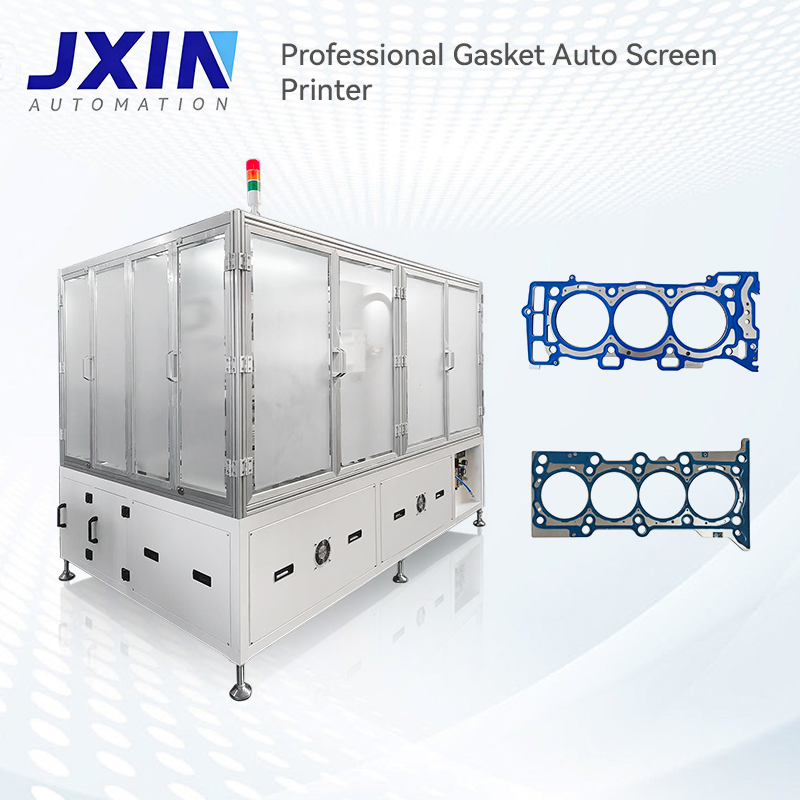

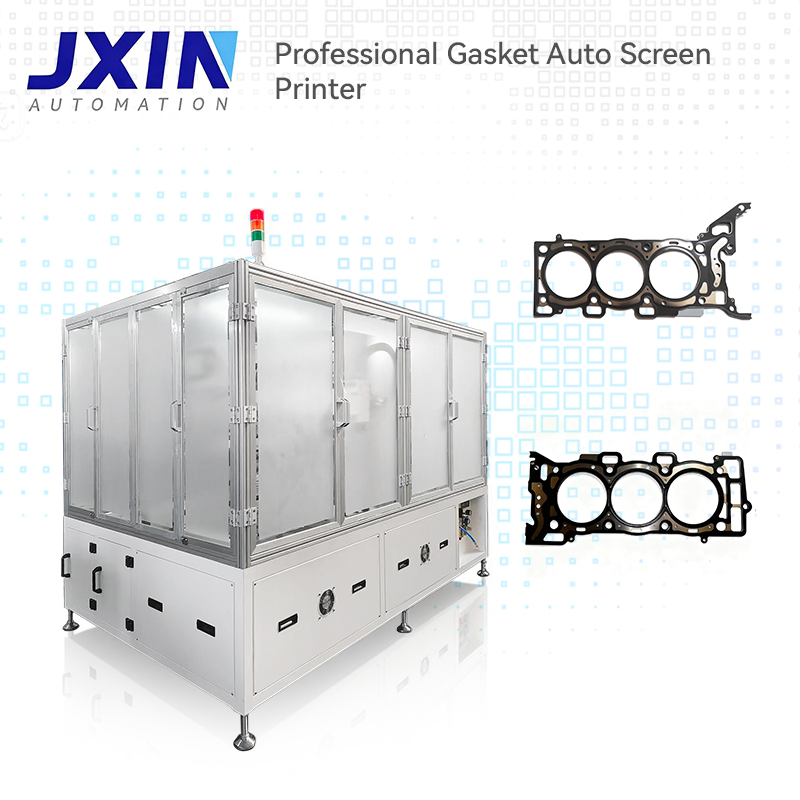

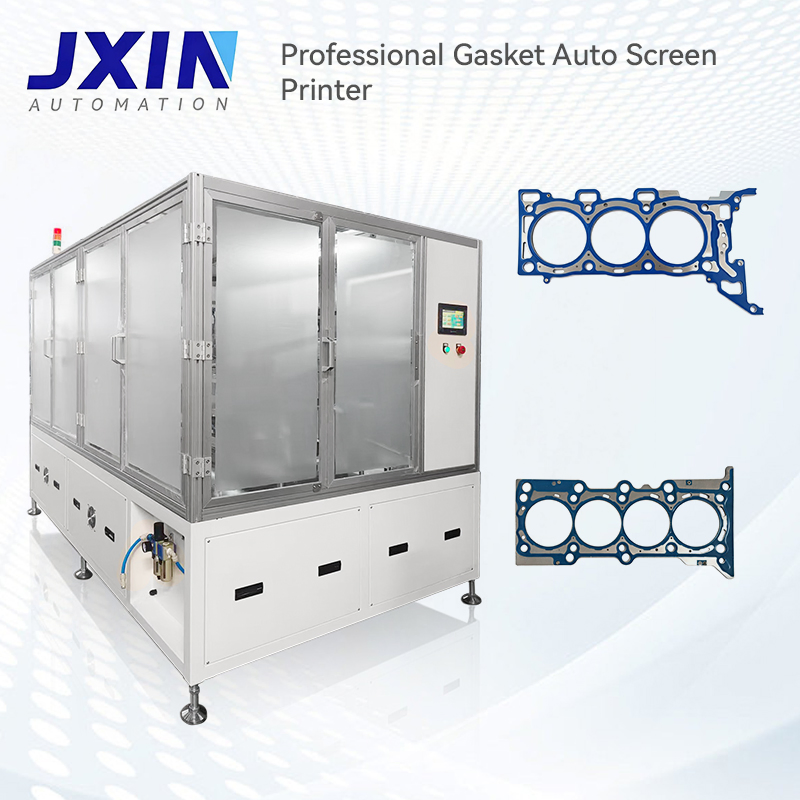

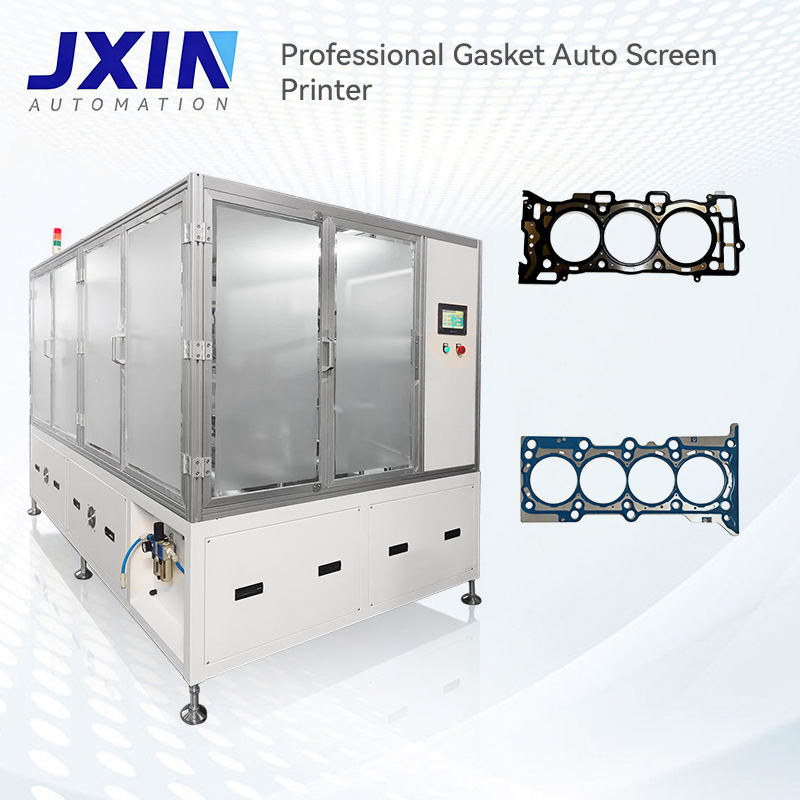

The Fully Automatic Cylinder Gasket Screen Printing Machine is a state-of-the-art industrial solution designed for high-precision, high-volume printing on engine cylinder gaskets and similar sealing components. This machine integrates advanced automation, precision engineering, and robust performance to meet stringent automotive and manufacturing standards. It is widely applied in the cylinder head gasket industry for various sealing components.

Key Machine Features
  • Complete Automation: Automates the entire workflow, including feeding, alignment, printing, and unloading, maximizing productivity and consistency.
  • High Precision & Repeatability: Equipped with precision locating pins and magnets for registration, ensuring accurate positioning critical for functionality.
  • User-Friendly HMI: Intuitive touchscreen interface allows for easy setup and real-time monitoring of speed and parameters.
  • Robust Construction: Built with high-quality components to ensure stable operation in demanding industrial environments with minimal downtime.
Technical Specifications

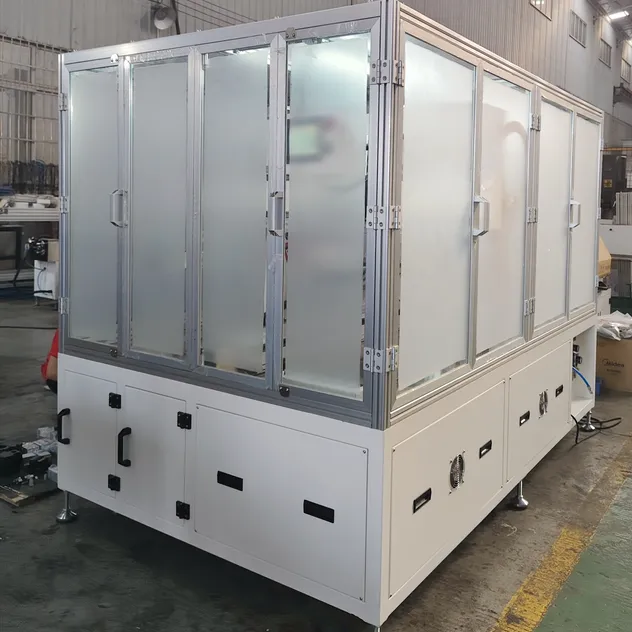

Safety Guard Design

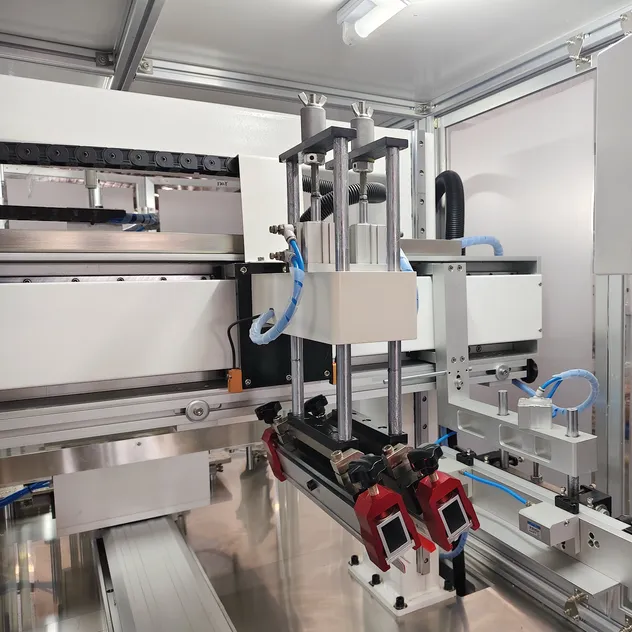

PLC Servo System

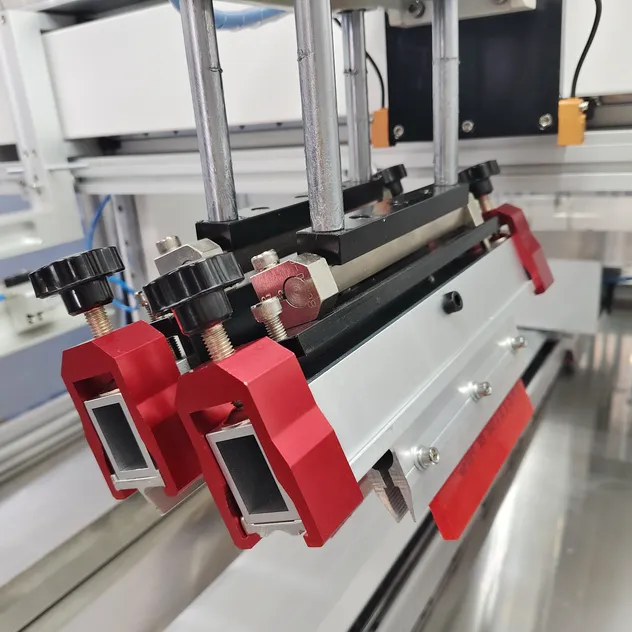

Squeegee Sitting
Machine Dimension 2780*2250*1850MM Printing Speed 400-500PCS/H
Table Dimension 400MM*650MM Printing Area 300*500MM
Power Source 220V / 1-Phase Power 5 KW
Air Pressure 5-7 Bar Machine Weight 1250KG

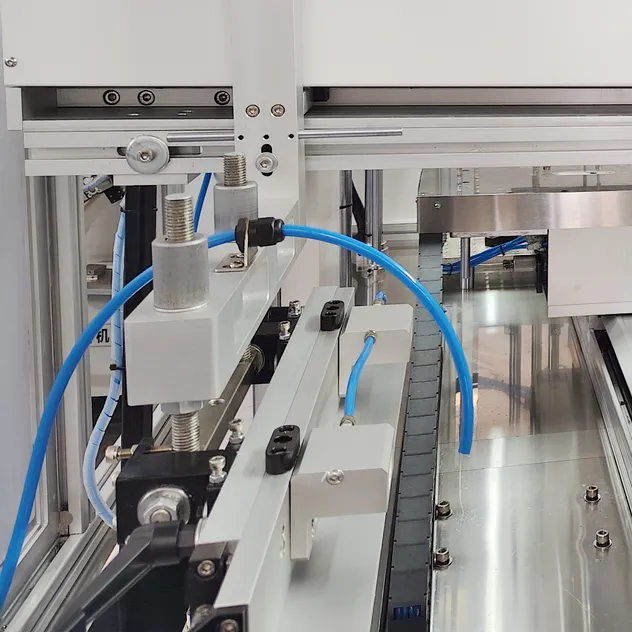

Screen Holder

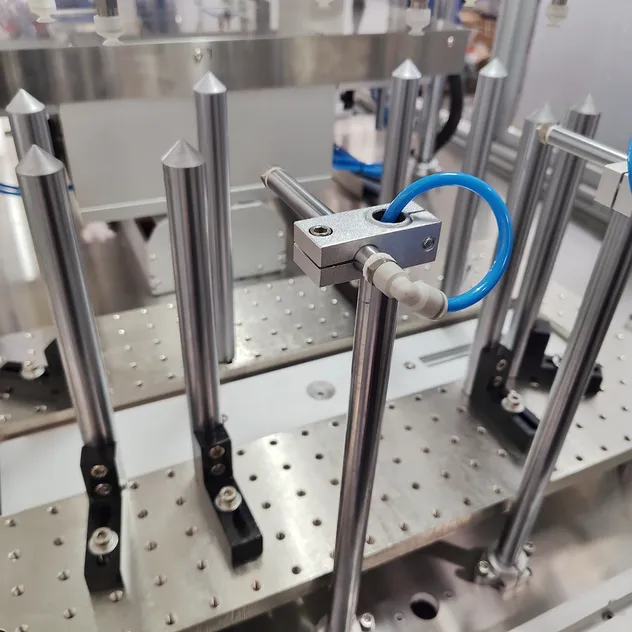

Rack Adjustment

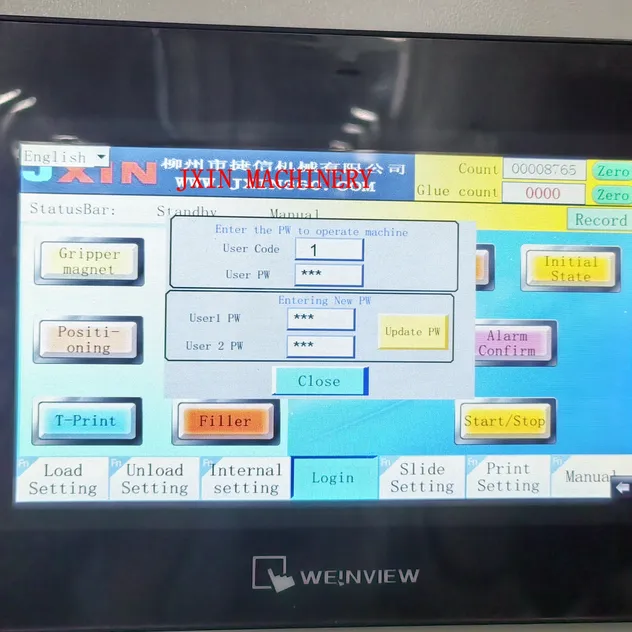

Touch Screen Interface
Packing & Certifications
Packing Process

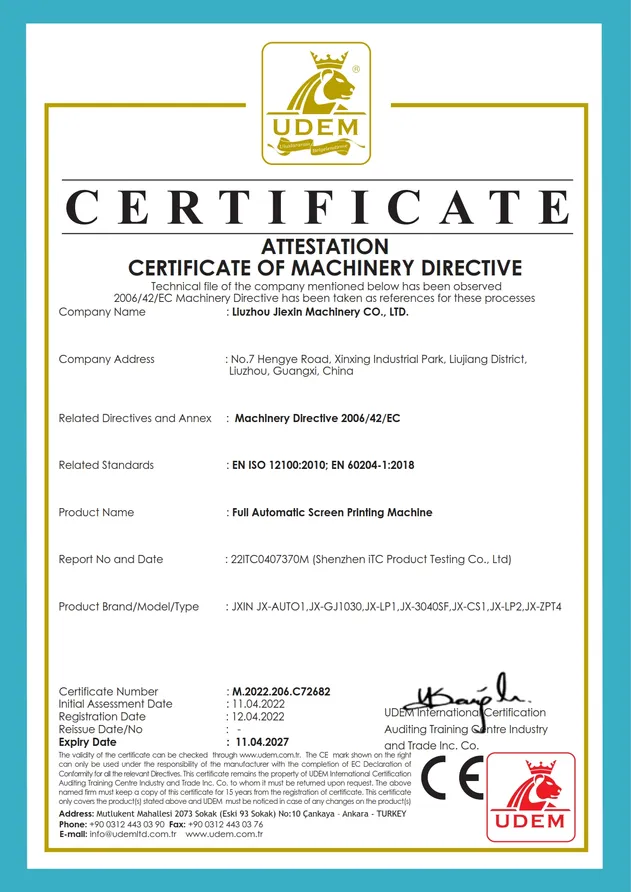

Certification 1

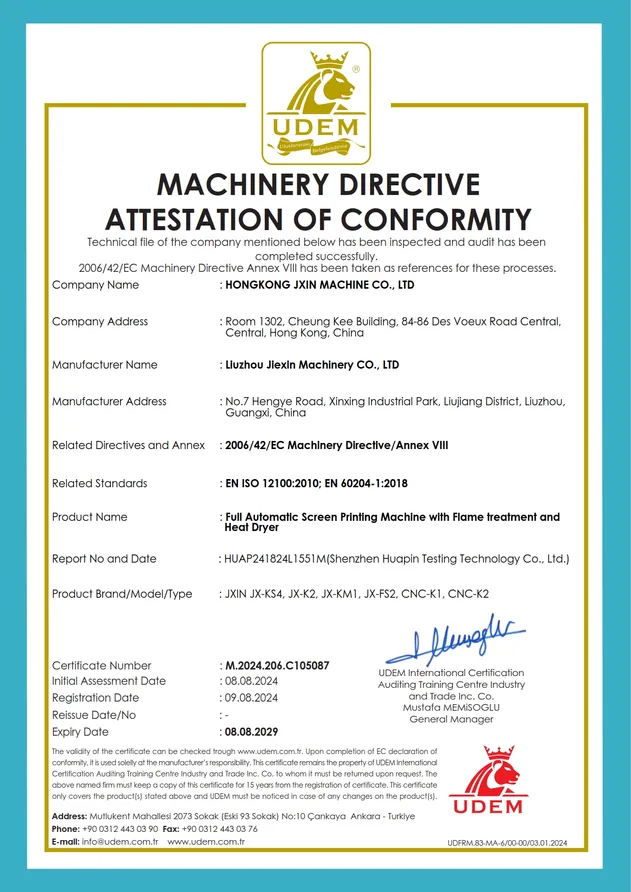

Certification 2

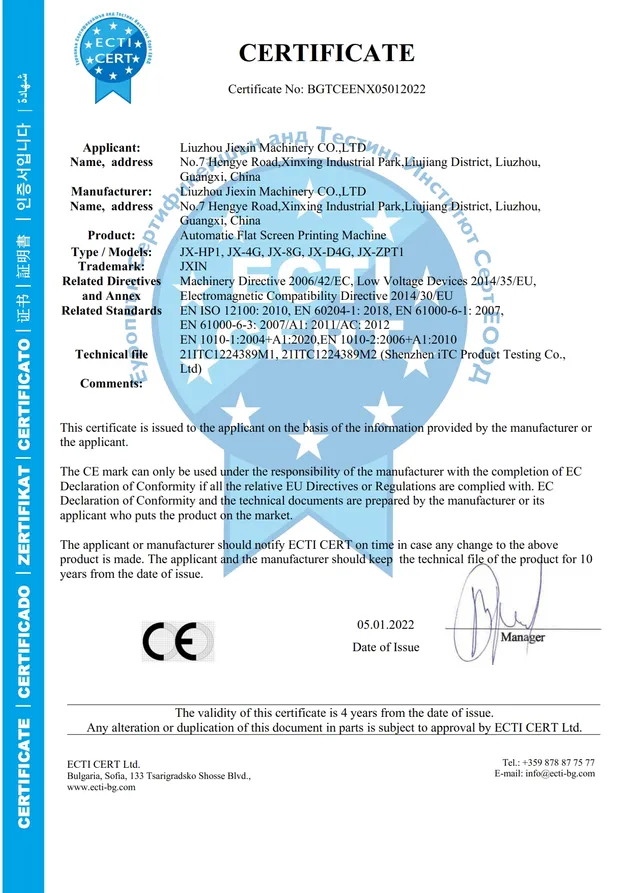

Certification 3
Certifications Display
Frequently Asked Questions
1. What is the primary application of the JX-GJ3050 machine?
It is specifically designed for high-precision printing on engine cylinder gaskets and other industrial sealing components.
2. How many prints per hour can this machine produce?
The machine offers a printing speed of 400 to 500 prints per hour, depending on the material and setup.
3. What kind of control system does it use?
It utilizes a high-precision PLC and Servo system combined with an intuitive touchscreen HMI for easy operation.
4. Does the system include automatic feeding?
Yes, the system is fully automated, covering the entire workflow from automatic gasket feeding to precise alignment and unloading.
5. What are the electrical and air requirements?
The machine requires a 220V single-phase power supply and an air pressure of 5-7 Bar for operation.
6. Is the print positioning accurate for industrial standards?
Absolutely. It features precision locating pins and magnets to ensure repeatable and highly accurate print registration.
