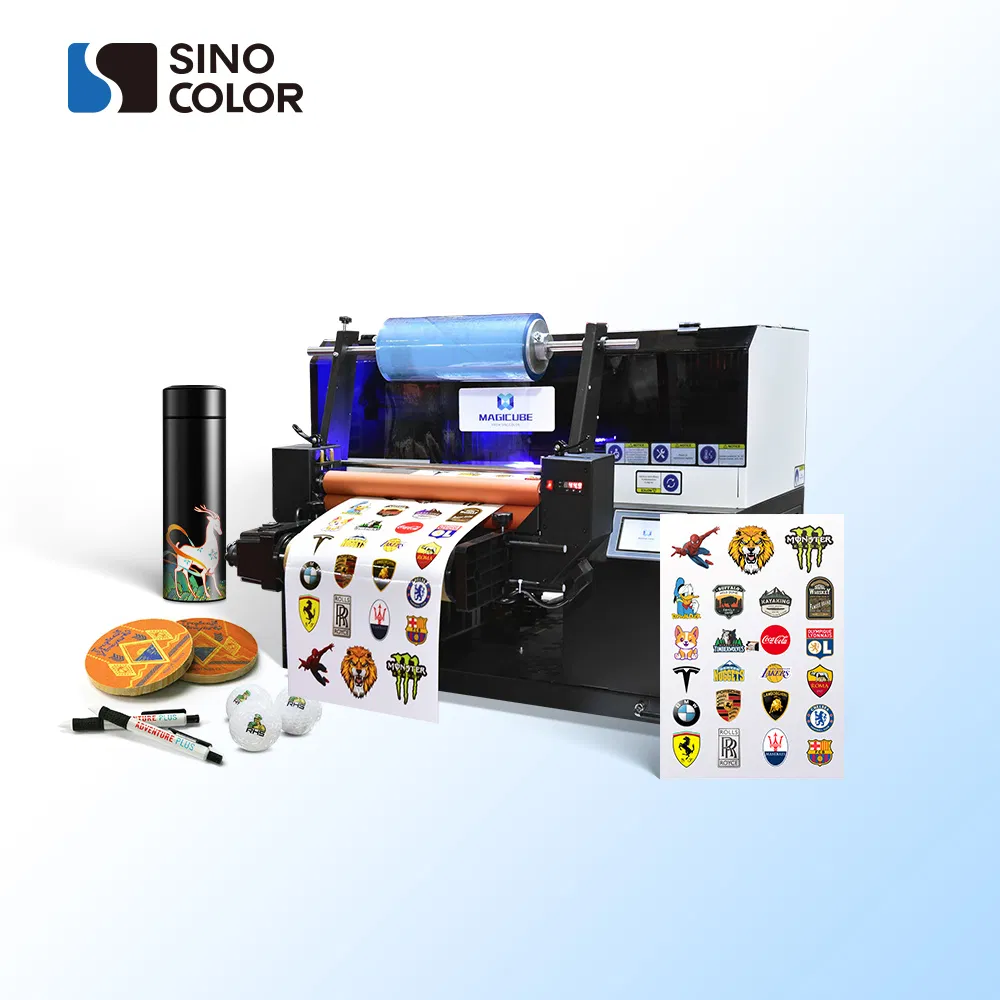

Small A3 Size with Official I3200-U1HD Head UV Flatbed and Hybrid Printer for UV Label Sticker Printing.

Still deciding? Get samples of $ !
Order Sample

Product Description

📋 Basic Info
Plate
Flatbed UV Dtf Printer
Structure
Flat-Bed Cylinder Press
Color & Page
Multi-Colour Printing Press
Usage
Paper, Label, Card Printer
Automatic Grade
Automatic
Printing Interface
USB 3.0
Printing Speed
3 Min for A3 Full Size
Model Number
UF-300X Series
Max Printing Size
30X50cm (A3) / 42X60cm (A2)
Printhead
i3200-U1HD or Economic Heads
Resolution
Up to 2400dpi
Color Mode
CMYK+W+V
Ink Type
UV Ink
Vacuum Platform
Standard Equipped
🚀 Product Highlights

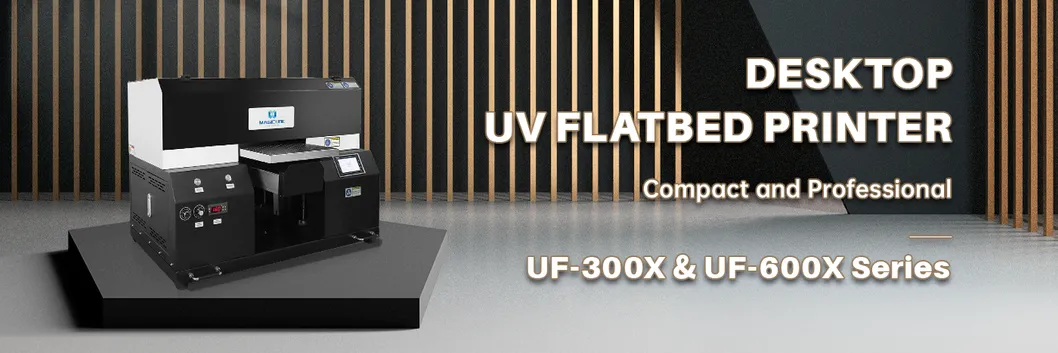

UV Flatbed Printer Overview
A3 Size UV Flatbed and Hybrid Printer for Label & Sticker Printing

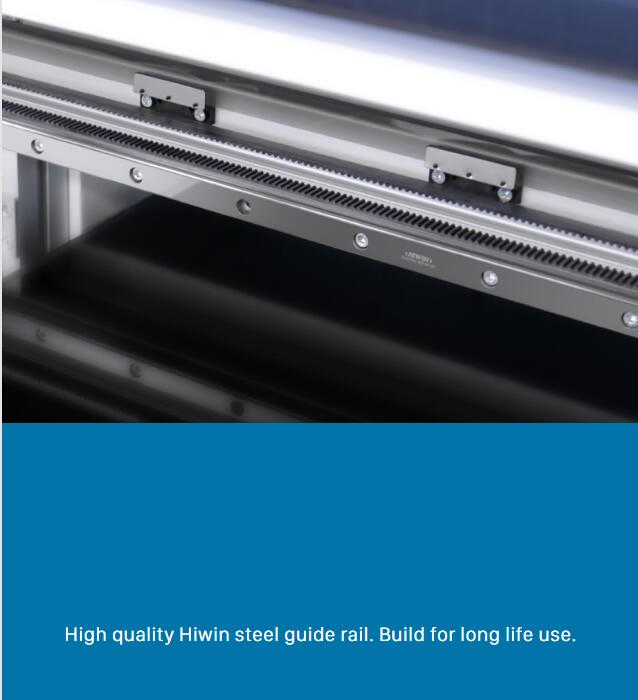

1. Precision Components: Uses mold-produced components to achieve maximum resolution and stability compared to basic metal joint constructions.

2. Professional System: Equipped with a high-stability industrial-grade control system, ensuring far superior performance over modified desktop printers.

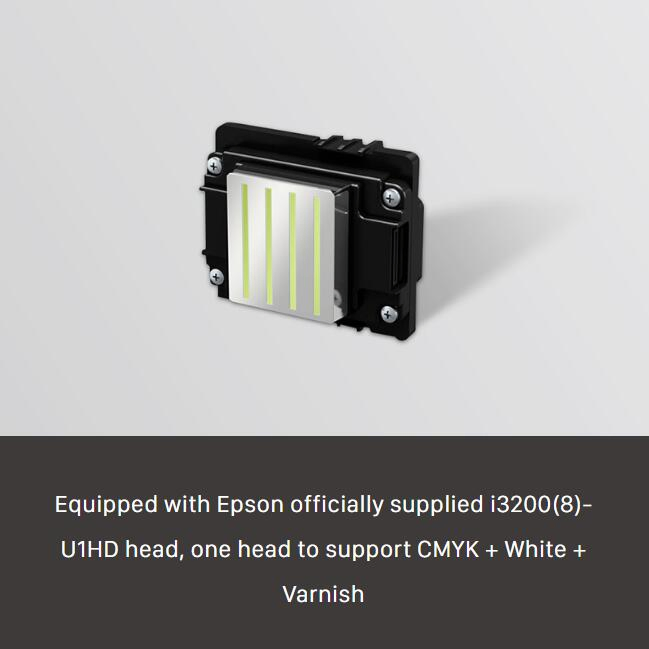

3. Advanced Printheads: Options for 2 economic heads or the official i3200-U1HD PrecisionCore head for high-quality CMYK+W+V printing.

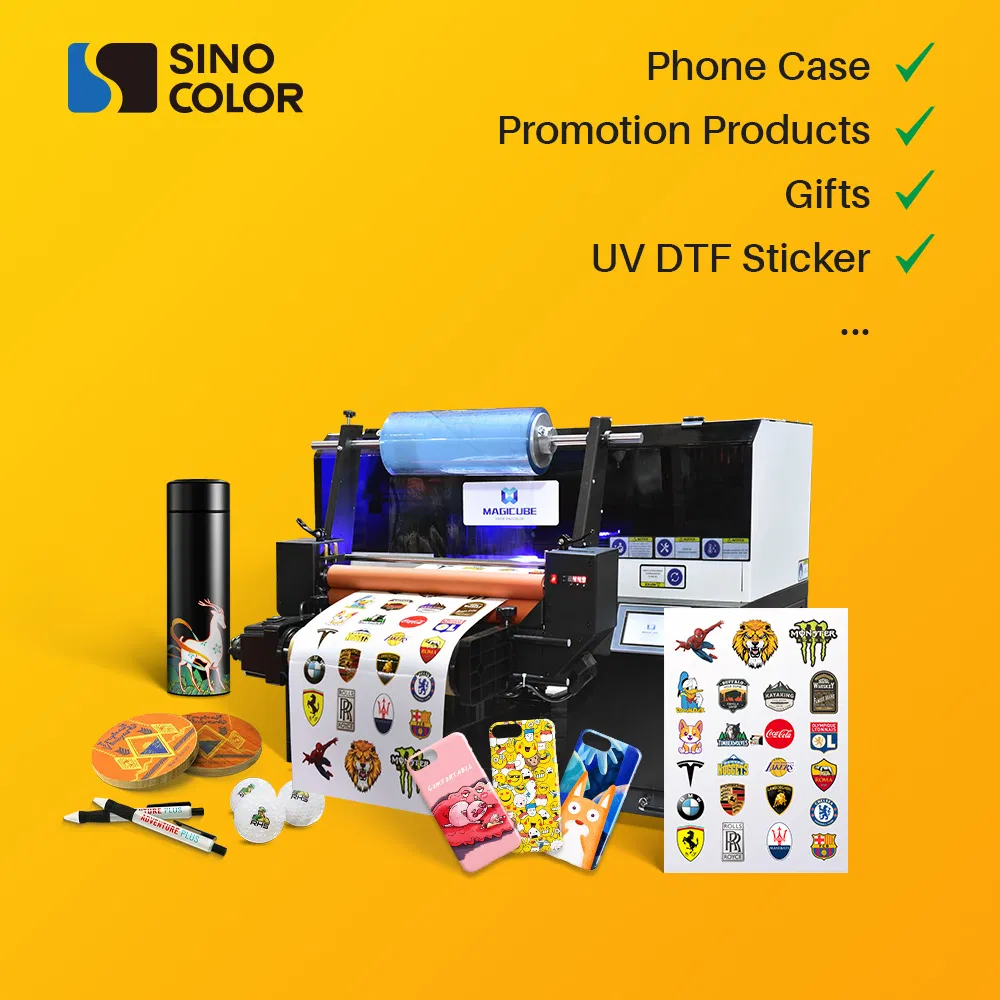

4. Versatile Solutions: Supports Flatbed printing (phone cases, gifts), Roll-to-roll UV DTF (crystal stickers), and Rotary printing (cylindrical items).

One Machine, Multi-Orders!
💡 Wide Applications
Application 1
Application 2
Application 3
Application 4
Application 5
Application 6
📦 Shipping & Packing

Packing: 1 set in 1 poly-wood box. Standard international safety packing.

Packing Size: L1060mm x W820mm x H870mm

Gross Weight: 130KG

Lead Time: 7 working days after payment.

Service: Door-to-door delivery options available for most regions, handling customs and logistics for a hassle-free experience.

Packing Info Shipping Logistics
🛠️ Professional Support
Support Service
🔍 Detailed Photos

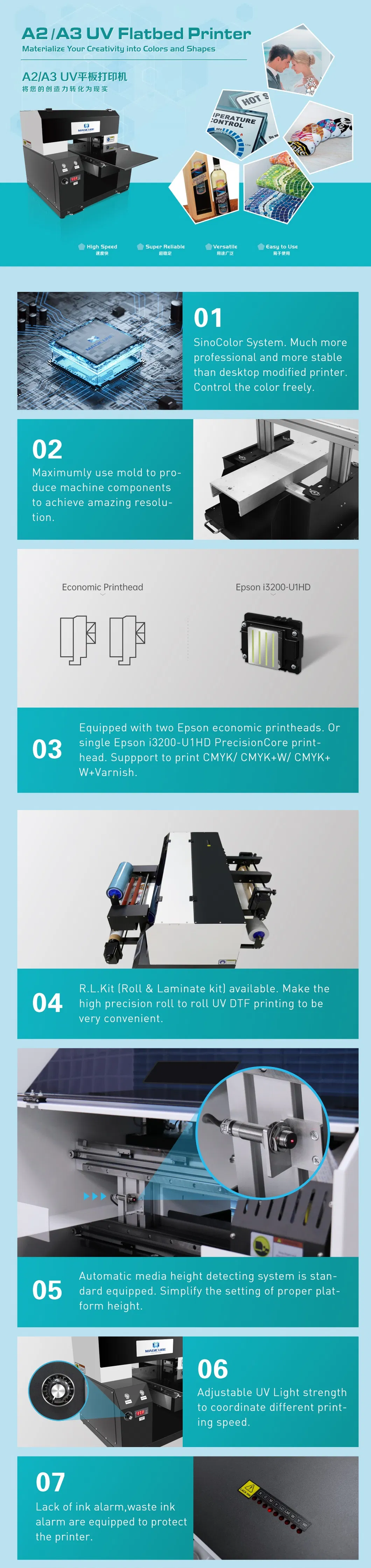

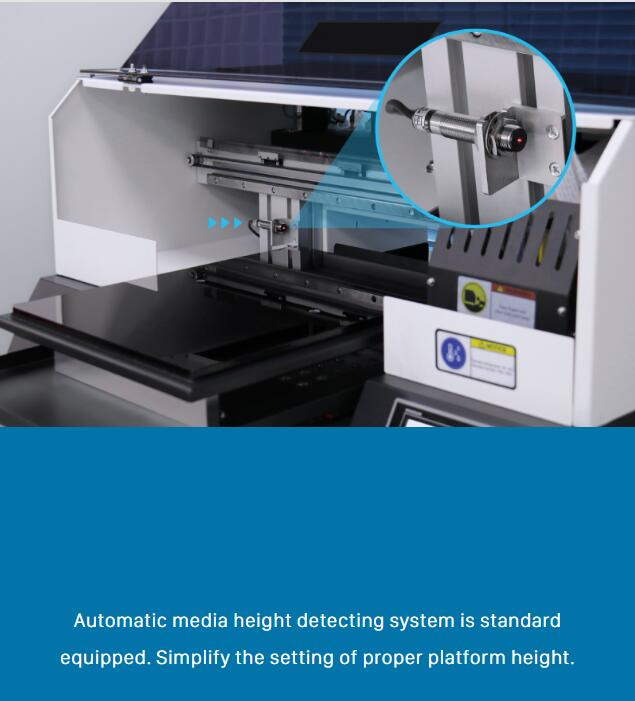

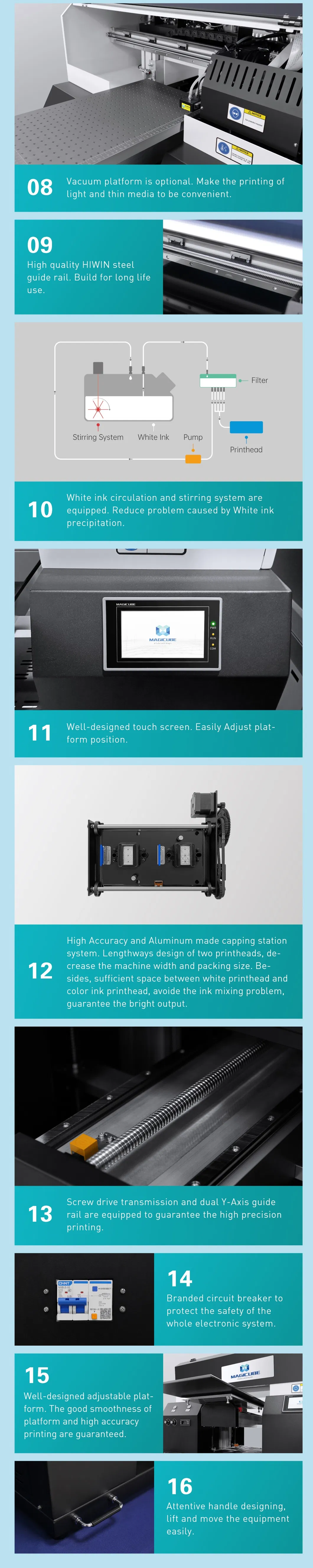

Detail 1 Detail 2
📊 Product Parameters
Model No. UF-300X (Plus) UF-600X (Plus) UF-300i (Plus)
Printhead 1 × Official i3200-U1HD Two Economic Heads
Resolution 2400dpi MAX 1440dpi MAX
Max Speed 3 min (A3 size) 6 min (A2 size) 3 min (A3 size)
Media Height 17 cm Max 20 cm Max
Media Type DTF Film, Glass, Acrylic, Ceramic, Metal, Wood, Leather, PVC, etc.
Ink System Bulk supply + White ink stirring + Circulation
Curing High Quality UV-LED Lamp
🏢 Production Display

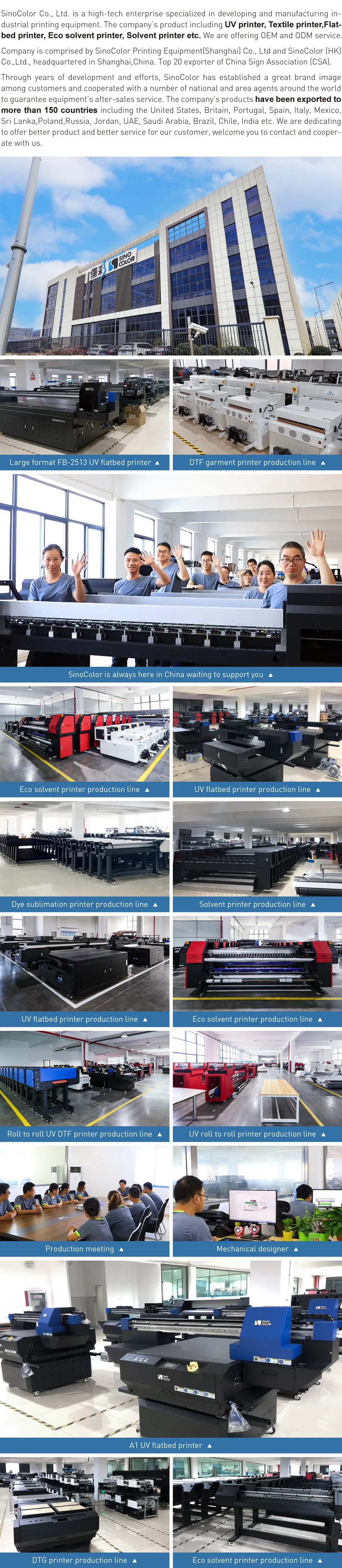

Factory Display Workshop
🔥 Featured Models

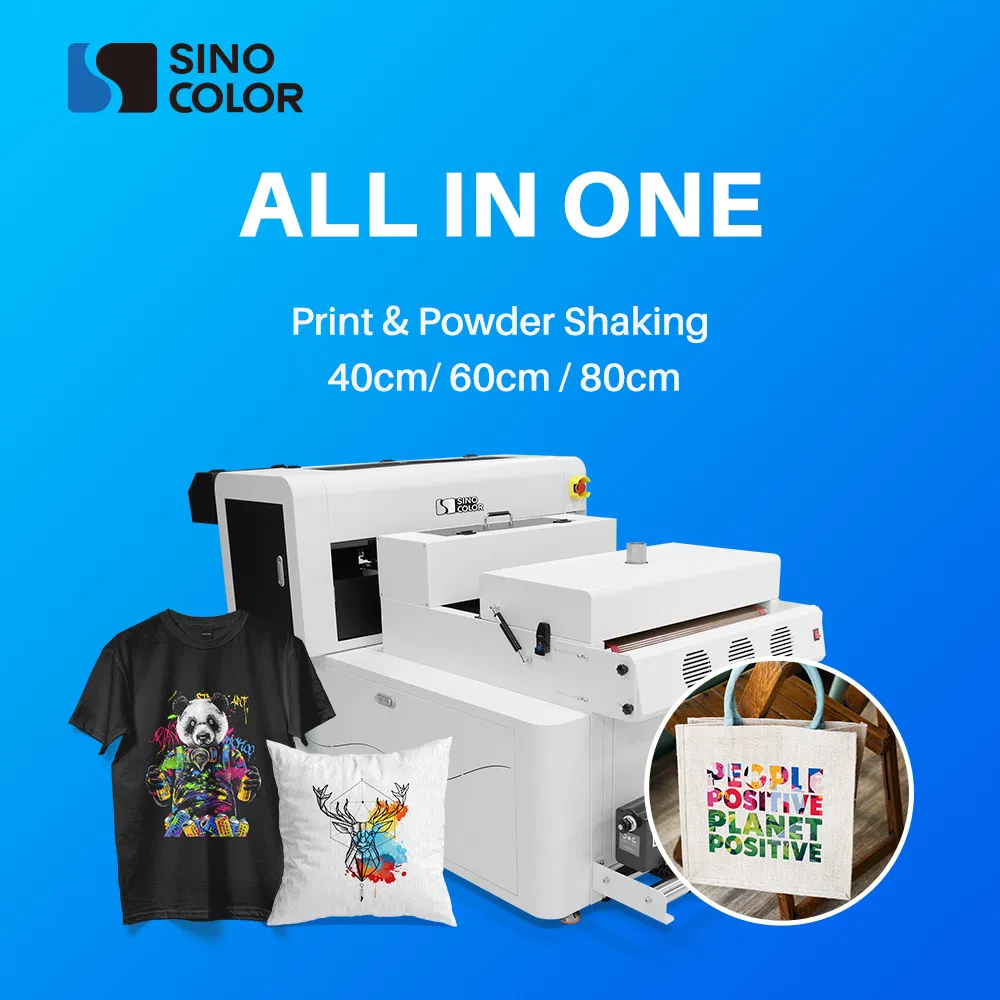

Printer 1
Printer 2

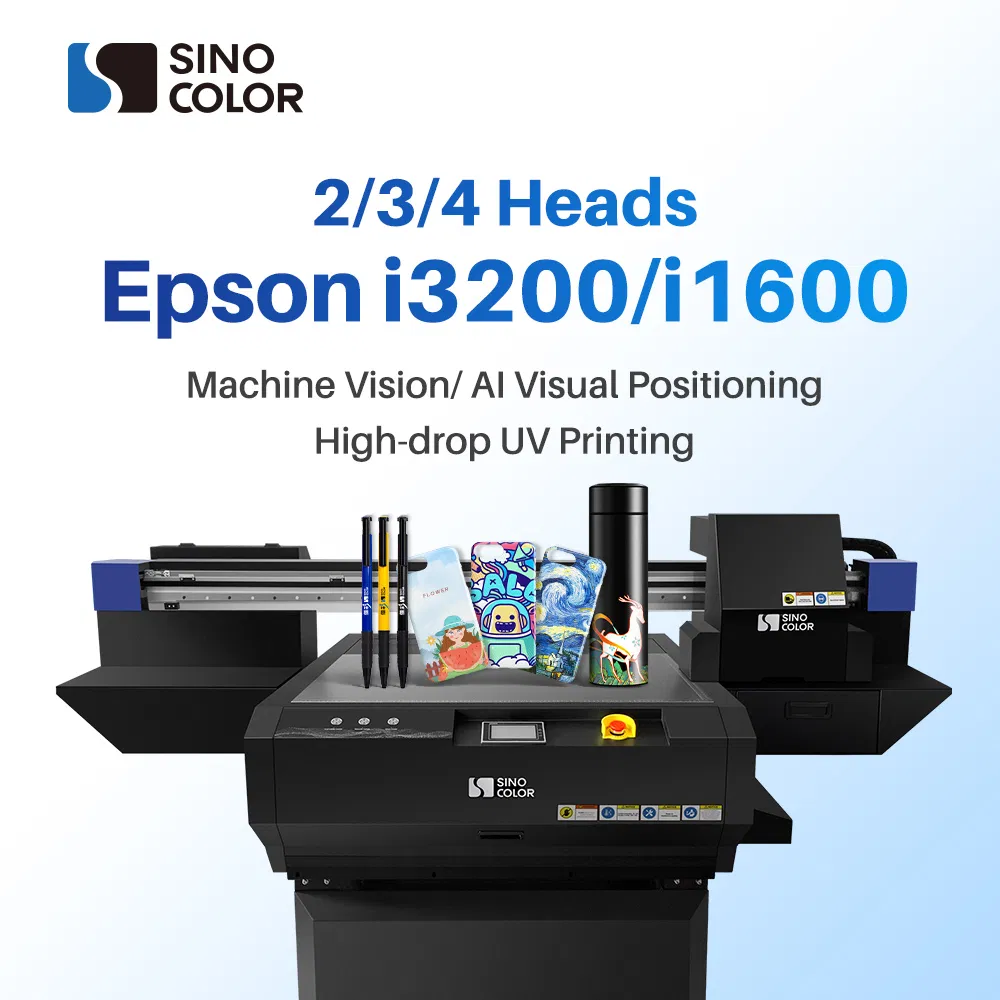

Printer 3

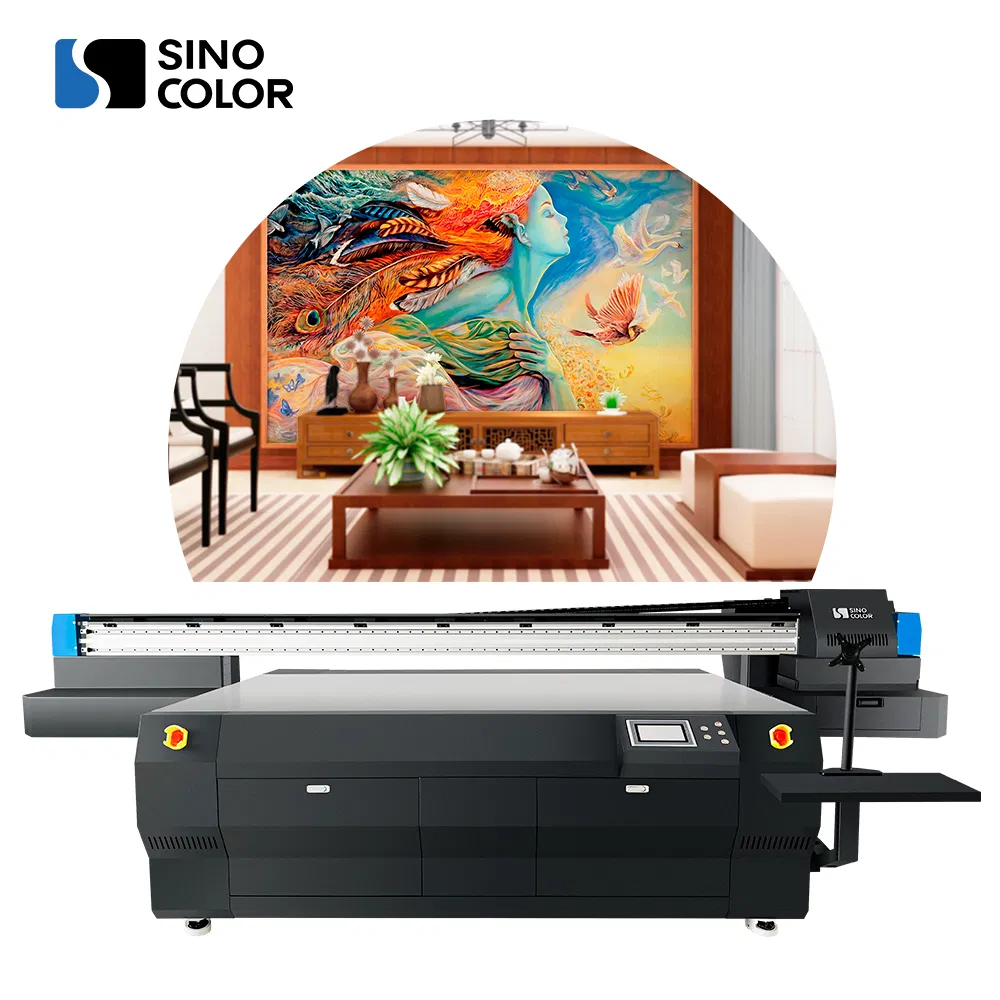

Printer 4

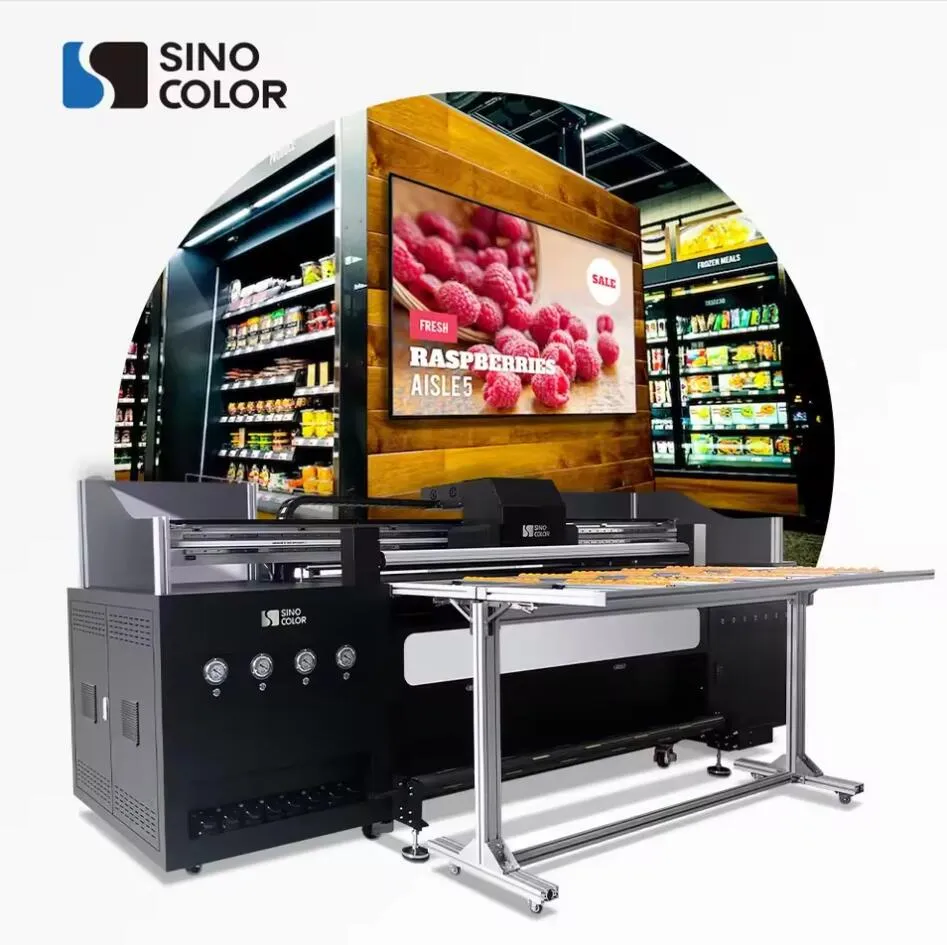

Printer 5

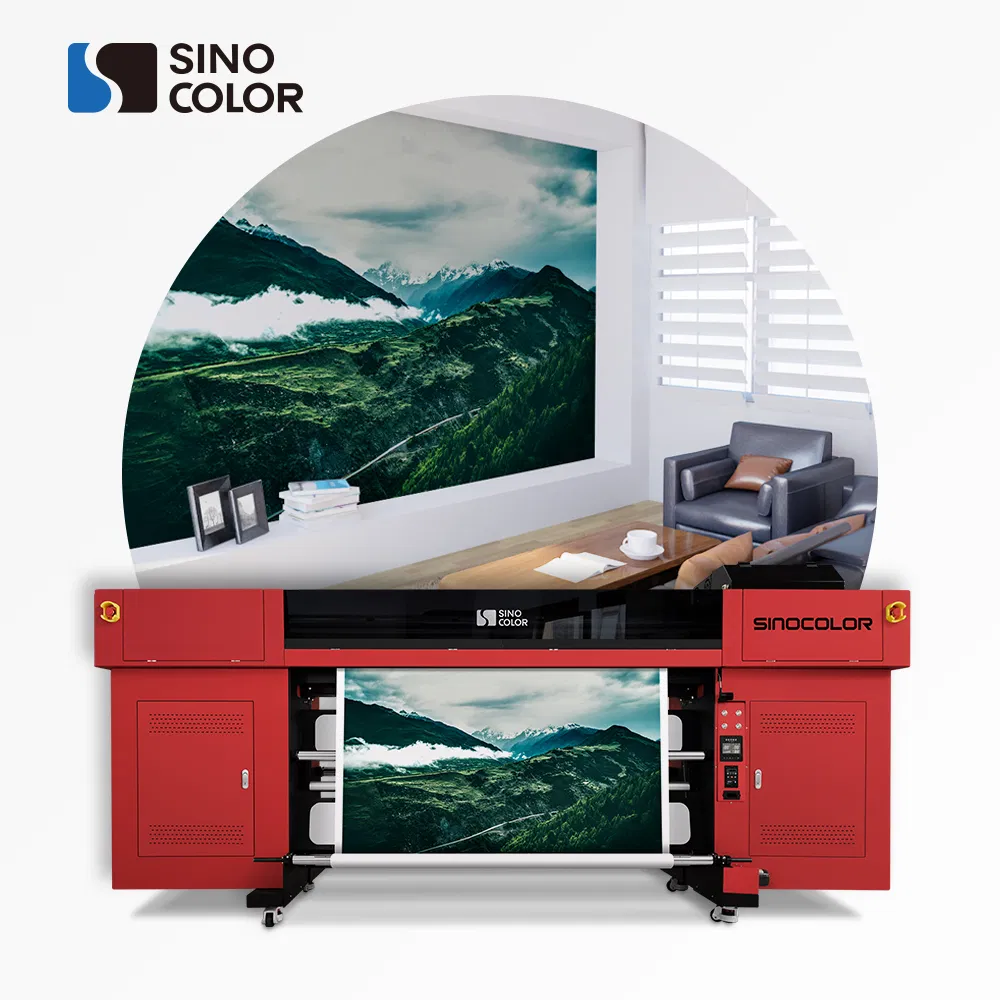

Printer 6
Frequently Asked Questions
Q1: What materials can this UV printer print on?
This printer is highly versatile and can print on various materials including phone cases, acrylic, MDF, PVC boards, glass, ceramics, metal, wood, leather, and UV DTF films for crystal stickers.
Q2: What is the difference between the i3200 and economic printheads?
The officially supplied i3200-U1HD head offers higher precision (up to 2400dpi) and better durability for long-term industrial use. Economic heads are cost-effective solutions for users with lower volume or resolution requirements.
Q3: Can this machine print white ink and varnish at the same time?
Yes, the machine supports CMYK + White + Varnish color modes, allowing you to print textures, embossed effects, and glossy finishes in a single pass.
Q4: Does it support rotary printing for bottles?
Absolutely. The UF-300X series can be equipped with an optional rotary device, making it capable of printing on cylindrical objects like bottles, cups, and tubes.
Q5: What is the maintenance required for the white ink system?
The printer is equipped with a standard white ink stirring and circulation system to prevent ink sedimentation, which significantly reduces the risk of printhead clogging.
Q6: How long does the delivery take?
The typical delivery lead time is approximately 7 working days after the receipt of the down payment, depending on the destination and shipping method.
