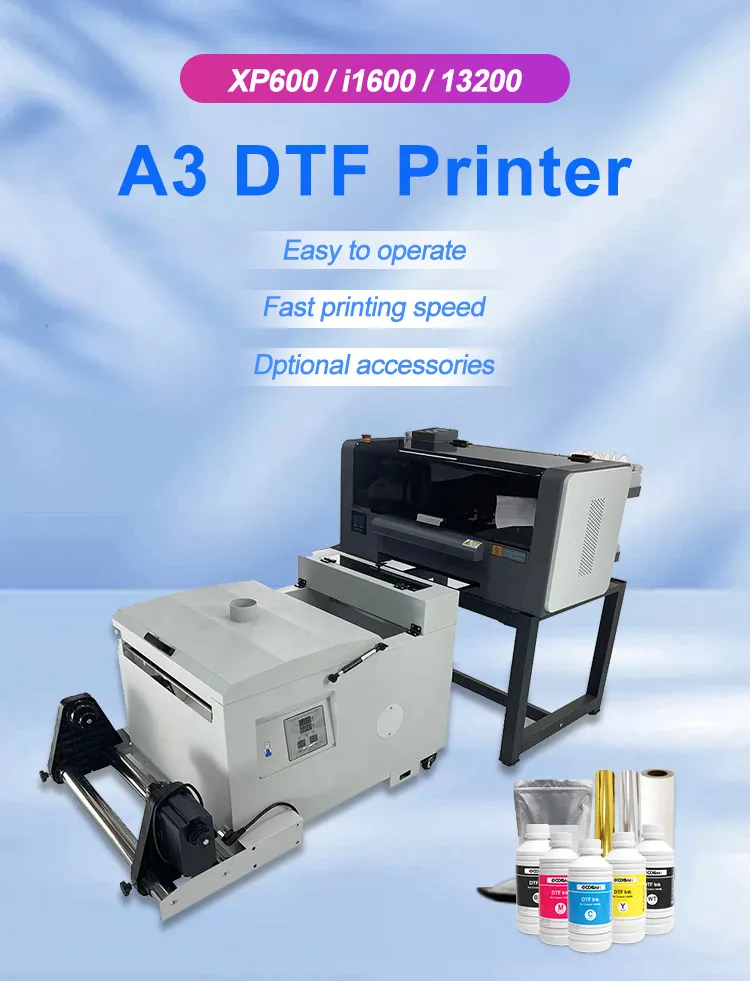

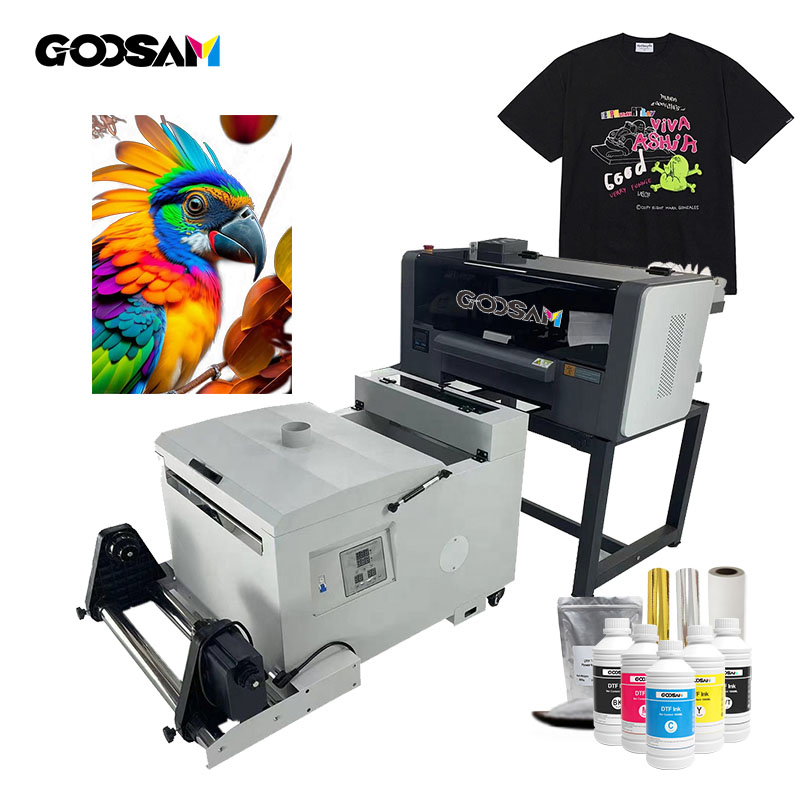

🔹 NEW A30cm DTF Digital PET Film Printer Machine
| Model |
GS302 |
Print Width |
310-330mm |
| Print Head |
XP600 / i1600 / i3200*2 |
Print Media |
PET Film |
| Print Speed |
i3200: 4Pass: 10/h, 6Pass: 6/h, 8Pass: 4/h | XP600: 6Pass: 4.5/h, 8Pass: 3.5/h |
| Print Ink |
DTF Ink |
Ink Color |
CMYK + W + FY/FM/FB/FR/FG |
| Accuracy |
1440/2160/2880dpi |
Gross Weight |
60kg |
| Voltage |
220V/110V, 4.6A |
Rated Power |
350w |
⚙️ Machine Configuration

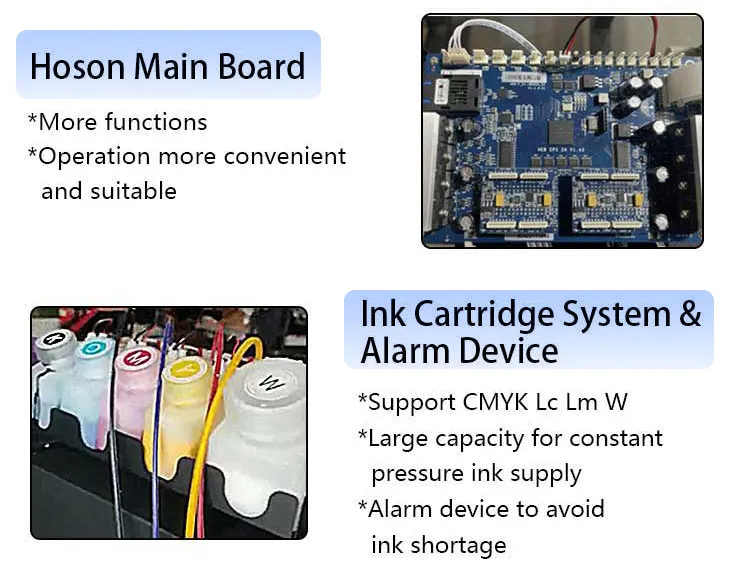

Mainboard HOSON motherboard for stable performance.
Guide Rails THK guide rails imported from Japan.
Alarm System Ink shortage alarm device.

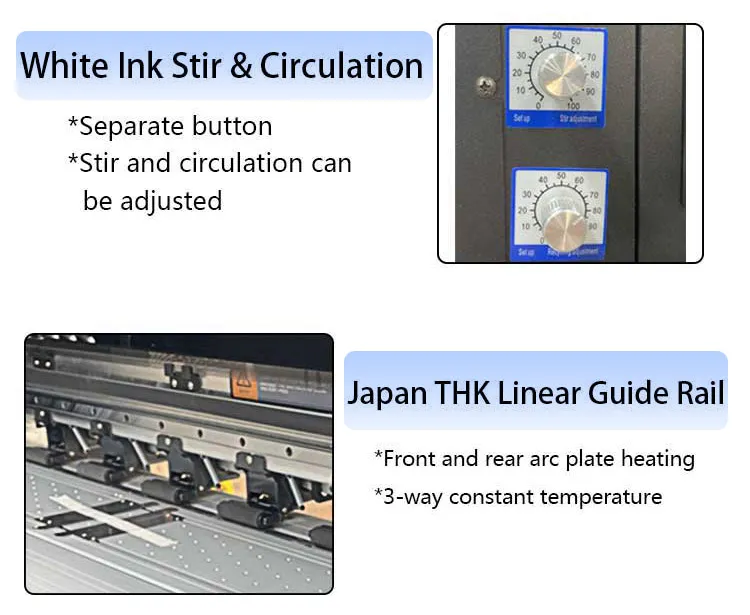

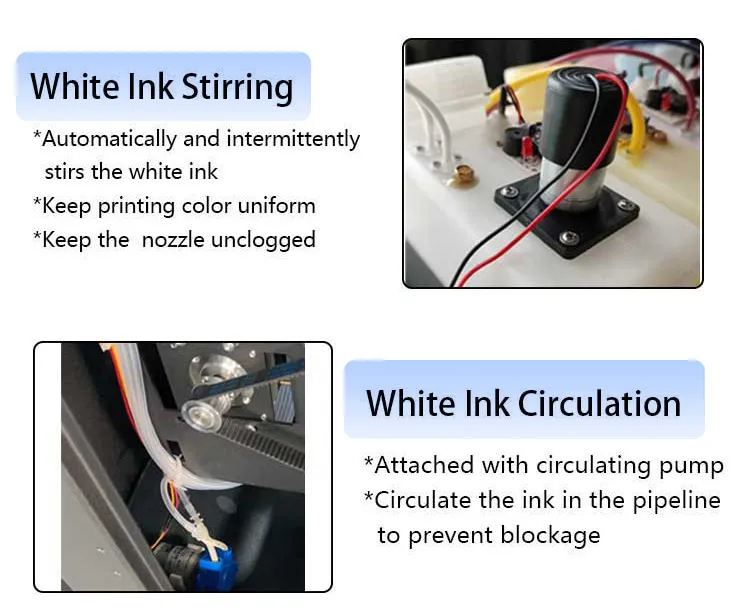

Circulation White ink circulation and stirring system.
Control Multifunctional control panel.
Safety Printhead anti-collision device.
🚀 Advanced Printer Functions
| Heating Sections |
Pre-heater, printing bed heater, rear heater to ensure stable effects in cold weather. |

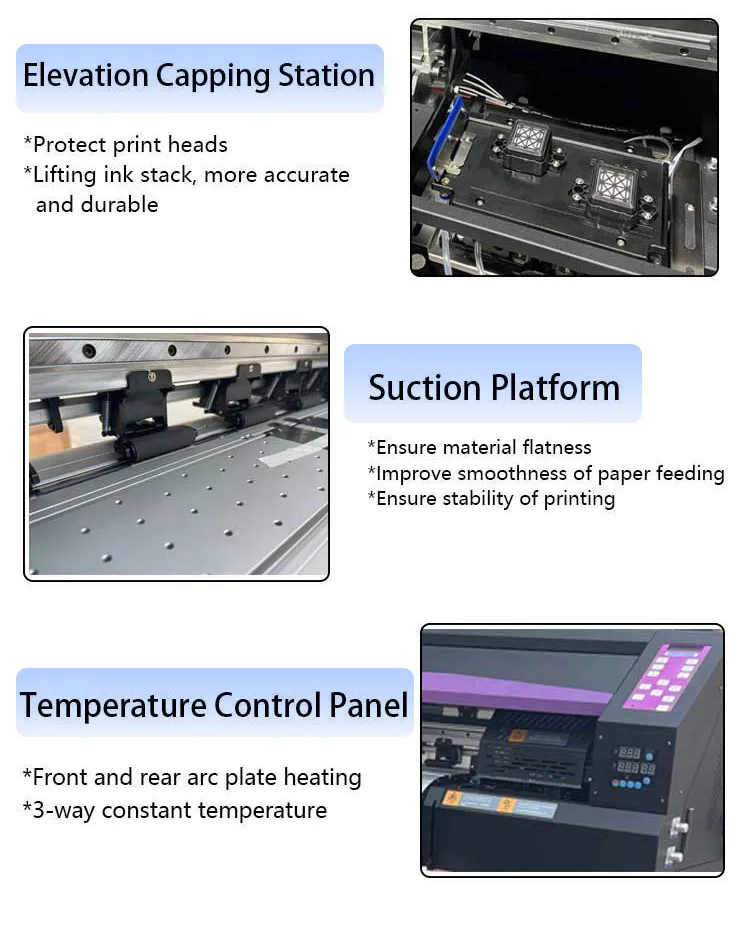

| Platform Suction |
Adsorbs materials to prevent film arching and scratching the nozzle. |
| Ink Management |
Reduces ink precipitation with accurate stirring speed control. |
| Automatic Cleaning |
One-key automatic cleaning makes nozzle maintenance easy and efficient. |
| Ink Station |
Integrated auto-lifting ink station for simple adjustment and maintenance. |

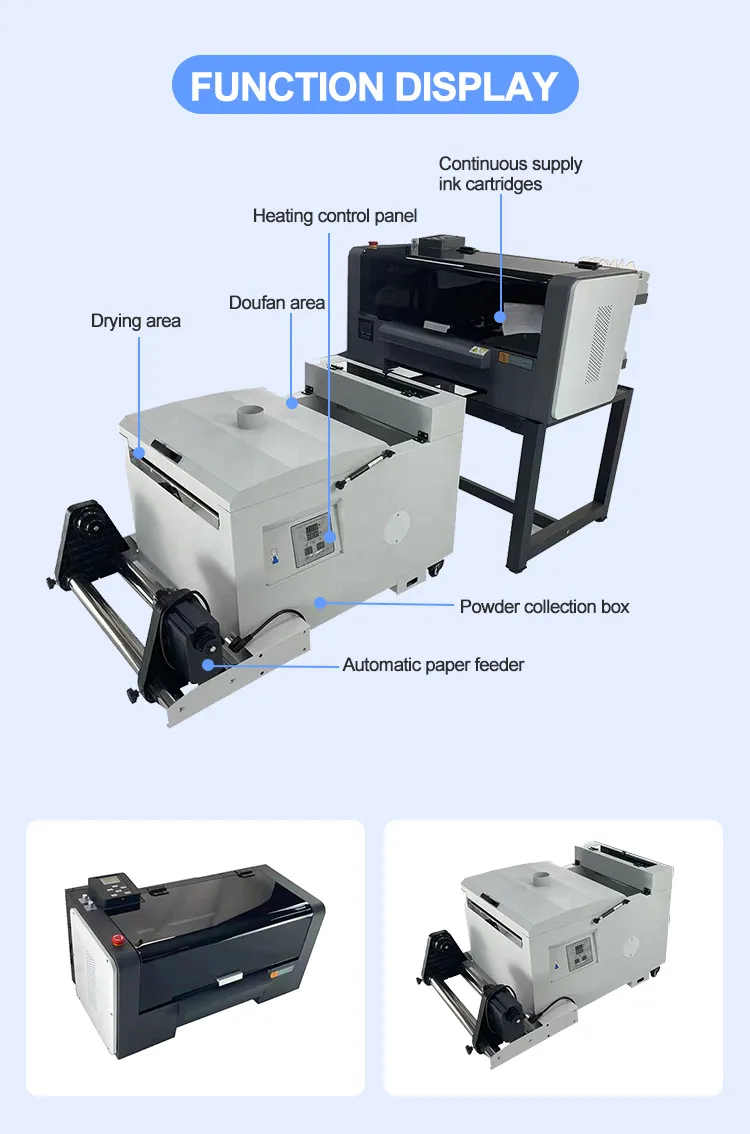

🖼️ Product Visuals
📋 Application & Media
Transfer Media Compatibility:
Nylon, chemical fiber, cotton, leather, swimsuit, diving suit, PVC, EVA, and more.
❓ Frequently Asked Questions
What materials can this DTF printer work with?
The machine is highly versatile and works with Nylon, chemical fiber, cotton, leather, swimsuits, diving suits, PVC, EVA, and other textile materials.
What is the maximum printing width of the GS302?
The printer supports a printing width ranging from 310mm to 330mm, ideal for A3 size PET film applications.
How does the white ink system prevent clogging?
It features a dedicated white ink circulation and stirring system combined with an ink shortage alarm to ensure smooth flow and minimize nozzle clogging.

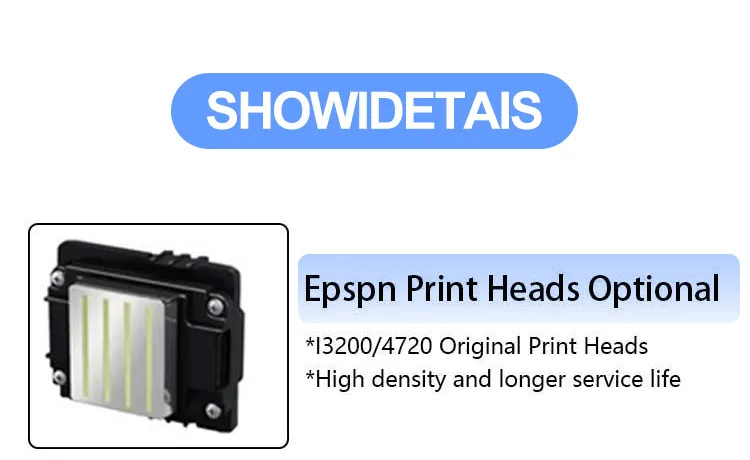

Which print heads are compatible with this machine?
The GS302 supports high-performance print heads including XP600, i1600, and i3200*2 configurations.
What software and systems are required?
The printer uses Maintop or PP RIP software and is compatible with Windows 7 and Windows 10 operating systems via a Gigabit Ethernet port.
Does the printer have heating functions?
Yes, it includes a three-section heating system (pre-heater, printing bed heater, and rear heater) to ensure stable printing results even in cold environments.
