Colvanta Print
1 / 5

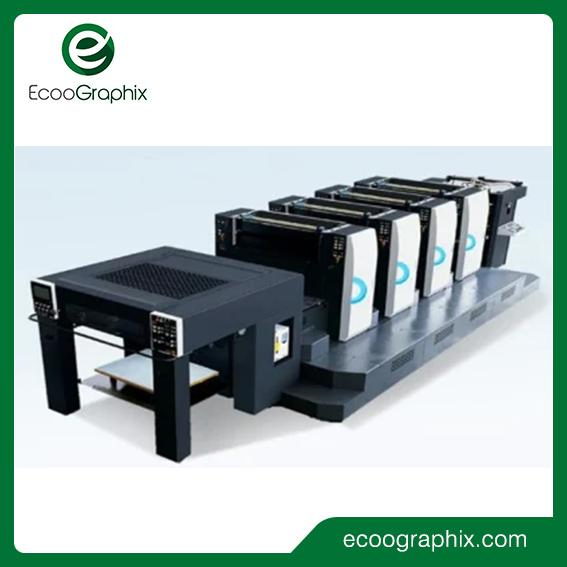

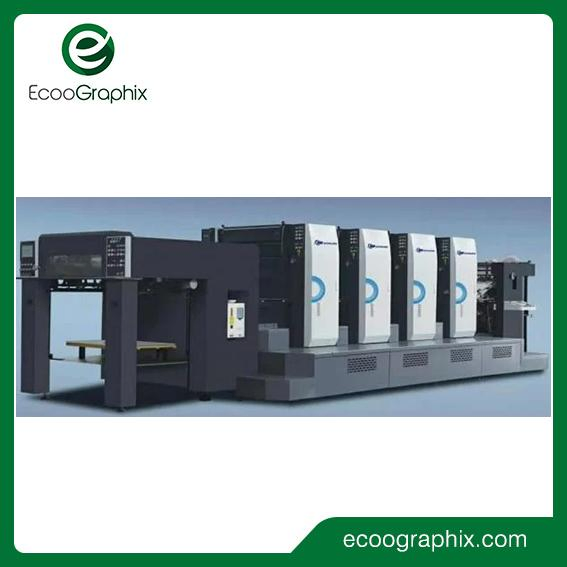

The folio four-color offset printing machine features short water and ink roller distances to enable more economical printing with low, or no, alcohol. It is perfectly suitable for ultra-wide format and 0.8 mm thick paper, reaching speeds of 13,000 sheets per hour for high-production packaging printing.
| Specification Item | Details |
|---|---|
| Max. Sheet size | 740*1050mm |
| Min. Sheet size | 360*520mm |
| Machine Speed | 13000 sph |
| Paper Thickness | 0.06 - 0.8mm |
| Max. Image Area | 720*1020mm |
| Plate Size | 788*1050*0.3mm |
| Blanket Size | 910*1060*1.95mm |
| Motor Power | 37kw |
| Machine Weight | 36000kg |
| Overall Dimensions | 9560*3450*2150mm |
Adopts negative pressure adsorption and movable vacuum gauges. Simplifies pressure adjustments for different paper thicknesses and eliminates scratches on the printed front surface.
Features real-time online ink color adjustment with a storage capacity for thousands of color settings. Supports CIP3/CIP4 communication protocols for modern workflow integration.
Three-roll short waterway design for faster water supply and low alcohol consumption. Features frequency conversion drive and automated cleaning programs.
High-resolution touch screen with integrated production management. Offers a humanized interface for simple, clear, and fast response operation.
