Product Description

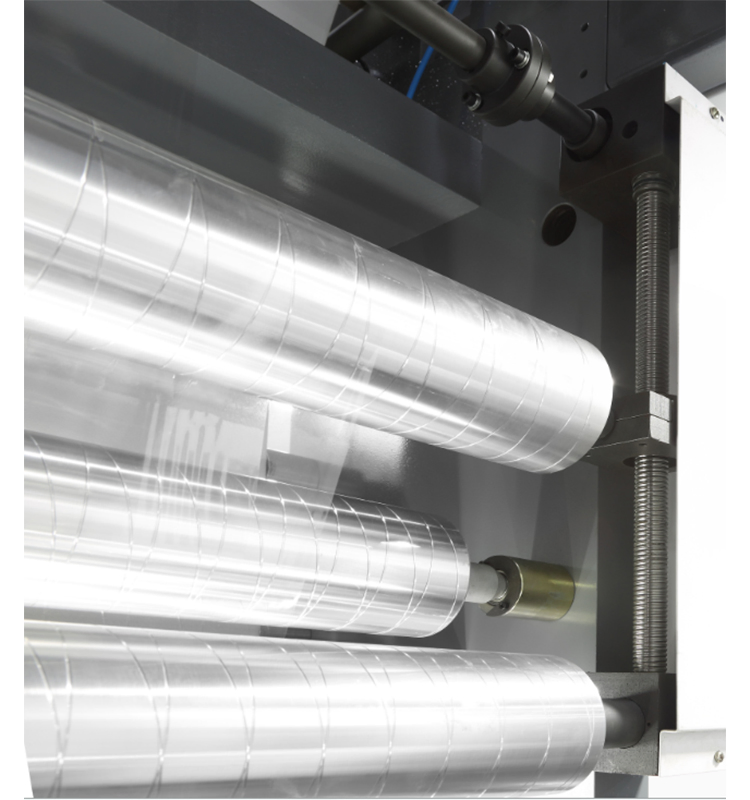

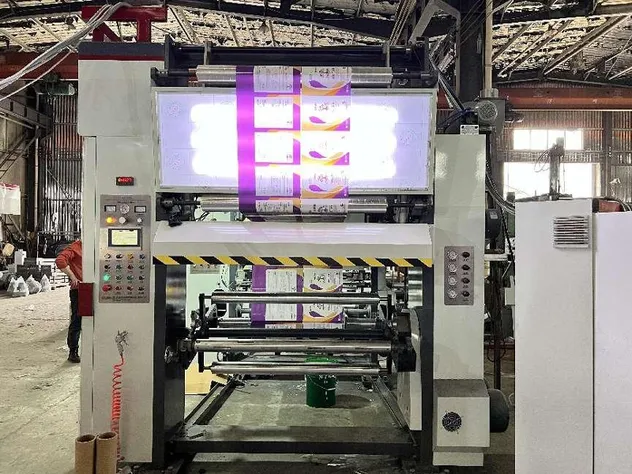

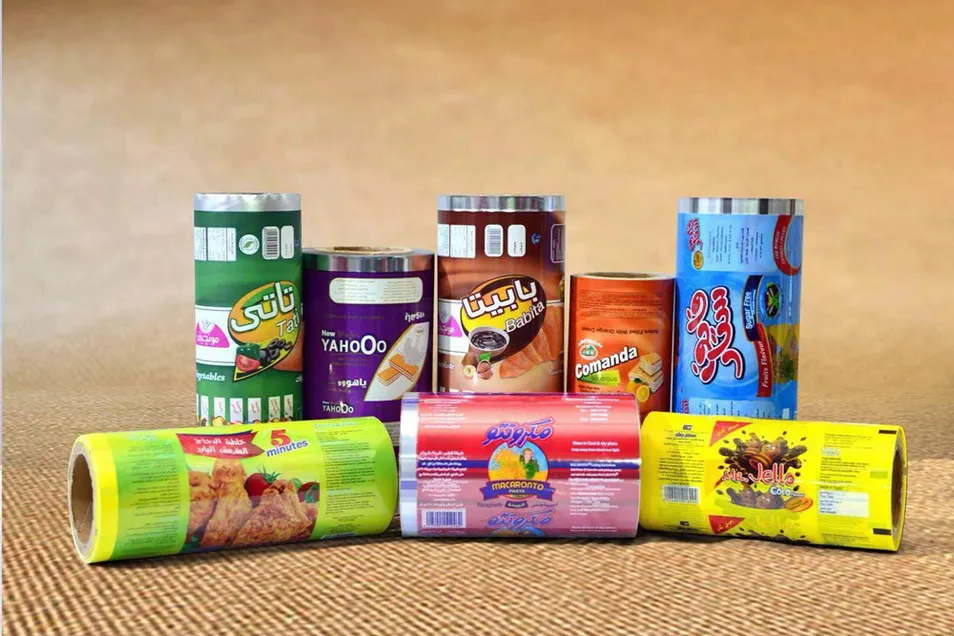

This machine is used to print BOPP, PET, PVC, PE, CPP, nylon, paper, aluminum foil etc. Max printing speed 150m/min, automatic register with video inspection monitor, automatic splicing at both unwind and rewind, whole machine PLC control with touch screen.

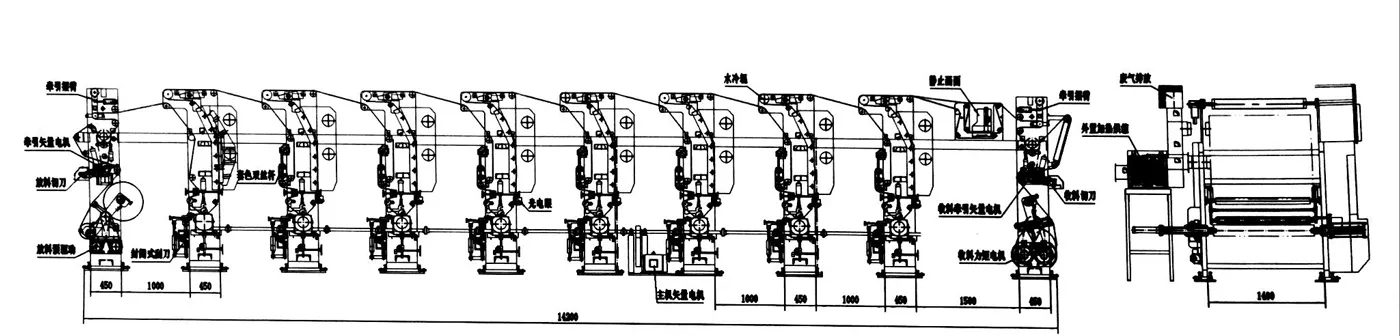

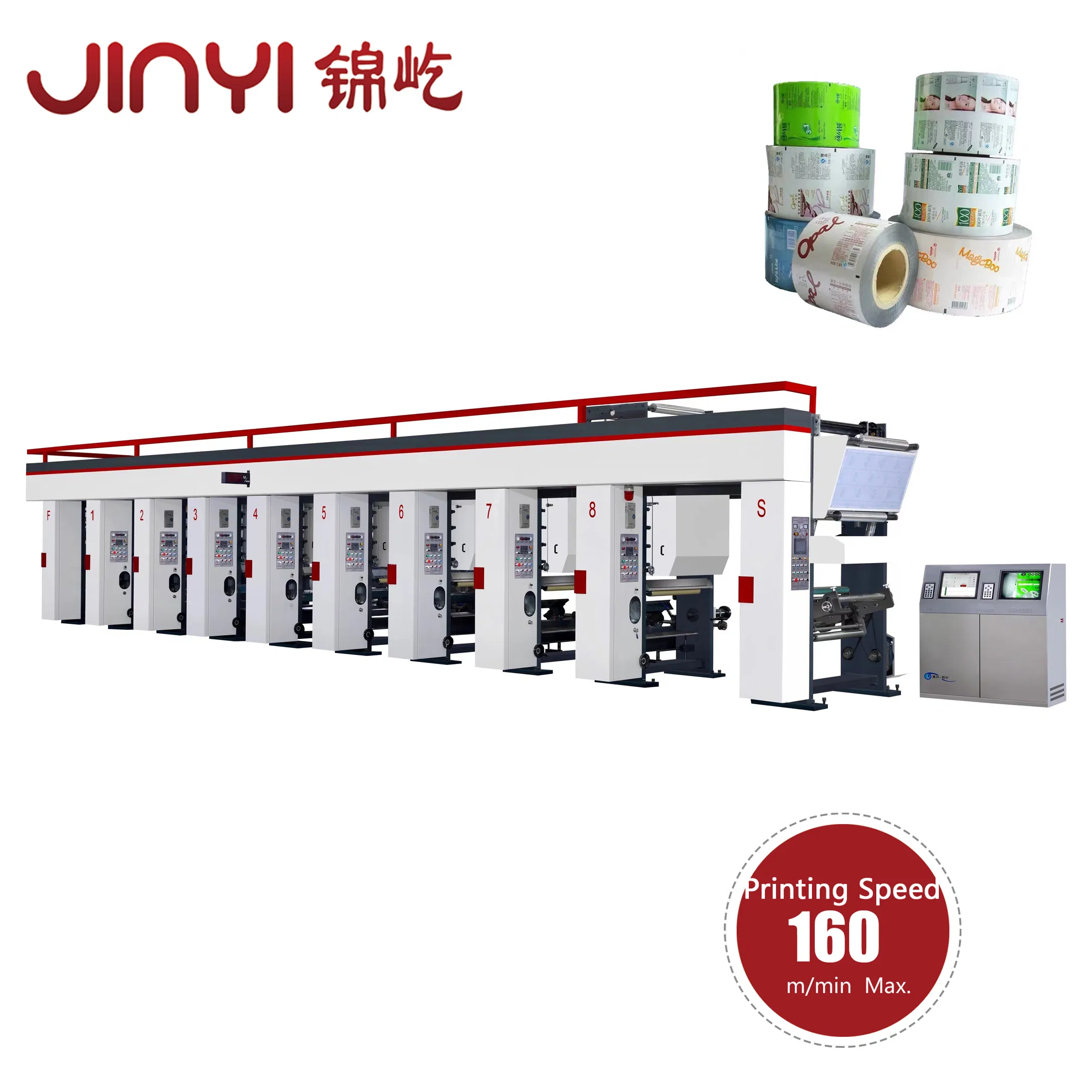

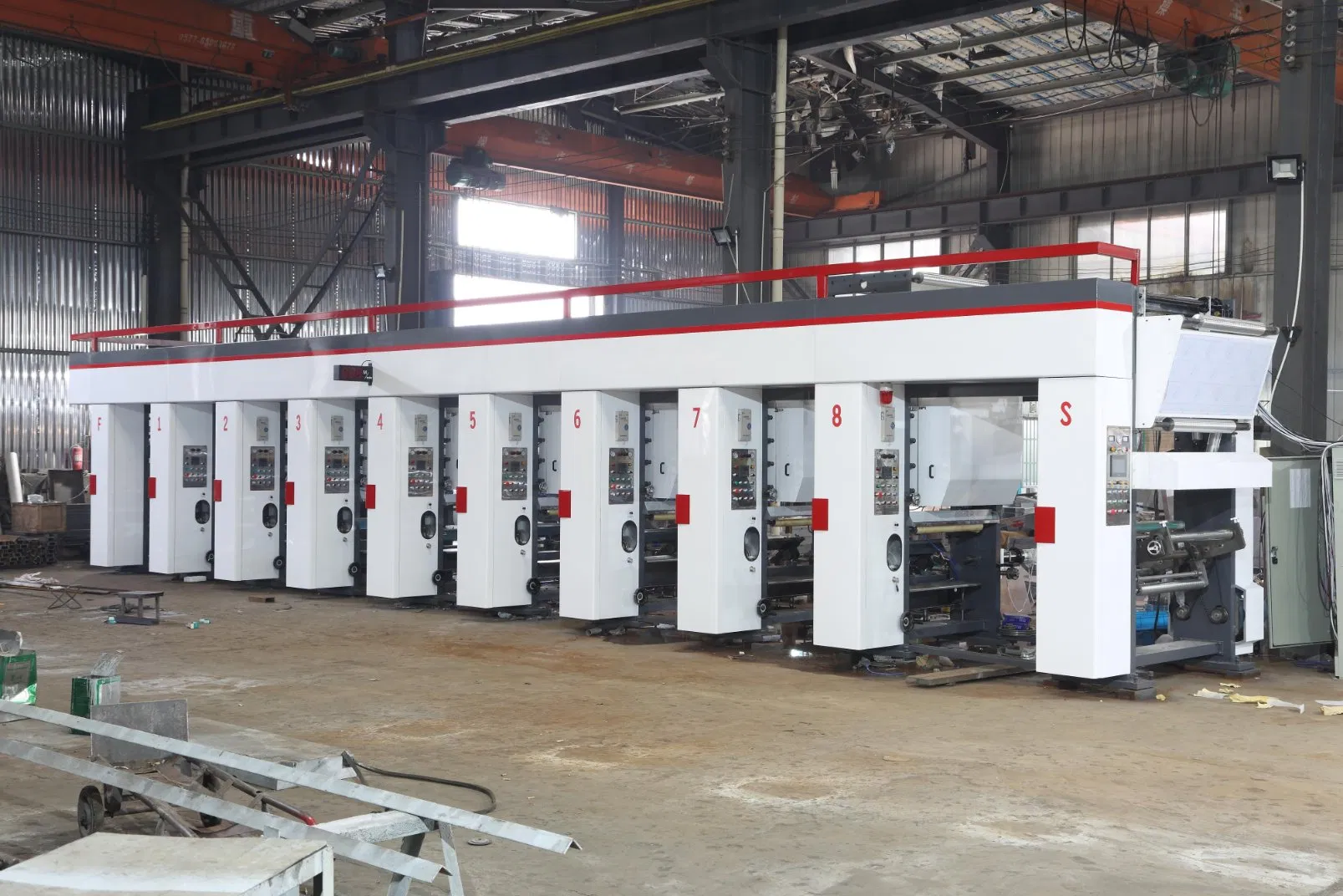

Machine Details (8 Colors)

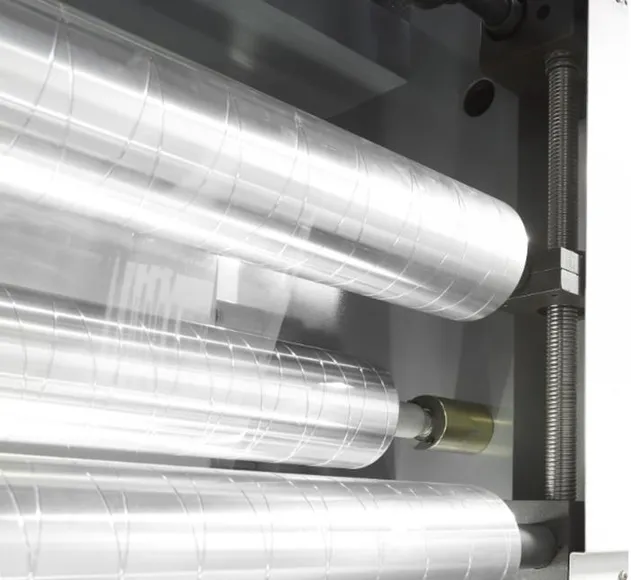

Composed of an electrical system and a plate roller drive section. Features inside unwind and rewind shafts across 10 units.
Machine Features
Independent chassis without connection
Whole machine PLC control with three servo motors
Automatic splicing and cutting at unwind/rewind
Shaftless pneumatic printing cylinder installation

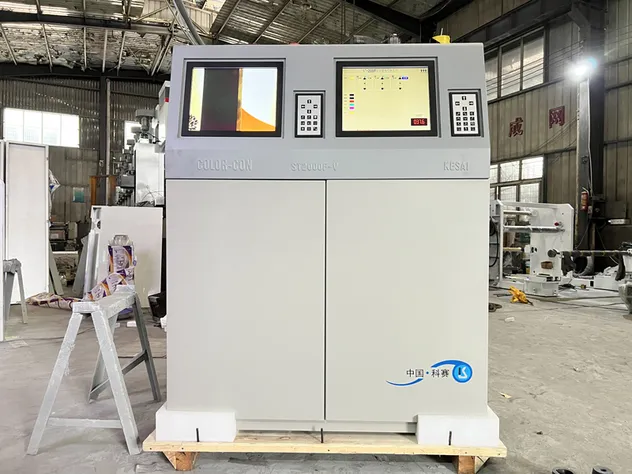

Automatic computer register with video inspection

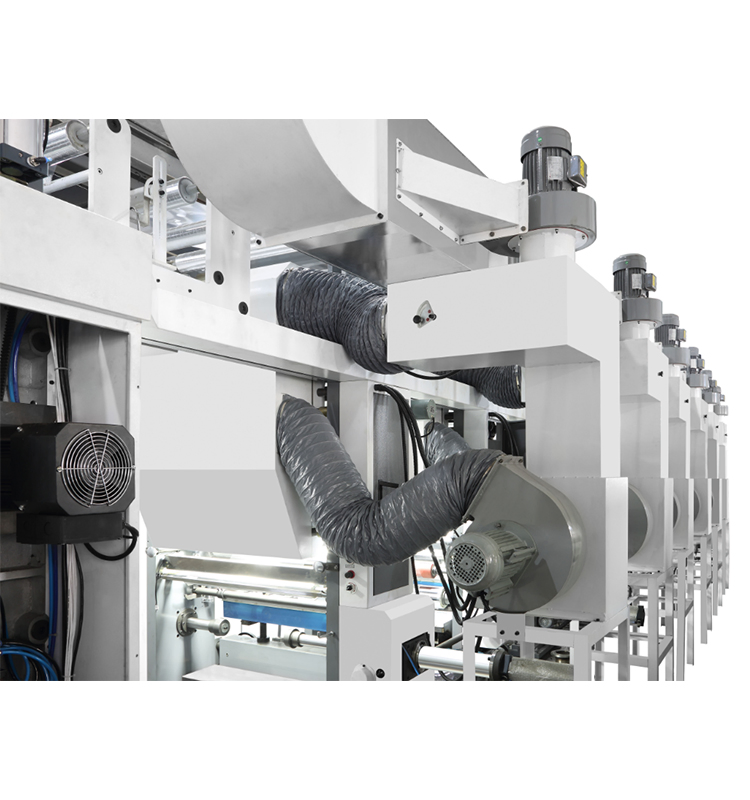

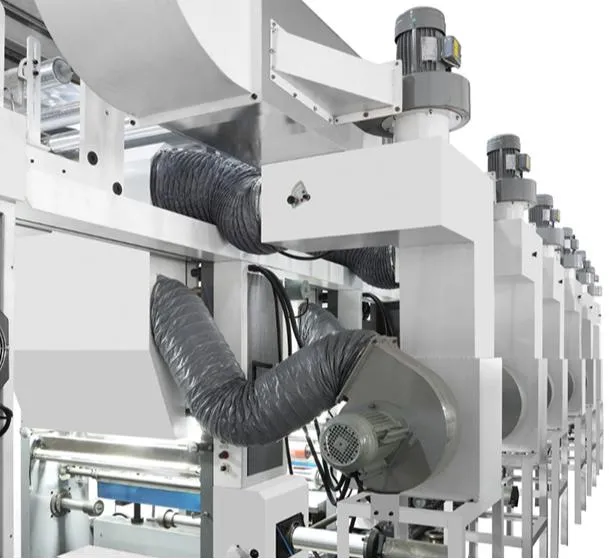

Independent drying and suction exhausting system
Water cooling and air cooling systems

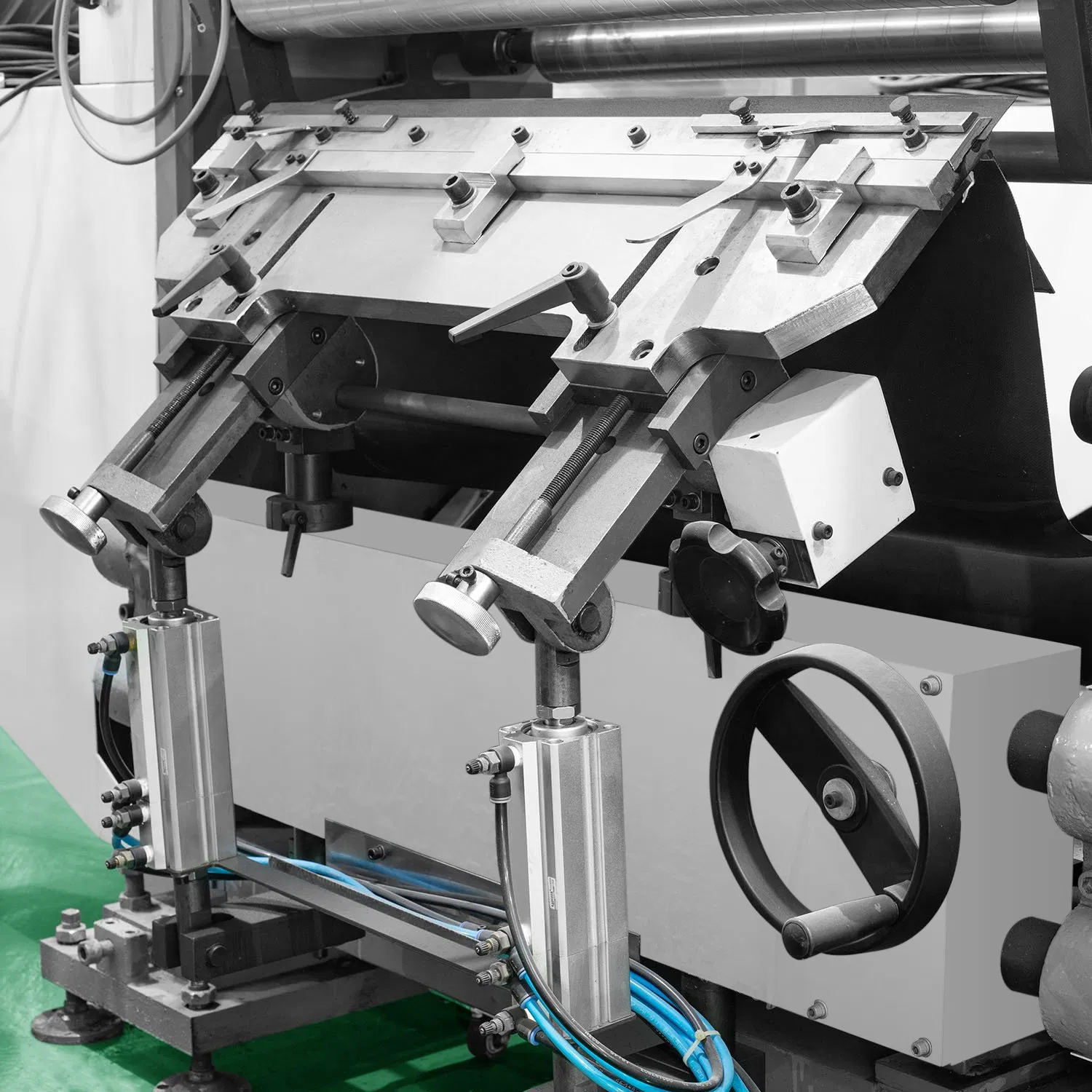

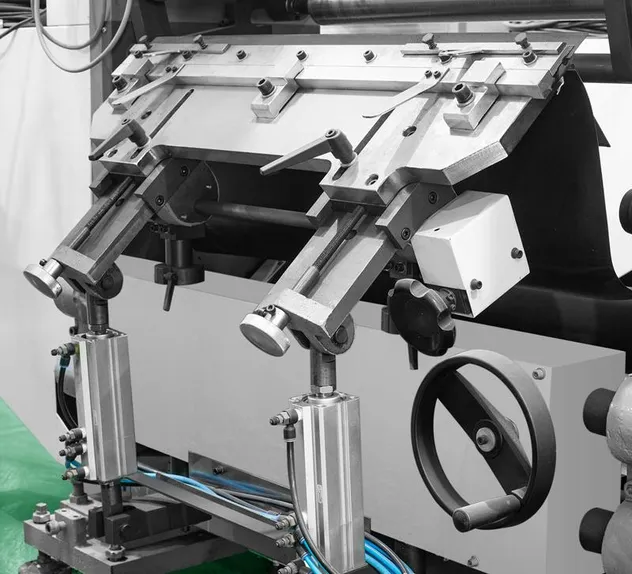

Pneumatic box type doctor blade & ink pump
🏢
Production Capabilities

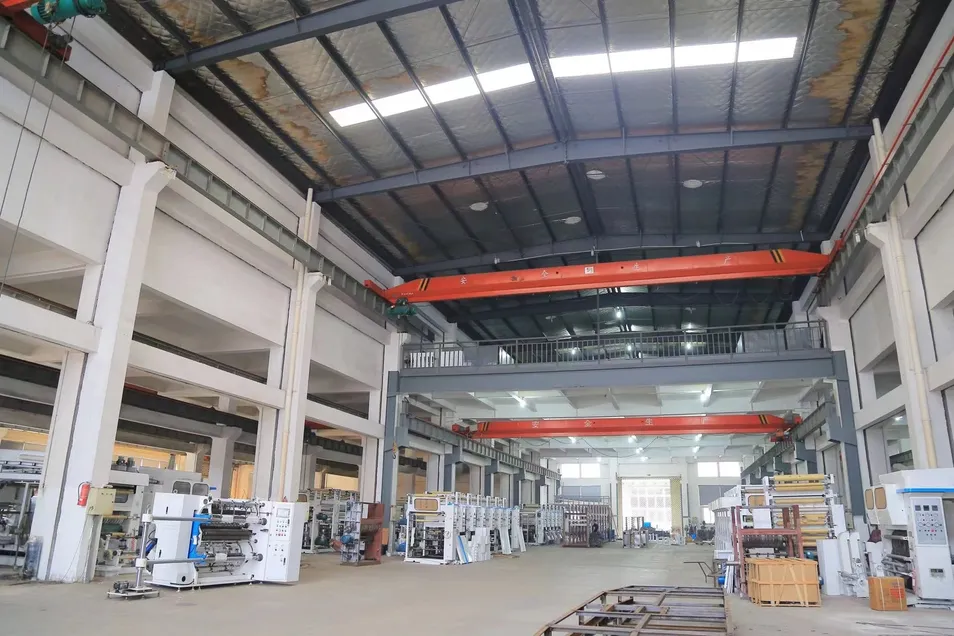

Specialized in producing plastic soft packing and paper printing equipment. We provide research, development, and production of rotogravure printing machines, slitting machines, laminating machines, and plastic bag making machines. We also offer OEM/ODM capabilities and turnkey project solutions.
Frequently Asked Questions
Q1: What materials are suitable for this printing machine?
The machine is compatible with a wide range of roll materials including BOPP (18-100um), PET (5-100um), PVC (15-60um), CPP (15-60um), PE (15-100um), paper (18-80g), and composite films.
Q2: What is the standard lead time for an order?
Standard machines are generally delivered within 30 working days after deposit. Non-standard or customized equipment typically requires about 45 working days.
Q3: How is the tension controlled during the printing process?
The machine uses a whole-machine PLC control with a three-servo motor system. It features double magnetic powder brakes for automatic tension control and floating rollers to ensure a tension accuracy of ±0.3Kg.
Q4: What kind of after-sales support do you provide?
We offer a one-year warranty and lifetime maintenance services. Support includes sending spare parts, remote maintenance assistance, and dispatching personnel for on-site repairs if necessary.
Q5: How are the machines packaged for international shipping?

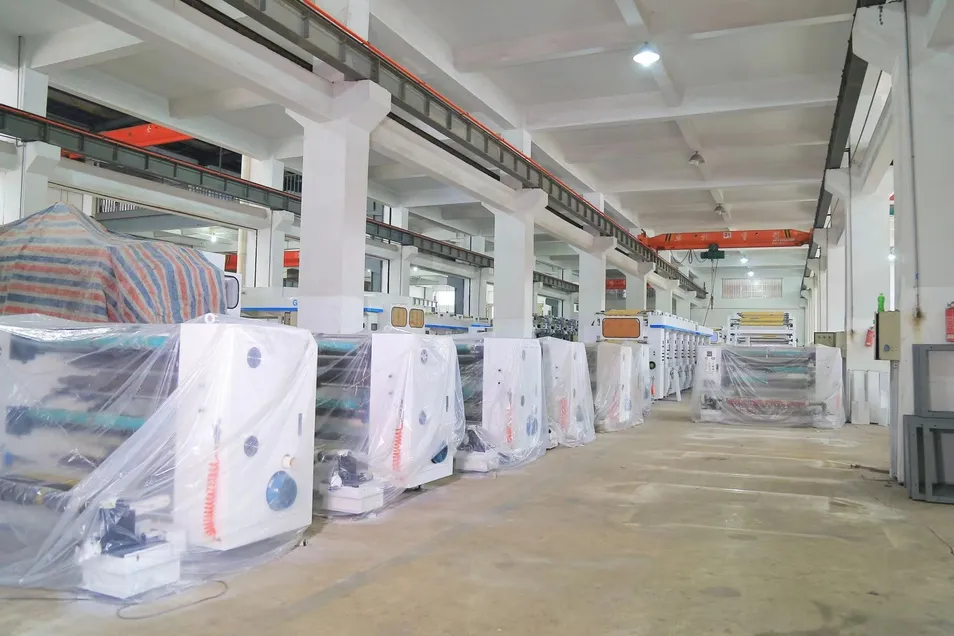

Before shipping, products undergo strict vacuum packaging and are secured on a reinforced bottom tray (wooden or steel) to ensure protection during maritime transport.
Q6: Can the number of printing colors be customized?
Yes, while our standard models often feature 8 colors, customers can request to increase or decrease the number of color units according to their specific production needs.
