Main Features:

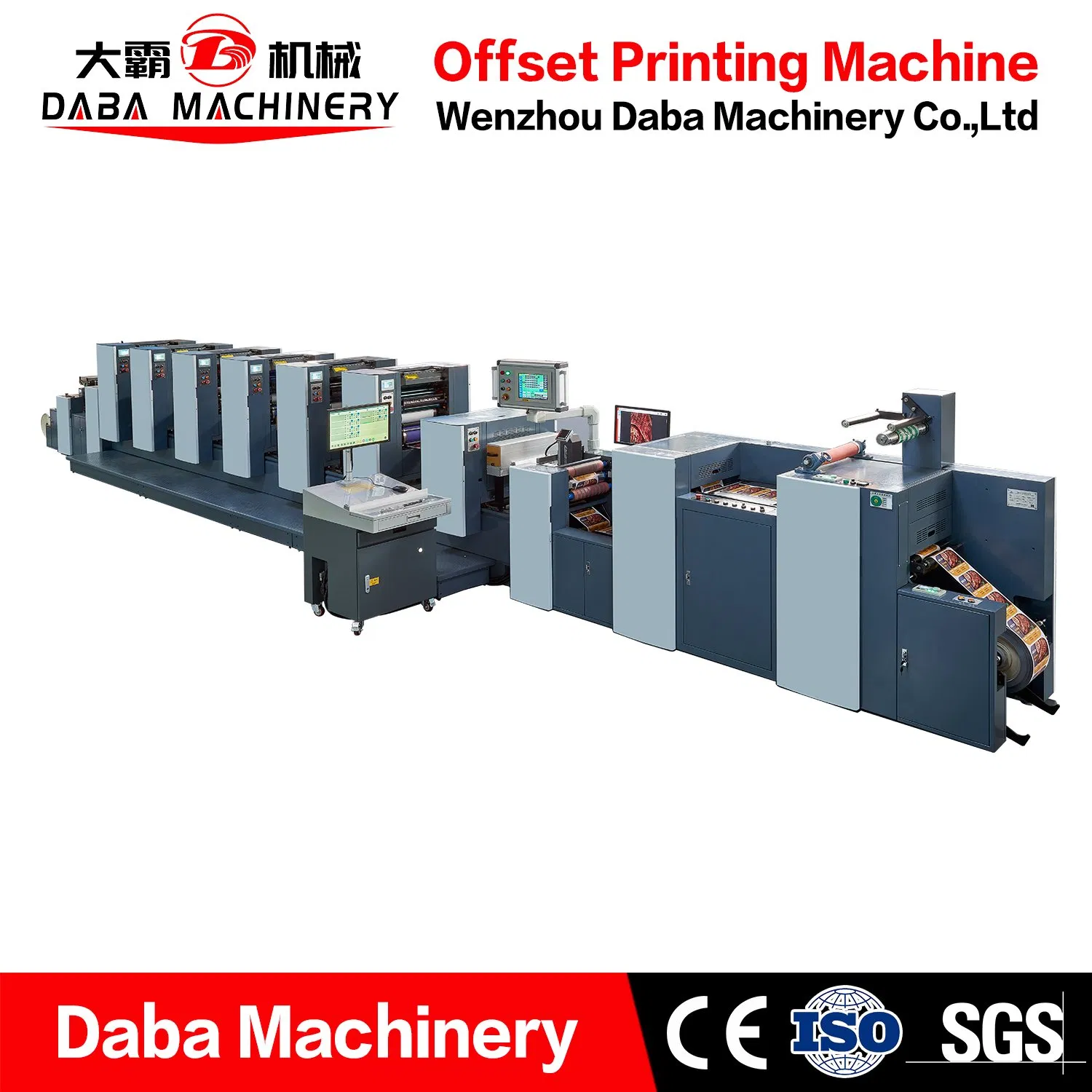

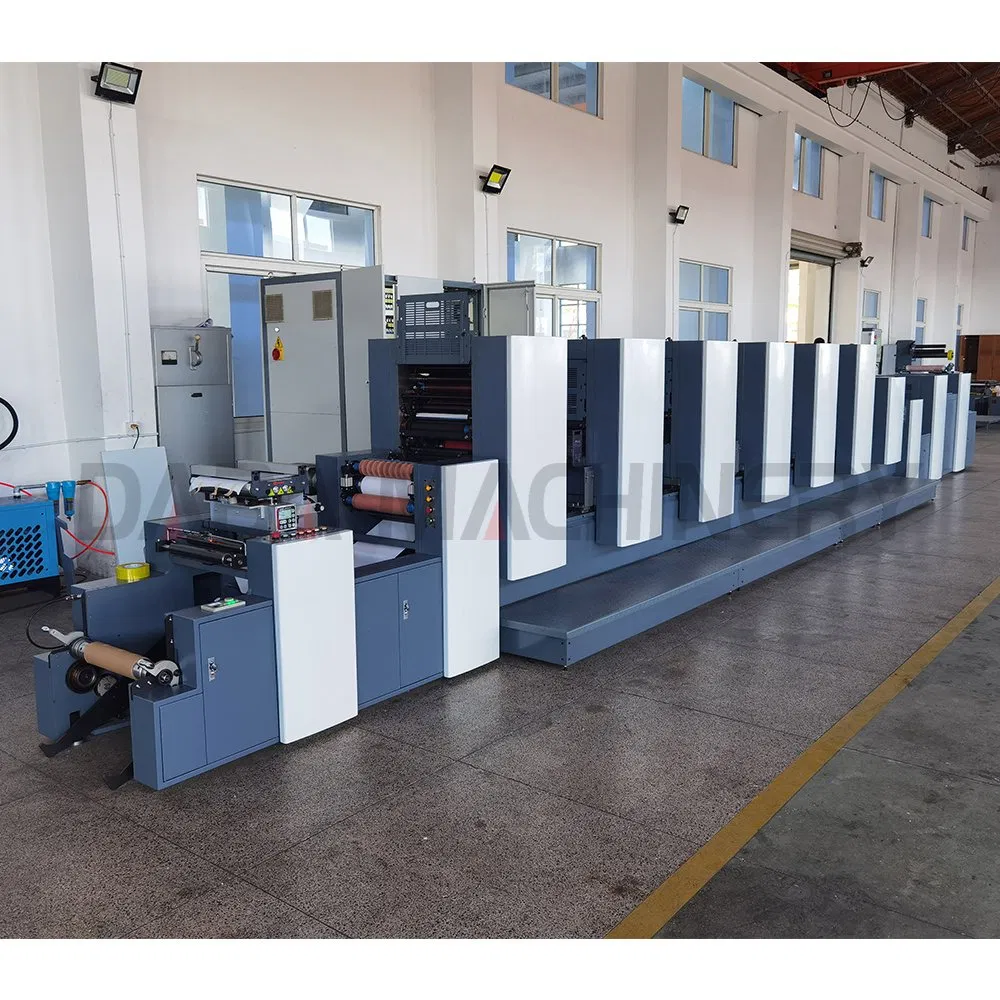

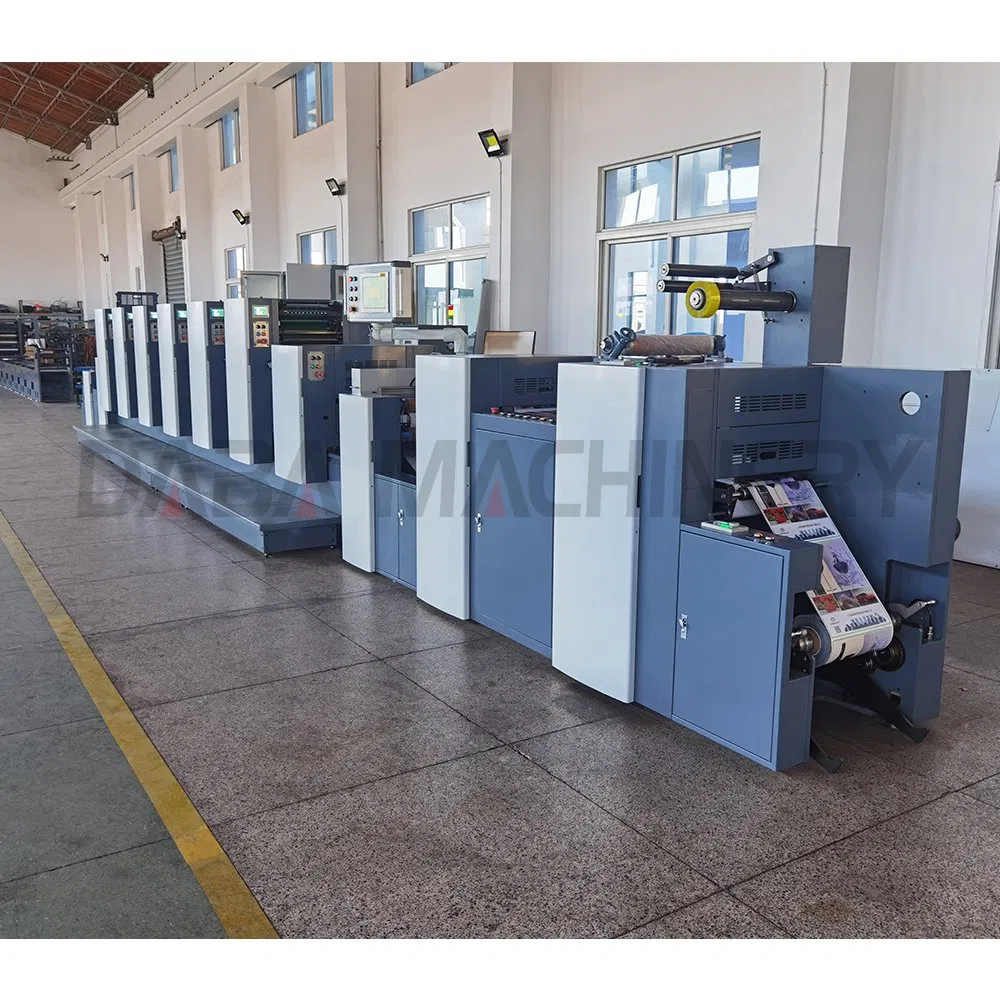

Intermittent Label Offset Printing Machine adopts the latest servo control system which can ensure the material nip steady and accuracy. It is free from printing roller changes, making operation faster, convenient, and simple. PS plate intermittent printing meets high-level label demands from short to long runs.
Machine Parameter
Model
DBJY-320
DBJY-450
Printing speed
50-180 rpm/min
50-150 rpm/min
Printing color
4-10 colors
4-10 colors
Max. printing length
350mm
380mm
Max. web width
320mm
470mm
Max. printing width
300mm
450mm
Max. unwinding diameter
700mm
700mm
Max. rewinding diameter
600mm
600mm
Total power
33.6kw
40kw
Dimensions (L×W×H)
10550×1600×1800mm
11150×1700×1800mm

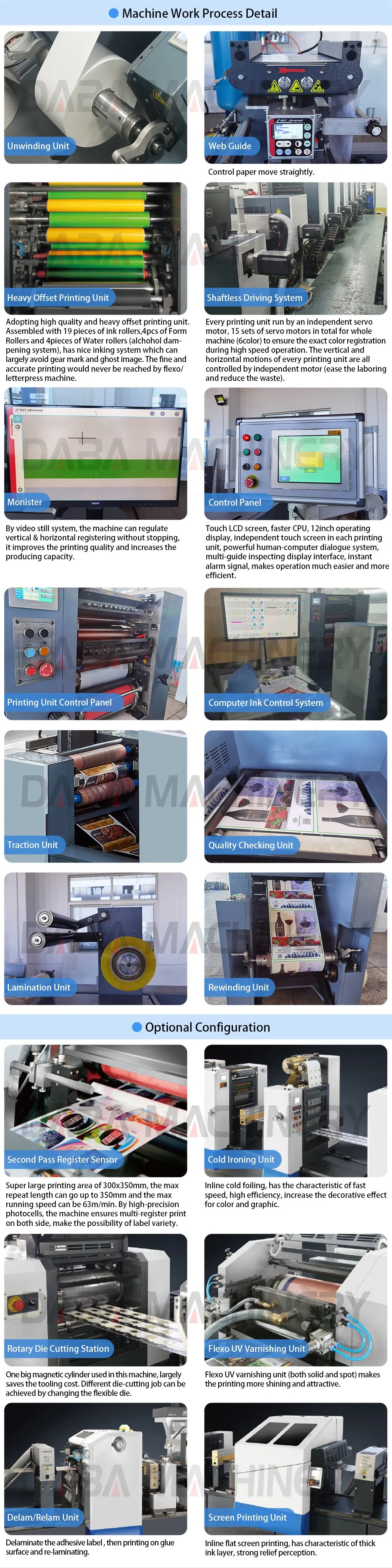

Configuration & Options

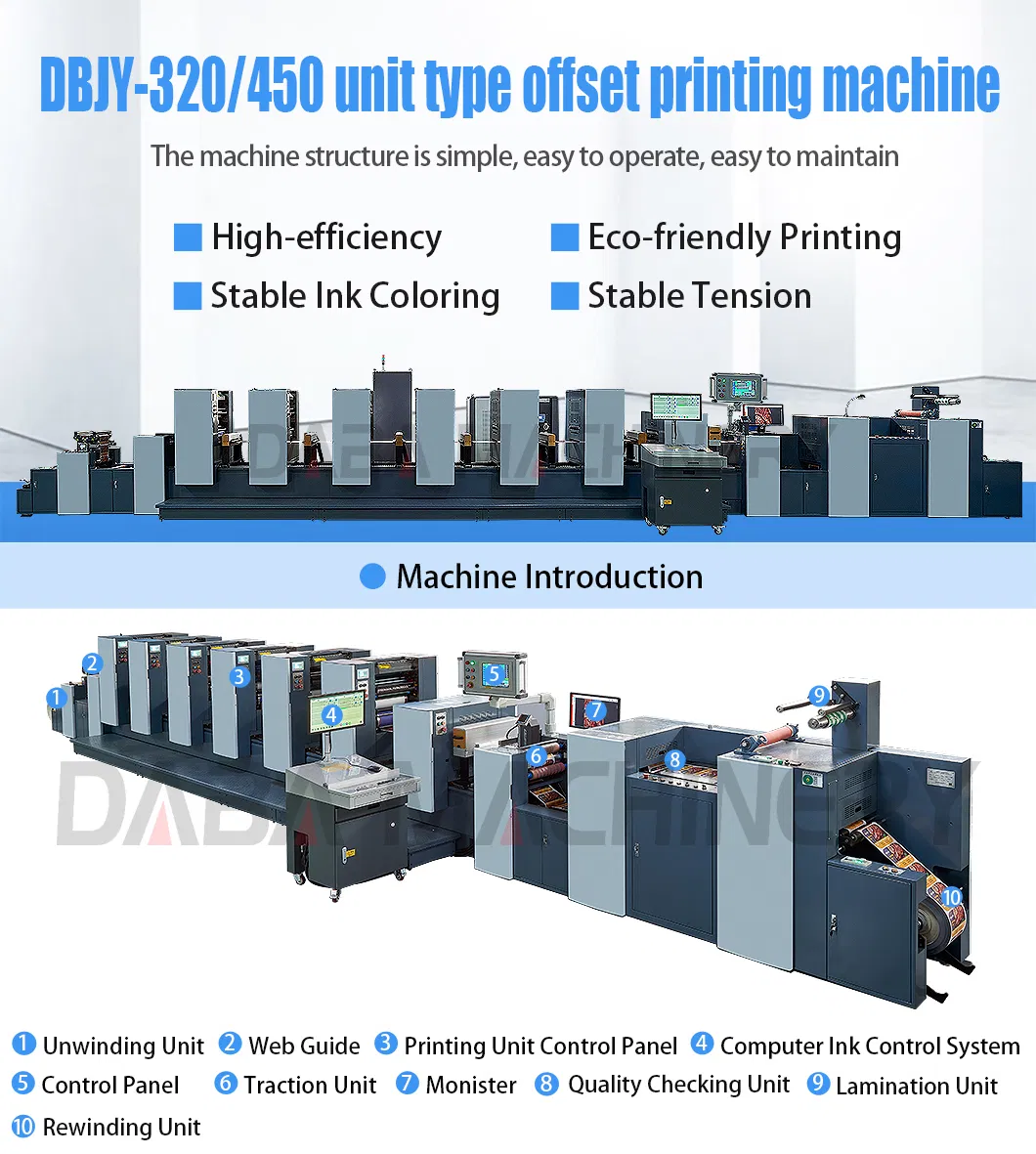

Standard Configuration
1. Unwinding Unit
Heavy duty stable material feeding.
2. Web Guide
Ensures high-precision straight paper movement.
3. Offset Printing Unit
19 pieces of ink rollers and alcohol dampening system.
4. Shaftless Driving
Independent servo motors for every unit (15 sets total).
5. Video Inspection
Regulate registering without stopping the machine.
6. Touch Screen
12-inch LCD with independent unit controls.
Optional Configuration
1. Second Pass Sensor
Enables multi-register printing on both sides.
2. Cold Foiling Unit
Fast inline decorative effects for graphics.
3. Rotary Die Cutting
Magnetic cylinders to save tooling costs.
4. UV Varnishing
Spot or solid varnishing for attractive finishes.

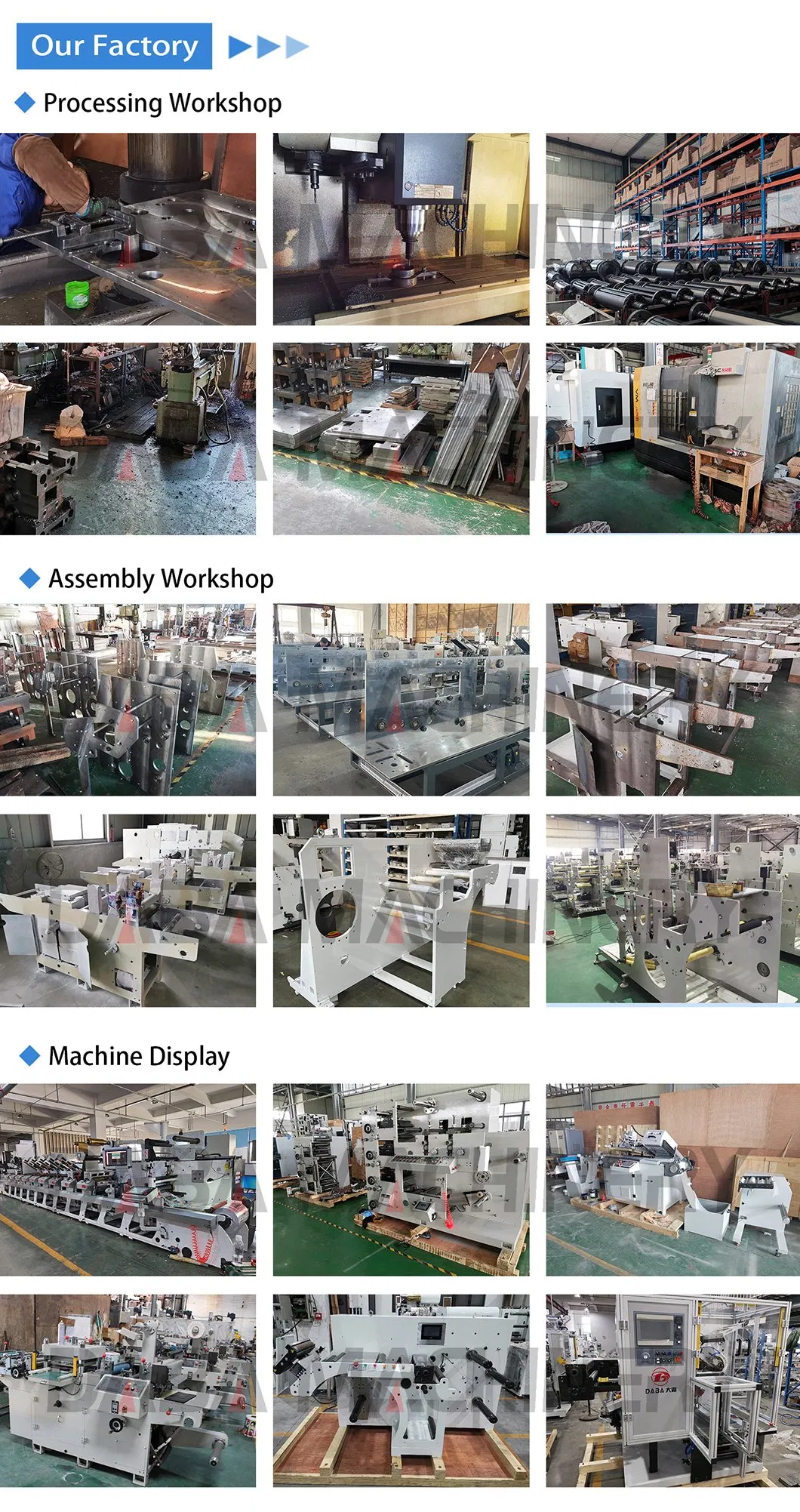

As a professional manufacturer with over a decade of expertise, our equipment range covers self-adhesive label production lines, flexo printing machines, and high-speed slitting solutions. All machines are ISO9001 and CE certified, ensuring superior design and productivity for global markets including Asia, Europe, and the Americas.
Frequently Asked Questions
What is the typical delivery date for the machine?
Production is usually completed within 30 days after the 30% advanced payment, depending on the current production schedule and stock.
What are your standard payment terms?
We accept T/T (30% in advance and 70% before shipment), L/C at sight, and Cash payments.
How long does the installation and training process take?
Our technical team typically finishes the installation and operator training within 15 days.
What is the warranty period for this printing machine?
All machines come with a one-year guarantee, starting from the date the installation is completed.
How are replacement parts handled during the warranty period?
If any parts are found to be broken within the warranty period, we will provide free replacement parts via express shipping.
How many workers are required to operate these machines?
For flexo printing, slitting, and die-cutting operations, only one trained person is required per machine.
